INOX-F15C-ULT3 Stainless Panel PC
MODEL:
INOX-F15C-ULT3
Stainless Steel Panel PC with Intel® Core™ i5-6300U /
Celeron® 3955U CPU, Touchscreen, USB 2.0, Dual GbE LAN,
RS-232/422/485, IP 69K Front Panel and RoHS
Rev. 1.00 - January 18, 2018
User Manual
User Manual
Page I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INOX-F15C-ULT3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IEI Technology INOX-F15C-ULT3

  • Page 1 INOX-F15C-ULT3 Stainless Panel PC MODEL: INOX-F15C-ULT3 Stainless Steel Panel PC with Intel® Core™ i5-6300U / Celeron® 3955U CPU, Touchscreen, USB 2.0, Dual GbE LAN, RS-232/422/485, IP 69K Front Panel and RoHS User Manual User Manual Page I Rev. 1.00 - January 18, 2018...
  • Page 2 INOX-F15C-ULT3 Stainless Panel PC Revision Date Version Changes January 18, 2018 1.00 Initial release Page II...
  • Page 3 INOX-F15C-ULT3 Stainless Panel PC Safety Instructions Warning! Read the user manual before connecting the system to the power source. Vorsicht! Bitte lesen Sie die Bedienungsanleitung, bevor Sie das System an eine Stromquelle anschließen. Attention! Avant de brancher le système à la source d'alimentation, consultez le mode d'emploi.
  • Page 4 INOX-F15C-ULT3 Stainless Panel PC Warning! Use only the adapter and power cord approved for this system. Use of another type of adapter may risk fire or explosion. Please refer to the user manual for the power adapter specifications. Vorsicht! Nur zugelassene Netzteile und Netzkabel dürfen verwendet werden. Die Benutzung von anderen Netzteilen kann einen Brand oder eine Explosion zur Folge haben.
  • Page 5 INOX-F15C-ULT3 Stainless Panel PC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 6 INOX-F15C-ULT3 Stainless Panel PC Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product.
  • Page 7: Table Of Contents

    INOX-F15C-ULT3 Stainless Panel PC Table of Contents 1 INTRODUCTION ......................1 1.1 O ........................2 VERVIEW 1.2 M ....................3 ODEL ARIATIONS 1.3 F ........................3 EATURES 1.4 F ......................4 RONT ANEL 1.5 R ....................... 5 ANEL 1.6 S ....................
  • Page 8 INOX-F15C-ULT3 Stainless Panel PC 4.1 I ......................29 NTRODUCTION 4.1.1 Starting Setup ....................29 4.1.2 Using Setup ...................... 29 4.1.3 Getting Help ..................... 30 4.1.4 BIOS Menu Bar ....................30 4.2 M ........................31 4.3 A ....................... 32 DVANCED 4.3.1 ACPI Settings ....................33 4.3.2 F81866 Super IO Configuration ..............
  • Page 9 INOX-F15C-ULT3 Stainless Panel PC B.1.1 General Safety Precautions ................67 B.1.2 Anti-static Precautions ..................68 B.1.3 Product Disposal ..................... 69 B.2 M ............70 AINTENANCE AND LEANING RECAUTIONS B.2.1 Maintenance and Cleaning ................70 B.2.2 Cleaning Tools ....................70 C BIOS MENU OPTIONS ..................... 72 D WATCHDOG TIMER ....................
  • Page 10 INOX-F15C-ULT3 Stainless Panel PC List of Figures Figure 1-1: INOX-F15C-ULT3 Stainless Steel Panel PC .............. 2 Figure 1-2: Front View ........................4 Figure 1-3: Rear Panel ........................5 Figure 1-4: Dimensions (mm) ......................8 Figure 3-1: HDD Panel Retention Screws .................. 16 Figure 3-2: HDD Installation ......................
  • Page 11 INOX-F15C-ULT3 Stainless Panel PC List of Tables Table 1-1: Model Variations ......................3 Table 1-2: System Specifications ....................7 Table 3-1: RS-232/422/485 Connector Pinouts ................18 Table 3-2: RS-232/422/485 Serial Port Pinouts ................19 Table 3-3: LAN Connector Pinouts ..................... 20 Table 3-4: USB 2.0 Connector Pinouts ..................
  • Page 12 INOX-F15C-ULT3 Stainless Panel PC List of BIOS Menus BIOS Menu 1: Main ........................31 BIOS Menu 2: Advanced ......................32 BIOS Menu 3: ACPI Settings ....................... 33 BIOS Menu 4: F81866 Super IO Configuration ................34 BIOS Menu 5: Serial Port n Configuration ................. 34 BIOS Menu 6: F81866 H/W Monitor .....................
  • Page 13: Introduction

    INOX-F15C-ULT3 Stainless Panel PC Chapter Introduction Page 1...
  • Page 14: Overview

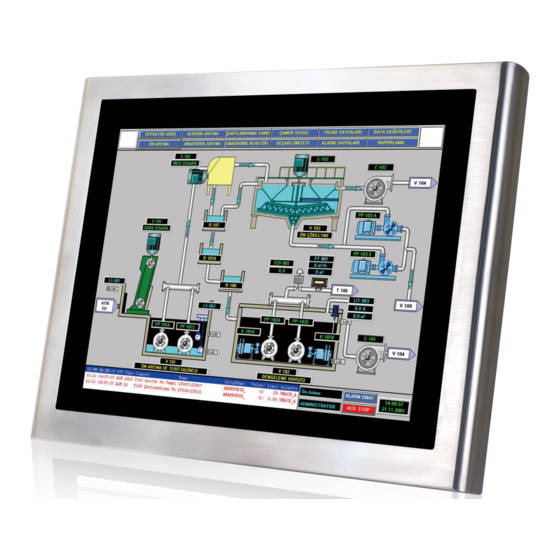

    Celeron 3955U powered stainless steel panel PC with a rich variety of functions and peripherals. The stainless steel design and the IP69K compliant front panel make the INOX-F15C-ULT3 an ideal system for use in high temperature, high pressure environment. ®...
  • Page 15: Model Variations

    INOX-F15C-ULT3 Stainless Panel PC 1.2 Model Variations There are several models in the INOX-F15C-ULT3 series. The model numbers and model variations are listed below. Model Size Processor Touchscreen ® ® INOX-F15C-ULT3-C/R/4G 15” Intel Celeron 3955U Resistive type ® ® INOX-F15C-ULT3-C/PC/4G 15”...
  • Page 16: Front Panel

    INOX-F15C-ULT3 Stainless Panel PC 1.4 Front Panel The front side of the INOX-F15C-ULT3 is a panel with a TFT LCD touchscreen surrounded by a stainless steel frame (Figure 1-2). The front panel is IP69K compliant to withstand high temperature and high pressure wash-down.
  • Page 17: Rear Panel

    INOX-F15C-ULT3 Stainless Panel PC 1.5 Rear Panel The rear panel of the INOX-F15C-ULT3 has the following connectors and switches. The rear panel also provides access for installing a 2.5” SATA SSD. Figure 1-3: Rear Panel Page 5...
  • Page 18: System Specifications

    INOX-F15C-ULT3 Stainless Panel PC 1.6 System Specifications The technical specifications for the INOX-F15C-ULT3 systems are listed in Table 1-2. Specification INOX-F15C-ULT3 LCD Size 15" Max. Resolution 1024 (W) x 768 (H) Brightness (cd/m Contrast Ratio 800:1 LCD Color 16.2M Pixel Pitch (H x V) (mm) 0.297 x 0.297...
  • Page 19: Table 1-2: System Specifications

    INOX-F15C-ULT3 Stainless Panel PC Thermal Design Fanless VESA Mount 100 mm x 100 mm (with M4 screws) Net/Gross Weight 6.9 kg / 9.8 kg Dimensions (W x H x D) 414.0 mm x 328.4 mm x 51.9 mm Operating Temperature -20ºC ~ 50ºC...
  • Page 20: Dimensions

    INOX-F15C-ULT3 Stainless Panel PC 1.7 Dimensions The dimensions of the INOX-F15C-ULT3 are shown below. Figure 1-4: Dimensions (mm) Page 8...
  • Page 21: Unpacking

    INOX-F15C-ULT3 Stainless Panel PC Chapter Unpacking Page 9...
  • Page 22: Unpacking

    If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the INOX-F15C-ULT3 was purchased from or contact an IEI sales representative directly by sending an email to sales@ieiworld.com.
  • Page 23 INOX-F15C-ULT3 Stainless Panel PC The INOX-F15C-ULT3 panel PC is shipped with the following components: Quantity Item Image INOX-F15C-ULT3 panel PC Power cable USB cable Ferrite core for USB cable Flat-head screw (M3*5) Pan-head screw (6#32*8) with Nylok Touch Pen (resistive type only)
  • Page 24: Optional Items

    INOX-F15C-ULT3 Stainless Panel PC Utility CD One Key Recovery CD 2.3 Optional Items The following are optional components which may be separately purchased: NOTE: It is recommended that each M12 cable should be installed with a ferrite core to reduce EMI. Therefore, be sure to purchase a ferrite core for the M12 cable to be purchased.
  • Page 25 INOX-F15C-ULT3 Stainless Panel PC Item and Part Number Image DB-9 COM port cable (P/N: 32005-000100-100-RS or 32005-000100-300-RS) Ferrite core (P/N: 30600-000058-RS) Waterproof power adapter (100 W) (P/N: 63040-030080-000-RS) (P/N: ARM-31-RS) Stand for VESA 100 (P/N: STAND-A19-RS) Stand for VESA 75/VESA 100...
  • Page 26: Installation

    INOX-F15C-ULT3 Stainless Panel PC Chapter Installation Page 14...
  • Page 27: Anti-Static Precautions

    INOX-F15C-ULT3 and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the INOX-F15C-ULT3. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the INOX-F15C-ULT3 is accessed internally, or any other electrical component is handled, the following anti-static precautions are strictly adhered ...
  • Page 28: Hdd Installation

    HDD with the retention screw holes in the HDD brackets. Insert four M3*5 retention screws shipped with the package into the HDD bracket (Figure 3-2). Step 3: Connect the pre-installed SATA cable from the INOX-F15C-ULT3 to the rear of the HDD (Figure 3-2). Page 16...
  • Page 29: Figure 3-2: Hdd Installation

    Figure 3-2: HDD Installation Step 4: Install the HDD panel back to the rear panel of the INOX-F15C-ULT3 by using the 6#32*8 retention screws with Nylok shipped with the package, and a tightening torque of 5 kg-cm (4.3 lb-in/0.49 N-m).
  • Page 30: External I/O Connectors

    INOX-F15C-ULT3 Stainless Panel PC 3.4 External I/O Connectors The INOX-F15C-ULT3 is equipped with several M12 connectors for I/O interface connection. These M12 connectors are all protected with metal/plastic dust caps. Please remove the dust cap before connection. 3.4.1 COM Port Connection The INOX-F15C-ULT3 has two 8-pin M12 connectors for RS-232/422/485 serial port connection.
  • Page 31: Figure 3-4: Db-9 Com Port Cable

    The DB-9 COM port cable (Figure 3-4) can be purchased separately. The user can use the cable to connect the INOX-F15C-ULT3 with serial devices. The COM port cable should be installed with a ferrite core to reduce EMI. To install the ferrite core, please refer to Section 3.4.3.1.
  • Page 32: Lan Port Connection

    The RJ-45 LAN cable (Figure 3-4) can be purchased separately. The user can use the cable to connect the INOX-F15C-ULT3 with network. The LAN cable should be installed with a ferrite core to reduce EMI. To install the ferrite core, please refer to Section 3.4.3.1.
  • Page 33: Usb Port Connection

    Table 3-4: USB 2.0 Connector Pinouts 3.4.3.1 Ferrite Core Installation An USB cable is shipped with the INOX-F15C-ULT3. The USB cable should be installed with a ferrite core to reduce EMI. To install the ferrite core, follow the steps below.
  • Page 34: Figure 3-8: Open Ferrite Core

    INOX-F15C-ULT3 Stainless Panel PC Figure 3-8: Open Ferrite Core Step 2: Gently wrap the USB cable around the ferrite core. The USB cable should pass through the core twice as shown below. The ferrite core must be installed as close to the M12 connector as possible.
  • Page 35: Power Input Connection

    INOX-F15C-ULT3 Stainless Panel PC 3.4.4 Power Input Connection The INOX-F15C-ULT3 has one 5-pin M12 connector that supports 9 V ~ 36 V power input connection. The pinouts for the power input connector are listed in the figure and table below.
  • Page 36: Mounting The System

    100 mm interface pad. The INOX-F15C-ULT3 VESA mount retention screw holes are shown in Figure 3-12. Refer to the installation guide that came with the mounting device to mount the INOX-F15C-ULT3.
  • Page 37: Powering On The System

    To power on the system, follow the steps below: Step 1: Connect the M12 connector of the power cable to the INOX-F15C-ULT3. Connect the terminal block of the power cable to a power source. The terminal block pinouts are shown below.
  • Page 38: System Maintenance

    Visit the IEI website or contact technical support for the latest updates. All the drivers for the INOX-F15C-ULT3 are on the utility CD that came with the system. The utility CD contains drivers for Windows 8.1 (64-bit) and Windows 10 (64-bit) operating systems.
  • Page 39: Installing Windows 7 From Usb 3.0 Drives

    The Windows 7 USB 3.0 Creator Utility automates the steps to update a Windows 7 installation image so that it contains USB 3.0 drivers. To install Windows 7 from a USB drive onto the INOX-F15C-ULT3, please follow the steps described below. Step 1: Create a USB flash drive installer.
  • Page 40: Bios Setup

    INOX-F15C-ULT3 Stainless Panel PC Chapter BIOS Setup Page 28...
  • Page 41: Introduction

    INOX-F15C-ULT3 Stainless Panel PC 4.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. NOTE: Some of the BIOS options may vary throughout the life cycle of the product and are subject to change without prior notice.
  • Page 42: Getting Help

    INOX-F15C-ULT3 Stainless Panel PC Function Decrease the numeric value or make changes F1 key General help, only for Status Page Setup Menu and Option Page Setup Menu F2 key Load previous values. F3 key Load optimized defaults F4 key Save changes and Exit BIOS Esc key Main Menu –...
  • Page 43: Main

    INOX-F15C-ULT3 Stainless Panel PC 4.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit BIOS Information...
  • Page 44: Advanced

    INOX-F15C-ULT3 Stainless Panel PC  System Date [xx/xx/xx] Use the System Date option to set the system date. Manually enter the day, month and year.  System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.
  • Page 45: Acpi Settings

    INOX-F15C-ULT3 Stainless Panel PC 4.3.1 ACPI Settings The ACPI Settings menu (BIOS Menu 3) configures the Advanced Configuration and Power Interface (ACPI) options. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced ACPI Settings Select the highest ACPI...
  • Page 46: F81866 Super Io Configuration

    INOX-F15C-ULT3 Stainless Panel PC 4.3.2 F81866 Super IO Configuration Use the F81866 Super IO Configuration menu (BIOS Menu 4) to set or change the configurations for the serial ports. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced...
  • Page 47: Serial Port 1 Configuration

    INOX-F15C-ULT3 Stainless Panel PC 4.3.2.1.1 Serial Port 1 Configuration  Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.  Disabled Disable the serial port  Enable the serial port Enabled EFAULT  Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address.
  • Page 48: Serial Port 2 Configuration

    INOX-F15C-ULT3 Stainless Panel PC  Device Mode [RS232] Use the Device Mode option to select the Serial Port 1 signaling mode.  Serial Port 1 signaling mode is RS-422 RS422  Serial Port 1 signaling mode is RS-232 RS232 EFAULT ...
  • Page 49: F81866 H/W Monitor

    INOX-F15C-ULT3 Stainless Panel PC  Device Mode [RS232] Use the Device Mode option to select the Serial Port 2 signaling mode.  Serial Port 2 signaling mode is RS-422 RS422  Serial Port 2 signaling mode is RS-232 RS232 EFAULT ...
  • Page 50: Rtc Wake Settings

    INOX-F15C-ULT3 Stainless Panel PC System temperature  Voltages CPU_CORE +12V +DDR +3.3V +3.3VSB +5VSB 4.3.4 RTC Wake Settings The RTC Wake Settings menu (BIOS Menu 7) configures RTC wake event. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc.
  • Page 51: Serial Port Console Redirection

    INOX-F15C-ULT3 Stainless Panel PC event  Enabled If selected, the Wake up every day option appears allowing you to enable to disable the system to wake every day at the specified time. Besides, the following options appear with values that can be...
  • Page 52: Legacy Console Redirection Settings

    INOX-F15C-ULT3 Stainless Panel PC  Console Redirection [Disabled] Use Console Redirection option to enable or disable the console redirection function.  Disabled the console redirection function Disabled EFAULT  Enabled the console redirection function Enabled 4.3.5.1 Legacy Console Redirection Settings The Legacy Console Redirection Settings menu (BIOS Menu 9) allows the legacy console redirection options to be configured.
  • Page 53: Console Redirection Settings

    INOX-F15C-ULT3 Stainless Panel PC 4.3.5.2 Console Redirection Settings The Console Redirection Settings menu (BIOS Menu 10) allows the console redirection options to be configured. The option is active when Console Redirection option is enabled. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc.
  • Page 54: Bits Per Second [115200]

    INOX-F15C-ULT3 Stainless Panel PC  Bits per second [115200] Use the Bits per second option to specify the serial port transmission speed. The speed must match the other side. Long or noisy lines may require lower speeds.  9600 Sets the serial port transmission speed at 9600.
  • Page 55: Cpu Configuration

    INOX-F15C-ULT3 Stainless Panel PC  Stop Bits [1] Use the Stop Bits option to specify the number of stop bits used to indicate the end of a serial data packet. Communication with slow devices may require more than 1 stop bit.
  • Page 56: Hyper Threading Function [Enabled]

    INOX-F15C-ULT3 Stainless Panel PC  Hyper Threading Function [Enabled] Use the Hyper Threading function to enable or disable the CPU hyper threading function.  Disables the use of hyper threading technology Disabled  Enables the use of hyper threading technology...
  • Page 57: Sata Configuration

    INOX-F15C-ULT3 Stainless Panel PC  CPU C State [Disabled] Use the CPU C State option to enable or disable CPU C state.  Disables CPU C state. Disabled EFAULT  Enables CPU C state. Enabled 4.3.7 SATA Configuration Use the SATA Configuration menu (BIOS Menu 12) to change and/or set the configuration of the SATA devices installed in the system.
  • Page 58: Sata Mode Selection [Ahci]

    INOX-F15C-ULT3 Stainless Panel PC  SATA Mode Selection [AHCI] Use the SATA Mode Selection option to configure SATA devices as AHCI devices.  Configures SATA devices as AHCI device. AHCI EFAULT  Configures SATA devices as RAID device. RAID NOTE:...
  • Page 59: Usb Configuration

    INOX-F15C-ULT3 Stainless Panel PC 4.3.8 USB Configuration Use the USB Configuration menu (BIOS Menu 13) to read USB configuration information and configure the USB settings. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced USB Configuration Enables Legacy USB support.
  • Page 60: Iei Feature

    INOX-F15C-ULT3 Stainless Panel PC  Enabled Legacy USB support enabled EFAULT  Legacy USB support disabled Disabled  Auto Legacy USB support disabled if no USB devices are connected 4.3.9 IEI Feature Use the IEI Feature menu (BIOS Menu 14) to configure One Key Recovery function.
  • Page 61: Chipset

    INOX-F15C-ULT3 Stainless Panel PC 4.4 Chipset Use the Chipset menu (BIOS Menu 15) to configure the system chipset. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit > System Agent (SA) Configuration System Agent (SA) >...
  • Page 62: Graphics Configuration

    INOX-F15C-ULT3 Stainless Panel PC  VT-d [Disabled] Use the VT-d option to enable or disable VT-d support.  Disable VT-d support. Disabled EFAULT  Enable VT-d support. Enabled 4.4.1.1 Graphics Configuration Use the Graphics Configuration menu (BIOS Menu 17) to configure the graphics settings.
  • Page 63: Internal Graphics [Enabled]

    INOX-F15C-ULT3 Stainless Panel PC  Internal Graphics [Enabled] Use the Internal Graphics option to enable or disable the internal graphics device.  The internal graphics device is automatically detected Auto and enabled.  Disable the internal graphics device. Disabled ...
  • Page 64: Lcd Control

    INOX-F15C-ULT3 Stainless Panel PC 4.4.1.1.1 LCD Control Use the LCD Control submenu (BIOS Menu 18) to select a display device which will be activated during POST. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Chipset LCD Control Select the Video Device...
  • Page 65: Memory Configuration

    INOX-F15C-ULT3 Stainless Panel PC 4.4.1.2 Memory Configuration Use the Memory Configuration submenu (BIOS Menu 19) to display the memory information. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Chipset Memory Information Total Memory 4096 MB DIMM1 Not Present --------------------- : Select Screen...
  • Page 66: Pci Express Configuration

    INOX-F15C-ULT3 Stainless Panel PC  Restore AC Power Loss [Last State] Use the Restore AC Power BIOS option to specify what state the system returns to if there is a sudden loss of power to the system.  Power Off The system remains turned off ...
  • Page 67: Security

    INOX-F15C-ULT3 Stainless Panel PC  Gen 2  Gen 3  Detect Non-Compliance Device [Disabled] Use the Detect Non-Compliance Device option to enable or disable detecting if a non-compliance PCI Express device is connected to the PCI Express slot. ...
  • Page 68: Boot

    INOX-F15C-ULT3 Stainless Panel PC  Administrator Password Use the Administrator Password to set or change a administrator password.  User Password Use the User Password to set or change a user password. 4.6 Boot Use the Boot menu (BIOS Menu 23) to configure system boot options.
  • Page 69: Quiet Boot [Enabled]

    INOX-F15C-ULT3 Stainless Panel PC  Does not enable the keyboard Number Lock automatically. To use the 10-keys on the keyboard, press the Number Lock key located on the upper left-hand corner of the 10-key pad. The Number Lock LED on the keyboard lights up when the Number Lock is engaged.
  • Page 70: Exit

    INOX-F15C-ULT3 Stainless Panel PC  Keep Sets display mode to current. Current  Boot Option Priority Use the Boot Option Priority function to set the system boot sequence from the available devices. The drive sequence also depends on the boot sequence in the individual device section.
  • Page 71: Discard Changes And Reset

    INOX-F15C-ULT3 Stainless Panel PC  Discard Changes and Reset Use the Discard Changes and Reset option to exit the system without saving the changes made to the BIOS configuration setup program.  Restore Defaults Use the Restore Defaults option to load the optimal default values for each of the parameters on the Setup menus.
  • Page 72: A Regulatory Compliance

    INOX-F15C-ULT3 Stainless Panel PC Appendix Regulatory Compliance Page 60...
  • Page 73 INOX-F15C-ULT3 Stainless Panel PC DECLARATION OF CONFORMITY This equipment is in conformity with the following EU directives:  EMC Directive (2004/108/EC, 2014/30/EU)  Low-Voltage Directive (2006/95/EC, 2014/35/EU)  RoHS II Directive (2011/65/EU, 2015/863/EU) If the user modifies and/or install other devices in the equipment, the CE conformity declaration may no longer apply.
  • Page 74 INOX-F15C-ULT3 Stainless Panel PC Español [Spanish] IEI Integration Corp declara que el equipo cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 2014/53/EU. Ελληνική [Greek] IEI Integration Corp ΔΗΛΩΝΕΙ ΟΤΙ ΕΞΟΠΛΙΣΜΟΣ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ...
  • Page 75 INOX-F15C-ULT3 Stainless Panel PC Româna [Romanian] IEI Integration Corp declară că acest echipament este in conformitate cu cerinţele esenţiale şi cu celelalte prevederi relevante ale Directivei 2014/53/EU. Slovensko [Slovenian] IEI Integration Corp izjavlja, da je ta opreme v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 2014/53/EU.
  • Page 76 INOX-F15C-ULT3 Stainless Panel PC FCC WARNING This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:  This device may not cause harmful interference, and  This device must accept any interference received, including interference that may cause undesired operation.
  • Page 77 INOX-F15C-ULT3 Stainless Panel PC CHINA ROHS The label on the product indicates the estimated “Environmentally Friendly Use Period” (EFUP). This is an estimate of the number of years that these substances would “not leak undergo abrupt change.” This product contain replaceable sub-assemblies/components which have a shorter EFUP such as batteries and lamps.
  • Page 78: B Safety Precautions

    INOX-F15C-ULT3 Stainless Panel PC Appendix Safety Precautions Page 66...
  • Page 79: Safety Precautions

     Electric shocks can occur if the INOX-F15C-ULT3 chassis is opened when it is running. To avoid risk of electric shock, this device must only be connected to a supply mains with protective earth.
  • Page 80: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the INOX-F15C-ULT3. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the INOX-F15C-ULT3 is opened and any of the electrical components are handled, the following anti-static precautions are strictly adhered to.
  • Page 81: Product Disposal

    INOX-F15C-ULT3 Stainless Panel PC B.1.3 Product Disposal CAUTION: Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery. Dispose of used batteries according to instructions and local regulations.  Outside the European Union–If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method.
  • Page 82: Maintenance And Cleaning Precautions

    Some components in the INOX-F15C-ULT3 may only be cleaned using a product specifically designed for the purpose. In such case, the product will be explicitly mentioned in the cleaning tips. Below is a list of items to use when cleaning the INOX-F15C-ULT3. ...
  • Page 83 INOX-F15C-ULT3 Stainless Panel PC  Water or rubbing alcohol–A cloth moistened with water or rubbing alcohol can be used to clean the device.  Using solvents–The use of solvents is not recommended when cleaning the device as they may damage the plastic parts.
  • Page 84: Cbios Menu Options

    INOX-F15C-ULT3 Stainless Panel PC Appendix BIOS Menu Options Page 72...
  • Page 85 INOX-F15C-ULT3 Stainless Panel PC System Date [xx/xx/xx] ......................32 System Time [xx:xx:xx] ....................... 32 ACPI Sleep State [S3 (Suspend to RAM)] ................33 Serial Port [Enabled] ......................35 Change Settings [Auto] ....................... 35 Device Mode [RS232] ......................36 Serial Port [Enabled] ......................36 Change Settings [Auto] .......................
  • Page 86 INOX-F15C-ULT3 Stainless Panel PC Primary IGFX Boot Display [VBIOS Default] ..............52 Restore AC Power Loss [Last State] ................. 54 PCIe Speed [Auto] ........................ 54 Detect Non-Compliance Device [Disabled] ............... 55 Administrator Password ..................... 56 User Password ........................56 Bootup NumLock State [On] ....................56 Quiet Boot [Enabled] ......................
  • Page 87: D Watchdog Timer

    INOX-F15C-ULT3 Stainless Panel PC Appendix Watchdog Timer Page 75...
  • Page 88 INOX-F15C-ULT3 Stainless Panel PC NOTE: The following discussion applies to DOS. Contact IEI support or visit the IEI website for drivers for other operating systems. The Watchdog Timer is a hardware-based timer that attempts to restart the system when it stops working.
  • Page 89 INOX-F15C-ULT3 Stainless Panel PC NOTE: The Watchdog Timer is activated through software. The software application that activates the Watchdog Timer must also deactivate it when closed. If the Watchdog Timer is not deactivated, the system will automatically restart after the Timer has finished its countdown.
  • Page 90: E Hazardous Materials Disclosure

    INOX-F15C-ULT3 Stainless Panel PC Appendix Hazardous Materials Disclosure Page 78...
  • Page 91 INOX-F15C-ULT3 Stainless Panel PC The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 92 INOX-F15C-ULT3 Stainless Panel PC 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签,此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件,像是电池或灯管,这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T 11363-2006 (现由 GB/T 26572-2011 取代) 标准规定的限量要求以下。...
