IEI Technology IAS0-W10B-N6210 User Manual

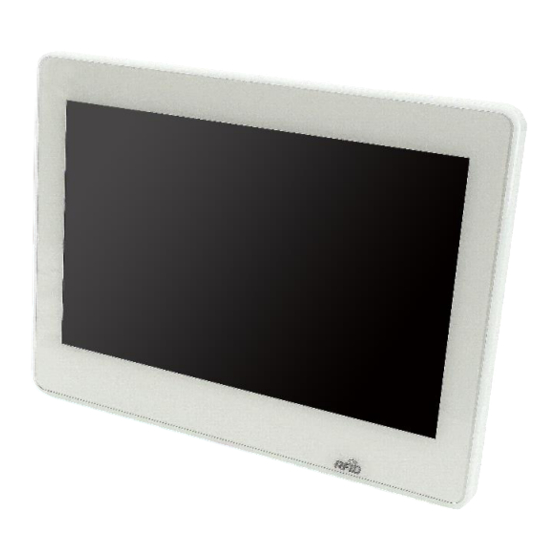

10.1" medical panel pc with intel® celeron® processor n6210, p-cap touchscreen, 4 gb ddr4, hdim output, usb 3.2, com, wi-fi 6e, isolated gbe, poe, rfid, audio and rohs
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IASO-W10B-N6210 Medical Panel PC
MODEL:
IASO-W10B-N6210
10.1" Medical Panel PC with Intel® Celeron® Processor N6210,
P-CAP Touchscreen, 4 GB DDR4, HDIM Output, USB 3.2,
COM, Wi-Fi 6E, Isolated GbE, PoE, RFID, Audio and RoHS
User Manual
Page i
Rev. 1.00 - July 4, 2022
[MODEL NAME]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IAS0-W10B-N6210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology IAS0-W10B-N6210

Summary of Contents for IEI Technology IAS0-W10B-N6210

  • Page 1 IASO-W10B-N6210 Medical Panel PC MODEL: IASO-W10B-N6210 10.1" Medical Panel PC with Intel® Celeron® Processor N6210, P-CAP Touchscreen, 4 GB DDR4, HDIM Output, USB 3.2, COM, Wi-Fi 6E, Isolated GbE, PoE, RFID, Audio and RoHS User Manual Page i Rev. 1.00 - July 4, 2022 [MODEL NAME]...
  • Page 2 IASO-W10B-N6210 Medical Panel PC Revision Date Version Changes July 4, 2022 1.00 Initial release Page ii [MODEL NAME]...
  • Page 3 IASO-W10B-N6210 Medical Panel PC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 IASO-W10B-N6210 Medical Panel PC Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product.

  • Page 5: Table Of Contents

    IASO-W10B-N6210 Medical Panel PC Table of Contents 1 INTRODUCTION ......................1 1.1 O ........................2 VERVIEW 1.2 M ....................3 ODEL ARIATIONS 1.3 F ........................3 EATURES 1.4 F ......................4 RONT ANEL 1.5 B ......................5 OTTOM ANEL 1.6 R ......................
  • Page 6 IASO-W10B-N6210 Medical Panel PC A REGULATORY COMPLIANCE ................28 B PRODUCT DISPOSAL ....................33 C MAINTENANCE AND CLEANING PRECAUTIONS .......... 35 C.1.1 Maintenance and Cleaning ................37 C.1.2 Cleaning Tools ....................37 D SYMBOL DEFINITIONS ..................38 E WATCHDOG TIMER ....................40 F ERROR BEEP CODE ....................
  • Page 7 IASO-W10B-N6210 Medical Panel PC List of Figures Figure 1-1: IASO-W10B-N6210 Medical Panel PC ............... 2 Figure 1-2: Front View ........................4 Figure 1-3: Bottom Panel ....................... 5 Figure 1-4: Rear View ........................6 Figure 1-5: Dimensions (mm) ...................... 10 Figure 3-1: Ethernet Connector ....................19 Figure 3-2: AT/ATX Switch Location ...................
  • Page 8 IASO-W10B-N6210 Medical Panel PC List of Tables Table 1-1: Model Variations ......................3 Table 1-2: System Specifications ....................9 Table 3-1: Ethernet Connector Pinouts ..................19 Table 3-2: Connector LEDs ......................19 Table 3-3: RS-232 Serial Port Pinouts ..................20 Page viii [MODEL NAME]...

  • Page 9: Introduction

    IASO-W10B-N6210 Medical Panel PC Chapter Introduction Page 1...

  • Page 10: Overview

    IASO-W10B-N6210 Medical Panel PC 1.1 Overview Figure 1-1: IASO-W10B-N6210 Medical Panel PC The IASO-W10B-N6210 is an Intel® Celeron® Processor N6210 powered medical-grade panel PC designed for easy and simplified integration into healthcare applications. The system is pre-installed with 4 GB of DDR4 memory, ensuring smooth data throughputs with reduced bottlenecks and fast system access.

  • Page 11: Model Variations

    IASO-W10B-N6210 Medical Panel PC 1.2 Model Variations There are two models in the IASO-W10B-N6210 series. All models are preinstalled with one 4 GB DDR4 memory module and a Wi-Fi 6E module. The model numbers and model variations are listed below. IEEE802.3 PoE IASO-W10B-N6210/4G Intel®...

  • Page 12: Front Panel

    IASO-W10B-N6210 Medical Panel PC 1.4 Front Panel The front side of the IASO-W10B-N6210 is a flat-bezel panel with a 10.1" LCD screen surrounded by an ABS/PC plastic frame. The LED bars on both sides of the front panel are user programmable in color and frequency. A digital microphone is located on the top frame.

  • Page 13: Bottom Panel

    IASO-W10B-N6210 Medical Panel PC 1.5 Bottom Panel The bottom panel of the IASO-W10B-N6210 has the following connectors and components (Figure 1-3):  1 x 12 V DC input jack (standard)  1 x HDMI output connector  1 x 1GbE RJ-45 (1.5kV isolated) supporting PoE 1 x RS-232 DB-9 serial port ...

  • Page 14: Rear Panel

    IASO-W10B-N6210 Medical Panel PC 1.6 Rear Panel The rear panel contains two internal speakers, and four retention screw holes that support VESA 75 mount (Figure 1-4). Figure 1-4: Rear View Page 6...

  • Page 15: System Specifications

    IASO-W10B-N6210 Medical Panel PC 1.7 System Specifications The technical specifications for the IASO-W10B-N6210 systems are listed below. LCD and Touchscreen 10.1” LCD Size Max. Resolution 1280 (W) x 800 (H) Brightness (cd/m Contrast Ratio 800:1 LCD Color 16.7M RGB 6-bit (Hi-FRC) Pixel Pitch (mm) 0.1695 (H) x 0.1695 (V) Viewing Angle (H-V)
  • Page 16 IASO-W10B-N6210 Medical Panel PC 1 x Reset button 1 x Clear CMOS button 1 x Power button 1 x AT/ATX power mode switch Storage 1 x M.2 2242 M-key slot (PCIe & SATA signal) Audio AMP 1W + 1W (internal speaker) Microphone 1 x Digital microphone RFID...

  • Page 17: Table 1-2: System Specifications

    IASO-W10B-N6210 Medical Panel PC CE, FCC Class B Part18 EMC & Safety EN 60601-1:2006/A1:2013 (Edition 3.1) EN 60601-1-2: 2015 (Edition 4.0) Power Power Input 12 V DC 65 W FSP FSP065-DHBM1 medical-grade power adapter (P/N: 63040-010065-300-RS) Power Adapter Input: 100 V AC - 240 V AC, 50 Hz - 60 Hz, 2.0 A – 1.0 A Output: 12 V 5.42 A Table 1-2: System Specifications...

  • Page 18: Dimensions

    IASO-W10B-N6210 Medical Panel PC 1.8 Dimensions The IASO-W10B-N6210 dimensions are shown below. Figure 1-5: Dimensions (mm) Page 10...

  • Page 19: Unpacking

    IASO-W10B-N6210 Medical Panel PC Chapter Unpacking Page 11...

  • Page 20: Unpacking

    IASO-W10B-N6210 Medical Panel PC 2.1 Unpacking To unpack the medical panel PC, follow the steps below: WARNING / AVERTISSEMENT The front side LCD screen has a protective plastic cover stuck to the screen. Only remove the plastic cover after the medical panel PC has been properly installed.

  • Page 21: Packing List

    IASO-W10B-N6210 Medical Panel PC 2.2 Packing List NOTE: If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the IASO-W10B-N6210 was purchased from or contact an IEI sales representative directly by sending an email to ales@ieiworld.com.

  • Page 22: Installation

    IASO-W10B-N6210 Medical Panel PC Chapter Installation Page 14...

  • Page 23: Safety Precautions

    IASO-W10B-N6210 Medical Panel PC 3.1 Safety Precautions Please ensure the following safety precautions are adhered to at all times.  External equipment intended for connection to signal input /output or other connectors, shall comply with relevant UL /IEC standard (e.g. IEC60950 -1/IEC62368 -1 for IT equipment and ANSI/AAMI ES60601-1: 2012 AND CAN/CSA- C22.2 No.
  • Page 24 IASO-W10B-N6210 Medical Panel PC  DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED ENVIRONMENT WHERE THE STORAGE TEMPERATURE IS BELOW -20° C (-4°F) OR ABOVE 60° C (140° F). IT MAY DAMAGE THE EQUIPMENT.  If considerable amounts of dust, water, or fluids enter the IASO-W10B-N6210, turn off the power supply immediately, unplug the power cord, and contact the IASO-W10B-N6210 vendor.

  • Page 25: Anti-Static Precautions

    IASO-W10B-N6210 Medical Panel PC 3.2 Anti-static Precautions WARNING / AVERTISSEMENT Failure to take ESD precautions during the maintenance of the IASO-W10B-N6210 may result in permanent damage to the IASO-W10B-N6210 and severe injury to the user. Le fait de ne pas prendre des précautions contre les décharges électrostatiques pendant la maintenance du IASO-W10B-N6210 peut entraî...

  • Page 26: Installation Precautions

    IASO-W10B-N6210 Medical Panel PC 3.3 Installation Precautions When installing the medical panel PC, please follow the precautions listed below:  Manufacturer authorization: Do not modify this equipment without authorization of manufacturer.  Certified Engineers: Only certified engineers should install and modify the hardware settings.

  • Page 27: Gbe Connection

    IASO-W10B-N6210 Medical Panel PC 3.4 GbE Connection The RJ-45 connector on the bottom panel allows 1GbE connection to be made to a Local Area Network. It is 1.5kV isolated and supports PoE function (only for the sku with PoE function). Description Description MDIA3-...

  • Page 28: Rs-232 Serial Port Connection

    IASO-W10B-N6210 Medical Panel PC 3.5 RS-232 Serial Port Connection The bottom panel of the IASO-W10B-N6210 has one DB-9 male connector for RS-232 connection. The pinouts of the DB-9 connector are listed below. RS-232 Table 3-3: RS-232 Serial Port Pinouts 3.6 AT/ATX Mode Selection AT or ATX power mode can be used on the IASO-W10B-N6210.

  • Page 29: Vesa Mounting

    IASO-W10B-N6210 Medical Panel PC 3.7 VESA Mounting The IASO-W10B-N6210 is VESA (4 screws: M4 type) compliant and can be mounted on a mounting device with a 75 mm interface pad. The IASO-W10B-N6210 VESA mount retention screw holes are shown below. Refer to the installation guide that came with the mounting device to mount the IASO-W10B-N6210.

  • Page 30: Powering On The System

    IASO-W10B-N6210 Medical Panel PC 3.8 Powering On the System WARNING / AVERTISSEMENT To avoid risk of electric shock, this equipment must only be connected to supply mains with protective earth. Pour éviter tout risque d'électrocution, cet équipement ne doit être connecté...

  • Page 31: Clear Cmos

    IASO-W10B-N6210 Medical Panel PC 3.9 Clear CMOS If the IASO-W10B-N6210 fails to boot due to improper BIOS settings, the clear CMOS jumper clears the CMOS data and resets the system BIOS information. To do this, push the clear CMOS button for three seconds, then restart the system. The clear CMOS button location is shown in Figure 3-5.

  • Page 32: System Maintenance

    IASO-W10B-N6210 Medical Panel PC 3.11 System Maintenance If the components of the IASO-W10B-N6210 fail, they must be replaced. Please contact the system reseller or vendor to purchase the replacement parts. NOTE: A user cannot replace a motherboard. If the motherboard fails it must be shipped back to IEI to be replaced.

  • Page 33: Driver Installation

    IASO-W10B-N6210 Medical Panel PC Chapter Driver Installation Page 25...

  • Page 34: Available Drivers

    IASO-W10B-N6210 Medical Panel PC 4.1 Available Drivers All the drivers for the IASO-W10B-N6210 are available on IEI Resource Download Center (https://download.ieiworld.com). Type IASO-W10B-N6210, and press Enter to find all the relevant software, utilities, and documentation. Figure 4-1: IEI Resource Download Center 4.2 Driver Download To download drivers from IEI Resource Download Center, follow the steps below.
  • Page 35 IASO-W10B-N6210 Medical Panel PC Step 3: Click the driver file name on the page and you will be prompted with the  following window. You can download the entire ISO file ( ), or click the small  arrow to find an individual driver and click the file name to download ( NOTE: To install software from the downloaded ISO image file in Windows 8, 8.1 or 10, double-click the ISO file to mount it as a virtual drive to view...

  • Page 36: A Regulatory Compliance

    IASO-W10B-N6210 Medical Panel PC Appendix Regulatory Compliance Page 28...
  • Page 37 IASO-W10B-N6210 Medical Panel PC DECLARATION OF CONFORMITY This equipment is in conformity with the following EU directives: EMC Directive (2004/108/EC, 2014/30/EU)  Low-Voltage Directive (2006/95/EC, 2014/35/EU)  RoHS II Directive (2011/65/EU, 2015/863/EU)  Medical Device Directive 93/42/EEC: EN 60601-1  If the user modifies and/or install other devices in the equipment, the CE conformity declaration may no longer apply.
  • Page 38 IASO-W10B-N6210 Medical Panel PC Español [Spanish] IEI Integration Corp declara que el equipo cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 2014/53/EU. Ελληνική [Greek] IEI Integration Corp ΔΗΛΩΝΕΙ ΟΤΙ ΕΞΟΠΛΙΣΜΟΣ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ...
  • Page 39 IASO-W10B-N6210 Medical Panel PC Româna [Romanian] IEI Integration Corp declară că acest echipament este in conformitate cu cerinţele esenţiale şi cu celelalte prevederi relevante ale Directivei 2014/53/EU. Slovensko [Slovenian] IEI Integration Corp izjavlja, da je ta opreme v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 2014/53/EU.
  • Page 40 IASO-W10B-N6210 Medical Panel PC UL CLASSIFIED The label on the product indicates this product complies with the requirements of ES 60601-1 (2005) + AMD (2012), CAN/CSA-C22.2 No. 60601-1:14. KC MARK The label on the product indicates this product complies with Korea's product safety requirements for electrical and electronic equipment.

  • Page 41: B Product Disposal

    IASO-W10B-N6210 Medical Panel PC Appendix Product Disposal Page 33...
  • Page 42 IASO-W10B-N6210 Medical Panel PC CAUTION / ATTENTION Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery. Risque d'explosion si la batterie est remplacée par un type incorrect. Seuls les ingénieurs certifiés doivent remplacer la batterie embarquée. Dispose of used batteries according to instructions and local regulations.

  • Page 43: C Maintenance And Cleaning Precautions

    IASO-W10B-N6210 Medical Panel PC Appendix Maintenance and Cleaning Precautions Page 35...
  • Page 44 IASO-W10B-N6210 Medical Panel PC When maintaining or cleaning the IASO-W10B-N6210, please follow the guidelines below. WARNING / AVERTISSEMENT If you dropped any material or liquid such as water onto the panel PC when cleaning, unplug the power cable immediately and contact your dealer or the nearest service center.

  • Page 45: Maintenance And Cleaning

    IASO-W10B-N6210 Medical Panel PC C.1.1 Maintenance and Cleaning Prior to cleaning any part or component of the IASO-W10B-N6210, please read the details below.  To clean the IASO-W10B-N6210, remove dirt with a lightly moistened cloth. Then wipe the external chassis with a soft dry cloth.

  • Page 46: D Symbol Definitions

    IASO-W10B-N6210 Medical Panel PC Appendix Symbol Definitions Page 38...
  • Page 47 IASO-W10B-N6210 Medical Panel PC The following symbols appear on the product, its labeling, or the product packing. Each symbol carries a special definition, as defined below: Direct current Fragile, handle with care AC current Keep dry Protective earth (ground) This side up Date of manufacture Indicates the manufacturer Refer to instruction manual...

  • Page 48: E Watchdog Timer

    IASO-W10B-N6210 Medical Panel PC Appendix Watchdog Timer Page 40...
  • Page 49 IASO-W10B-N6210 Medical Panel PC NOTE: The following discussion applies to DOS. Contact IEI support or visit the IEI website for drivers for other operating systems. The Watchdog Timer is a hardware-based timer that attempts to restart the system when it stops working.
  • Page 50 IASO-W10B-N6210 Medical Panel PC NOTE: The Watchdog Timer is activated through software. The software application that activates the Watchdog Timer must also deactivate it when closed. If the Watchdog Timer is not deactivated, the system will automatically restart after the Timer has finished its countdown. EXAMPLE PROGRAM: ;...

  • Page 51: F Error Beep Code

    IASO-W10B-N6210 Medical Panel PC Appendix Error Beep Code Page 43...

  • Page 52: Pei Beep Codes

    IASO-W10B-N6210 Medical Panel PC F.1 PEI Beep Codes Number of Beeps Description Memory not Installed Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found DXE Core Firmware Volume was not found Recovery failed S3 Resume failed Reset PPI is not available F.2 DXE Beep Codes...

  • Page 53: G Hazardous Materials Disclosure

    IASO-W10B-N6210 Medical Panel PC Appendix Hazardous Materials Disclosure Page 45...

  • Page 54: Rohs Ii Directive (2015/863/Eu)

    IASO-W10B-N6210 Medical Panel PC G.1 RoHS II Directive (2015/863/EU) The details provided in this appendix are to ensure that the product is compliant with the RoHS II Directive (2015/863/EU). The table below acknowledges the presences of small quantities of certain substances in the product, and is applicable to RoHS II Directive (2015/863/EU).

  • Page 55: China Rohs

    IASO-W10B-N6210 Medical Panel PC G.2 China RoHS 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些 元件将会单独标示出来。 部件名称 有毒有害物质或元素 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求。 Page 47...
