5.2

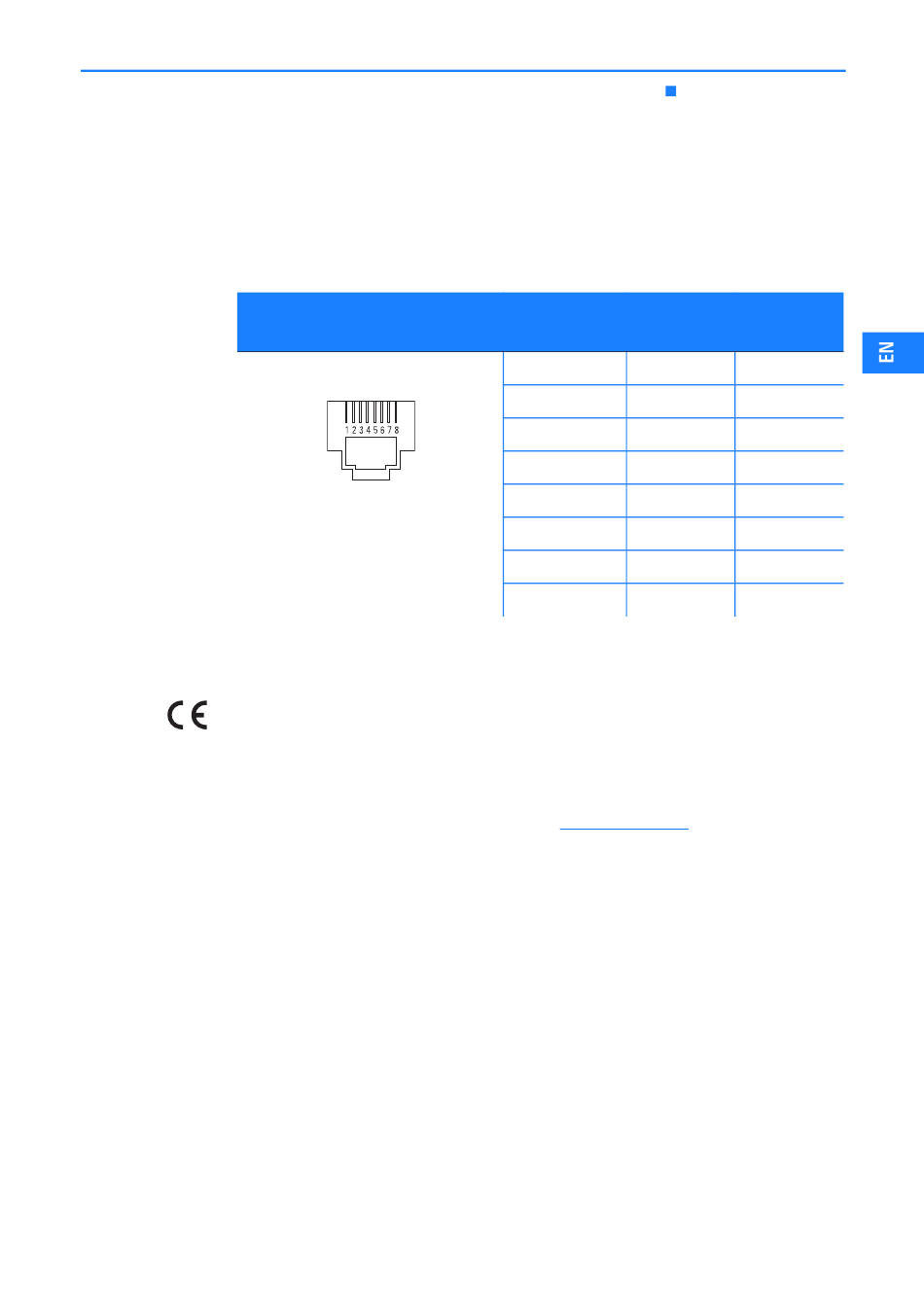

Connector wiring
5.2.1
Ethernet interface 10BASE-T/100BASE-TX/1000BASE-T
8-pin RJ45 sockets (ISO 8877, EN 60603-7)
Connector
5.3
CE-declarations of conformity
LANCOM Systems herewith declares that the devices of the type described in
this documentation are in agreement with the basic requirements and other
relevant regulations of the 1995/5/EC directive.
The CE declarations of conformity for your device can be found on the relevant
product page on the LANCOM Web site (www.lancom.eu).
LANCOM GS-1224 and LANCOM GS-1224P
Chapter 5: Appendix
Pin
Fast
Ethernet
1
T+
2
T-
3
R+
4
PoE/G
5
PoE/G
6
R-
7
PoE/ -48 V
8
PoE/ -48 V
Gigabit
Ethernet
BI_DA+
BI_DA-
BI_DB+
BI_DC+
BI_DC-
BI_DB-
BI_DD+
BI_DD-
69
