LANCOM GS-1224 and LANCOM GS-1224P
Chapter 4: Operation of Web- based Management

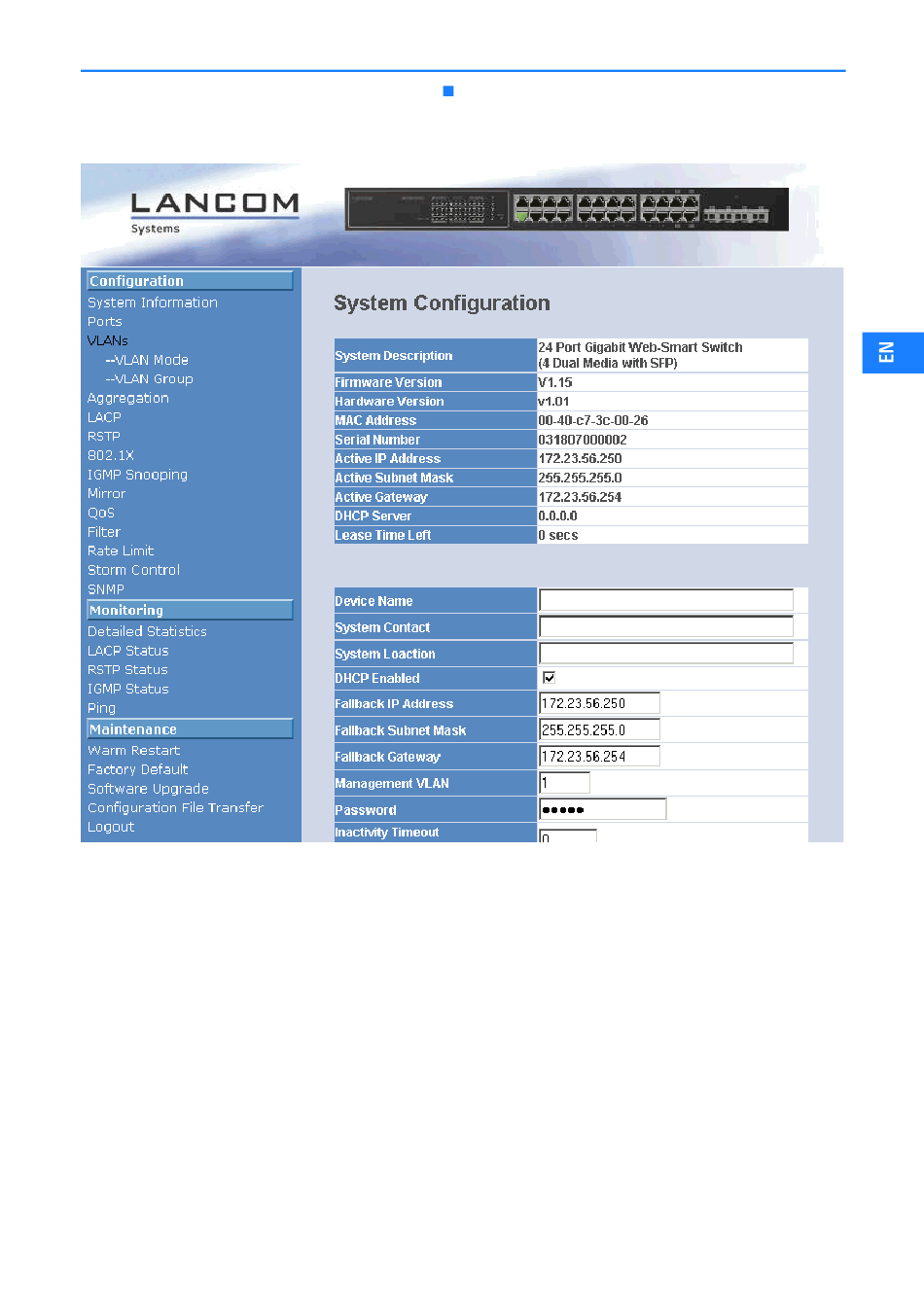

The Information of Page Layout
The top part of the information page shows the front panel of the switch. Lin-
ked ports are displayed in green color, and ports without link in black.
The ports for the optional SFP modules show a demonstration of the module,
if it is installed. Ports without installed SFP modules show covered plates.
On the left side, the main menu tree for web management is listed on the
page. According to the function name in bold, all functions can be divided
into three parts: Configuration, Monitoring and Maintenance. The functions
of each folder are described in its corresponded section respectively. When cli-
cking it, the function is performed.
