QoS (Quality of Service) Configuration

The switch offers powerful QoS function. This function supports VLAN-tagged
priority that can make precedence of 8 priorities, and DSCP (Differentiated
Services Code Point) on Layer 3 of network framework.
48

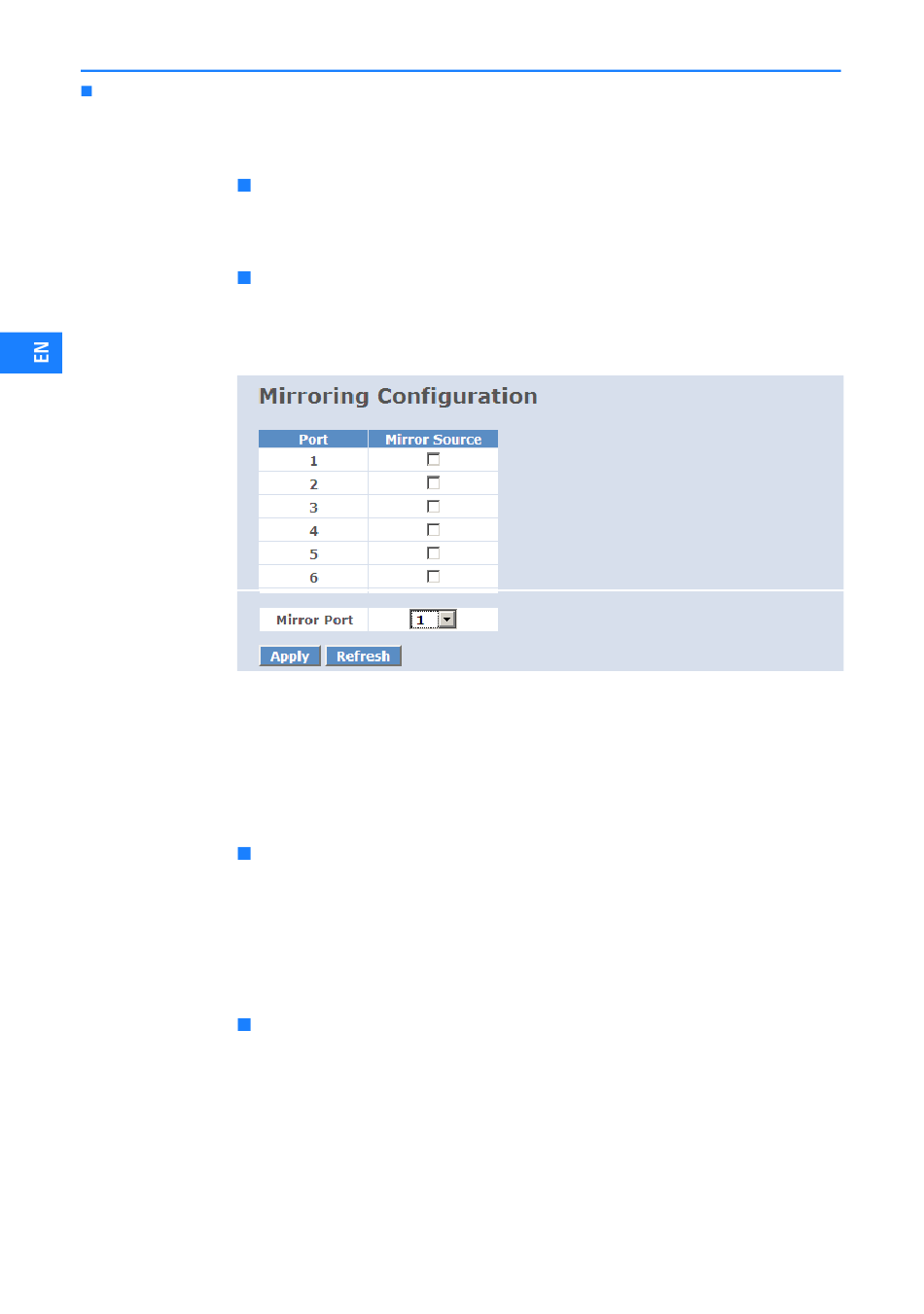

Source Port:
Sets the port for monitoring. Just tick the check box beside the port x.
Valid ports are port 1-24.
Mirror Port:
Use the drop-down menu to select a mirror port
The value "disabled" (default) deactivates this function.
QoS Configuration
While setting QoS function, please select the QoS Mode in drop-down
menu at first. Then you can use 802.1p Priority and DSCP Priority func-
tions. In this function, you can enable/disable QoS Mode and set Priority
Control, such as: 802.1p and DSCP. The switch only supports Strict Priority.
High priority queue is always passed first.
802.1p QoS Mode
This function will affect the priority of VLAN tags. Based on priority of
VLAN tags, it can arrange 0~7 priorities, priorities can map to 4 queues
of the switch (low, normal, medium, high) and possess different band-
width distribution according to your weight setting.
