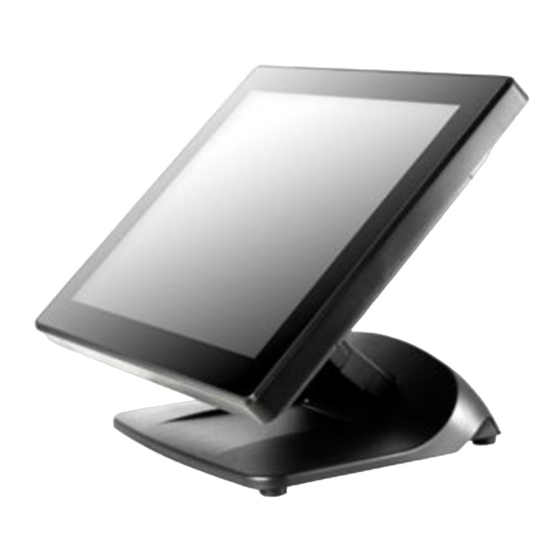

POSIFLEX LM-31 E Series User Manual

Standalone pos monitor
Hide thumbs

Advertisement

Quick Links

Download this manual

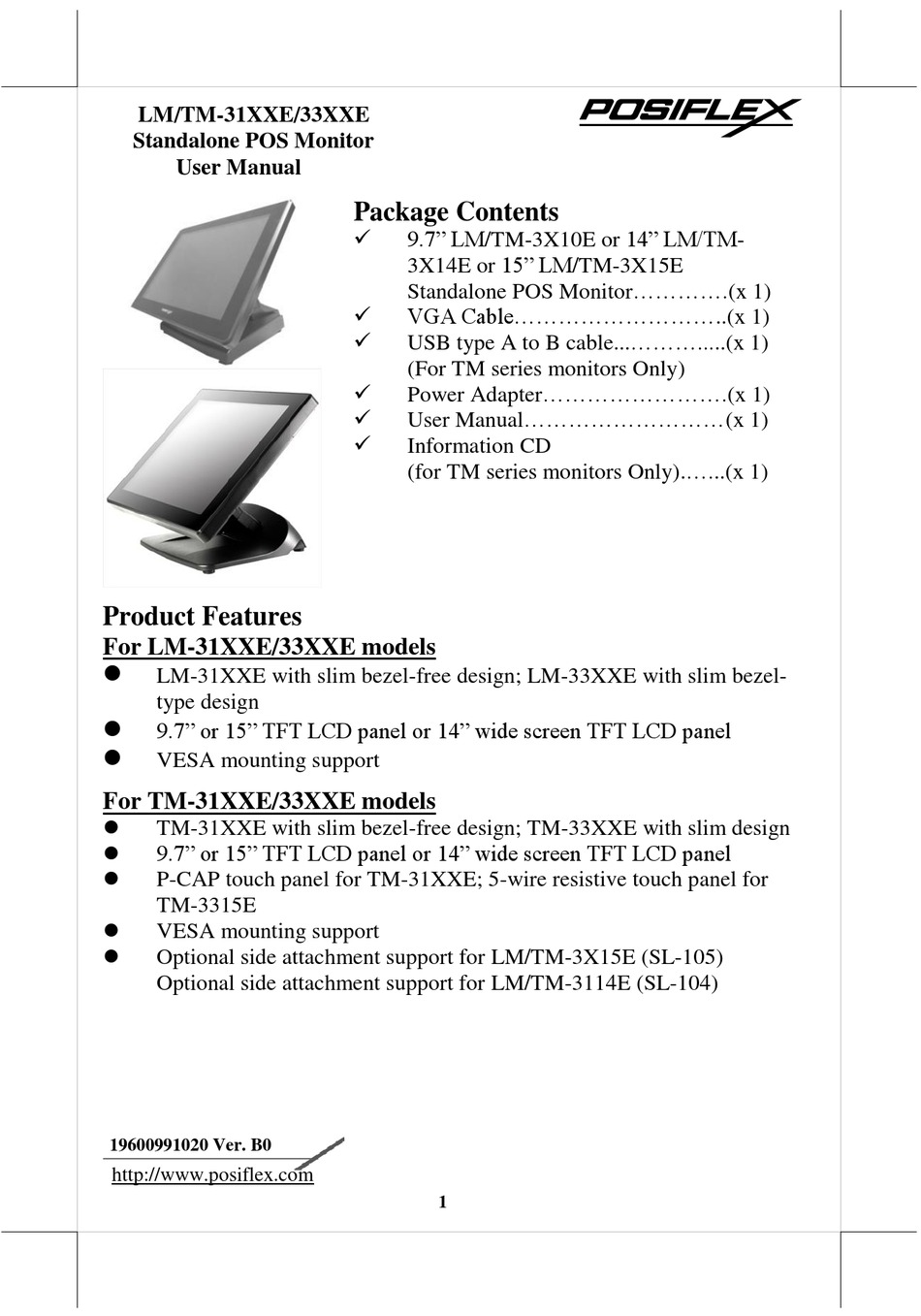

LM/TM-31XXE/33XXE
Standalone POS Monitor
User Manual
Product Features
For LM-31XXE/33XXE models
LM-31XXE with slim bezel-free design; LM-33XXE with slim bezel-
type design
9.7" or 15" TFT LCD panel or 14" wide screen TFT LCD panel
VESA mounting support
For TM-31XXE/33XXE models
TM-31XXE with slim bezel-free design; TM-33XXE with slim design
9.7" or 15" TFT LCD panel or 14" wide screen TFT LCD panel
P-CAP touch panel for TM-31XXE; 5-wire resistive touch panel for
TM-3315E
VESA mounting support
Optional side attachment support for LM/TM-3X15E (SL-105)
Optional side attachment support for LM/TM-3114E (SL-104)
19600991020 Ver. B0
http://www.posiflex.com
Package Contents
9.7" LM/TM-3X10E or 14" LM/TM-
3X14E or 15" LM/TM-3X15E
Standalone POS Monitor.............(x 1)
VGA Cable.............................(x 1)
USB type A to B cable.................(x 1)
(For TM series monitors Only)
Power Adapter.........................(x 1)
User Manual...........................(x 1)
Information CD
(for TM series monitors Only).......(x 1)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the LM-31 E Series and is the answer not in the manual?

Questions and answers

Related Manuals for POSIFLEX LM-31 E Series

Summary of Contents for POSIFLEX LM-31 E Series

  • Page 1 9.7” or 15” TFT LCD panel or 14” wide screen TFT LCD panel  P-CAP touch panel for TM-31XXE; 5-wire resistive touch panel for TM-3315E  VESA mounting support  Optional side attachment support for LM/TM-3X15E (SL-105) Optional side attachment support for LM/TM-3114E (SL-104) 19600991020 Ver. B0 http://www.posiflex.com...
  • Page 2 Views of LM/TM-3X10E Front View 9.7” LM-3110E LCD Panel 9.7” TM-3110E P-Cap Touch Panel 9.7” LM-3310E LCD Panel Rear View OSD Control Button Neck Cover OSD button EXT button Cable Exit ＋ button － button/ Power button...
  • Page 3 Bottom View Rubber Pad Rubber Pad I/O Ports of LM-3X10E Power LED Indicator VGA Port DC-IN Power Jack I/O Ports of TM-3X10E Power LED Indicator VGA Port USB (Type B) Port DC-IN Power Jack...
  • Page 4 Views of the LM/TM-3114E Front View 14” LM-3114E LCD Panel 14” TM-3114E P-Cap Touch Panel Gen 7L Base Rear View Side Mount Cover OSD Control Button Neck Cover OSD button Cable Cover EXT button ＋ button Cable Exit － button/ Power button Bottom View Rubber Feet with Fixing Screw Cable Exit...
  • Page 5 I/O Ports USB Port Power LED Indicator VGA Port DC-IN Power Jack USB (Type B) Port Views of the LM/TM-3115E/3315E Front View 15” LM-3115E LCD Panel 15” LM-3315E LCD Panel 15” TM-3315E Resistive Touch Panel 15” TM-3115E P-Cap Touch Panel Gen 7L Base LED indicator LED indicator...
  • Page 6 Bottom View Rubber Feet with Fixing Screw Cable Exit Cable Holder Rubber Feet with Fixing Screw I/O Ports USB Port VGA Port DC-IN Power Jack USB (Type B) Port Positioning your monitor for a Perfect Viewing Angle 9.7” LM/TM-3110E/ 3310E With simpler and lighter design, the miniature standalone base for 9.7”...
  • Page 7 14” or 15” LM/TM-31XXE/33XXE Different from the miniature base used by 10” LM/TM series monitors, the adjustable Gen 7L base featuring its unique tilt adjustment mechanism allows you to determine an ideal position for 14” and 15” LM/TM-31XXE/33XXE series monitors. In general, it provides three standard positioning solution as the below figures suggested: flat folded mode, low profile mode, and full extended mode.
  • Page 8 Position your monitor in Full Extended mode. After grabbing the bottom edge of the screen with your hand, gently move the screen upward until the screen is locked into place with a click sound. With the screen facing toward you, tilt the screen up or down to your desired angle.
  • Page 9 Position the monitor in Low Profile mode. Follow Step 4 to set up the monitor in Flat Folded mode. Tilt the screen all the way down To tilt screen up or down to your desired angle, please be advised to keep the base stand steady with one hand to do so.
  • Page 10 Adjust the screen downwards, and release the cable cover from the base. For 9.7” LM/TM-3110E/3310E monitors, please directly remove the neck cover from the base. If you are using 14” or 15” LM/TM-series monitors, refer to the below figures to first remove cable cover and then neck cover in the direction shown by the arrow.
  • Page 11 If you intend to use Power adapter to supply power to your monitor, thread the cable of power adapter through cable exit, connect it to DC-IN power connector of the monitor and then another end to the electrical outlet. Move the screen all the way down. Then, place back the cover into place.
  • Page 12 Identifying your monitor as secondary touchscreen monitor in extended mode Based on the type of your touch panels, you are required to adopt different approaches to set up TM series as the extended monitor when you attempt to extend the desktop across multiple monitors. In the following section the related descriptions will be offered to help you achieve the purpose.
  • Page 13 For TM-31XXE Models with P-CAP Touchscreen If your monitors are TM-31XXE models, you may configure the display settings from Control Panel in Microsoft Windows to identify the monitor as the secondary touchscreen monitor. Please go through the below steps to complete configuration.
  • Page 14 VGA output of the terminals in BIOS settings so that the monitor is able to extract power from the Posiflex terminals. However, if the monitor you are using is not manufactured by Posiflex, it is strongly suggested to deactivate the VGA port of your terminal in preventing your device from being damaged.

  • Page 15: Power Led Indicator

    Power LED Indicator Power LED indicator, which is either located at the bottom of the screen or on bottom I/O plate depending on your model type, is used to notify users of the current status of your monitor by emitting various LED signals. Please refer to the below chart to accurately interpret the of the indicators status to facilitate your troubleshooting.

  • Page 16: Using The Osd Menu

    9.7” LM/TM-3X10E or 15” LM/TM-3X15E Display Horizontal Frequency Refresh Rate (Hz) Resolution (KHz) 640 x 400 37.9 31.5 640 x 480 37.9 37.5 720 x 400 37.9 35.1 37.9 800 x 600 48.1 46.9 48.4 1024 x 768 56.5 Using the OSD Menu OSD, as known as On-Screen Display, is employed to assist users in adjusting a variety of monitor-related settings depending on personal preference.
  • Page 17 Icon Description  to activate the OSD menu  to select the specific menu option OSD button  to exit from the current configuration EXT button  to navigate through OSD menu options  to increase the value of the specific item “＋”...

  • Page 18: Auto Adjustment

    OSD Options Please refer to the following table for further explanation of the accessible items. OSD Menu Options Sub-menu items & Description  Backlight Picture Press the “＋” button to increase backlight intensity; Press the “－” button to decrease backlight intensity.
  • Page 19 OSD Menu Options Sub-menu items & Description  Reset Other Restore the current menu back to the default setting.  Menu Time Specify the length of time for OSD menu to stay active on the screen.  Language Specify the language used in the OSD menu. Display information regarding display resolution, Information horizontal/vertical sync frequency, pixel clock...

  • Page 20: Specifications

    General Specification Display Interface Power 12V / 18W 12V / 40W Supply ※ The product information and specifications are subject to change without prior notice. To get the detailed information on LM/TM-31XXE/33XXE, please check this model from Posiflex Global Website (http://www.posiflex.com/en-global/Download/download).
