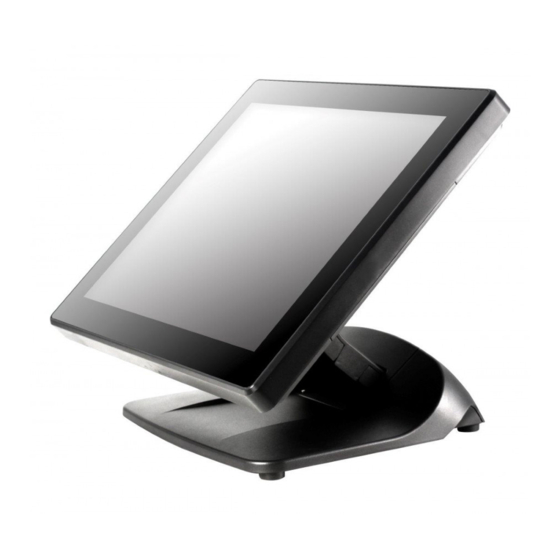

LM/TM-3215, 3215/KS, 3315
Series
LCD Monitor
User's Manual
FCC NOTICE
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions manual, may cause interference to radio communications. It has been tested and found to comply with limits for a Class
A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against
interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause
interference in which case the user at his own expense will be required to take whatever measures to correct the interference.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other than the authorized technicians. The user
should consult his/her dealer for the problem happened. Warranty voids if the user does not follow the instructions in application of
this merchandise. The manufacturer is by no means responsible for any damage or hazard caused by improper application.
ABOUT THIS MANUAL
This manual assists the user to utilize the Monitor LM/Touch Monitor TM series. This product provides capability over a stable and
adjustable LCD monitor with minimal footprint.
The manufacturer of the LM/TM series. monitor heartily apologizes to the user for reserving the right to change or to modify this
manual without notice due to the rapid and constant progress and improvement on science and technology. The user may always
obtain the most up to date information through any of our web sites: http://www.posiflex.com,
http://www.posiflex.com.tw, http://www.posiflexusa.com.
TRADE MARKS AND SERVICE MARKS
POSIFLEX is a registered trademark of Posiflex Technology, Inc.
Other brand and product names are trademarks and registered trademarks and service marks of their respective owners.
I.
PRODUCT MODEL NUMBER
Model Name
LM-3315
TM-3315
LM-3215
LM-3215-B
LM-3215/KS
LM-3215-B/KS
TM-3215
TM-3215B
TM-3215
TM-3215/KS
II. FEATURES
• Bezel type monitor.
• High quality TFT LCD panel.
© Copyright Posiflex Technology, Inc. 2014
Screen
Touch
Size
Function
15"
N / A
15"
Y e s
15"
N / A
15"
N / A
15"
Y e s
15"
Y e s
P/N: 19600906010
Stand
Rear
Max
Alone
Cover
Resolution
Mount
Supported
1024x768
pixels
1024x768
pixels
1024x768
pixels
1024x768
pixels
1024x768
pixels
1024x768
pixels
MEMO
For XT
series
For KS
series
For XT
series
For KS
series
Part 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM-3315 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for POSIFLEX LM-3315 Series

  • Page 1 The manufacturer of the LM/TM series. monitor heartily apologizes to the user for reserving the right to change or to modify this manual without notice due to the rapid and constant progress and improvement on science and technology. The user may always obtain the most up to date information through any of our web sites: http://www.posiflex.com, http://www.posiflex.com.tw, http://www.posiflexusa.com.
  • Page 2: Carton Contents

    • Support power supply through VGA cable from Posiflex POS Terminal. Power Setup Notice √ For rear mount device, it is designed for use with a Posiflex system. In such application, it can utilize power support from the Posiflex system. Standalone device is equipped with power adaptor.
  • Page 3: Rear View

    LM/TM-3215 Main Unit Display Screen LED Indicator REAR VIEW LM/TM-3215 Main Unit VESA Mount Holes OSD Control Button Area Hinge LM/TM-3215 Joint Bracket for XT series LM-3215/KS POS system LM/TM-3215/KS Joint Bracket for KS series POS system Part 3...
  • Page 4: Side View

    LM/TM-3315 Side Mount Main Unit Cover Hinge OSD Control Plastic Neck Button Area Cover Base Stand Cable Exit Hole Cable Exit Hole SIDE VIEW Rear Cover Mount LM/TM-3215 Joint Bracket For XT series POS system Part 4...
  • Page 5 Rear Cover Mount LM/TM-3215/KS Joint Bracket For KS series POS system Stand alone LM/TM-3315 Plastic Neck Cover I/O PORT VIEW (LM-3215/3315 Series) USB-A Audio USB-B DC IN DB-15 VGA Port Type Port Line In Type Port Jack (Option) V. Hardware Installation LM/TM-3215 Series for XT LM/TM-3215 series can be attached to POS XT series.
  • Page 6 XT, please refer to the following installation and join the 2 LCD display to the system. Step A): Please locate the 4 holes on the rear side of the host system. Step B): Please take the 2 LM LCD display, aim its 4 holes and tighten the 4 screws to the system.
  • Page 7 Please do the following steps to install LM/TM-3215/KS: Step A): Hold the LM-3215/KS 2 monitor with bracket and aim to join bracket which is just fixed on the KS series POS main unit and fasten these 3 pcs short screws which are circled in the right picture.
  • Page 8 VI. OSD Menu Introduction Power & OSD buttons The buttons at the right side of LCD monitor are for the OSD (On Screen Display) control operations and LCD screen power control as in the below picture and are explained below. “OSD”...
  • Page 9 “BRIGHTNESS / CONTRAST ADJUST SUBMENU”: There are 2 icons in this submenu: “BRIGHTNESS ADJUST”: When this item is selected, there will be only the brightness icon with an adjustment indication bar under it between the main menu area and the video signal mode. Press “+”...
  • Page 10 receives the information coming from your terminal graphics card and optimize screen resolution. ”IMAGE PROPERTY”: There are 2 icons in this submenu: “Image RGB intensity”: When this item is selected, there will show a customized window display for user to adjust RGB intensity.
  • Page 11: Supported Display Modes

    “Accessibility”: When this item is selected, there will show an Accessibility menu for user to change menu time-out setting. “EXIT”: Exit OSD setup with all adjustment saved. SUPPORTED DISPLAY MODES For VGA signals beyond the supported display modes, there will be a message “Out Of Range”...
  • Page 12 Touch Touch Type Bezel resistive (for TM3215) Interface USB (for TM3215) General Specification Display Interface Power Supply from Posiflex terminal VGA port Display LM/TM 3315 series LCD Panel 15" TFT LCD Resolution 1024 (H) x 768 (V) Active Area (mm) 304.128 (H) x 228.096 (V)
  • Page 13 If your system is preloaded with the OS of your choice, the Manager will be installed on your system. Nevertheless, you can also download the Manager from our website: Visit us at http://www.posiflex.com, and click Support on the main menu bar. Part 13...
