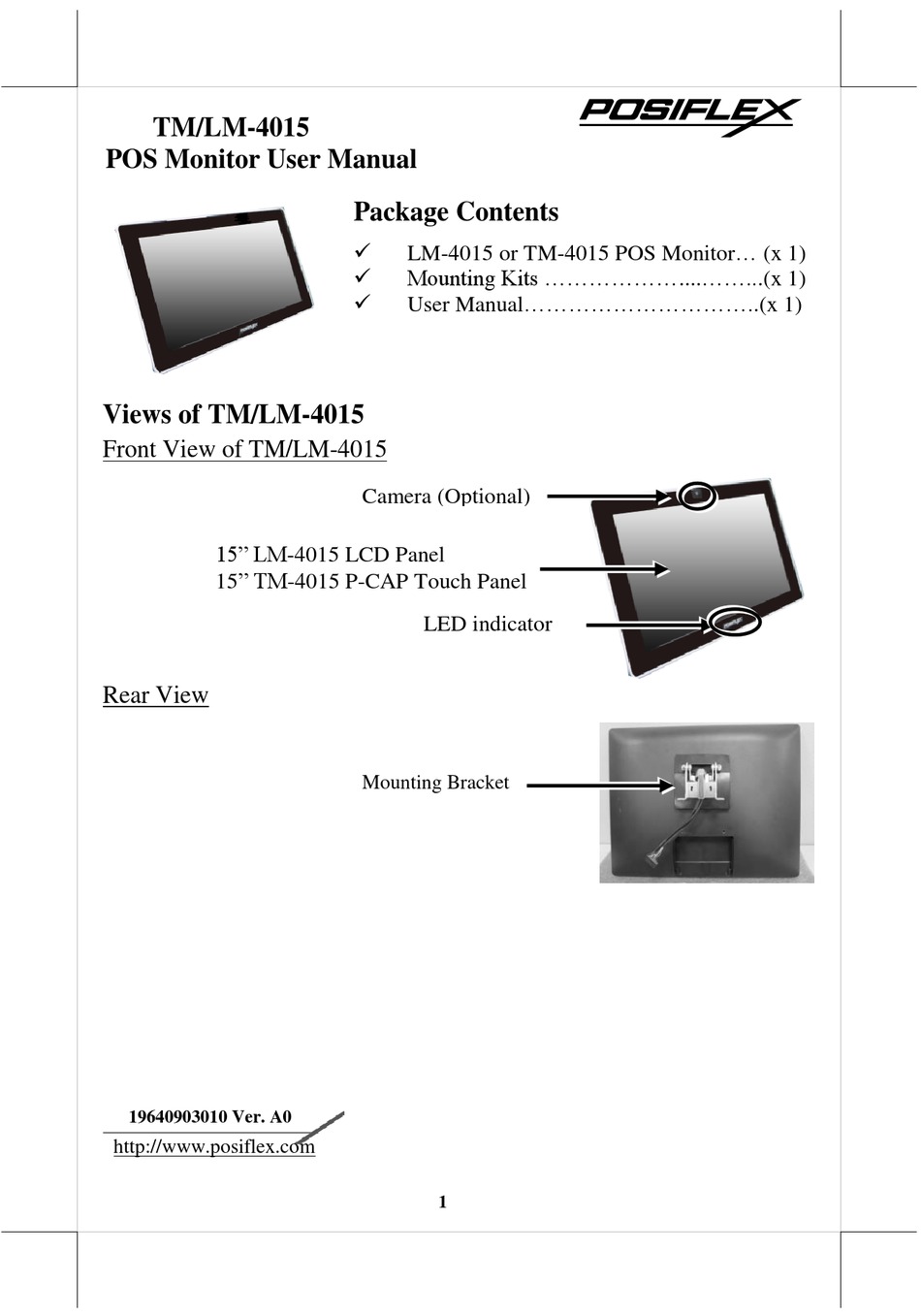

TM/LM-4015
POS Monitor User Manual
Views of TM/LM-4015
Front View of TM/LM-4015
15" LM-4015 LCD Panel
15" TM-4015 P-CAP Touch Panel
Rear View
19640903010 Ver. A0
http://www.posiflex.com
Package Contents
LM-4015 or TM-4015 POS Monitor... (x 1)
Mounting Kits ...............................(x 1)
User Manual................................(x 1)
Camera (Optional)
LED indicator
Mounting Bracket
1
Advertisement
Table of Contents
Related Manuals for POSIFLEX LM-4015
Summary of Contents for POSIFLEX LM-4015
- Page 1 TM/LM-4015 POS Monitor User Manual Package Contents LM-4015 or TM-4015 POS Monitor… (x 1) Mounting Kits ………………..……...(x 1) User Manual…………………………..(x 1) Views of TM/LM-4015 Front View of TM/LM-4015 Camera (Optional) 15” LM-4015 LCD Panel 15” TM-4015 P-CAP Touch Panel...
- Page 2 Mounting your Monitor to RT-series POS Terminals The following instructions are provided to help you mount your TM/LM-4015 to Posiflex RT-series POS terminals. During installation, please ensure the terminal is properly turned off and disconnected from the power sources to avoid potential hazards.
- Page 3 After ensuring the monitor is well mounted to RT-series terminal, push back the front cover for the mounting bracket of TM/LM-4015. Tile the monitor screen all the way up. Well insert the cable to the internal VGA port from the mainboard of RT-series terminal, and tuck the extra cable inside the system compartment.
- Page 4 Place back the sytem cover to close the system compartment of RT-Series terminal. Tile the monitor screen to your desired angle. While setting up the tilting adjustment, be careful NOT to press on the LCD panel. Identifying your Monitor as Secondary Touchscreen Monitor in Extended Mode In the following section the related descriptions will be offered to help you set up TM series as the extended monitor when you attempt to extend the desktop...
- Page 5 Click on the screen you want to use as the secondary touchscreen display. Powering ON/OFF your Monitor To start up TM/LM-4015, please make sure that the monitor is well connected to POS terminals and electricity is supplied to the monitor through POS terminal.
- Page 6 Installing Drivers Please visit Posiflex official website to download and install the related drivers. http://www.posiflex.com/en-global/Download/download) Setting up Display Resolution for Your Monitor The below chart defines the list of recommended display settings for TM/LM-4015. Improper display configuration will prevent the monitor from properly displaying the image and lead to a warning message of “out of range”...
- Page 7 368 x 292 x 78.5 mm (with mounting bracket) Weight 2.5 Kg ※ The product information and specifications are subject to change without prior notice. To get the detailed information on TM/LM-4015, please check this model from Posiflex Global Website (http://www.posiflex.com/en-global/Download/download).
- Page 8 <MEMO>...
