POSIFLEX LM-2008 User Manual

LM-2008 / TM-2008
LCD / Touch Monitor
User's Manual
I. FEATURES
• 8" LCD monitor with tilt adjust for industrial and commercial use
• Application covers POS, POI (Kiosk), Factory Automation etc.
• High quality TFT LCD panel
• Spill proof and easy maintenance structure allowing easy cleaning
• Super VGA interface super resolution up to 800 x 600 pixels
• Support power supply through VGA cable from Posiflex POS systems to
operate without power adaptor
• Resistive type extra long life touch panel in USB interface (for TM-2008)
• Touch functions include left/right button, double click, drag & drop (for
TM-2008)
• Touch beep can be pitch adjusted/enabled/disabled by software control (for
TM-2008)
FCC NOTICE
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions manual, may cause interference to radio communications. It has been
tested and found to comply with limits for a Class A digital device pursuant to subpart J of Part 15 of FCC Rules,
which are designed to provide reasonable protection against interference when operated in a commercial
environment. Operation of this equipment in a residential area is likely to cause interference in which case the
user at his own expense will be required to take whatever measures to correct the interference.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other than the
authorized technicians. The user should consult his/her dealer for the problem happened. Warranty voids if the
user does not follow the instructions in application of this merchandise. The manufacturer is by no means
responsible for any damage or hazard caused by improper application.
ABOUT THIS MANUAL

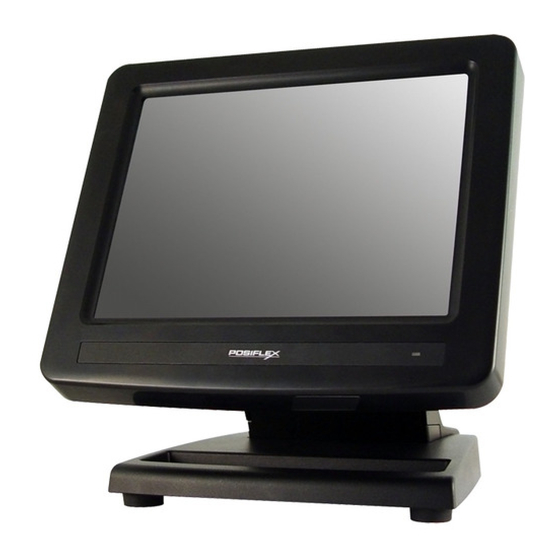

This manual assists the user to utilize the LCD Monitor LM-2008 and the Touch Monitor TM-2008.
These series provide adjustable robust construction for 8" LCD display with maximum resolution of 800 x 600.
TM-2008 provides also a durable touch screen over the LCD panel.
The manufacturer of the LM-2008 and TM-2008 series heartily apologizes to the user for reserving
the right to change or to modify this manual without notice due to the rapid and constant progress and
improvement on science and technology. The user may always obtain the most up to date information through
any of our web sites: http://www.posiflex.com, http://www.posiflex.com.tw, http://www.posiflexusa.com.
TRADE MARKS AND SERVICE MARKS
POSIFLEX is a registered trademark of Posiflex Technologies, Inc..
Other brand and product names are trademarks and registered trademarks and service marks of their
respective owners.
P/N: 18320900010
Rev. Original
© Copyright Posiflex Technologies, Inc. 2009
