POSIFLEX LM-6200 Series User Manual

LM-6200 Series
LCD Monitor
User's Manual

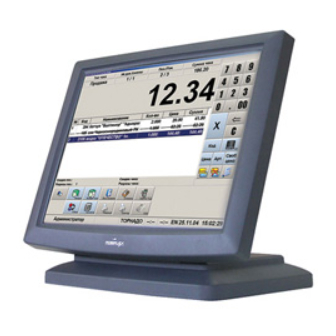

I. FEATURES
Light weight and high luminance LCD
monitor for industrial and commercial use
Application covers POS, POIS (Kiosk), factory Automation etc.
High quality 12.1" TFT LCD panel with scaling up function for full screen
display
Successor from earlier LM-6100 series and supports display resolution up
to 800 x 600 pixels
Tilt and swivel adjustable construction
Spill proof and easy maintenance structure allowing easy cleaning
FCC NOTICE
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions manual, may cause interference to radio
communications. It has been tested and found to comply with limits for a Class A digital device
pursuant to subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection
against interference when operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference in which case the user at his own expense will be
required to take whatever measures to correct the interference.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other
than the authorized technicians. The user should consult his/her dealer for the problem happened.
Warranty voids if the user does not follow the instructions in application of this merchandise. The
manufacturer is by no means responsible for any damage or hazard caused by improper application.
ABOUT THIS MANUAL
This manual assists the user to utilize the LCD Monitor LM-6200 series. This series is a
12.1" LCD monitor of long endurance industrial standards. The LM-6212 is a stand alone monitor
for kitchen video KV series host system while LM-6201 is a upgrade kit particularly designed for
Posiflex touch terminal TP series or the kiosk system KS series.
The manufacturer of the LM-6200 series heartily apologizes to the user for reserving
the right to change or to modify this manual without notice due to the rapid and constant progress
and improvement on s cience and technology. The user may always obtain the most up to date
information through any of our web sites: http://www.posiflex.com.tw, http: //www.posiflex.com,
http://www.posiflexusa.com.
TRADE MARKS AND SERVICE MARKS
POSIFLEX is a registered trademark of Posiflex Inc..
Other brand and product names are trademarks and registered trademarks and service marks
of their respective owners.
P/N: 19050902010
Rev. Original
Copyright Posiflex Inc. 2006
Part 1
