LM-6807U/6810U
Rear-Mount USB POS Monitor
User Manual

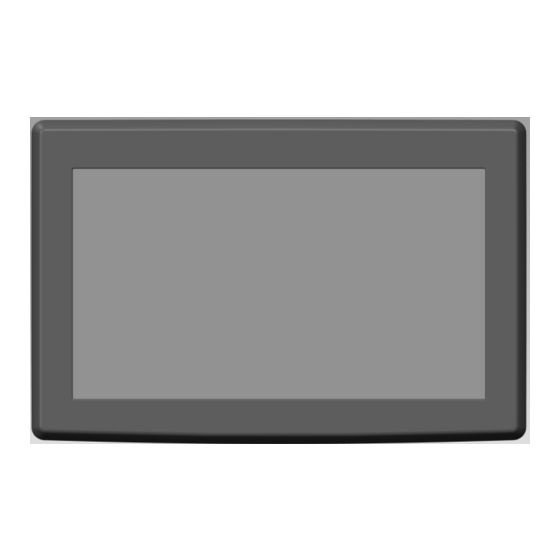

LM-6807U

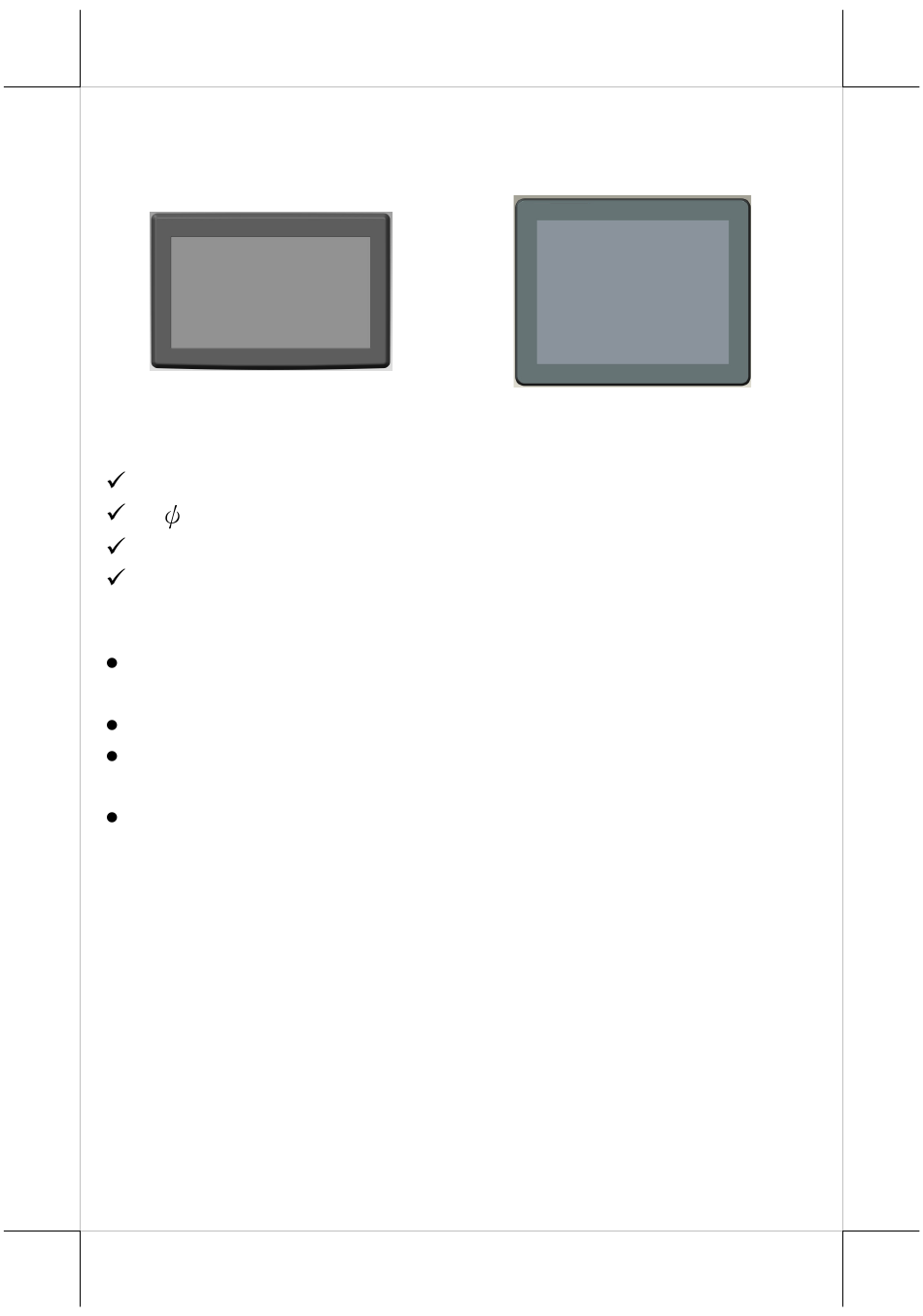

Package Contents

Rear-Mount USB POS Monitor with Bracket (x 1)
3-10L Self-Tapping Screw (x 4)
USB Cable (x 1)
User Manual (x 1)

Product Features

USB interface monitor for system without secondary display
interface
7" TFT LCD panel for LM-6807U and 10" one for LM-6810U
LCD resolution up to 800 x 480 for LM-6807U and 1024 x
768 for LM-6810U
Rear-mount for PS-3000 series terminal
19600990010 Ver. Original
LM-6810U
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM-6807U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for POSIFLEX LM-6807U

  • Page 1 USB interface monitor for system without secondary display interface 7” TFT LCD panel for LM-6807U and 10” one for LM-6810U LCD resolution up to 800 x 480 for LM-6807U and 1024 x 768 for LM-6810U Rear-mount for PS-3000 series terminal...
  • Page 2 Views of the LM-6807U/6810U Front View LM-6807U LM-6810U Rear View Screw Holes LM-6807U Power Button Brightness-Up Button Screw Holes Brightness-Down Button LM-6810U...
  • Page 3 LM-6810U Mounting the USB POS Monitor onto a POS Terminal During Installation of the LM-6807U or LM-6810U USB POS monitor, do NOT power ON your POS terminal. To mount the monitor onto your PS-3000 series POS terminal, please apply 4 screws that are packed together with the USB POS monitor.
  • Page 4 2. Take the monitor out of the LM- 6807U/6810U package box. Here, LM-6807U is taken for example of installation. Align the A type connector of a USB cable with the USB port of your ternminal. 3. Align the four screw holes formed on...
  • Page 5 7. By using a diagonal cutting nipper, cut the cable-exit shield off the rear I/O cover you removed from the POS terminal at step 1. 8. Arrange the USB cable. 9. To arrange the USB cable of the display, make the cable go through the cable exit of the rear I/O cover.
  • Page 6 10. Align the two wedge tabs of the rear I/O cover with the two wedged portion of the rear plate of the terminal, and then make the two wedge tabs wedge respectively into the two wedged portion of the rear plate of the terminal.
  • Page 7 Installing the USB Driver for LM-6807U/6810U Refer to the following step-by-step instruction for the driver installation. 1. Connect the USB POS monitor to your POS terminal by using a USB cable. 2. Locate the “Drivers” folder in the Local Disk (C:) of your POS terminal, and double click it.
  • Page 8 Specifications LM-6807U LM-6810U LCD Panel 7" TFT LCD 10" TFT LCD Resolution 800 (H) x 480 (V) 1024 (H) x 768 (V) Active Area 154.08 (H) x 85.92 (V) 196.61 (H) x 147.46 (V) Pixel Pitch 0.1926 (H) x 0.1790 (V) 0.192 (H) x 0.192 (V)
