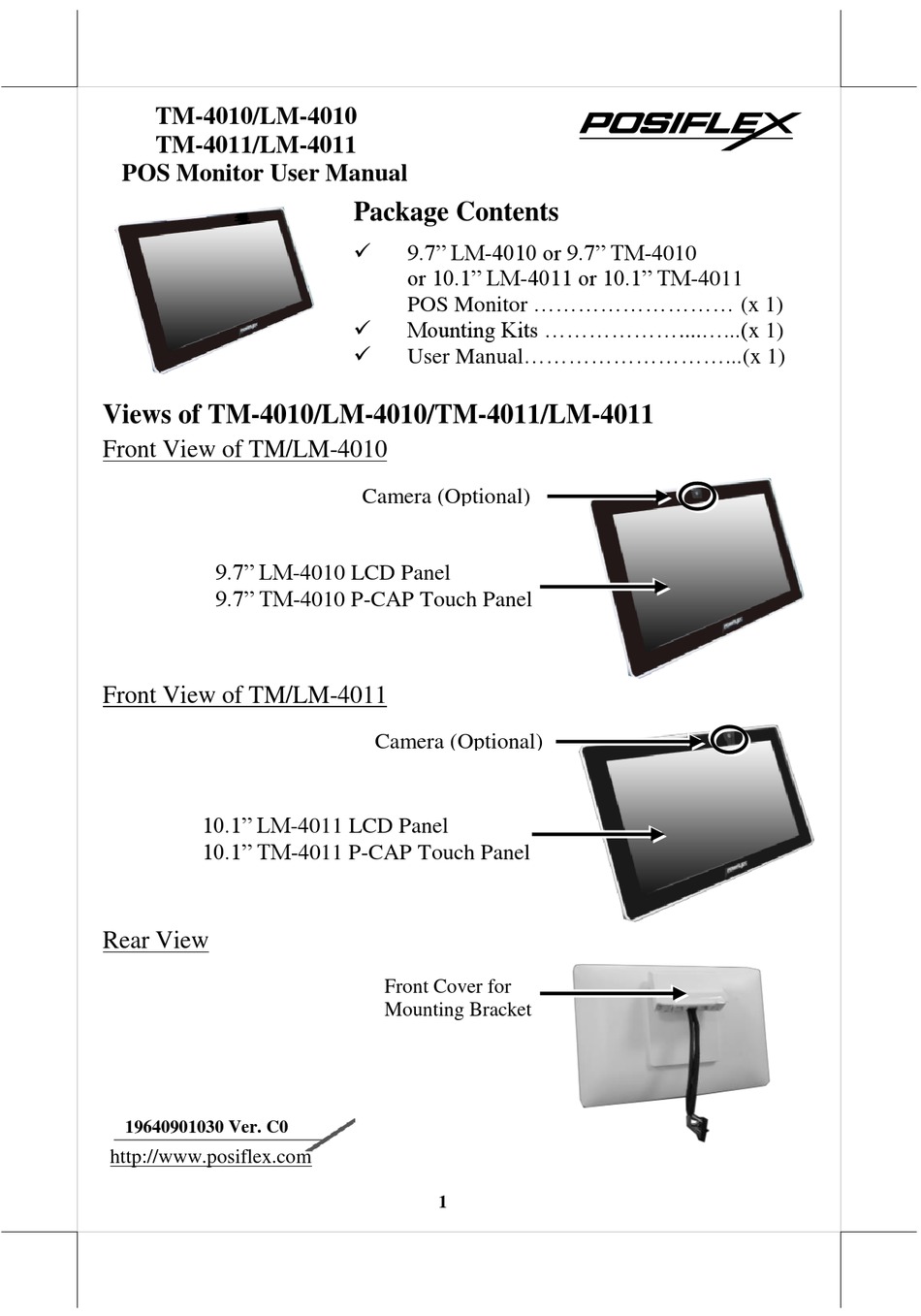

TM-4010/LM-4010
TM-4011/LM-4011
POS Monitor User Manual
Views of TM-4010/LM-4010/TM-4011/LM-4011
Front View of TM/LM-4010
9.7" LM-4010 LCD Panel
9.7" TM-4010 P-CAP Touch Panel
Front View of TM/LM-4011
10.1" LM-4011 LCD Panel
10.1" TM-4011 P-CAP Touch Panel
Rear View
19640901030 Ver. C0
http://www.posiflex.com
Package Contents
9.7" LM-4010 or 9.7" TM-4010
or 10.1" LM-4011 or 10.1" TM-4011
POS Monitor ........................... (x 1)
Mounting Kits ............................(x 1)
User Manual..............................(x 1)
Camera (Optional)
Camera (Optional)
Front Cover for
Mounting Bracket
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX TM-4010
Summary of Contents for POSIFLEX TM-4010
- Page 1 TM-4010/LM-4010 TM-4011/LM-4011 POS Monitor User Manual Package Contents 9.7” LM-4010 or 9.7” TM-4010 or 10.1” LM-4011 or 10.1” TM-4011 POS Monitor ……………………… (x 1) Mounting Kits ………………..…...(x 1) User Manual………………………...(x 1) Views of TM-4010/LM-4010/TM-4011/LM-4011 Front View of TM/LM-4010 Camera (Optional) 9.7”...
- Page 2 SOME IMPORTANT NOTES FCC NOTES This system meets industry & government requirements and applicable standards. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause interference to radio communications.
- Page 3 Mounting your Monitor to RT-series POS Terminals The following instructions are provided to help you mount your TM/LM-4010 or TM/LM-4011 to Posiflex RT-series POS terminals. During installation, please ensure the terminal is properly turned off and disconnected from the power sources to avoid potential hazards.
- Page 4 Lift the monitor, align the two screws holes located on the mounting bracket with those on the top of the system compartment of RT-series terminals and then secure the monitor with two fixing screws. After ensuring the monitor is well mounted to RT-series terminal, push back the front cover for the mounting bracket of TM/LM-4010 or TM/LM-4011.
- Page 5 For TM-4010/4011 Models with P-CAP Touchscreen If your monitors are TM-4010/TM-4011 models, you may configure the display settings from Control Panel in Microsoft Windows to identify the monitor as the secondary touchscreen monitor. Please go through the below steps to complete configuration.
- Page 6 POS terminals and electricity is supplied to the monitor through POS terminal. Installing Drivers Please visit Posiflex official website to download and install the related drivers. http://www.posiflex.com/en-global/Download/download) Setting up Display Resolution for Your Monitor The below chart defines the list of recommended display settings for TM/LM-4010 or TM/LM-4011.
- Page 7 46.9 1024 x 768 48.4 1280 x 720 45.0 1280 x 800 49.7 Specification TM-4011 LM-4011 TM-4010 LM-4010 Display LCD Panel 10.1" TFT LCD 9.7" TFT LCD Resolution 1280(H) x 800 (V) 1024(H) x 768 (V) Active Area 216.96mm (H) x 196.61mm (H) x...
- Page 8 12V from Posiflex terminal VGA Port Touch Touch type P-CAP P-CAP Interface ※ The product information and specifications are subject to change without prior notice. To get the detailed information on TM-4010/LM-4010/TM- 4011/LM-4011 please check this model from Posiflex Global Website (http://www.posiflex.com/en-global/Download/download). BSMI ROHS...
