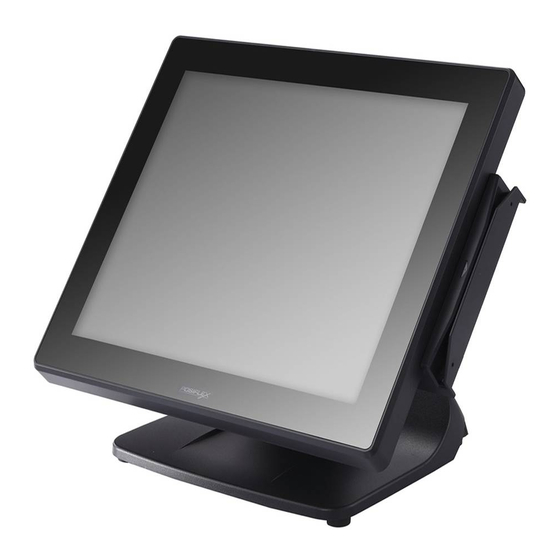

LM/TM-30xx, 31xx Series

LCD Monitor

User's Manual

FCC NOTICE

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions manual, may cause interference to radio communications. It has been tested and found to comply with limits for a Class
A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against
interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause
interference in which case the user at his own expense will be required to take whatever measures to correct the interference.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other than the authorized technicians. The user
should consult his/her dealer for the problem happened. Warranty voids if the user does not follow the instructions in application of
this merchandise. The manufacturer is by no means responsible for any damage or hazard caused by improper application.

ABOUT THIS MANUAL

This manual assists the user to utilize the (Touch) Monitor TM(LM)30xx/31xx series. This product provides exquisite touch control
capability over a stable and adjustable LCD monitor with minimal footprint.
The manufacturer of the LM/TM30xx /31xx series monitor heartily apologizes to the user for reserving the right to change or to
modify this manual without notice due to the rapid and constant progress and improvement on science and technology. The user
may always obtain the most up to date information through any of our web sites: http://www.posiflex.com,
http://www.posiflex.com.tw, http://www.posiflexusa.com.
TRADE MARKS AND SERVICE MARKS
POSIFLEX is a registered trademark of Posiflex Technology, Inc.
Other brand and product names are trademarks and registered trademarks and service marks of their respective owners.
I.
PRODUCT MODEL NUMBER
Model Name
LM-3010F/HS
LM-3010F-B/HS
LM-3010F/KS
LM-3010F-B /KS
LM-3010F
LM-3010F-B
TM-3010F
TM-3010F-B
Rev. Ori
Copyright Posiflex Technology, Inc. 2014
Screen
Touch
Size
Function
9.7"
9.7"
9.7"
9.7"
9.7"
9.7"
Yes
19600904010
P/N:
Stand
Rear
Max Resolution
Alone
Cover
Supported
Mount
1024x768
pixels
1024x768
pixels
1024x768
pixels
1024x768
pixels
1024x768
pixels
1024x768
pixels
MEMO
For HS
series
For HS
series
For KS
series
For KS
series
For XT
series
For XT
series
Part 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM-3010F/HS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for POSIFLEX LM-3010F/HS

  • Page 1: Lcd Monitor

    The manufacturer of the LM/TM30xx /31xx series monitor heartily apologizes to the user for reserving the right to change or to modify this manual without notice due to the rapid and constant progress and improvement on science and technology. The user may always obtain the most up to date information through any of our web sites: http://www.posiflex.com, http://www.posiflex.com.tw, http://www.posiflexusa.com.
  • Page 2 TM-3010F/HS 9.7” 1024x768 For HS pixels series TM-3010F-B/HS 9.7” 1024x768 For HS pixels series TM-3010F/KS 9.7” 1024x768 For KS pixels series TM-3010F-B/KS 9.7” 1024x768 For KS pixels series LM-3014F 14” 1366x768 For XT LM-3014F-B pixels series LM-3014F-B/KS 14” 1024x768 For KS pixels series TM-3014F...
  • Page 3: Carton Contents

    Support power supply through VGA cable from Posiflex POS Terminal. Power Setup Notice For rear mount device, it is designed for use with a Posiflex system. In such application, it can utilize power support from the Posiflex system. Standalone device is equipped with its power adaptor.
  • Page 4: Rear View

    LM/TM-3014/3114/3114 Series Main Unit Display Screen LM/TM-3015/3115 Series Main Unit Display Screen LED Indicator REAR VIEW LM/TM-3010/3014/3015 Series Main Unit VESA Mount Holes Hinge OSD Control Button Area LM/TM- 3010/3014/3015 Series Joint Bracket for XT series POS system Part 4...
  • Page 5 LM/TM- 3010/HS Joint Bracket for HS series POS system LM/TM- 3010/KS Joint Bracket for KS Stand alone LM/TM-3110/3110-B Main Unit VESA Mount Holes Hinge OSD Control Button Area Plastic Neck Cover Base Stand Cable Exit Hole Part 5...
  • Page 6 Cable Exit Hole Stand alone LM/TM-3114 Series VESA Mount Holes Side Mount Cover Hinge OSD Control Plastic Neck Button Area Cover Base Stand Cable Exit Cable Exit Hole Part 6...
  • Page 7: Side View

    Stand alone LM/TM-3115 Series VESA Mount Side Mount Cover Holes Hinge OSD Control Plastic Neck Button Area Cover Base Stand Cable Exit Cable Exit Hole SIDE VIEW Rear Cover Mount LM/TM 3010/3014/3015 Joint Bracket For XT series POS system Part 7...
  • Page 8 Rear Cover Mount LM/TM-3010/HS Joint Bracket For HS series POS system Rear Cover Mount LM/TM-3010/KS Joint Bracket For KS series POS system Stand alone LM/TM-3110/3110-B Plastic Neck Cover Stand alone LM/TM-3115/3115-B/3114/3114-B Plastic Neck Cover Part 8...
  • Page 9: Bottom View

    BOTTOM VIEW Stand alone LM/TM-3110/3110-B Rubber Feet Bottom Plate Stand alone LM/TM-3114/3114-B/3115/3115-B Rubber Feet Bottom Plate E. I/O PORT VIEW (LM/TM-3010/3110 Series) DB-15 VGA Port DC IN Jack Power LED Indicator (LM/TM-3114/3014 Series) DB-15 VGA Port USB-A USB-B Power Audio DC IN Type Port Type Port...
  • Page 10 (LM/TM-3015/3115 Series) USB-A Audio USB-B DC IN DB-15 VGA Port Type Port Line In Type Port Jack (Option) V. Hardware Installation LM/TM-3010/3014/3015 Series for XT Series Please do the following steps to install LM/TM-3010/3014/3015 series: Step A): Place the XT system on a soft pad and align the main unit along table to easily adjust the bracket of 2 LM LCD panel...
  • Page 11 Step D):The assembly is completed below. LM/TM-3110/3110-B Series A. TILTING LCD PANEL Please do the following steps to tilt LCD panel: Step A): Hold and push downward the main unit. Step B): Tilt the neck at its right position for most suitable angle for best view effect and convenience in cable connection/disconnection.
  • Page 12 C. OPENING PLASTIC NECK COVER To route through base, please observe the below side view pictures of the base trunk and release the triangle marked hooks to remove the plastic neck cover. D. CABLE ROUTING IN BASE For cable routing in the mini slim base, please refer to the picture below.
  • Page 13 LM/TM-3010/HS for HS Series To mount LM-3010/HS on the back of the terminal, please do the following steps to tilt LCD panel: Step A): Release the top cover on the HS system top I/O plate. Step B): Adjust the rear bracket of 2 display to its adequate angle, connect one VGA cable end at the 2 display VGA port, the other at the VGA...
  • Page 14: Cable Routing

    Step B): Tilt the neck at its right position for most suitable angle for best view effect and convenience in cable connection/disconnection. B. CABLE ROUTING Please do the following steps to remove the cable cover for Gen 7 slim base model.
  • Page 15 button: To decrease setting; To turn the monitor power ON/OFF. Note: “+” button indicates an Auto Tune feature to automatically optimize image below: OSD functions “MAIN MENU”: There are a total of 6 icons in this menu: Once one icon is selected, it will be displayed in inverted color to indicate its relationship with the submenu below.
  • Page 16 image leftward for horizontally leftward positioning. Press OSD/EXT to save/exit. “Vertical Position”: When this item is selected, there will be only the position icon with an adjustment indication bar for user to adjust. Press “+” button to move image upward for vertically upward positioning.
  • Page 17 compact product detail about resolution and refresh rate for demonstration. ”Menu Language : Change Language of Menu”: When this item is selected, there will show a multilingual menu for user to opt for desired language option. ”Menu Position” (reserved) Note: This “Menu Position” is reserved. “Factory Default”: When this item is selected, there will show a Factory Default menu for user to restore to original monitor settings below.
  • Page 18: Specification

    Horizontal Display Resolution Refresh Rate (Hz) Frequency (KHz) 640*400 37.9 31.5 640*480 37.9 37.5 720*400 37.9 35.1 37.9 800*600 48.1 46.9 48.4 1024*768 56.5 1366*768 47.7 Note: Only the LM/TM-3014/3114 series is supported for the optimal 1366*768 resolution. SPECIFICATION Display LM/TM 3014 series LCD Panel 14"...
  • Page 19 Display Interface Power Supply 12V from Posiflex terminal VGA port Display LM/TM 3015 series LCD Panel 15.0" TFT LCD Resolution 1024 (H) x 768 (V) Active Area (mm) 304.128 (H) x 228.096 (V) Pixel Pitch (mm) 0.297 (H) x 0.297 (V)
  • Page 20 If your system is preloaded with the OS of your choice, the Manager will be installed on your system. Nevertheless, you can also download the Manager from our website: Visit us at http://www.posiflex.com, and click Support on the main menu bar. Part 20...
