LM-4010DP/TM-4010DP
LM-4011DP/TM-4011DP
POS Monitor User Manual
Views of LM-4010DP/TM-4010DP/LM-4011DP/TM-4011DP
Front View
Camera (Optional)
LM-401XDP LCD Panel
TM-401XDP P-CAP Touch Panel
Rear View
VESA-Mount Screw Holes
Bottom View
19640902010 Ver. A0
http://www.posiflex.com
Package Contents
POS Monitor ............................(x1)
Power Cable..............................(x1)
DP Cable.................................(x1)
USB (Type B) Cable....................(x1)
(For touch monitor and camera only)
Mounting Kits ............................(x1)
User Manual..............................(x1)
I/O Ports
1
Status LED Indicator
Advertisement
Table of Contents
Related Manuals for POSIFLEX LM-4010DP
Summary of Contents for POSIFLEX LM-4010DP

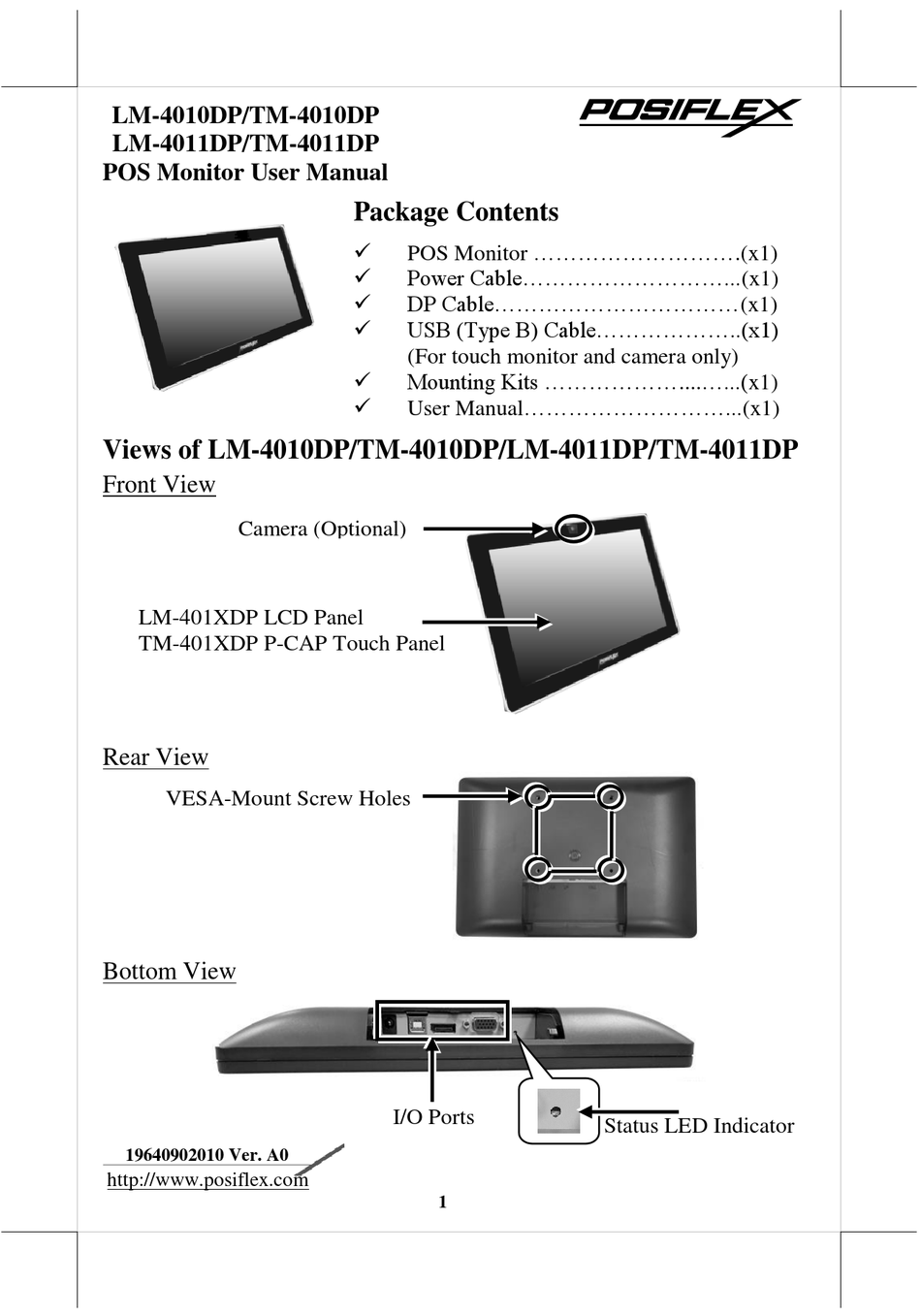

- Page 1 DP Cable……………………………(x1) USB (Type B) Cable………………..(x1) (For touch monitor and camera only) Mounting Kits ………………..…...(x1) User Manual………………………...(x1) Views of LM-4010DP/TM-4010DP/LM-4011DP/TM-4011DP Front View Camera (Optional) LM-401XDP LCD Panel TM-401XDP P-CAP Touch Panel Rear View VESA-Mount Screw Holes Bottom View...
- Page 2 Introduction to the I/O Ports DC-IN Power Jack DP Port VGA Port USB (Type-B) Port Connecting your Monitor to a RT-series POS Terminal Before connecting your POS monitor to a RT-series POS terminal, please enable the power supply from the POS terminal to your POS monitor by setting up the jumper of the POS terminal.
- Page 3 USB (Type B) Cable (For touch monitor and camera only) Connect to POS Monitor Connect to POS Terminal Identifying your Monitor as Secondary Touchscreen Monitor in Extended Mode In the following section, the related descriptions will be offered to help you set up TM series as the extended monitor when you attempt to extend the desktop across multiple monitors For TM-4010DP/4011DP Models with P-CAP Touchscreen...
- Page 4 To start up LM/TM-401XDP, please make sure that the monitor is well connected to the POS terminal and the power is supplied to the monitor through POS terminal. Installing Drivers Please visit Posiflex official website to download and install the related drivers. http://www.posiflex.com/en-global/Download/download)
- Page 5 Setting up Display Resolution for Your Monitor The below chart defines the list of recommended display settings for LM/TM- 401XDP. Improper display configuration will prevent the monitor from properly displaying the image and lead to a warning message of “out of range” prompted on the screen.
- Page 6 1 Port USB Port 1 Port (Type B) DC-Jack 12V DC-IN ※ The product information and specifications are subject to change without prior notice. To get the detailed information on LM/TM-401XDP, please check this model from Posiflex Global Website (http://www.posiflex.com/en-global/Download/download).
