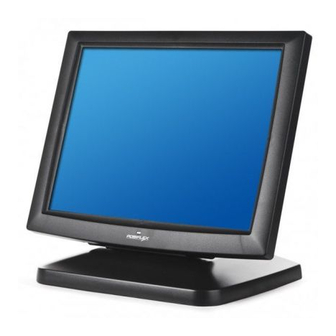

LM6100 Series
LCD Monitor
USER'S MANUAL
I.
FEATURES
Light weight and high luminance LCD monitor for industrial and commercial use
Application covers POS, POIS (Kiosk), Factory Automation etc.
High quality 12.1" TFT LCD panel with scaling up functi o n for full screen display
Successor from earlier LM6000 series and supports display resolution up to 1024 x
768 pixels
Tilt and swivel adjustable construction
Spill proof and easy maintenance structure allowing easy cleaning
FCC NOTICE
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to
comply with limits for a Class A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to
provide reasonable protection against interference when operated in a commercial environment. Operation of this
equipment in a residential area is likely to cause interference in which case the user at his own expense will be required to
take whatever measures to correct the interference.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other than the authorized
technicians. The user should consult his/her dealer for the problem happened. Warranty voids if the user does not follow
the instructions in application of this merchandise. The manufacturer is by no means responsible for any damage or
hazard caused by improper application.
ABOUT THIS MANUAL
This manual assists the user to utilize the LCD Monitor LM6100 series. These series provide versatile font
formats and support various instruction sets. These series of products receive instructions in serial communication
protocols and is capable of entering pass through mode so that all instructions received pass on to next connected serial
device if properly configured.
The manufacturer of the LM6100 series heartily apologizes to the user for reserving the right to change or to
modify this manual without notice due to the rapid and constant progress and improvement on science and technology.
The user may always obtain the most up to date information through any of our web sites: http://www.posiflex.com.tw,
http: //www.posiflexuk.com, http://www.posif lexusa.com.
TRADE MARKS AND SERVICE MARKS
POSIFLEX is a registered trademark of Mustek Corp..
Other brand and product names are trademarks and registered trademarks and service marks of their respective
owners.
P/N: 19050900020
Rev. : A
Copyright Mustek Corp. 2002, 2003
1
Advertisement
Table of Contents
Related Manuals for POSIFLEX LM-6100 Series
Summary of Contents for POSIFLEX LM-6100 Series
-
Page 1: Lcd Monitor
LM6100 Series LCD Monitor USER’S MANUAL Rev. : A FEATURES Light weight and high luminance LCD monitor for industrial and commercial use Application covers POS, POIS (Kiosk), Factory Automation etc. High quality 12.1” TFT LCD panel with scaling up functi o n for full screen display Successor from earlier LM6000 series and supports display resolution up to 1024 x 768 pixels Tilt and swivel adjustable construction... - Page 2 II. MODEL NUMBERS LM6112: 12.1” LCD Monitor w/ stand LM6101: 12.1” LCD Monitor w/ joining mechanism for Posiflex touch terminals such as TP-7000 series LM6101 on back of TP7000 LM6112 III. CARTON CONTENTS 1. LCD Monitor panel unit 2. Monitor stand (for LM6112) or joining mechanism (for LM6101) 3.
- Page 3 back of the panel unit. For LM6101, please arrange the power to be supplied through the interface cable from the main unit and just connect the video interface cable. Connect the other end of VGA cable to the appropriate VGA port.
- Page 4 vanishes. The default status is set to ON when power is supplied unless manually turned OFF. Since this button controls only the display power but not the display controller, please try disconnect the power cable or the VGA cable once unfortunately the screen display goes into a mess. B.
- Page 5 “EXIT”: Return to “Main menu”. “COLOR ADJUST SUBMENU”: There are 4 icons in this submenu: Press “OSD” button to select item or return to main menu. Press “NXT” button to select among auto color adjust, auto RGB reset, Color balance adjust and exit.
- Page 6 “6500K”: Pressing “OSD” button on this icon will set the color balance to a color temperature of 6500 degrees Kelvin. “7500K”: Pressing “OSD” button on this icon will set the color balance to a color temperature of 7500 degrees Kelvin. “9300K”: Pressing “OSD”...
- Page 7 “VERTICAL POSITION”: When this item is selected, there will be only the vertical position icon with an adjustment indication bar under it between the main menu area and the video signal mode. Press “+” button to shift up the screen display. Press “-” to shift down. Press “OSD” button to save the current setting and return to “Geometry adjust submenu”.
- Page 8 “RESET TO DEFAULT”: Pressing “OSD” button on this icon will set all parameters back to the status when the monitor left factory. “SMOOTHNESS / SHARPNESS ADJUST”: When this item is selected, there will be only the smoothness / sharpness adjust icon with an adjustment indication bar under it between the main menu area and the video signal mode.
