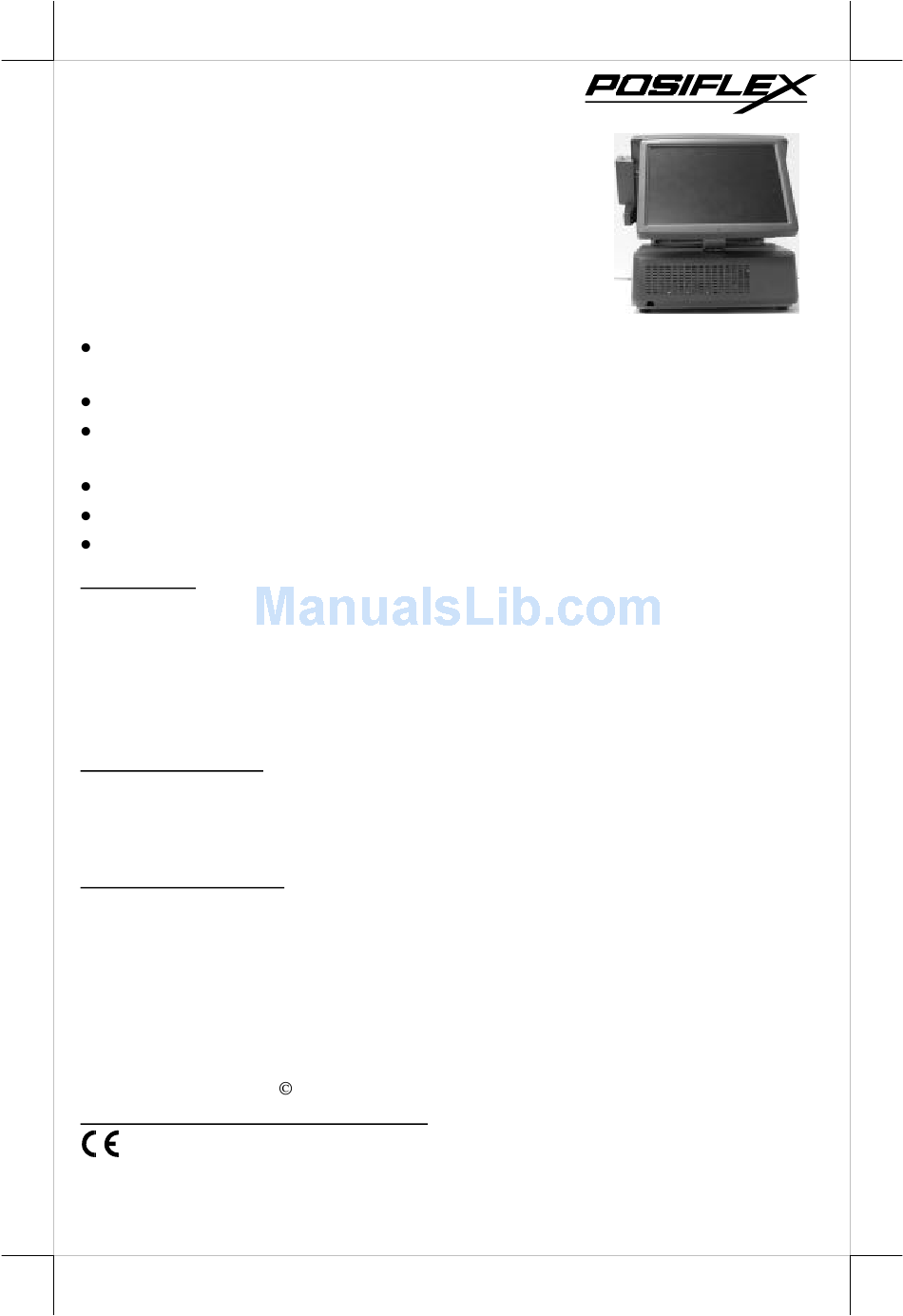

LM-2010 / 2110
LCD Monitor
User's Manual
I.
FEATURES

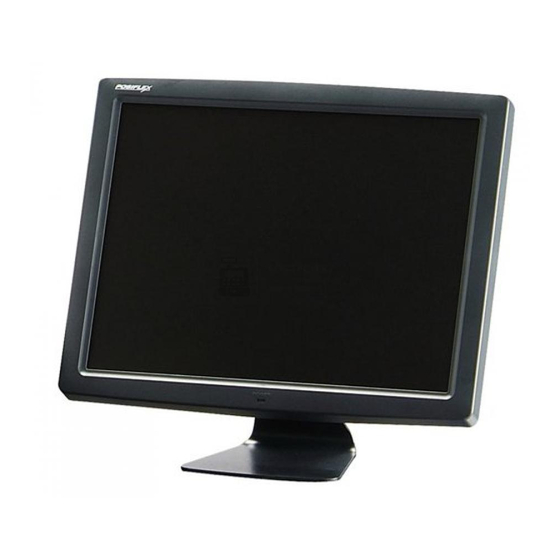

Light weight and high luminance LCD monitor for industrial and
commercial use
Application covers POS, POIS (Kiosk), factory Automation etc.
High quality 10.4" TFT LCD panel with scaling up function for full screen
display
Supports display resolution up to 800 x 600 pixels
Tilt adjustable construction
Spill proof and easy maintenance structure allowing easy cleaning
FCC NOTICE
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions manual, may cause interference to radio
communications. It has been tested and found to comply with limits for a Class A digital device
pursuant to subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection
against interference when operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference in which case the user at his own expense will be
required to take whatever measures to correct the interference.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other
than the authorized technicians. The user should consult his/her dealer for the problem happened.
Warranty voids if the user does not follow the instructions in application of this merchandise. The
manufacturer is by no means responsible for any damage or hazard caused by improper application.
ABOUT THIS MANUAL
This manual assists the user to utilize the LCD Monitor LM -2010/2110 series. This
series is a 10.4" LCD monitor of long endurance industrial standards. The LM-2010 is a upgrade
kit particularly designed for Posiflex hybrid terminal HT series host system.
The manufacturer of the LM -2010/2110 series heartily apologizes to the user for
reserving the right to change or to modify this manual without notice due to the rapid and constant
progress and improvement on science and technology. The user may always obtain the most up to
date
information
through
//www.posiflex.com, http://www.posiflexusa.com.
TRADE MARKS AND SERVICE MARKS
POSIFLEX is a registered trademark of Posiflex Technologies, Inc..
Other brand and product names are trademarks and registered trademarks and service marks
of their respective owners.
P/N: 19670900020
Rev. A0
any
of
our
web
Copyright Posiflex Technologies, Inc. 2007
sites:
http://www.posiflex.com.tw,
http:
Part 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM-2010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for POSIFLEX LM-2010

  • Page 1 This manual assists the user to utilize the LCD Monitor LM -2010/2110 series. This series is a 10.4” LCD monitor of long endurance industrial standards. The LM-2010 is a upgrade kit particularly designed for Posiflex hybrid terminal HT series host system.
  • Page 2: Model Numbers

    Power Adaptor the wall socket and the LM-2110 is ready for work. 3. For LM-2010, following actions shall be taken to install it onto HT systems with power for HT systems disconnected and also reference of the manuals of the HT systems.
  • Page 3 Please note that for LM-2010 with a 2-digit system revision number, the screw holes on support bracket base look like the below left picture and the LM-2010 can be fixed to straight backward of the HT or PB system. For LM-2010 with 3-digit system revision number (3 environment before fixing tight the screws.
  • Page 4 Adjust for best viewing tilt angle and engage the on screen display (OSD) adjustment for best display effect whenever necessary. The monitor will sign for “No Signal” status and go into power saving mode in 5 seconds when there is no video signal. The display will come back when the signal does.
  • Page 5 “BRIGHTNESS / CONTRAST ADJUST SUBMENU”: There are 3 icons in this submenu: to main menu. Press “NXT” button to select among brightness, contrast and exit. “BRIGHTNESS ADJUST”: When this item is selected, there will be only the brightness icon with an adjustment indication bar under it between the main menu area and the video signal mode.
  • Page 6 “SEPARATE COLOR ADJUST”: When this item is selected, there will be 3 adjustment indication bars between the main menu area and the video signal mode. Press “N XT” button to select among the 3 colors Red, Green and Blue respectively. Press “+”...
  • Page 7 adjust submenu”. “HORIZONTAL POSITION”: When this item is selected, there will be only the horizontal position icon with an adjustment indication bar under it between the main menu area and the video signal mode. Press “+” or “-” button to shift the screen display to right or left. Press “OSD”...
  • Page 8: Supported Display Modes

    “RESET TO DEFAULT”: Pressing “OSD” button on this icon will set all parameters back to the status when the monitor left factory. “SMOOTHNESS / SHARPNESS ADJUST”: When this item is selected, there will be only the smoothness / sharpness adjust icon with an adjustment indication bar under it between the main menu area and the video signal mode.
  • Page 9 Part 9...
  • Page 10 T31454 警告使用者 這是甲類的資訊產品,在居住的環 境 中 使 用 時, 可能會造成射頻干 擾,在這種情況下,使用者會被要 求採取某些適當的對策。 Part 10...
