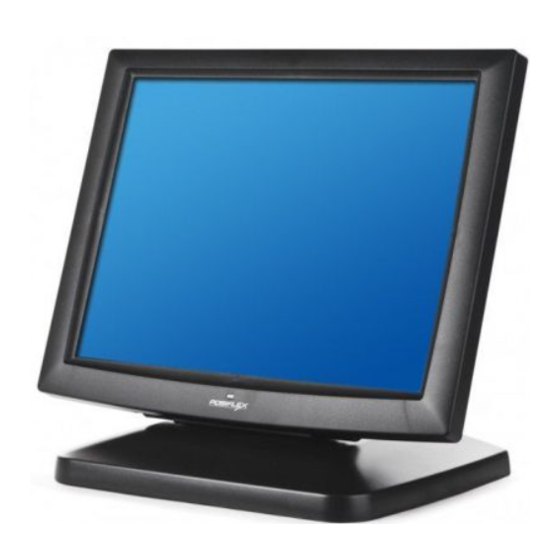

POSIFLEX LM6112 User Manual

LM6100 Series

LCD Monitor

USER'S MANUAL
I. FEATURES
Light weight and high luminance LCD monitor for industrial and commercial use
•
Application covers POS, POIS (Kiosk), Factory Automation etc.
•
High quality 12.1" TFT LCD panel with scaling up function for full screen display
•
Successor from earlier LM6000 series and supports display resolution up to 1024 x
•
768 pixels
Tilt and swivel adjustable construction
•
Spill proof and easy maintenance structure allowing easy cleaning
•
Wall mount bracket with 75mm VESA standard.
•
FCC NOTICE
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to
comply with limits for a Class A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to
provide reasonable protection against interference when operated in a commercial environment. Operation of this
equipment in a residential area is likely to cause interference in which case the user at his own expense will be required to
take whatever measures to correct the interference.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other than the authorized
technicians. The user should consult his/her dealer for the problem happened. Warranty voids if the user does not follow
the instructions in application of this merchandise. The manufacturer is by no means responsible for any damage or
hazard caused by improper application.
ABOUT THIS MANUAL
This manual assists the user to utilize the LCD Monitor LM6100 series. These series provide versatile font
formats and support various instruction sets. These series of products receive instructions in serial communication
protocols and is capable of entering pass through mode so that all instructions received pass on to next connected serial
device if properly configured.
The manufacturer of the LM6100 series heartily apologizes to the user for reserving the right to change or to
modify this manual without notice due to the rapid and constant progress and improvement on science and technology.
The user may always obtain the most up to date information through any of our web sites: http://www.posiflex.com.tw,
http: //www.posiflexuk.com, http://www.posiflexusa.com.
TRADE MARKS AND SERVICE MARKS
All brand and product names and trademarks are the property of their respective holders.
© Copyright Posiflex Technology, Inc. 2009
P/N: 19050900030
Rev. : B
1
