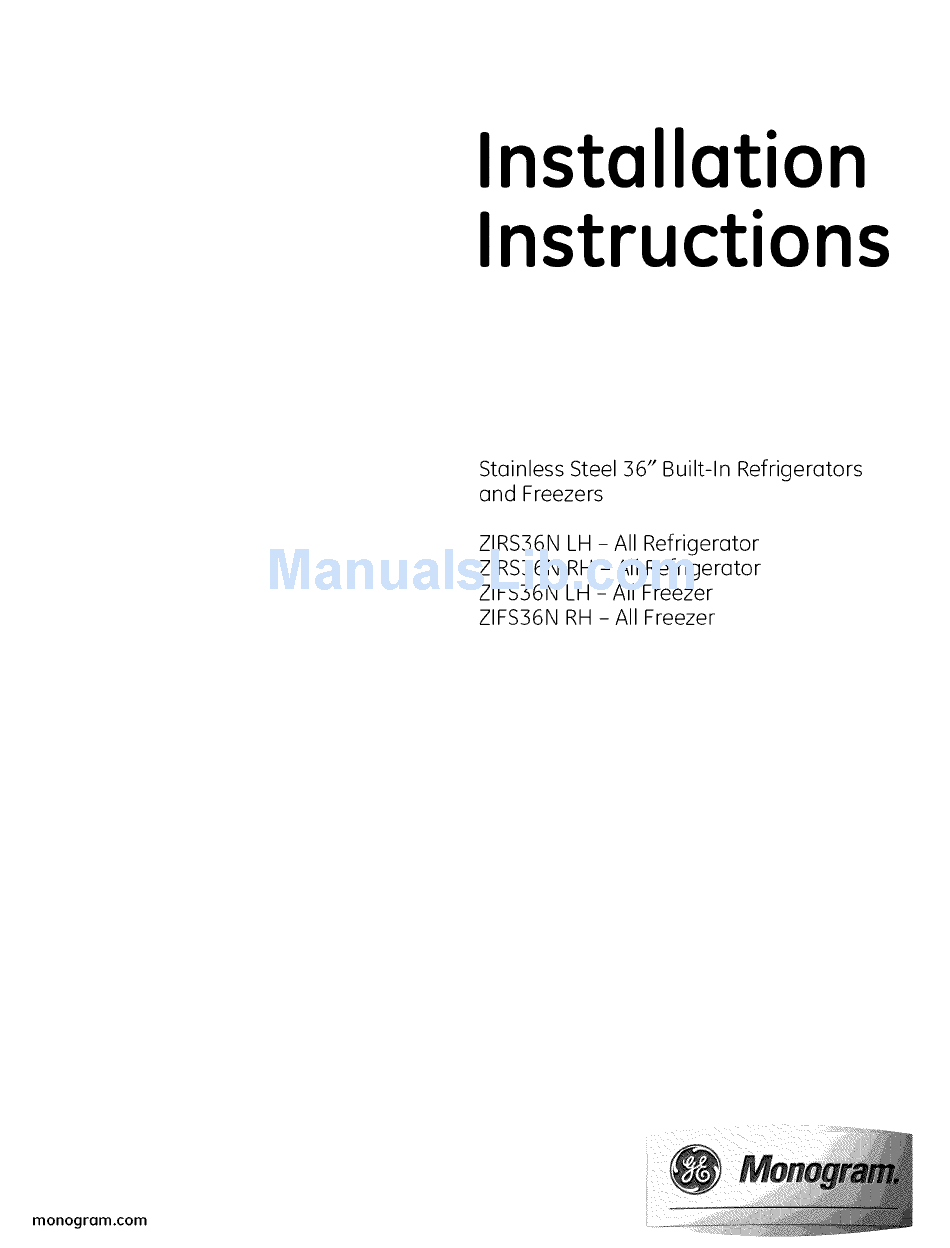

- Page 1 Installation Instructions Stainless Steel 36" Built-In Refrigerators and Freezers ZIRS36N LH -All Refrigerator ZIRS36N RH - All Refrigerator ZIFS36N LH -All Freezer ZIFS36N RH - All Freezer monogram.corn...
-
Page 2: Table Of Contents
Product failure due to improper installation is not • Immediately repair or replace electric service covered under the GE Appliance Warranty. See the cords that have become frayed or damaged. Owner's Manual for warranty information. -
Page 3: Flush Or Semi-Flush Enclosure Installations
Design Information 36" Stainless Steel Refrigerators, Freezers Advance Planning Flush or Semi-Flush Enclosure Instollations True Flush Installation Semi-Flush Installation In a flush installation, These refrigerators can also be installed the refrigerator door semi-flush into on enclosure will align evenly with the front face of adjacent cabinet using the minimum... -
Page 4: Accessory Grille Panel Kits
Design Information 36" Stoinless Steel Refrigerotors, Freezers *Finished Width Side By Side Installation WallView Of Freezer And Refrigerator 5" 5" 75"From Floor 84-1/2"max 24-3/4" Total 83-1/2"rain to Bottom Depth Finished ofElectrical Area Opening Freezer Refrigerator *72" min. for a flush installation For a complete food storage centec... -
Page 5: Product Dimensions
ZIFS36N RH, Freezer 35" Casef Handle on the left side, the door swings left to right. 24-3/4"-- 36" Overall ZIRS36N LH, Refrigerator ZIFS36N LH, Freezer Handle on the right side, the door swings right to left. _6-3/4'-- 84-1/2"Max. Refrigerators are much heavier at the top than at 83-1/2"Min. -
Page 6: Clearances
Installation Preparation 36" Stainless Steel Refrigerators, Freezers Clearances 2" 130° Door Wall Swing , 90° Door Swing _15'% Min. to •)\ ! • ','-[ \\ '\ J i36-3/4" \,'\ \\ % "'.. .;,_: "-.. .;,,_ ""130 ° "_{':') ..--1 ,"._ 4"_Min. -
Page 7: Grounding The Refrigerator
Installation Preparation 36" Stainless Steel Refrigerators, Freezers IMPORTANT - (Please read carefullg) Grounding Refrigerator FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED. The power cord of this appliance is equipped with a 5-prong (grounding) plug that mates with a standard DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR three-prong (grounding) -
Page 8: Tools Required
Required • Stick-on hook and loop fastener strips for 1/4" side panels • Screws to secure refrigerator to cabinetry • 1/4" copper water line tubing or GE SmartConnect Tubing Kit • 1/4-1/4 union with nuts Hardware Supplied • Anti-tip... -
Page 9: Step 2: Install Water Line
• Install optional water filter in the water line near bend leading into the water valve the freezen A water filter is recommended in areas where water supply contains sand or particles. NOTE: The only GE approved plastic tubing Installation instructions are packed with the filten supplied... -
Page 10: Step 3: Install Side Panels
Installation 36" Stainless Steel Refrigerators Freezers Step 3 • Side panels are required whenever the sides of • If gou choose to use 1/4" side panels theg should Install be inserted into the case trim as illustrated Fasten the product will be exposed and when installed Side Panels... -
Page 11: Step 5: Level Refrigerator
Installation 36" Stainless Steel Refrigerators, Freezers Step 5 These products have a A-point leveling system. Level The front is supported by leveling legs, the rear is Refrigerator supported by wheels. • Adjust rear wheels beneath the product to just barely touch the 2x4 block. -
Page 12: Step 6: Optional Anti-Tip Precaution Step 7: Connect Water Supply
Insert tube into the union fitting on the unit and tighten nut to union. • Turn on the water to check for leaks. GE SmartConnect'" Tubing: • Insert the molded end of the tubing into the refrigerator connection. -
Page 13: Step 10: Adjust Door Alignment
Stainless Steel Magic is available at Ace, True Value, Home Depot, Servistar, HWl and other leading stores. If ang of these problems persist: It is also available through GE Parts bg calling Call for Monogram local service in gour area, 1.800.626.2002. Order part number WX10X15. -
Page 14: Zugss Unified Grille Panel Kit
ZUGSS Trim Kit Unified Stainless Steel Custom Grille Panel Completion Time: Allow approximately 3 hours to Tools and Materials Required: install this kit. • #1 and #2 Phillips screwdrivers or sockets • 1/4" angled wrench and 1-1/2" open ended IMPORTANT: 2 People are required to install this kit. - Page 15 ZUGSS Trim Kit Unified Stainless Steel Grille Panel Brackets Brackets Step 2 Required Net Required Beneatha Install Soffit Anti-Tip ANTI-TIP PRECAUTIONS Brackets These products are heavg at the top and must be secured to prevent the possibilitg of tipping over. PRECAUTIONS CENTRE LES BASCULEMENTS SideView...
- Page 16 ZUGSS Trim Kit Unified Stainless Steel Grille Panel NOTE: This step can be used Step 4 Refrigerator Secure as an alternative to Step 2, Anti-Tip bracket installation, Stud LLZ Cabinet Products whenever brackets cannot To Sides be used. Whenever possible, perform this step for additional anti-tip security.
- Page 17 ZUGSS Trim Kit Unified Stainless Steel Grille Panel Step 7 Install Place Grille Base Unified Base Cover 9im Over Cover Hinges • Open doors fully. • Install the double width grille base cover by slipping the notched ends over the hinges. Install Install 3 Screws...
- Page 18 ZUGSS Trim Kit Unified Stainless Steel Grille Panel SlipDustGasket Step 9 Int0TrimOnOneEnd SlipSecondDust Install GasketIntoTrim Soffit Vent Top • Separate the top and hinge side trim pieces bg removing side screws. Discard top piece; retain Screws screws. • Install one end piece to unified top piece with 2 original screws.
- Page 19 ZUGSS Trim Kit Unified Stainless Steel Grille Panel Step 11 Adjust Door Alignment 5/16" Wrench Check door alignment. The top of the door should be parallel with the grille panel. If the door appears to be too high or too low on the handle side, adjustments can be made.
- Page 20 ® local service in your area, coil 1.800.444.1848. Note: Product improvement is a continuing endeavor at General Electric. Therefore, materials, appearance and specifications are subject to change without notice. GE Consumer & Industrial Appliances Pub. No. 49-60073-4 General Electric Company Part No. 197DBOOBPO01...
