HOLEMAKER PRO 50
HOLEMAKER PRO 50

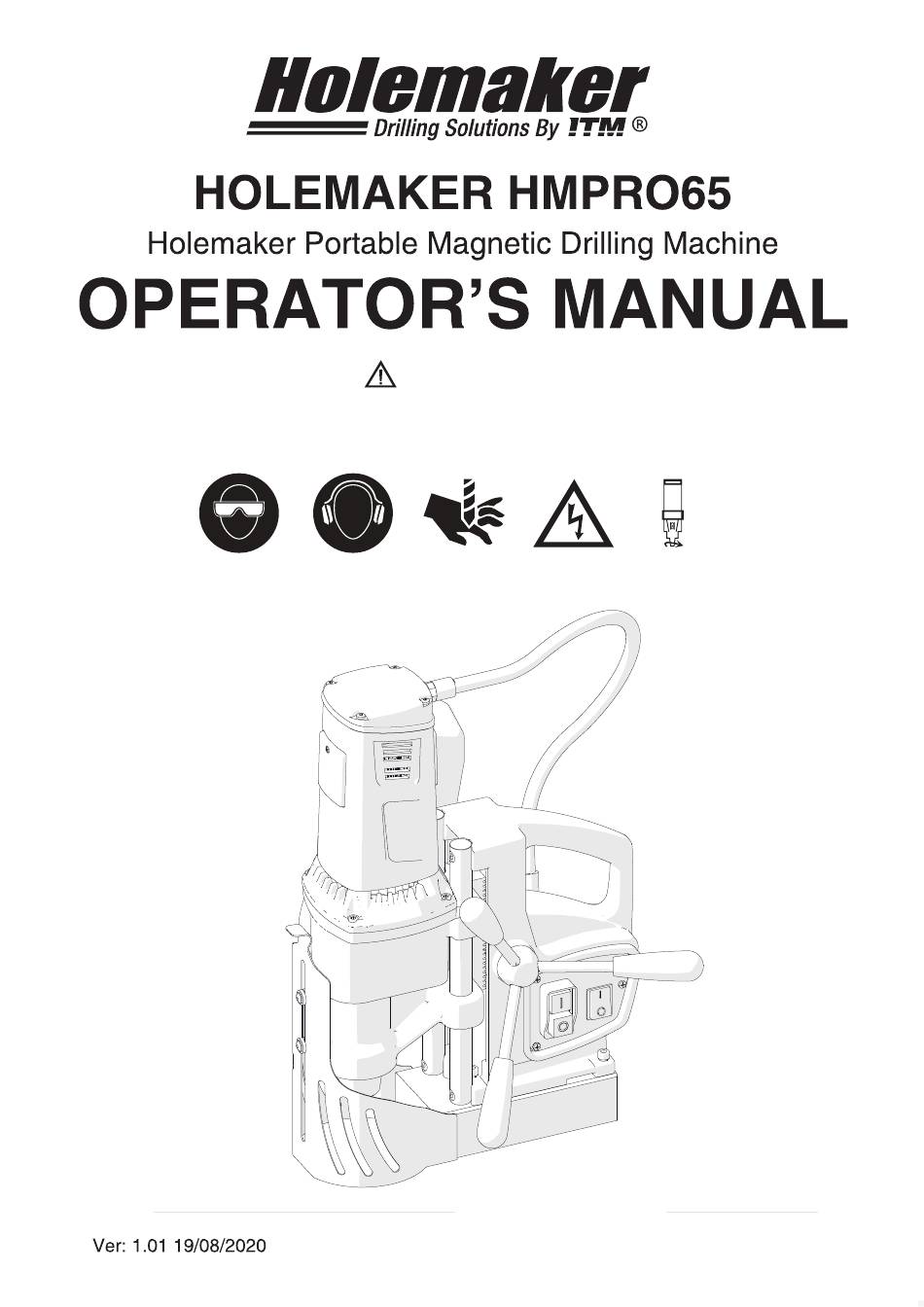

Holemaker Portable Magnetic Drilling Machine
OPERATOR'S MANUAL
Holemaker Portable Magnetic Drilling Machine
OPERATOR'S MANUAL
BEFORE USE
BEFORE USE
EYE PROTECTION
REQUIRED
EYE PROTECTION
REQUIRED
S
r e
a i
# l
Ver: 1.10
14/08/2015
S
r e
a i
# l
Ver: 1.10
14/08/2015
WARNING!
OPERATOR'S MANUAL
,
ENSURE EVERYONE USING THIS MACHINE READS AND UNDERSTANDS
WARNING!
ALL SAFETY AND OPERATING INSTRUCTIONS IN THIS MANUAL
,
ENSURE EVERYONE USING THIS MACHINE READS AND UNDERSTANDS
ALL SAFETY AND OPERATING INSTRUCTIONS IN THIS MANUAL
DRILLING MACHINE
WITH ELECTROMAGNETIC BASE
HEARING PROTECTION
NEVER PLACE
REQUIRED
FINGERS NEAR
CUTTING AREA OR
P
P
MACHINE ARBOR
HEARING PROTECTION
NEVER PLACE
REQUIRED
FINGERS NEAR
CUTTING AREA OR
MACHINE ARBOR
ul. Elewatorska 23/1, 15-620 Białystok, Poland
Phone: +48 85 678-34-95, Fax: +48 85 662-78-77
www.promotech.eu
LINE VOLTAGE
PRESENT
R
O
6
2
R
O
6
2
LINE VOLTAGE
PRESENT
D
a
e t
f o
P
r u
h c
D
a
e t
f o
P
r u
h c
e-mail:
info@promotech.eu
.
.
BEWARE OF
ROTATING
MACHINE PARTS
BEWARE OF
ROTATING
MACHINE PARTS
a
e s
a
e s

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HOLEMAKER HMPRO65 and is the answer not in the manual?

Questions and answers

Related Manuals for Itm HOLEMAKER HMPRO65

Summary of Contents for Itm HOLEMAKER HMPRO65

  • Page 1 HOLEMAKER PRO 50 HOLEMAKER PRO 50 Holemaker Portable Magnetic Drilling Machine OPERATOR’S MANUAL Holemaker Portable Magnetic Drilling Machine OPERATOR’S MANUAL WARNING! OPERATOR’S MANUAL BEFORE USE ENSURE EVERYONE USING THIS MACHINE READS AND UNDERSTANDS WARNING! ALL SAFETY AND OPERATING INSTRUCTIONS IN THIS MANUAL BEFORE USE ENSURE EVERYONE USING THIS MACHINE READS AND UNDERSTANDS ALL SAFETY AND OPERATING INSTRUCTIONS IN THIS MANUAL...

  • Page 2: Table Of Contents

    Contents 1. GENERAL INFORMATION ....................3 1.1. Application ......................... 3 1.2. Technical data......................3 1.3. Equipment included ....................4 1.4. Dimensions ........................ 5 1.5. Design ........................6 2. SAFETY PRECAUTIONS ....................7 3. STARTUP AND OPERATION ................... 9 3.1. Installing and removing the annular cutter ..............9 3.2.

  • Page 3: General Information

    PRO 62 1. GENERAL INFORMATION 1.1. Application The HMPRO65 is a drilling machine designed to drill holes with diameters of up to 65 mm (2.56″) to a depth of up to 75 mm (2.95″) by using annular cutters. The electromagnetic base clamps the machine to ferromagnetic surfaces. This makes sure that the operator is safe and the machine works correctly.

  • Page 5: Dimensions

    PRO 62 1.4. Dimensions 355 mm (14″) 264 mm (10.4″) This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 7: Safety Precautions

    PRO 62 2. SAFETY PRECAUTIONS 1. Before use, read this Operator’s Manual and complete a training in occupational safety and health. 2. Use only in applications specified in this Operator’s Manual. 3. Make sure that the machine has all parts and they are genuine and not damaged. 4.
  • Page 8 PRO 62 21. Do not use on surfaces that are rough, not flat, not rigid, or have rust, paint, chips, or dirt. 22. Do not use the gear switch if the motor is on. 23. Use the safety strap to attach the machine to a stable structure. Put the strap through the hole in the machine body.

  • Page 10: Installing And Removing The Cooling System

    PRO 62 3.2. Installing and removing the cooling system Attach the bottle to the bracket (1). Attach the hose to the fitting (2). To remove the bottle, continue in reverse sequence. This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 11: Monitoring System Of The Clamping Force

    PRO 62 3.3. Monitoring system of the clamping force The drilling machine has a system that monitors the clamping force of the electro- magnetic base. The force will be lower if there is rust, paint, chips, or dirt. The force will be lower also if the surface is thin, rough, not flat, not rigid, the voltage is lower than required, or the bottom of the base is worn.

  • Page 15: Replacing The Motor Brushes

    PRO 62 After the work is finished and the motor turned off, set the gear switch to the op- posite position. Then, turn on the motor and let it operate for a while with no load to improve lubrication. Next, turn off the motor and the base, and then unplug the power cord.

  • Page 17: Declaration Of Conformity

    Parts list PRO 62 v.0.04 ITEM PART NUMBER DESCRIPTION Q-TY UKL-0630-04-00-00-0 COOLANT BOOTLE ASSY DZW-0212-12-00-00-0 SPOKE HANDLE ASSY KLC-000037 5 MM HEX WRENCH WITH HANDLE PAS-000008 SAFETY STRAP SKR-000017 PLASTIC BOX This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 18: Warranty Card

    Parts list PRO 62 v.0.04 Parts list PRO 62 v.0.04 ITEM PART NUMBER DESCRIPTION Q-TY SLN-0630-01-00-00-0 MOTOR - 115V ITEM PART NUMBER DESCRIPTION Q-TY SLN-0630-01-00-00-1 MOTOR - 230V SLN-0630-01-00-00-0 MOTOR - 115V SRB-000083 HEX SOCKET HEAD CAP SCREW M5x16 SLN-0630-01-00-00-1 MOTOR - 230V PDK-000044 SPRING WASHER 5.1...
  • Page 19 Parts list PRO 62 v.0.04 ITEM PART NUMBER DESCRIPTION Q-TY PDK-000151 NYLON WASHER 8.1x14x3 OSL-0630-05-00-00-0 GUARD SPR-000030 PUSH SPRING TLJ-0399-06-00-00-0 BOTTOM SLEEVE SRB-000119 HEX SOCKET HEAD CAP SCREW M6x30 RDK-0630-02-00-00-0 GEARBOX ASSY PRS-000019 EXTERNAL RETAINING RING 28z TLJ-000010 SELF-LUBRICATING SLEEVE 28x32x16 SRB-000118 HEX SOCKET HEAD CAP SCREW M6x30 PDK-000046...
  • Page 20 Parts list PRO 62 v.0.04 This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.
  • Page 21 Parts list PRO 62 v.0.04 ITEM PART NUMBER DESCRIPTION Q-TY WKR-000526 TORX PAN HEAD SCREW 4x25 WKR-000527 TORX PAN HEAD SCREW 4x35 PKR-0630-01-04-00-0 STATOR COVER OBD-0630-99-01-00-0 MOTOR COVER WITH STATOR ASSY - 230V OBD-0630-99-01-00-1 MOTOR COVER WITH STATOR ASSY - 115V WKR-000506 SCREW FOR PLASTIC 3x10 PKR-0563-01-09-00-0...
  • Page 22 Parts list PRO 62 v.0.04 This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.
  • Page 23 Parts list PRO 62 v.0.04 ITEM PART NUMBER DESCRIPTION Q-TY KLK-000051 DOWEL PIN 5n6x30 WDZ-0630-02-07-00-0 SLIPPER ASSY KOL-0630-02-03-00-0 GEAR z42 z54 WPS-0563-02-20-00-1 KEY 4x4x25 WLK-0630-02-04-00-0 PINION SHAFT z12 PDK-000164 SPACER WASHER 12x18x1 WLK-0630-02-02-00-0 PINION SHAFT ASSY PDK-0211-00-16-00-0 BEARING WASHER 8.1 PRS-000322 EXTERNAL RETAINING RING 24z KOL-0630-02-05-00-0 GEAR z45...
