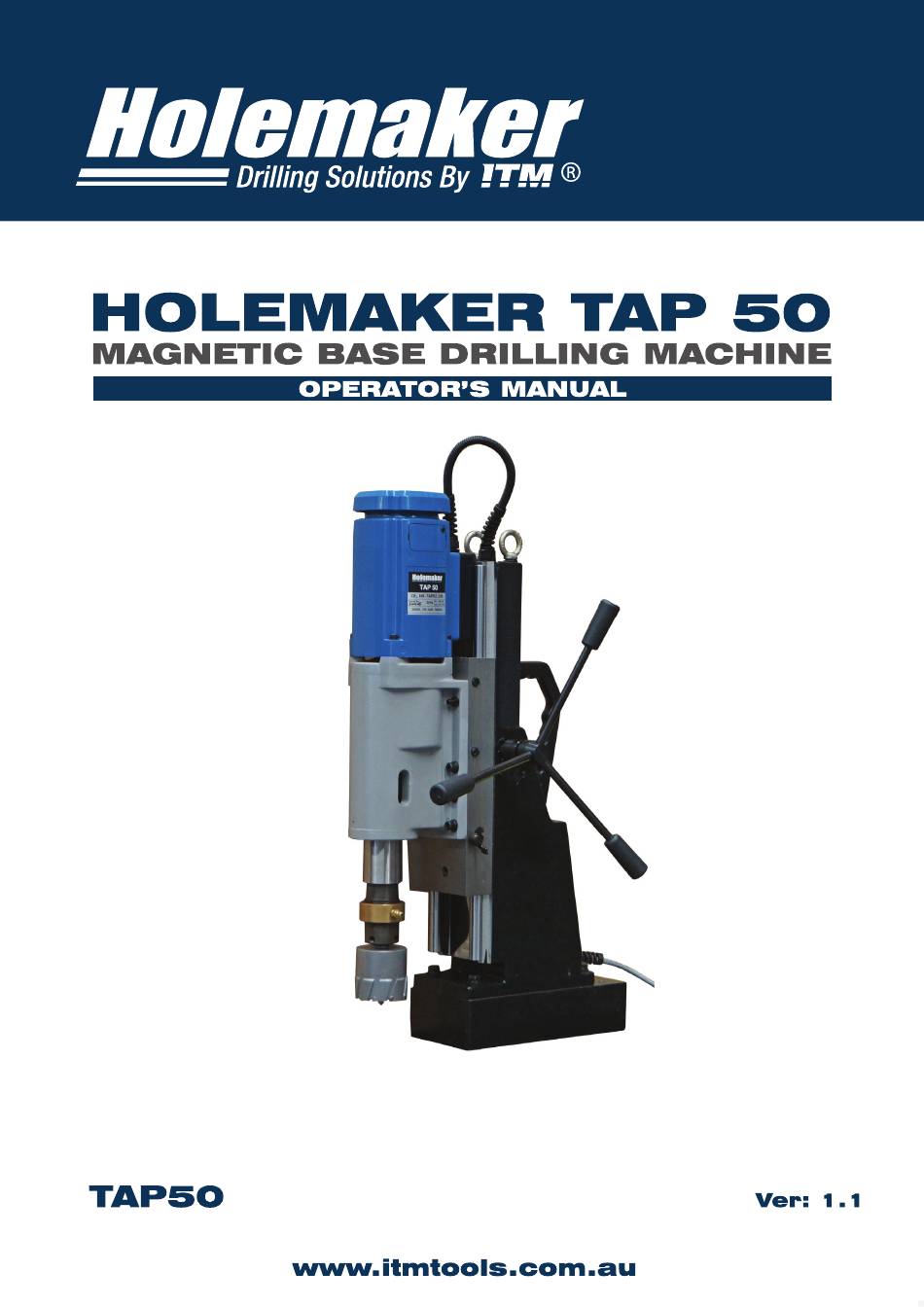

Itm HOLEMAKER TAP 50 Operator's Manual

Magnetic base drilling machine
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HOLEMAKER TAP 50 and is the answer not in the manual?

Questions and answers

Related Manuals for Itm HOLEMAKER TAP 50

Summary of Contents for Itm HOLEMAKER TAP 50

  • Page 2: Contents Of The Manual

    CONTENTS OF THE MANUAL. Page SPECIFICATIONS OF HOLEMAKER TAP 50 SAFETY PROCEDURES OPERATING INSTRUCTIONS EXTENSION CABLE SELECTION MOUNTING OF CUTTERS REMEDIES FOR HOLE MAKING PROBLEMS Magnetic Base Drilling Machines SPEED SELECTION Tools and Machinery TRADEMAST OVERLOAD PROTECTION CONTROL PANEL [10] PROTECTION-GEAR SLIP [11] CIRCUIT &...
  • Page 3 [ [ H H o o l l e e m m a a k k e e r r T T A A P P 5 5 0 0 ] ] - 3 -...
  • Page 4 MODEL HOLEMAKER TAP 50 [1] SPECIFICATIONS OF Maximum hole cutting capacity in .2/.3C steel Cutting 200mm dia. x 75mm deep, Tapping upto M52 Motor Unit Voltages 230V/110V (50/60Hz) Power consumption(input) 2,850 W RPM (No Load) 40/60, 90/130, 170/240, 380/545 Magnet Size 295 x 140 x 70 mm Magnet Force at 20°C with 20mm plate thickness...
  • Page 5 READ BEFORE USING THE MACHINE [2] SAFETY PROCEDURES When using electrical tools, basic safety precautions should always be ● followed to reduce the risk of electric shock, fire, and personal injury. Do NOT use in wet or damp conditions. Failure to do so may result in ●...
  • Page 6 Regularly inspect the machine and check that nuts and screws are tight. ● Always ensure when using the machine in an inverted position that only ● the minimum amount of coolant is used and that care is taken to ensure that coolant does not drip on to the motor unit.
  • Page 7 [3] OPERATING INSTRUCTIONS Keep the inside of the cutter clear of swarf. It restricts the operating depth of ● the cutter. Ensure that the coolant bottle contains sufficient cutting oil to complete the ● required operating duration. Refill as required. Occasionally depress the pilot to ensure cutting fluid is being correctly metered.

  • Page 8: Mounting Of Cutters

    result in a loss of traction by the magnet and a reduction of power from the motor. Assuming a normal AC supply of the correct voltage, it is recommended that the following extension lengths shall not be exceeded: For 230v supply: 26metres of 3 core x 1.5mm²...

  • Page 9: Remedies For Hole Making Problems

    [6] REMEDIES FOR HOLE MAKING PROBLEMS Problem Cause Remedy 1) Magnetic Material being cut may Attach an additional piece of base won't hold be too thin for efficient metal under work-piece where effectively holding of magnet magnet will be located, or mechanically clamp magnetic base to work-piece Swarf or dirt under...
  • Page 10 4) Excessive Steel swarf or dirt under Remove cutter, clean part cutter breakage cutter thoroughly and replace Incorrectly re-sharpened Always have a new cutter on or worn cutter hand to refer to for correct tooth geometry, together with instruction sheet Cutter skipping See causes and remedies (2) Slide-ways need...

  • Page 14: Gib Adjustment

    seconds. The reading obtained should not fall below infinity. Should a fault be indicated, it must be found and rectified. [12] GIB ADJUSTMENT 1. New Sliding System : Machines have very exotic and stable sliding system. It consists of 3 main parts ; Slide Board, Precisely Ground Bar &Adjustment Gib. Basically it has very wear-resistent structure and keeps first condition as time goes.

  • Page 15: Part List

    [13] PART LIST PART A - 15 - - 15 -...
  • Page 16 PART NO. PART NAME Q'ty HR-TAP 52 SPINDLE HR-TAP 52 BALL BEARING 6910ZZ HR-TAP 52 OIL SEAL HR-TAP 52 MAIN GEAR HR-TAP 52 BALL BEARING 6906 2RSC3 HR-TAP 52 SNAP RING HR-TAP 52 HR-TAP 52 GEAR BOX HR-TAP 52 NEEDLE BEARING NK 1012 HR-TAP 52 FIRST GEAR HR-TAP 52...
  • Page 17 PART NO. PART NAME Q'ty HR-TAP 52 NEEDLE BEARING RLM1416 HR-TAP 52 SNAP RING HR-TAP 52 THIRD GEAR H HR-TAP 52 THIRD CLUTCH HR-TAP 52 THIRD PINION HR-TAP 52 SNAP RING HR-TAP 52 THIRD GEAR L HR-TAP 52 SNAP RING HR-TAP 52 BEARING 16001 ZZ HR-TAP 52...
  • Page 18 PART B PART B PART B PART NO. PART NAME Q'ty HR-TAP52 SLIDE HR-TAP52 O-RING ASSEMBLED STOPPER BOLT PART NO. PART NAME Q'ty HR-TAP52 PIN PI6-L10 HR-TAP52 SLIDE PART NO. PART NAME Q'ty HR-TAP52 HEX SOCKET BOLT M6-L15 HR-TAP52 O-RING ASSEMBLED STOPPER BOLT HR-TAP52 SLIDE HR-TAP52...
  • Page 19 PART NO. PART NAME Q'ty HR-TAP52 GIB B HR-TAP52 RAIL BAR HR-TAP52 SLIDE PLATE PART NO. PART NAME Q'ty HR-TAP52 HEX SOCKETBOLTM6-L15 HR-TAP52 GIB B HR-TAP52 MAIN FRAME HR-TAP52 RAIL BAR HR-TAP52 SLIDE SECOND PINION HR-TAP52 SLIDE PLATE HR-TAP52 BUSHING 15-15-1.5T HR-TAP52 HEX SOCKETBOLTM6-L15 HR-TAP52...
