HOLEMAKER PRO 35
MAGNETIC BASE DRILLING MACHINE
OPERATOR'S MANUAL
HMPRO35
Ver: 1.4
www.itmtools.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HOLEMAKER PRO 35 and is the answer not in the manual?

Questions and answers

Jon Mansfield
January 17, 2025

What coolant is specified

0
1 comments:
Mr. Anderson
February 3, 2025

The specified coolant for the ITM HOLEMAKER PRO 35 is a mixture of water and drilling oil. Pure water should not be used as the coolant.

This answer is automatically generated

0

Related Manuals for Itm HOLEMAKER PRO 35

Summary of Contents for Itm HOLEMAKER PRO 35

  • Page 1 HOLEMAKER PRO 35 MAGNETIC BASE DRILLING MACHINE OPERATOR’S MANUAL HMPRO35 Ver: 1.4 www.itmtools.com.au...

  • Page 2: Table Of Contents

    HMPRO35 OPERATOR’S MANUAL 1. GENERAL INFORMATION 1.1 Application 1.2 Technical data 1.3 Design 1.4 Equipment included 2. SAFETY PRECAUTIONS 3. START UP AND OPERATION 3.1 Installing removing and operating the annular cutter 3.2 Installing and removing the cooling system bottle 3.3 Preparing 3.4 Drilling 3.5 Replacing the motor bushes...

  • Page 3: General Information

    HMPRO35 OPERATOR’S MANUAL 1. GENERAL INFORMATION 1.1. Application The PRO 35 is a drilling machine with electromagnetic base, designed to drill holes with diameters of up to 35 mm to a depth of up to 51 mm by using annular cutters. The electromagnetic base allows the drilling machine to be fixed to ferromagnetic surfaces with a force that ensures operator safety and proper machine operation.

  • Page 4: Design

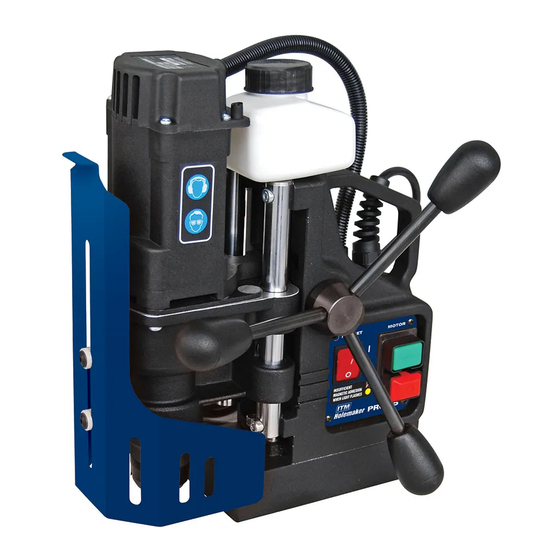

    HMPRO35 OPERATOR’S MANUAL PRO 36 179mm 179 mm (7-1/16’’) 314mm 314 mm (12-3/8’’) 1.3. Design Wrench for tightening Cooling system bottle the annular cutter Bottle valve lever Spoke handle Feed shaft Carrying handle MOTOR start button Control panel Spindle with arbor Chip guard Electromagnetic base Low holding force...

  • Page 5: Equipment Included

    HMPRO35 OPERATOR’S MANUAL 1.4. Equipment included The drilling machine is supplied including the following elements. Drilling machine with cooling 1 unit system bottle and chip guard Plastic box 1 unit Spoke handle 3 units Safety strap 1 unit 4 mm hex wrench with handle 1 unit Operator’s Manual 1 unit...

  • Page 6: Safety Precautions

    HMPRO35 OPERATOR’S MANUAL 2. SAFETY PRECAUTIONS Before operating this machine, read this Operator’s Manual and complete Before operating this machine, read this Operator’s Manual and complete proper occupational safety and health training. proper occupational safety and health training. Use the machine only in applications specified in this Operator’s Manual. Use the machine only in applications specified in this Operator’s Manual.
  • Page 7 HMPRO35 OPERATOR’S MANUAL 20. Use the safety strap in all operating positions. Attach the machine to a fixed structure by fastening the strap through the opening in the machine body or to the carrying handle when working in horizontal position. Never insert the strap into the buckle from the front.

  • Page 8: Startup And Operation

    F i g . 1 . I n s t a l l i n g t h e a n n u l a r c u t t e r HMPRO35 OPERATOR’S MANUAL 3. STARTUP AND OPERATION 3. STARTUP AND OPERATION 3.1 Installing, removing and operating the annular cutter 1.1.
  • Page 9 HMPRO35 OPERATOR’S MANUAL Fig. 2 shows how annular cutters operate. As the cutter penetrates the workpiece, the pilot pin recesses into the arbor and tightens the spring. As a result, after the cutter goes through the entire thickness, the slug core is expelled from the cutter. When pressed, the pilot pin also allows application of coolant to the inner surface of the annular cutter.

  • Page 10: Installing And Removing The Cooling System Bottle

    HMPRO35 OPERATOR’S MANUAL PRO 36 3.2 Installing and removing the cooling system bottle 1.2. Installing and removing the cooling system bottle 3.2. Installing and removing the cooling system bottle Rotate the spoke handles (1, Fig. 4) to raise the motor, place the cooling system Rotate the spoke handles (1, Fig.

  • Page 11: Preparing

    HMPRO35 OPERATOR’S MANUAL 3.3 Preparing Before starting, clean steel parts, including the arbor, from anti-corrosion coating used to preserve the machine for storage and transport. To allow working in places hard to reach or using the machine by a left-handed person, the feed shaft can be installed so that the handles are on the opposite side of the machine.
  • Page 12 HMPRO35 OPERATOR’S MANUAL PRO 36 PRO 36 Inverted drilling Vertical drilling Inverted drilling Vertical drilling Inverted drilling Vertical drilling CORRECT INCORRECT CORRECT INCORRECT CORRECT INCORRECT ✓ ✓ ✓ Horizontal Horizontal Horizontal drilling drilling drilling Fig. 5. Protecting the machine from falling by using the safety strap Fig.

  • Page 13: Drilling

    HMPRO35 OPERATOR’S MANUAL 3.4 Drilling 1.4. Drilling Start the motor with the green MOTOR button. To operate the machine safely, maintain conditions so that the LED indicator is turned off. Start the motor with the green MOTOR button. To operate the machine safely, maintain conditions so that the LED indicator is turned off.

  • Page 14: Replacing The Motor Bushes

    HMPRO35 OPERATOR’S MANUAL 3.5 Replacing the motor brushes 1.5. Replacing the motor brushes ANY ELECTRICAL WORK INCLUDING CHANGING BRUSHES MUST BE DONE BY A QUALIFIED AND LICENCED ELECTRICIAN Check the condition of the carbon brushes every 100 operation hours. To do this, unplug the machine from the power source, and unscrew the cover (1, Fig.

  • Page 15: Wiring Diagram

    HMPRO35 OPERATOR’S MANUAL PRO 36 5. WIRING DIAGRAM 4. WIRING DIAGRAM www.itmtools.com.au This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 16: Warranty

    HMPRO35 OPERATOR’S MANUAL 5. WARRANTY LIMITED WARRANTY Industrial Tool & Machinery Sales (hereinafter referred to as ITMS) will, within twelve (12) months from the original date of purchase, repair or replace any goods found to be defective in materials or workmanship. This warranty is void if the item has been damaged by accident, neglect, improper service or other causes not arising out of defects in materials or workmanship.

  • Page 17: Parts Breakdown

    HMPRO35 OPERATOR’S MANUAL 6. PARTS BREAKDOWN SPPR03506V3 www.itmtools.com.au...
  • Page 18 HMPRO35 OPERATOR’S MANUAL www.itmtools.com.au...
  • Page 19 HMPRO35 OPERATOR’S MANUAL www.itmtools.com.au...
  • Page 20 HMPRO35 OPERATOR’S MANUAL www.itmtools.com.au...
  • Page 21 HMPRO35 OPERATOR’S MANUAL www.itmtools.com.au...
  • Page 22 HMPRO35 OPERATOR’S MANUAL www.itmtools.com.au...
  • Page 23 HMPRO35 OPERATOR’S MANUAL www.itmtools.com.au...
  • Page 24 HMPRO35 OPERATOR’S MANUAL Cutter Type Features Diameter Available Cut Depth Available Applications Silver Series Metric • M2AL High Speed Steel • Universal Shank • 12 to 60mm Metric • 25mm & 50mm • General Purpose • Multi-Cut Geometry • Step Hardened Silver Series Imperial •...
  • Page 25 HMPRO35 OPERATOR’S MANUAL Accessory Type Features Industrial Arbors • #2 to #5 Morse taper • 50mm to 110mm maximum depth of cut Drill Chucks & Adaptors • #2 to #4 Morse taper • 13mm to 19mm capacity Pipe Attachment • Can be used on any ferrous and non-ferrous pipes •...

  • Page 26: Quality Certificate

    HMPRO35 OPERATOR’S MANUAL 5. QUALITY CERTIFICATE 7. QUALITY CERTIFICATE Machine control card 5. QUALITY CERTIFICATE PRO 35 Drilling Machine with Electromagnetic Base Serial number........................Serial number........................Machine control card Spindle radial runout......................Spindle radial runout......................PRO 35 Drilling Machine with Electromagnetic Base Slide to base travel perpendicularity................
