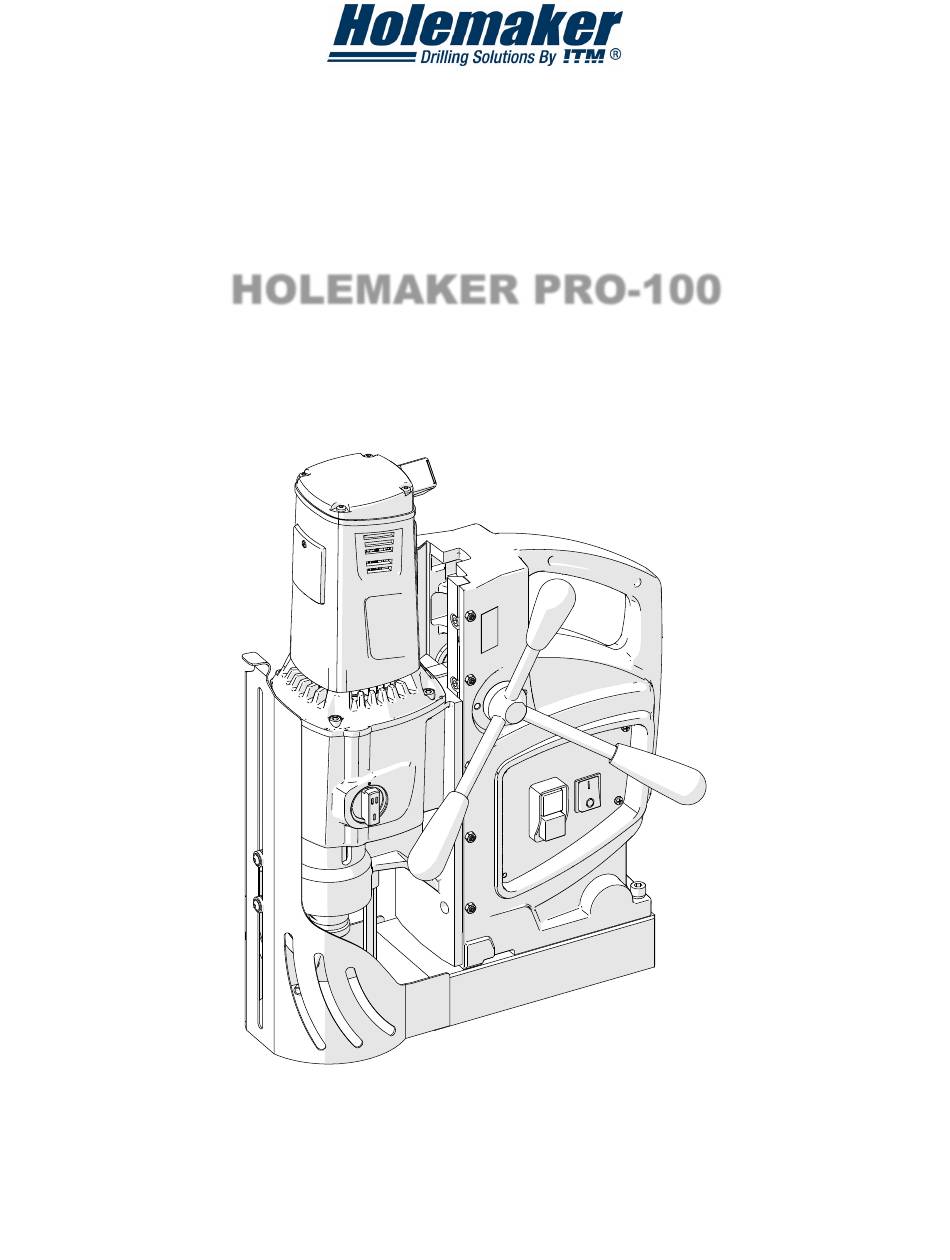

  • Page 1 OPERATOR’S MANUAL HOLEMAKER PRO-100 MAGNETIC BASE DRILLING MACHINE...

  • Page 2: Table Of Contents

    Contents 1. GENERAL INFORMATION ....................3  1.1. Application ........................3  1.2. Technical data ....................... 3  1.3. Equipment included ....................... 4  1.4. Dimensions ........................5  1.5. Design ........................... 6  2. SAFETY PRECAUTIONS ....................7  3. SYMBOLS ..........................9  4. STARTUP AND OPERATION .................... 10  4.1. Installing the handles ....................10  4.2. Installing and removing the arbor, MT3 twist drill bit, or tap chuck ......11  4.3. Installing and removing the annular cutter ..............

  • Page 3: General Information

    PRO 100 1. GENERAL INFORMATION 1.1. Application The PRO-100 is a drilling machine designed to drill holes of diameters of up to 100 mm (4″) by using annular cutters. The machine can also drill holes with diameters of up to 31.75 mm (1 1/4″) by using twist drill bits.

  • Page 4: Equipment Included

    PRO 100 1.3. Equipment included 1 Drilling machine 1 unit 2 Metal box 1 unit 3 Handle 3 units 4 MT3 arbor with 19 mm (3/4″) Weldon tool holder 1 unit 5 Safety strap 1 unit 6 Cooling system 1 unit 7 Protective spring for cooling hose 1 unit 8 MT3 drift...

  • Page 5: Dimensions

    PRO 100 1.4. Dimensions 405 mm (16") 338 mm (13 5/16")

  • Page 6: Design

    PRO 100 1.5. Design Motor START Motor STOP Electromagnetic base (MAGNET) switch Bottle valve lever Carrying handle Feed shaft Gear switch Chip guard Electromagnetic base Hole for a safety strap...

  • Page 7: Safety Precautions

    PRO 100 2. SAFETY PRECAUTIONS 1. Before use, read this Operator’s Manual and complete training in occupational safety and health. 2. Use only in applications specified in this Operator’s Manual. 3. Make sure that the machine has all parts and they are genuine and not damaged. 4.
  • Page 8 PRO 100 21. Do not use on surfaces that are rough, not flat, not rigid, or have rust, paint, chips, or dirt. 22. Do not use if the gibs are adjusted incorrectly. 23. Do not use if there is no grease on the gibs. 24.

  • Page 9: Symbols

    PRO 100 3. SYMBOLS Before using the machine, read the description of the following symbols (Tab. 1). Wear eye protection Wear ear protection Refer to instruction manual Warning against electric voltage Tab. 1. Description of symbols...

  • Page 10: Startup And Operation

    PRO 100 4. STARTUP AND OPERATION 4.1. Installing the handles Attach the handles to the feed shaft. You can install the shaft so that the handles are on the opposite side of the machine. To do this, lift the motor to the maximum and continue in the sequence that follows.

  • Page 11: Installing And Removing The Arbor, Mt3 Twist Drill Bit, Or Tap Chuck

    PRO 100 4.2. Installing and removing the arbor, MT3 twist drill bit, or tap chuck Unplug the power cord and lift the chip guard (1). Turn the handles to the right (2) to lift the motor. Use petroleum ether to clean the spindle and the arbor (drill bit,). Then, clean them with a dry cloth.
  • Page 12 PRO 100 To remove the arbor (drill bit), continue as follows. If the arbor has a nut (1), remove the nut. Next, lift the motor and turn the spindle (2) to align the holes in the spindle and gearbox (3). Put the drift into the hole (4). Next, hold the carrying handle with one hand and hit the drift with a mallet (5).

  • Page 13: Installing And Removing The Annular Cutter

    PRO 100 4.3. Installing and removing the annular cutter Install the arbor as described before. Use gloves to put the correct pilot pin into the annular cutter (1). Use a dry cloth to clean the arbor and the cutter. Put the cutter into the arbor (2) to align the flat surfaces (3) with the screws (4).

  • Page 14: Installing And Removing The Cooling System

    PRO 100 4.4. Installing and removing the cooling system Attach the bottle to the bracket (1). Put the hose with the spring (2) between the stop rod and the body (3). Then, attach the hose to the fitting and move the spring to the arbor (4, 5).

  • Page 15: Monitoring System Of The Clamping Force

    PRO 100 4.5. Monitoring system of the magnetic clamping force The drilling machine has a system that monitors the clamping force of the electro- magnetic base. The force will be lower if there is rust, paint, chips, or dirt. The force will be lower also if the surface is thin, rough, not flat, not rigid, the voltage is lower than required, or the bottom of the base is worn.
  • Page 16 PRO 100 Use the safety strap to prevent fall and injury if the machine loses the clamping. Attach the machine to a stable structure by putting the strap through the hole in the machine body. In the horizontal position, attach the strap to the carrying handle. Make sure that the strap is tight and not twisted.

  • Page 17: Drilling

    PRO 100 4.7. Drilling Set the speed based on the table that follows. Maximum hole diameter Rotational speed* Tool [mm] [in] [rpm] 3 5/32 100 (gear I) 2 3/64 175 (gear II) HSS annular cutter 1 19/64 275 (gear III) 45/64 500 (gear IV) 100 (gear I)
  • Page 18 PRO 100 Turn the gear switch as shown in the figure until you feel resistance. Incorrect setting can damage the gearbox. ✓ CORRECT INCORRECT ✗ Rotation direction Rotation direction Steel of strength of R ≥ 500 N/mm (70,000 psi), such as St5 (E295), 18G2A (S355N), or 45 (C45), requires lower speeds.
  • Page 19 PRO 100 When you use an annular cutter, drill only through holes. For incomplete through holes do not use the pilot pin. Incomplete through holes Complete through holes Keep the machine in the same position until the hole is made. When you use a drill bit, drill holes with diameters of 20-31.75 mm (25/32-1 1/4″) in two steps.

  • Page 20: Adjusting The Gibs

    PRO 100 Tighten the bottle cap, close the valve, and then press the pilot pin to remove the coolant that remains in the cooling system. Before you put the machine into the box, remove the bottle, and use gloves to remove the tool from the holder. 4.8.

  • Page 21: Replacing The Motor Brushes

    PRO 100 4.9. Replacing the motor brushes When the brushes are worn, the machine turns off. To replace the brushes, unplug the power cord and remove the cover (1). Lift the spring (2) and remove the brush. Install in reverse sequence. Then, let the motor operate with no load for 20 minutes. Use only genuine brushes.
  • Page 22 PRO 100...
