THANK YOU!

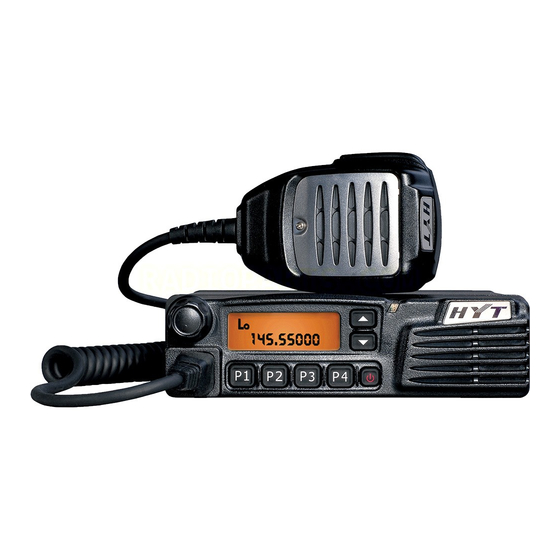

Thank you for your purchase of HYT TM-610 Mobile Radio. This easy-to-use radio will
deliver you instant and reliable communications at peak efficiency. Please read this
manual carefully before use. The information presented herein will help you to derive
maximum performance from your radio.
MODELS COVERED IN THIS MANUAL
TM-610 VHF Mobile Radio
TM-610 UHF Mobile Radio
第 页 共 32 页
1

Advertisement

Table of Contents
loading

Related Manuals for HYT TM-610

Summary of Contents for HYT TM-610

  • Page 1 THANK YOU! Thank you for your purchase of HYT TM-610 Mobile Radio. This easy-to-use radio will deliver you instant and reliable communications at peak efficiency. Please read this manual carefully before use. The information presented herein will help you to derive maximum performance from your radio.

  • Page 2: Hot Surface

    HOT SURFACE Avoid c onta ct durin g prolonged us e Do not touch the metal surface of the radio while it is in use. Do not mount the radio such that the chassis can come in contact with skin. High temperatures may burn you skin.
  • Page 3 Contents Caution MANDATORY SAFETY INSTRUCTIONS Safety and General Information Product Safety and RF Exposure Compliance FCC Licensing Information Operation Guidelines Installation Guidelines Product Inspection Installation Radio Overview Basic Operations Turn Radio On/Off Adjust the Volume Monitor Select a Channel Select a Zone Receive a Call Send a Call Select Power Level...
  • Page 4 User Selectable CTCSS/CDCSS (UST) Public Address (PA) Home Channel 2-Tone Encode Select Display Frequency Display Mode Voice Compander Scrambler Key Assignment Optional Accessories 第 页 共 32 页...

  • Page 5: Safety And General Information

    Safety and General Information The following general safety precautions as would normally apply, should be observed during all phases of operation, service and repair of this equipment. * Do not attempt to configure the radio while driving; it is too dangerous. * Do not operate your radio when someone is either touching the antenna or standing within 2 or 3 feet of it, to avoid the possibility of radio frequency burns or related physical injury.

  • Page 6: Product Safety And Rf Exposure Compliance

    Product Safety and RF Exposure Compliance Your HYT mobile radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE and ICNIRP exposure limits for occupational/controlled RF exposure environment at operating duty factors of up to 50% transmitting and is authorized by the FCC for occupational use only.

  • Page 7: Fcc Licensing Information

    FCC Licensing Requirements Your radio must be properly licensed Federal Communications Commission prior to use. Your HYT Wireless dealer can assist you in meeting these requirements. Your dealer will program each radio with your authorized frequencies, signalling codes, etc., and will be there to meet your communications needs as your system expands.
  • Page 8 Operation Guidelines * For vehicles equipped with electronic anti-skid braking systems, electronic ignition systems or electronic fuel injection systems, interferences may occur during the radio transmission. If the foregoing electronic equipments are installed on your vehicle, please contact your dealer for further assistance to make sure that the radio transmission will not interfere with these equipments.

  • Page 9: Product Inspection

    Before unpacking the TM-610 mobile radio, please inspect the packaging for signs of damage and report any damage to your dealer. Upon unpacking of the TM-610 mobile radio, please ensure that all items shipped were received, report any missing or damaged items to your dealer.
  • Page 10 Adjust knob Bracket Mounting Screw Set Fuse DC Power Cable 第 页 共 32 页...

  • Page 11: Installation

    Installation ▇ Install the radio Attach the bracket, with 4.8 x 20 mm self-tapping screws, in a location where convenient operation is accessible. Connect the supplied antenna and power cable to the radio. Slide the radio into the bracket, and secure it with the Adjust knobs. Attach the microphone hanger, with 4 x16 mm self-tapping screws, in a location where the user is easy to reach.
  • Page 12 * Please connect the supplied antenna and power cable to the radio, prior to installing the radio on the bracket. * Please use the mounting bracket supplied by HYT, to avoid radio loosen in case of accidents, which may cause injury to your body.
  • Page 13 Radio Overview ▇ Front Panel ① Volume Control Knob Turn the Volume Control Knob clockwise to increase the volume, or counter-clockwise to decrease the volume. ② LCD Please refer to the “LCD Display” section for details. ③ Programmable Functions Keys ([▲] / [▼]) The [▲] / [▼] keys are programmable with auxiliary functions by your dealer.
  • Page 14 ② External Speaker Jack Plug the external speaker connector (¢3.5mm) into this jack. ③ Power Inlet Use the DC power cable supplied by HYT to inlet 13.6V DC power supply. ④ Antenna Pedestal To connect the external antenna. ▇ LED...
  • Page 15 ▇ Programmable Function Keys The [P1]-[P4], [▲]/ [▼] keys are programmable with auxiliary functions as follows: 1. Off 2. CH Up 3. CH Down 4. Zone Up 5. Zone Down 6. Monitor A 7. Monitor B 8. Monitor C 9. Monitor D 10.
  • Page 16 ▇ LCD Display Figure 1 LCD panel Indicator Description Displays CH number/name, zone number/name, DTMF number, frequency, menu and options, etc. Low power output. Press the [Monitor] key: 1. The “ ” icon is displayed when CTCSS/CDCSS, 2-Tone decoding is off. 2.

  • Page 17: Basic Operations

    Basic Operations Turn Radio On/Off Press the power switch to turn on the radio. Press and hold down the power switch for about 1 second to turn off the radio. Adjust the Volume Turn the Volume Control Knob clockwise to increase the volume, or counter-clockwise to decrease the volume.
  • Page 18 The RX/TX frequency on each channel is set by your dealer. Press the [CH Up] key (programmable) to select a higher numbered channel; press the [CH Down] key (programmable) to select a lower numbered channel. Select a Zone The [▲]/[▼], [P1]-[P4] function keys are programmable by your dealer to select a zone. The RX/TX frequency on each channel is set by your dealer.
  • Page 19 prompts an error tone, and the power level will not change. * If you switch to low power on a channel that was set with high power, this configuration is done on all other channels that were set with high power. BOT ID and EOT ID Your dealer may configure whether to transmit Connect ID (BOT ID) and Disconnect ID (EOT ID), when connecting or disconnecting a repeater or telephone system.
  • Page 20 exits the scan mode. 2. Activate the Monitor function. 3. Receives carrier that satisfy radio unmute condition ▇ Scan Resume If scanning pauses on an active channel, the scanning will resume according to the scan resume mode. The scan resume mode is programmable by your dealer for Carrier operated scan or Time operated scan.
  • Page 21 programmed Scan Add/Delete key. Note: Only channels that added into the scan list can be scanned. ▇ Nuisance Channel Delete Temporarily deletes a specific channel from your scan list during the scan sequence. When scan pauses on an unwanted channel such as a noise channel, press the programmed Add/Del Scan key to temporarily deleted the channel from the scan list, then scanning reinitiates immediately.
  • Page 22 DTMF Call ▇ Manual Dial Press any key from the DTMF keypad of the microphone, while holding down the [[PTT]], to transmit the DTMF frequency, and the DTMF tone will be heard from the local speaker. Release the [[PTT]] to remain transmission for 2s (programmable by your dealer), press a numeric key within the 2s to continue transmission.
  • Page 23 1. Press the [#] key on the microphone keypad, then the LCD displays “D ------”. 2. Enter the desired number (range from 0~9, A~F) via the microphone keypad. If you want to enter A, B, C, D, E, F, please enter 2, 5, 8, 0, *, # respectively while holding down the [PTT].
  • Page 24 2. Press the [0] key twice, then the last dialed number (up to 16 digits) is dialed and displayed on LCD. 3. Press the [PTT], the number is transmitted. Note: The redial memory is cleared once radio power off. Code Squelch This feature can be enabled/disabled by your dealer.
  • Page 25 Off Hook Decode If the feature is enabled by your dealer, CTCSS/CDCSS signalling is active no matter the microphone is in the off/on hook condition. If the feature is disabled, CTCSS/CDCSS signalling is disabled while the microphone is in the off hook condition. Time-out Timer (TOT) ▇...

  • Page 26: Programmable Auxiliary Functions

    will enter the Emergency Call mode and switch to the preset Emergency Zone/Channel. The radio will firstly transmit within the preset time period, and then receive within the preset time period, and so does the cycle. The radio will back to the channel before the Emergency Call mode, upon re-holding down the Emergency Call key (programmable as long or short press).
  • Page 27 Selectable Squelch Level (SQL) 1. Upon press the programmed SQL key, LCD displays the current squelch level as the following figure: 2. Select the desired squelch level via the programmable function key [▲]/ [▼]. 3. Pressing any key from [P1]-[P4] to save the selected squelch level. The LCD resumes its initial display.
  • Page 28 3. Speak into the microphone while holding down the [PTT], the PA process initiates, and the LCD displays “PA ON”. While in PA mode or the PA process initiates, you can adjust the volume via the volume control knob. 4. Release the [PTT] to end PA process, then the radio returns to the PA mode, and the LCD displays “PA”.
  • Page 29 1. Channel alias. 2. Zone number followed by channel number, “1 –CH 1”. 3. Zone alias. 4. Channel frequency. 5. Channel number followed by zone number, “CH 1– 1”. Voice Compander Press the programmed Voice Compander key to toggle the voice compander feature ON or OFF.

  • Page 30: Key Assignment

    Key Assignment ▇ Programmable Function Keys [P1]-[P4], [▲]/ [▼] are programmable Function keys. Key Assignment Function Options Remarks No function CH Up ([▲] default) Channel Up CH Down ([▼] default) Channel Down Zone Up ([P3] default) Zone Up Zone Down ([P4] default) Zone Down MONI A Monitor A: Carrier Squelch-Momentary...
  • Page 31 Talk Around Talk Around Selectable squelch level Home Channel Home Channel Public Address Public Address Scrambler Scrambler Voice Compander Voice Compander Emergency Call Emergency Call ▇ Hook/Monitor “Hook/Monitor” function can be set respectively via the programming software. Function Setting Remarks Hook Detect Select when using palm microphone.

  • Page 32: Optional Accessories

    No duplication or distribution of this manual or any portion thereof shall take place without the express written permission of HYT. No part of this manual may be copied, reproduced, translated, stored in a retrieval system, distributed, or transmitted in any form or by any means, electronic or mechanical, for any purpose without the express written permission of HYT.
