Crux BEECR-35P Manual

BEECR-35P
MODELS LISTED BELOW MUST
BE EQUIPPED WITH SWC.
CHRYSLER
2011 - 2013 200
2008 - 2010 300
2008 - 2010 Aspen
2007 - 2010 Sebring
2008 - 2013 Town & Country
DODGE
2007 - 2013 Avenger
2009 - 2012 Caliber
2009 - 2013 Challenger
2008 - 2010 Charger
2008 - 2010 Dakota
2008 - 2013 Durango
2009 - 2013 Grand Caravan
2009 - 2010 Journey
2008 - 2009 Magnum
2007 - 2010 Nitro
2009 - 2012 Ram
JEEP
2008 - 2010 Commander
2009 - 2013 Compass
2008 - 2013 Grand Cherokee
2008 - 2013 Liberty
2009 - 2013 Patriot
2007 - 2013 Wrangler**
MITSUBISHI
2006 - 2009 Raider
VOLKSWAGEN
2009 - 2013 Routan
THIS INTERFACE DOES
SUPPORT AMPLIFIED SYSTEMS:
Vehicles listed above must have
the "GRAY" 22-Pin connector.
Radio type does not matter.
**IF NO SWC PLEASE ORDER:
BEEUR (Wired Universal Remote)
Applications are subject to change
without notice.
BLUETOOTH CONNECTIVITY FOR SELECT CHRYSLER, DODGE, JEEP VEHICLES 2006-UP w/AMP
We recommend reading this installation guide first before starting any
work. Following these instructions from "Start" to" Finish" will ensure
a smooth and hassle free installation. We offer telephone support M-F
9:00 AM – 5:00PM PDT at 1 (855) 822-1348. We are here to help.

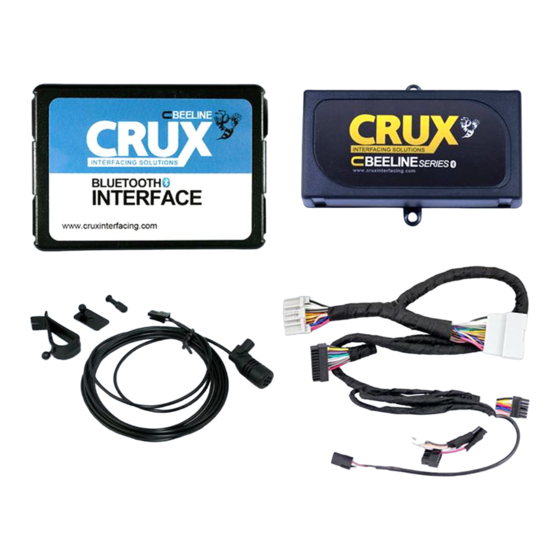

PARTS INCLUDED:
(1) CR-35P Interface Module
(1) CR-35P T-Harness
(1) Instruction Sheet
(1) Microphone
(1) Set of Phone Stickers
PRECAUTIONS:
- Remove the negative side of the battery to avoid any short circuits
durring the installation.
- Do not install the interface near any major components or near the
HVAC system. This may cause damage or overheating to the vehicle.
:
PRELIMINARY
Please read the entire manual before installing this interface.
THIS INTERFACE STREAMS THE HANDS-FREE & MUSIC (A2DP)
THROUGH THE TWO FRONT SPEAKERS ONLY.
INSTALLING THE INTERFACE
MIC
1. Remove the factory radio from the dashboard.
2. Remove the factory connectors from behind the factory radio.
3. Mate the interface connections to the factory connectors.
Make sure the 22-pin connector is properly seated into the interface.
3-PIN
4. Route the microphone to your desired location. Recommended are
(female plug)
is above the rear-view mirror.
5. Test the interface first, then re-install the radio into the dash.
ENABLE VOICE DIAL AND MENU STRUCTURE
Important: Enabling the voice dial feature will disable the TUNE DOWN
function on the steering wheel control.
1. Place dip switch one to the ON. (As shown below)
TO ENABLE
VOICE DIAL
12-PIN
ON
(male plug)
1 2 3 4 5 6
With voice dial activated the
vehicle will lose TUNE DOWN
CAN
on the SWC
BOX
MOUNTING THE MICROPHONE
1. Insert the mounting clip into the ball joint on the microphone.
2. Mount the clip on your visor or near the rear view mirror.
3. Route the remaining cable along the edge of the roof liner and
towards the back of the radio, hiding the cable from sight.
10 AND 12-PIN CONNECTORS
IMPORTANT: The GRAY 12-PIN CONNECTOR ATTACHED WITH THE
BLACK 10-PIN CONNECTOR GO TO THE BLUETOOTH MODULE
ONLY.

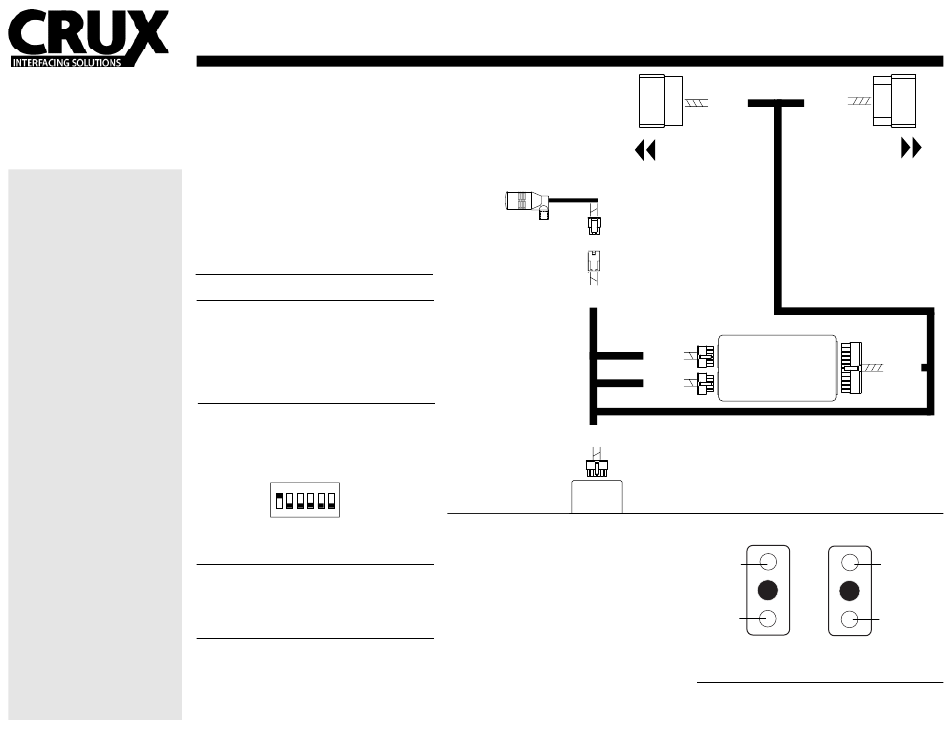

INSTALLATION OVERVIEW
GRAY 22-PIN
22-PIN
22-PIN
(female plug)
(male plug)
TO FACTORY
TO FACTORY
MIC
HARNESS
3-PIN
(female plug)
TO ENABLE
12-PIN
VOICE DIAL
BLUETOOTH
(male plug)
12-PIN
MODULE
10-PIN
ON
(male plug)
(male plug)
1 2 3 4 5 6
With voice dial activated the
vehicle will lose TUNE DOWN
CAN
on the SWC
BOX
INITIAL PAIRING
1. Turn on the vehicle and wait 15 seconds until the interface
announces "Please Select Your Mobile Phone" and Enter "0000"
2. From your mobile phone, choose and connect to the "Beeline"
device using the password "0000".
3. The interface will announce "Pairing Successful" then
"Phone Connected" after the pairing process is complete.
Note: The Bluetooth interface will remember up to the last 8 devices.
Note: If pairing is unsuccessful after several attempts power off then
power back on to re-attempt, if unsuccessful please contact our tech
support line.
AUTO RE-CONNECT
The BEELINE module will automatically re-connect the a previously
paired mobile phone when the ignition is turned "ON" to the vehicle
and the mobile phone's Bluetooth feature is also on.
Note: The Bluetooth module will re-connect with the last mobile
phone's it was paired with. If no mobile phone is not found, it will
revert to the pairing process.
22-PIN
(male plug)
TO FACTORY
HARNESS
RADIO
GRAY
12-PIN
BLUETOOTH
(male plug)
MODULE
10-PIN
(male plug)
24-PIN
(male plug)
BLACK
BACK
STEERING WHEEL CONTROLS
All Bluetooth functionality is done on the steering wheel controls.
SEEK UP
SEEK DN
BACKSIDE CONTROLS
Controls are found on the back-side of the steering wheel.
RADIO CONTROL
There is no Bluetooth control on the factory radio.
All controls are done from the steering wheel controls.
Rev. 031014
22-PIN
(female plug)
TO FACTORY
RADIO
24-PIN
(male plug)
BACK
VOL UP
VOL DN
