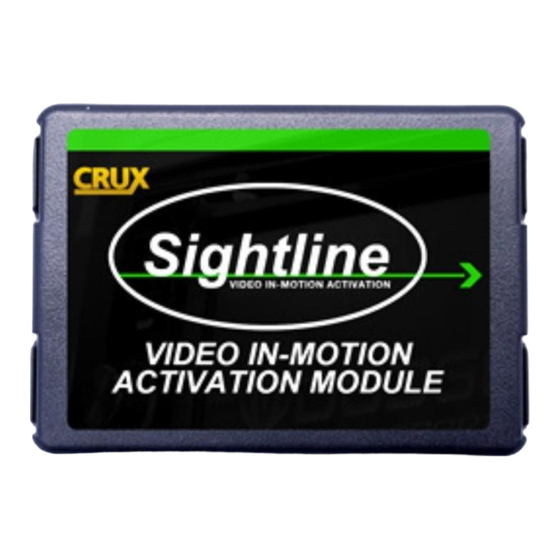

Crux Sightline VIMPR-90P Quick Start Manual

Video in motion activation for porsche vehicles with pcm4/pcm4.1 navigation radio

PORSCHE

2017 – 2018

911

2017 – 2018

718 Boxster / Cayman

2017 – 2018

Cayenne

2017 – 2018

Macan

2017 – 2018

Panamera

- Retains functionality of Factory-installed Navigation System for passenger access at any time.

- Plug and Play Installation.

- Compatible with Porsche PCM4 and PCM4.1 Navigation radios.

- On some vehicles, the navigation will not work while the video-in-motion function is active. This

can only be detected by a test drive. Please see notes on page 3.

1 / 3

rev.121818

Table of Contents

Need help?

Do you have a question about the Sightline VIMPR-90P and is the answer not in the manual?

Page 1 PORSCHE 2017 – 2018 2017 – 2018 718 Boxster / Cayman 2017 – 2018 Cayenne 2017 – 2018 Macan 2017 – 2018 Panamera - Retains functionality of Factory-installed Navigation System for passenger access at any time. - Plug and Play Installation. - Compatible with Porsche PCM4 and PCM4.1 Navigation radios.
Page 2 1. Remove the factory radio from the dashboard. 2. Remove the factory connectors from behind the factory radio. 3. Mate the T-Harness connections to the factory harness and radio. (Make sure all connectors are properly seated into the interface and into the radio.) 4.
Page 3 Note: DIP switch functions of the VIMPR-90P Dip 1 – Activate Video In Motion Dip 2 – no function Dip 3 – no function Dip 4 – no function Dip 5 – CAN-bus termination resistor on the vehicle side Dip 6 – CAN-bus termination resistor on the head-unit side NOTE: Vehicles with affected navigation performance On some vehicles, the navigation performance is affected as long as the video-in-motion function is activated.
