Crux BEECR-35C Installation Manual

BEECR-35C
MUSIC STREAMING
A2DP WORKS ONLY
ON F ONT SPEAKERS R
MODELS LISTED BELOW MUST
BE EQUIPPED WITH SWC.
CHRYSLER
2011 - 2013 300
DODGE
2011 - 2014 Charger
2014 - 2014 Durango
2013 - 2014 Journey
Vehicles listed above must have the "WHITE"
22-Pin connector.
Radio type does not matter.
Applications are subject to change
without notice.
BLUETOOTH CONNECTIVITY FOR SELECT CHRYSLER, DODGE VEHICLES 2011-UP
work. Following these instructions from "Start" to" Finish" will ensure
9:00 AM – 5:00PM PDT at 1 (855) 822-1348. We are here to help.
PARTS INCLUDED:
(1) CR-35C Interface Module
(1) CR-35C T-Harness
(1) Instruction Sheet
(1) Microphone
PRECAUTIONS:
- Remove the negative side of the battery to avoid any short circuits
during the installation.
- Do not install the interface near any major components or near the
HVAC system. This may cause damage or overheating to the vehicle.
Siri Voice command may not respond
properly. Standard Voice command
may have to be used instead.
:
PRELIMINARY
Please read the entire manual before installing this interface.
THIS INTERFACE STREAMS THE HANDS-FREE & MUSIC (A2DP)
THROUGH THE TWO FRONT SPEAKERS ONLY.
INSTALLING THE INTERFACE
MIC
MIC
1. Remove the factory radio from the dashboard.
2. Remove the factory connectors from behind the factory radio.
3. Mate the interface connections to the factory connectors.
Make sure the 22-pin connector is properly seated into the interface.
3-PIN
4. Route the microphone to your desired location. Recommended area 3-PIN
(female plug)
(female plug)
is above the rear-view mirror.
ENABLE VOICE DIAL AND MENU STRUCTURE
TO ENABLE VOICE DIAL:
Place DIP switch 1 to ON. (As shown below)
12-PIN
ON
(male plug)
1 2 3 4 5 6
INTERFACING SOLUTIONS
NOTE: CAN
If Voice Dial is enabled, the SWC function will change as follows:
BOX
1. A short press (tap) of the TUNE DOWN button will perform a "SEEK".
2. A long press of the TUNE DOWN button will activate the Voice
Dial command on the paired phone.
MOUNTING THE MICROPHONE
1. Insert the mounting clip into the ball joint on the microphone.
2. Mount the clip on your visor or near the rear view mirror.
3. Route the remaining cable along the edge of the roof liner and
towards the back of the radio, hiding the cable from sight.

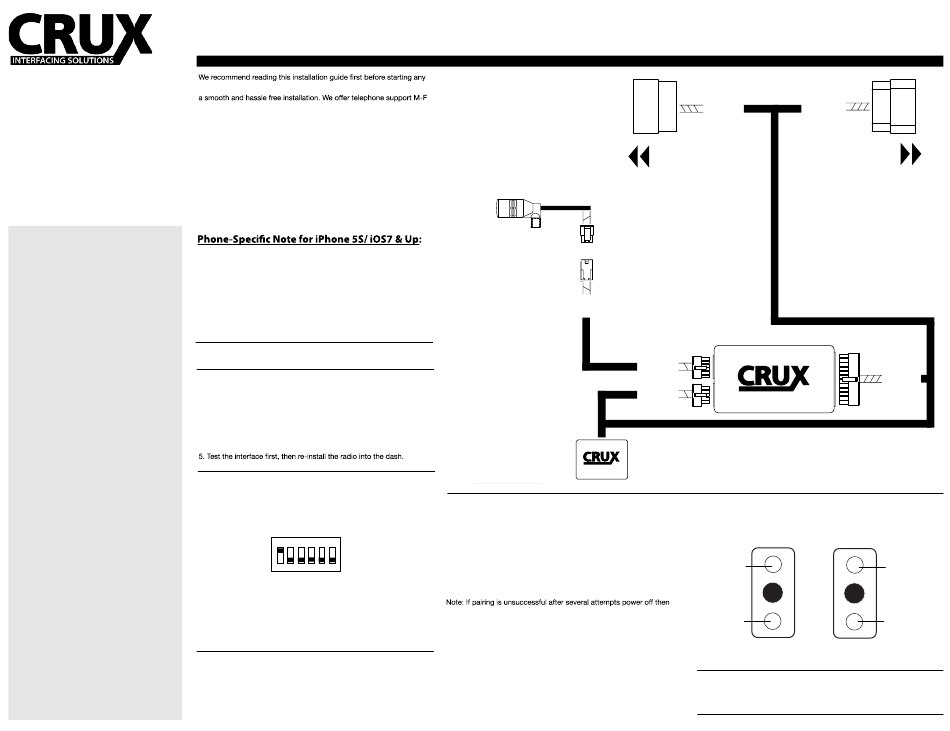

INSTALLATION OVERVIEW
WHITE 22-PIN
22-PIN
22-PIN TO F ACTOR Y
TO F ACTOR Y
(female plug)
(male plug)
TO F ACTOR Y
TO F ACTOR Y
MIC
HARNESS
3-PIN
(female plug)
HARNESS
BLUETOOTH
MODULE
TO ENABLE
VOICE DIAL
INTERFACING SOLUTIONS
ON
INTERFACING SOLUTIONS
1 2 3 4 5
3-PIN
(male plug)
With voice dial activated the
vehicle will lose TUNE DOWN
10-PIN
INITIAL PAIRING
(male plug) on the SWC
1. Turn on the vehicle and wait 15 seconds until the interface
announces "Please Select Your Mobile Phone" and Enter "0000"
2. From your mobile phone, choose and connect to the "Beeline"
device using the password "0000".
3. The interface will announce "Pairing Successful" then
"Phone Connected" after the pairing process is complete.
Note: The Bluetooth interface will remember up to the last 8 devices.
power back on to re-attempt, if unsuccessful please contact our tech
support line.
AUTO RE-CONNECT
The BEELINE module will automatically re-connect the previously
paired mobile phone when the ignition is turned "ON" to the vehicle
and the mobile phone's Bluetooth feature is also on.
Note: The Bluetooth module will re-connect with the last mobile
phone it was paired with. If no mobile phone is found, it will
revert to the pairing process.
22-PIN
(female plug)
TO FACTORY
HARNESS
RADIO
RADIO
3-PIN
(male plug)
24-PIN
10-PIN
INTERFACING SOLUTIONS
(male plug)
(male plug)
24-PIN
(male plug)
STEERING WHEEL CONTROLS
BACK
All Bluetooth functionality is done on the steering wheel controls.
SEEK UP
SEEK DN
BACKSIDE CONTROLS
All functionality are done on the steering wheel controls.
RADIO CONTROL
There is no Bluetooth control on the factory radio.
All controls are done from the steering wheel controls.
Rev. 051315
22-PIN
(male plug)
TO FACTORY
RADIO
24-PIN
(male plug)
BACK
VOL UP
VOL DN
