Crux SWRTY-61N Quick Start Manual

INTERFACING SOLUTIONS

PRODUCT FEATURES:

- Retains factory features in select Toyota vehicles while functioning with an aftermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- iPhone Voice Recognition (VR) feature from SWC on select radios.
- Retains OEM Rear View Camera.
- Retains factory USB and auxiliary audio input (aftermarket radio must have these features).
- Includes factory USB retention adapter cable.
- Supports BT-HF/A2DP/AVRCP profile on select aftermarket radio models.
- Supports Pick Up/End Call, Pick up and Toggle between 1st and 2nd incoming call, AVRCP Track, Seek.
- EIA color coded wiring for easy installation.

PARTS INCLUDED:

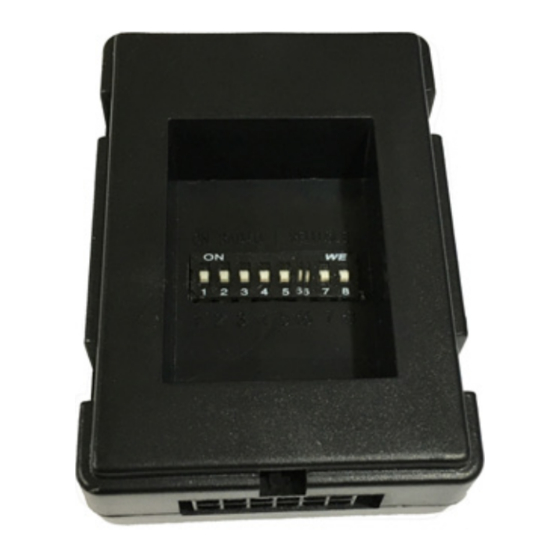

SWRTY-61N MODULE

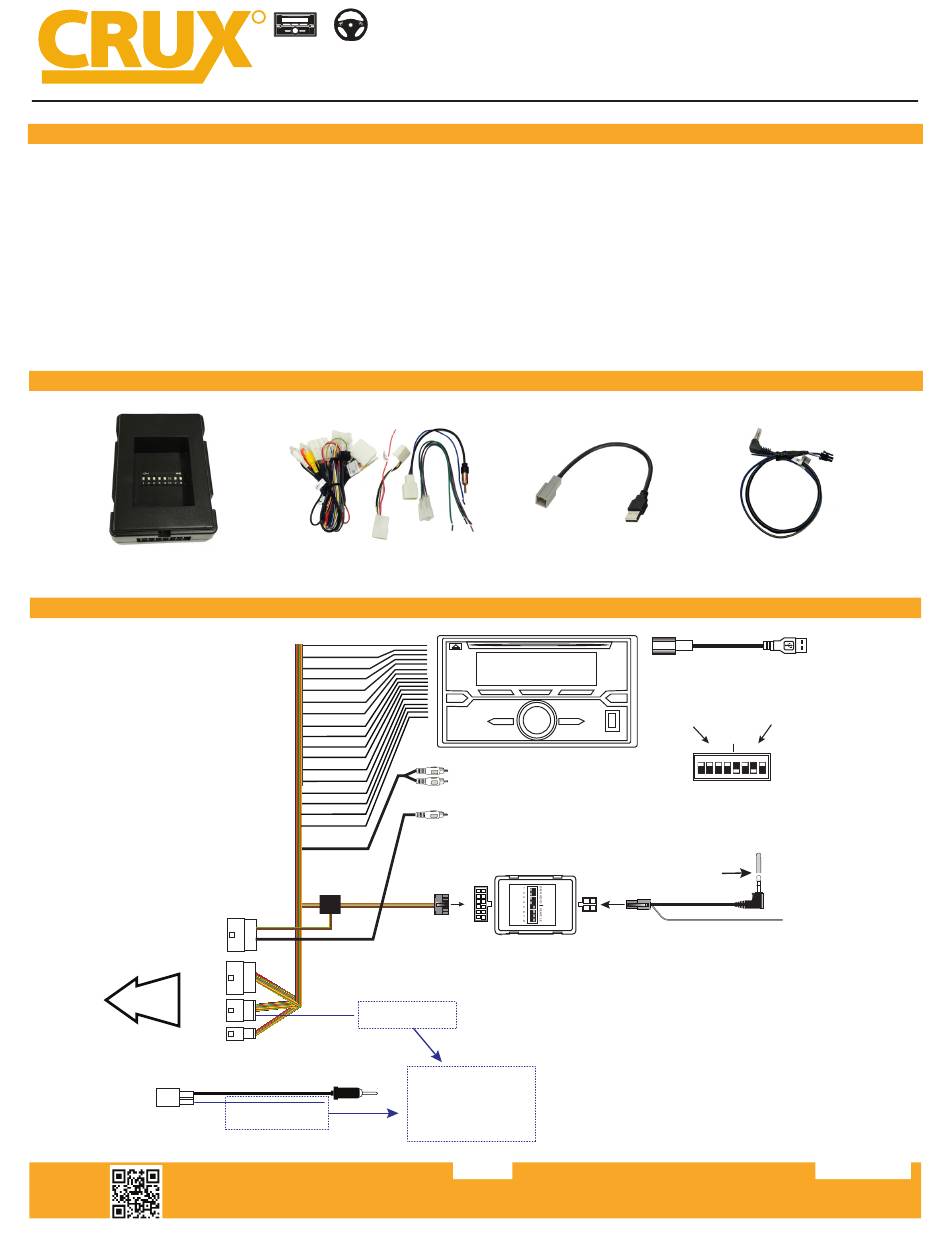

INSTALLATION DIAGRAM:

+12V Constant
+12V ACC
Ground
Illumination
Not Used
Right Front (+)
Right Front (-)
Left Front (+)
Left Front (-)
Right Rear (+)
Right Rear (-)
Left Rear (+)
Left Rear (-)
Vehicle Speed Sense (VSS)
Reverse Trigger
Parking Brake
(see special note below)
Power Antenna
Audio Input
(Retains Factory AUX Input
in Select 2007-Up Vehicles)
24 PIN
28 PIN
TO FACTORY
HARNESS
10 PIN
6 PIN
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
R
+
RADIO REPLACEMENT
SWC RETENTION
SWRTY-61N HARNESS
Yellow
Red
Black
Orange
Blue/ White
Gray
Gray/Black
White
White/Black
Violet
Violet/Black
Green
Green/Black
Red/Black
Red/White
Yellow/Black
Blue
Red/White RCA
Blue / Antenna Turn On
ANTENNA ADAPTOR
(Included in Kit)
Blue / Antenna Turn On
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
Radio Replacement with Steering Wheel Retention and
Rear-View Camera Retention for TOYOTA Vehicles
USB Retention Cable
AFTERMARKET
RADIO
Yellow RCA
(Retain OE Camera)
Rear View Camera Signal
SWRTY-61N
MODULE
12-Pin Black
Connector
NOTE:
The BLUE Antenna Turn-On wire
should ONLY be connected to
one circuit of the aftermarket
radio. Choose the one which has
a wire populated on the factory
connector side.
1 of 3
SWRTY-61N
SWC CABLE
USB-TY01
USB Retention Adaptor
(included in kit)
TOYOTA
AFTERMARKET
SWC SETTING
RADIO SELECTOR
(OFF ON OFF ON)
(See Chart)
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
3.5MM SWC CABLE
Plug in the 3.5MM SWC cable to the 4-pin port
on the module. See "DIP SWITCH SETTINGS" section.
Cap or insulate if
not being used
To aftermarket
radio SWC port
Insulate with tape
if not being used
Kenwood/JVC (BLUE / YELLOW)
rev.020320
