Crux BEECR-35 Manual

BEECR-35
MUSIC STREAMING
A2DP WORKS ONLY
ON FRONT SPEAKERS
MODELS LISTED BELOW MUST
BE EQUIPPED WITH SWC.
CHRYSLER
2011 - 2013 200
2007 - 2010 300
2007 - 2009 Aspen
2007 - 2010 PT Cruiser
2007 - 2010 Sebring
2008 - 2013 Town & Country
DODGE
2007 - 2013 Avenger
2006 - 2012 Caliber
2008 - 2013 Challenger
2006 - 2010 Charger
2005 - 2011 Dakota
2004 - 2013 Durango
2009 - 2013 Grand Caravan
2009 - 2010 Journey
2005 - 2008 Magnum
2007 - 2010 Nitro
2006 - 2012 Ram
JEEP
2006 - 2010 Commander
2007 - 2013 Compass
2005 - 2013 Grand Cherokee
2008 - 2010 Liberty
2007 - 2013 Patriot
2007 - 2013 Wrangler**
MITSUBISHI
2006 - 2009 Raider
VOLKSWAGEN
2009 - 2013 Routan
THIS INTERFACE DOES NOT
SUPPORT AMPLIFIED SYSTEMS:
USE PART: BEECR-35P (AMP VERSION)
Vehicles listed above must have the "GRAY"
22-Pin connector. Radio type does not matter.
Applications are subject to change
without notice.
BLUETOOTH CONNECTIVITY FOR SELECT CHRYSLER, DODGE, JEEP VEHICLES 2004-UP
work. Following these instructions from "Start" to" Finish" will ensure
9:00 AM – 5:00PM PDT at 1 (855) 822-1348. We are here to help.
PARTS INCLUDED:
(1) CR-35 Interface Module
(1) CR-35 T-Harness
(1) Instruction Sheet
(1) Microphone
PRECAUTIONS:
- Remove the negative side of the battery to avoid any short circuits
during the installation.
- Do not install the interface near any major components or near the
HVAC system. This may cause damage or overheating to the vehicle.
Siri Voice command may not respond
properly. Standard Voice command
may have to be used instead.
:
PRELIMINARY
Please read the entire manual before installing this interface.
THIS INTERFACE STREAMS THE HANDS-FREE & MUSIC (A2DP)
THROUGH THE TWO FRONT SPEAKERS ONLY.
INSTALLING THE INTERFACE
1. Remove the factory radio from the dashboard.
2. Remove the factory connectors from behind the factory radio.
3. Mate the interface connections to the factory connectors.
Make sure the 22-pin connector is properly seated into the interface.
4. Route the microphone to your desired location. Recommended are
is above the rear-view mirror.
ENABLE VOICE DIAL AND MENU STRUCTURE
TO ENABLE VOICE DIAL:
Place DIP switch 1 to ON. (As shown below)
ON
1 2 3 4 5 6
NOTE:
If Voice Dial is enabled, the SWC function will change as follows:
1. A short press (tap) of the TUNE DOWN button will perform a "SEEK".
2. A long press of the TUNE DOWN button will activate the Voice
Dial command on the paired phone.
MOUNTING THE MICROPHONE
1. Insert the mounting clip into the ball joint on the microphone.
2. Mount the clip on your visor or near the rear view mirror.
3. Route the remaining cable along the edge of the roof liner and
towards the back of the radio, hiding the cable from sight.
10 AND 12-PIN CONNECTORS
IMPORTANT: The GRAY 12-PIN CONNECTOR ATTACHED WITH THE
BLACK 10-PIN CONNECTOR GO TO THE BLUETOOTH MODULE ONLY.

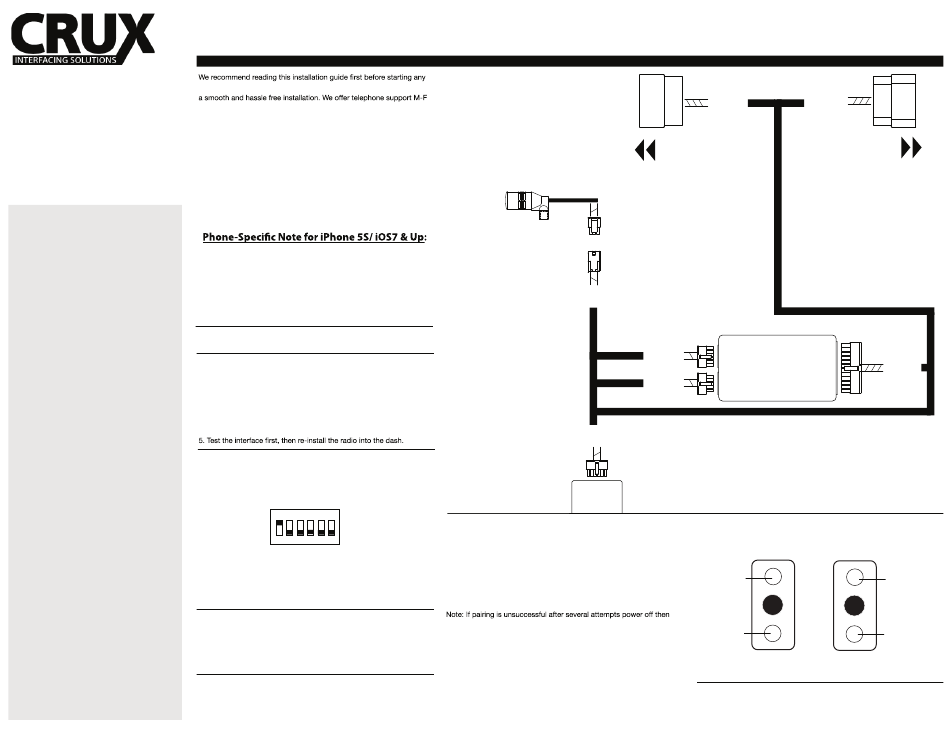

INSTALLATION OVERVIEW
GRAY 22-PIN
MIC
3-PIN
(female plug)
TO ENABLE
VOICE DIA L
12-PIN
ON
(male plug)
1 2 3 4 5 6
With voice dial activated the
ehicle will lose TUNE DOWN
CAN
on the SWC
BOX
INITIAL PAIRING
1. Turn on the vehicle and wait 15 seconds until the interface
announces "Please Select Your Mobile Phone" and Enter "0000"
2. From your mobile phone, choose and connect to the "Beeline"
device using the password "0000".
3. The interface will announce "Pairing Successful" then
"Phone Connected" after the pairing process is complete.
Note: The Bluetooth interface will remember up to the last 8 devices.
power back on to re-attempt, if unsuccessful please contact our tech
support line.
AUTO RE-CONNECT
The BEELINE module will automatically re-connect the a previously
paired mobile phone when the ignition is turned "ON" to the vehicle
and the mobile phone's Bluetooth feature is also on.
Note: The Bluetooth module will re-connect with the last mobile
phone's it was paired with. If no mobile phone is found, it will
revert to the pairing process.
22-PIN
22-PIN
(male plug)
(female plug)
TO FACTOR Y
HARNESS
12-PIN
(male plug) BLUETOOTH
MODULE
10-PIN
(male plug)
STEERING WHEEL CONTROLS
All Bluetooth functionality is done on the steering wheel controls.
SEEK UP
SEEK DN
BACKSIDE CONTROLS
All functionality are done on the steering wheel controls.
RADIO CONTROL
There is no Bluetooth control on the factory radio.
All controls are done from the steering wheel controls.
Rev. 051315
TO FACTORY
RADIO
24-PIN
(male plug)
VOL UP
VOL DN
