ACPBM-77Z
R
Smart-Play Integration with Rear-View Camera Input
for F Series BMW with 6.5", 7", 8.8", & 10.25" Monitor and 4+2 LVDS Connector
INTERFACING SOLUTIONS
PRODUCT FEATURES:
- Smart-Play Integration system allows connection of Android and other devices to the iDrive infotainment system
- Control Apps using smartphone's voice control feature or the factory iDrive (High/Low) Knob
- Adds aftermarket rear view camera input.
- Forced rear-view camera option (only on vehicles with PDC button)
- Picture-in-picture mode combining after-market rear-view picture with factory parking sensor graphics.
- Interactive parking guide lines with calibration function.
- Simultaneous use of picture-in-picture factory parking sensor graphics and interactive lane lines
- Built-in on-screen display and setup.
- 1 trigger output (+12V max. 1A) for the camera power.
*NOTE: Android Phones must have a firmware version of 8 and above.
The vehicle needs to have a factory AUX input.*

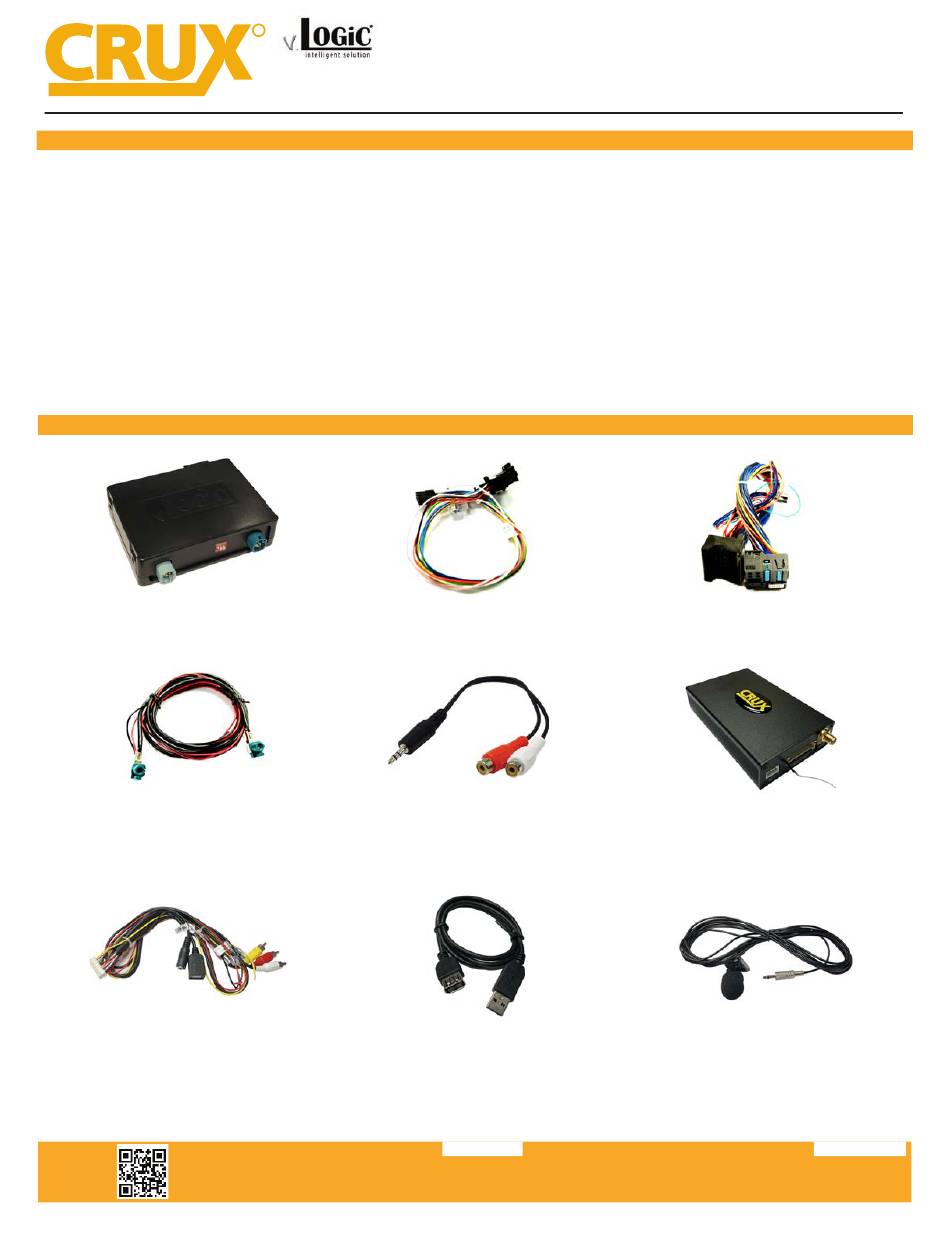

PARTS INCLUDED:

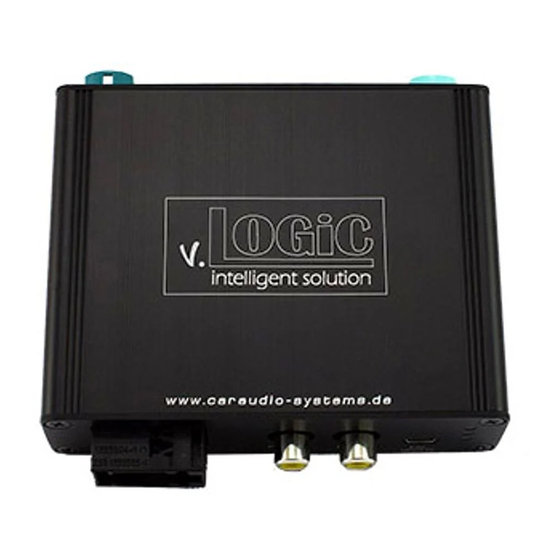

ACPBM-77Z Module
Power/CAN Harness
ACPBM-77Z Vehicle Harness
CRUX LVDS Cable
3.5mm to RCA Adapter
Smart-Play Interface Module
Smart-Play
USB Extension Cable
Microphone
Power/Video Harness
1 of 13
rev.071219
Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
Advertisement
Table of Contents
Related Manuals for Crux ACPBM-77Z
Summary of Contents for Crux ACPBM-77Z
- Page 1 CRUX LVDS Cable 3.5mm to RCA Adapter Smart-Play Interface Module Smart-Play USB Extension Cable Microphone Power/Video Harness 1 of 13 rev.071219 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
-
Page 2: Installation Diagram
No function 8.8“ monitor No function 10.25“ monitor (ver.1) No function 10.25“ monitor (ver.2) No function rev.071219 2 of 13 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com... -
Page 3: Installation Instructions
8. Remove the LCD monitor. 9. Unplug the pink LVDS connector panel. from behind the LCD monitor. 3 of 13 rev.071219 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com... - Page 4 IN port on the ACPBM-77Z module. black Ground wire on the ACPBM-77Z vehicle harness (Male Side). 4 of 13 rev.071219 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
- Page 5 Power/Video harness 8-pin connector on the Power/CAN to the Female RCA-to-3.5mm cable. harness. 5 of 13 rev.071219 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
- Page 6 LEDs are on. Video harness for easier access when connecting your smart-phone or USB. 6 of 13 rev.071219 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
-
Page 7: Osd Settings
The ACPBM-77Y utilizes wireless technology for Apple devices. Android devices are required to be plugged in to the USB port using the smartphone’s OEM charger/data cable. The USB port on the ACPBM-77Z can be used to charge the Apple device or play videos or music from a USB thumb drive. ACPBM-77Y ACPBM-77Y to the next enabled input. - Page 8 12 of 13 8 of 13 rev.071219 Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
- Page 9 In the OSD Menu, set “Option 1” > menu item “Power Out 1” to “CAM” 9 of 13 rev.071219 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
- Page 10 Enabled while parking process and up to 20 seconds Option 2 R/F Cam Till Speed setting for deactivating of the camera image 10 of 13 rev.071219 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
- Page 11 Tip: We recommend for all camera to use power out setting “Cam” and for Smart-Play the power out setting of “AVS” or “ACC”. Interactive Lane Lines The ACPBM-77Z includes an Interactive Lane Lines function that is added to the aftermarket rear view camera. Use the OSD menu to activate this feature. OSD Menu Menu Item...
-
Page 12: Picture Settings
Version X.XX.XX Displays the current SW-version Option 1 Factory Reset Reset to factory default settings 12 of 13 rev.071219 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com... -
Page 13: Vehicle Applications
2015 – Up This product is designed to work for the NBT infotainment system only 13 of 13 rev.071219 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
