- Illuminated 3-key wired remote control for easy access to functions.
- Voice dial function (voice tags) on compatible phones.
- Automatic radio mute function when call is received.
- Capable of pairing 2 phones at the same time.
- A2DP music streaming capability on 4 speakers.
- Power/Speaker harness with ISO connectors.

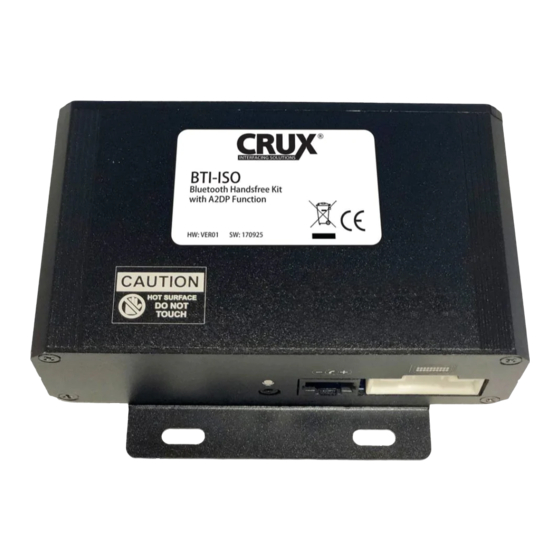

BTI-ISO Module
ISO Harness
Remote Control
Microphone
1. Choose an easily accessible location to mount the illuminated remote control on the dashboard.
2. Use a cleaning cloth to remove grease or dirt from the surface and attach the remote control.
3. Run the microphone cable towards a suitable location for the microphone. We recommend installing it
at the A pillar or on the sun visor.
1 / 3
rev.05152019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Crux BTI-ISO
Summary of Contents for Crux BTI-ISO
- Page 1 - Automatic radio mute function when call is received. - Capable of pairing 2 phones at the same time. - A2DP music streaming capability on 4 speakers. - Power/Speaker harness with ISO connectors. BTI-ISO Module ISO Harness Remote Control Microphone 1.
- Page 2 BTI-ISO. 5. If a call is received on the first phone that was paired, the BTI-ISO will automatically connect to the first phone. If a call is received on the second phone, the BTI-ISO will automatically connect to the second phone.
- Page 3 If music is playing using the A2DP feature of the BTI-ISO and a call is received, a short press of the middle button will stop the music playing from the phone or radio and pick up the call. The phone button light will also blink white and blue.
