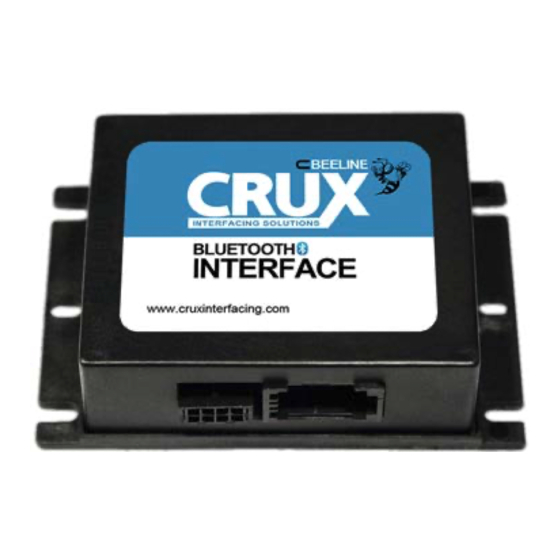

- Page 1 BEELINE Series BEEMB-41 for Mercedes Benz Vehicles with Fiber-Optics Systems and without factory telephone Bluetooth® hands-free phone kit fully integrated in the vehicle infotainment...
- Page 2 Removal of navigation/radio unit 2.2. Connections 2.3. Activation of the interface 3. Interface operation 3.1. Pairing the CRUX Interface with a mobile phone 3.2. Loading of phone book 3.3. Setup, factory defaults, update 3.4. A2DP audio streaming through CD-changer emulation 4.
- Page 3 Prior to installation Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents HW _________________________ SW _______________________ Write down the HW-version and SW-version of the interface here, and store this manual for future reference and technical support purposes.
- Page 4 Installation Switch off ignition and disconnect the vehicle’s battery! The interface needs a permanent 12V source. If according to factory rules disconnecting the battery is to be avoided, it is usually sufficient to put the vehicle is sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a resistor lead. If power source is not taken directly from the battery, the connection has to be checked for being start-up proven and permanent.
- Page 5 A2DP requirement is that the factory ● Blue to +12V = CDC-emu on CD-changer is NOT installed. Install the microphone close to the driver. Connect the microphone's 2-Pin AMP jack to the 2-Pin AMP jack bush of the CRUX harness. Version 02.12.2010 BEEMB-41...
- Page 6 Pairing the CRUX Interface with a mobile phone Up to 10 mobile phones can simultaneously be paired with the CRUX interface. If an eleventh phone is paired, the oldest entry is automatically deleted. In some cases, it becomes necessary to put the vehicle in sleep mode to enable correct function of the 11 phone.
- Page 7 A2DP audio streaming through CD-changer emulation When the CD-changer emulation of the CRUX Interface is entered, it is possible to listen to music files on the factory sound system which are played by the mobile phone. The available options to control the play functions of the mobile phone depend very much on the mobile phone, for example iPhones®...
- Page 8 Weight ........3.35 oz Dimensions (box only) L x H x W ........4.2" x 1.2" x 2.8" Technical Support CRUX INTERFACING SOLUTIONS 6860 Canby Avenue, Suite 116 Reseda, CA 91335 Hours: Monday - Friday, 9am - 5pm (Pacific Time)
