- Retains factory features in select GM LAN 11 Bit vehicles while functioning with an
aftermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- Supports Bose, non-Bose and Y-91 audio systems.
- Retains chime functions.
- Retains front and rear parking sensors.
- EIA color coded wiring for easy installation.
16 and 14 PIN CONNECTORS
CHEVROLET
2007-2010
Cobalt
2006-2011
HHR
2008-2012
Malibu
PONTIAC
2007-2010
G5
2006-2010
Solstice
SATURN
2007-2010
Aura
2007
Ion
2007-2009
Sky
1. DOES NOT support ONSTAR.

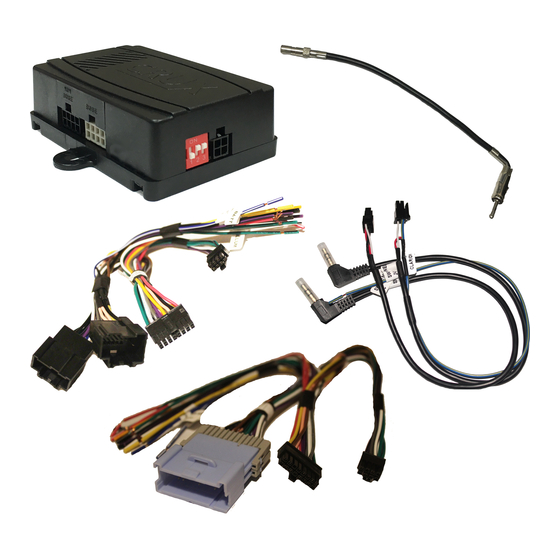

GM-51 Module
GM-51A Harness
24 PIN CONNECTOR
CHEVROLET
2005-2006
2004-2007
PONTIAC
2005-2009
GM-51B Harness
SWC Cables
1 / 5
Cobalt
Malibu
G6
Antenna Adaptor
Rev.033017
