Crux BEEBG-25 Installation Manual

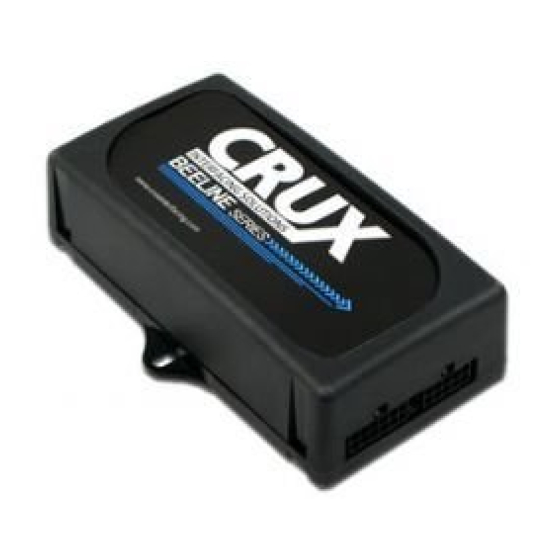

BEEBG-25
APPLICATIONS
CHEVROLET
2007-2010 Cobalt
2006-2011 HHR
2008-2011 Malibu
PONTIAC
2007-2010 G5
2007-2010 G6
2006-2009 Solstice
SATURN
2006-2009 Aura
2006-2010 Sky
BLUETOOTH INTERFACE FOR SELECT 2006-2011 GM LAN 11 BIT VEHICLES
We recommend reading this installation guide first before starting any
work. Following these instructions from "Start" to" Finish" will ensure
a smooth and hassle free installation. We offer telephone support M-F
9:00 AM – 5:00PM PDT at 1 (888) 607-4449. We are here to help.
PRELIMINARY:
- Disconnect the positive(+) battery cable for radios that are
non-navigation. Radios that are navigation ready should not
disconnect the battery cable. Please use caution when installing.
Do not install the interface near or on the vehicle's HVAC system.
This will prevent overheating and condensation build up.
- Determine the proper installation method for your specific vehicle.
Use overview to help you determine installation method.
INSTALLATION
1. Remove the factory radio to gain access to the factory radio wiring
connectors.
2. Disconnect the factory connectors from the rear of the factory radio.
3. Connect the male connectors of the interface power harness into the
factory radio.
4. Reconnect the factory connectors into the mating connectors of the
interface harness.
5. Connect the male 3-pin connector into the pigtail connector.
6. Route the microphone to a desired location, (for example near the
rear view mirror).
7. Re-install a factory radio back into the vehicle's dash.

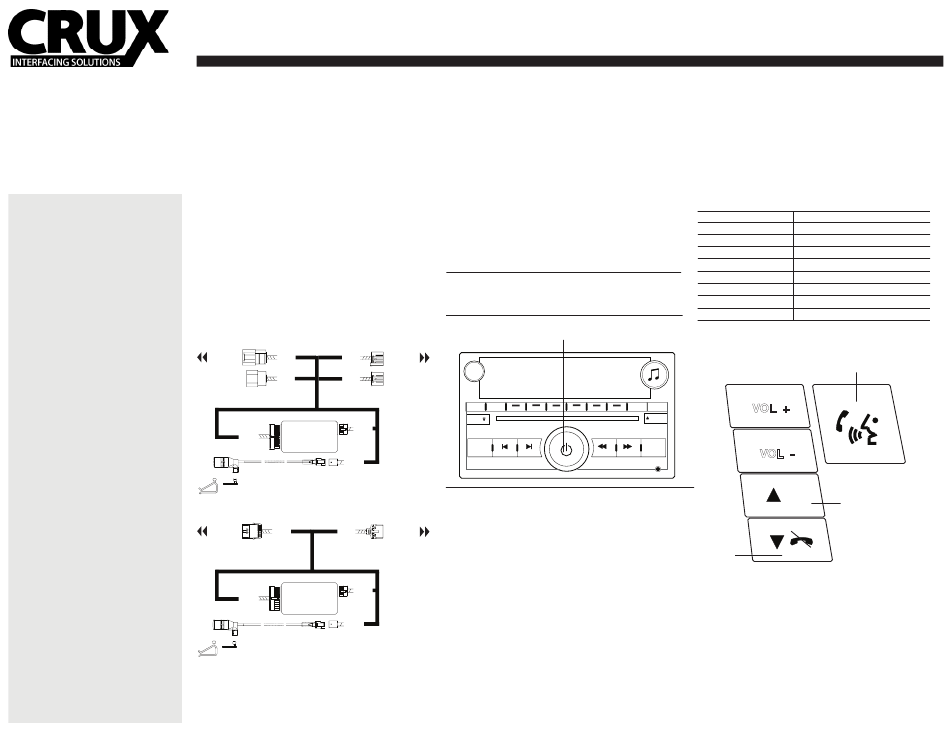

14 AND 16-PIN CONNECTORS:
TO FACTORY
14-PIN 14-PIN
HARNESS
(male plug) (male plug)
16-PIN 16-PIN
(male plug) (male plug)
12-PIN
(male plug)
24-PIN
(male plug)
MIC
3-PIN
(male plug)
BALL JOINT
24-PIN BLUE CONNECTOR:
TO FACTORY
24-PIN 24-PIN
HARNESS
(female plug) (male plug)
12-PIN
(male plug)
24-PIN
(male plug)
MIC
3-PIN
(male plug)
BALL JOINT
MOUNTING THE MICROPHONE
1. Insert the mounting clip into the ball joint on the microphone.
2. Mount the clip on your visor or near the rear view mirror.
3. Route the remaining cable along the edge of the roof liner and
towards the back of the radio, hiding the cable from sight.
INITIAL PAIRING TO THE VOICE PROMPTS:
1. READY (POWER ON)
2. SEARCHING PHONES (FOR PREVIOUS PAIRED PHONES)
3. PLEASE SEARCH AND SELECT THE "BEEBG-25" DEVICE FROM
MOBILE PHONE AND ENTER "0000".
4. YOU ARE NOW READY TO USE THE HF SYSTEM.
Note: The Bluetooth interface will remember up to the last 8 devices.
Note: If pairing is unsuccessful after several attempts power off then
power back on to re-attempt, if unsuccessful please contact our tech
support line.
AUTO RE-CONNECT:
1. The BEEBG-25 module will automatically re-connect the a previously
paired mobile phone when the ignition is turned "ON" to the vehicle
and the mobile phone's Bluetooth feature is also on.
Note: The Bluetooth module will re-connect with the last mobile phone's
it was paired with. If no mobile phone is not found, it will
revert to the pairing process.
OPERATING THE HANDS-FREE FEATURES ON THE RADIO
UNABLE TO CONTROL THE BT FUNCTIONS ON RADIO
TO FACTORY
RADIO
i
FAV MENU
LOAD
BAND
SEEK SEEK
All features of this module may vary by mobile phone
manufacturer. For questions on your mobile phone's
features, please reference the mobile phone's user manual
TO FACTORY
for information.
RADIO
Note: If an incoming call is answered from the mobile phone's keypad,
the call will direct itself to the headset on the mobile phone. To re-direct
the phone call to the "BEEBG-25", it must be done directly from the
mobile phone.
Note: When transferring a phone call to the mobile phone for privacy,
the user must re-connect the BEEBG-25 and the mobile phone by
selecting the module from the device menu on the phone.
Note: If after ending a call the radio is powered "OFF", you must power
"ON" the radio to regain volume control.
USING THE STEERING WHEEL CONTROL BUTTONS
VOICE DIAL
ANSWER
END A CALL
REJECT
ANSWER SECOND CALL
SWITCH BETWEEN CALLS
INCREASE VOLUME
DECREASE VOLUME
PRIVACY MODE
VOL +
EQ CAT
EJECT
CD/
AUX VOL -
REV FWD
END
Note: Premium Audio Systems and BOSE Systems need to "Turn On"
the radio for hands-free audio to be heard.
PRESS TALK BUTTON ONCE
PRESS TALK BUTTON ONCE
PRESS SEEK DN BUTTON ONCE
PRESS SEEK DN BUTTON ONCE
PRESS SEEK UP BUTTON ONCE
PRESS SEEK UP BUTTON ONCE
PRESS VOLUME UP ONCE
PRESS VOLUME DN ONCE
PRESS SEEK UP ONCE
TALK BUTTON
ANSWER
