INTERFACING SOLUTIONS
FORD
2004 - UP F-Series 150/250/350

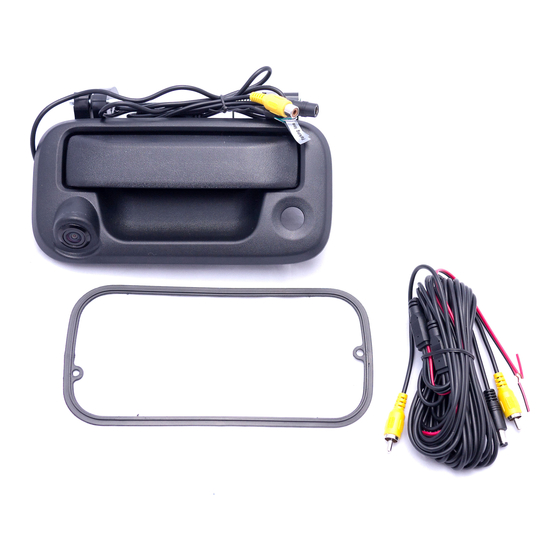

PARTS INCLUDED
(1) Black Plastic Handle
(1) 18mm Bullet Camera
(1) 19ft RCA Video Cable
(1) Instruction Sheet
TECH SERVICES
All our products are manufactured under strict quality control. Each device is being tested before shipment. If nevertheless do occur problems
if you have technical questions, contact us directly: Crux Interfacing Solutions Tech Support

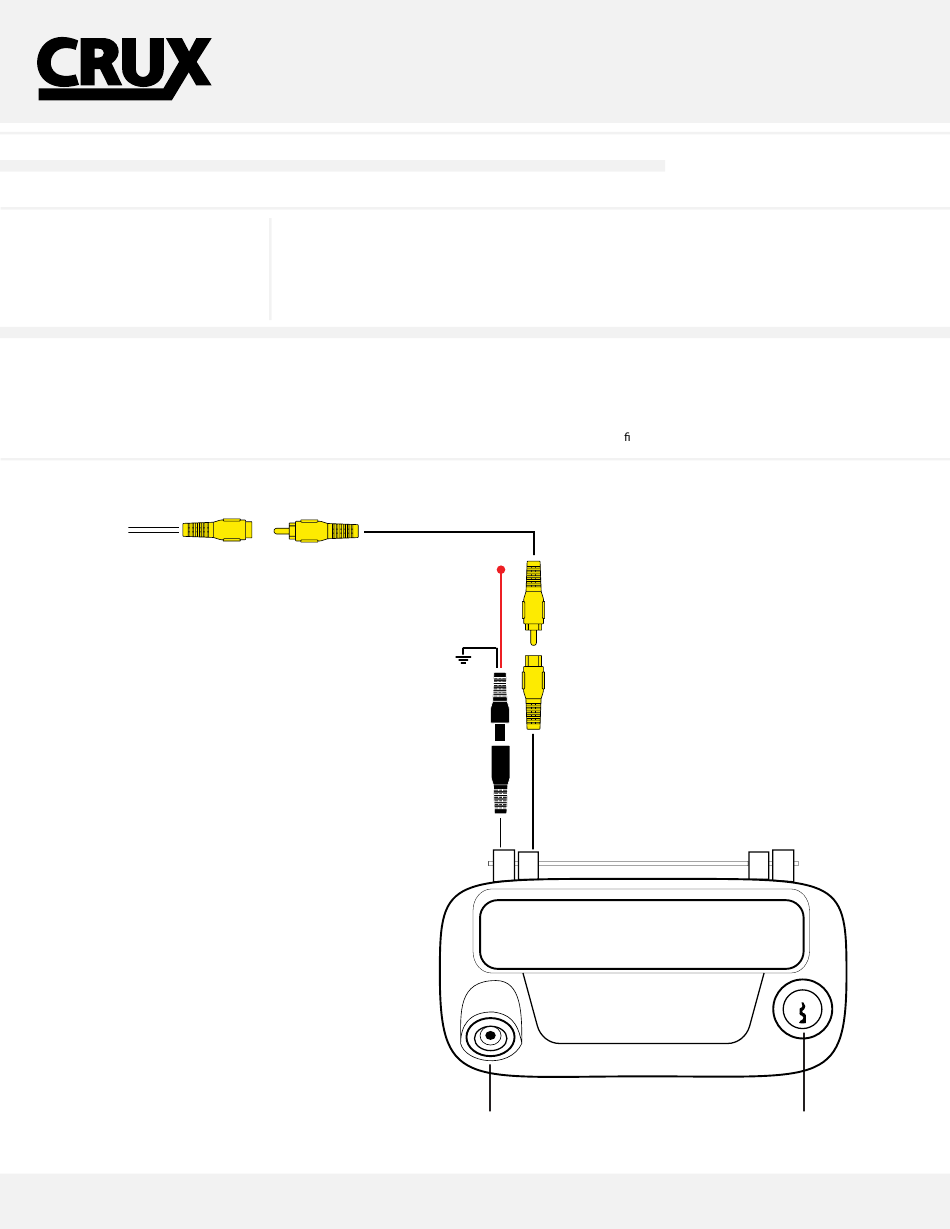

INSTALLATION OVERVIEW
CAMERA
INPUT
SPECIFICATIONS:
CAMERA:
Sensor: CCD
Size: 18mm
Viewing Angle (H): 170°
Viewing Angle (V): 90°
TV System: NTSC / PAL
Guide Lines: Yes
Invert Image: No
Resolution: 480 TV Lines
Illumination: 0.4 Lux / F1.2
Power Supply: 12v
Waterproof: IP67
Rev. 040815
F-SERIES TAILGATE
HANDLE
W/ CAMERA
SAFETY PRECAUTIONS
1. Please read through the entire instruction manual before starting any of the installation procedures.
2. This product is under Crux's 1 year manufacturer's warranty. Warranty may be voided in the case where
the device shows proof of being opened or improper extreme force.
1 (855) 822-1348 (Mon - Fri - 9:00 AM - 5:00 PM) Paci c Time
19FT
EXTENSION
RED /
TO REVERSE
BLACK /
GROUND
BLACK BARREL /
CAM POWER
CAMERA
LOCA TION
1
YELLOW RCA /
VIDEO SIGNAL
F-SERIES T
AILGA TE
HANDLE
CFD-03F
KEY CYLINDER
LOCA TION
www.cruxinterfacing.com
Advertisement
Related Manuals for Crux F Series
Summary of Contents for Crux F Series
- Page 1 1. Please read through the entire instruction manual before starting any of the installation procedures. (1) 18mm Bullet Camera 2. This product is under Crux’s 1 year manufacturer’s warranty. Warranty may be voided in the case where (1) 19ft RCA Video Cable the device shows proof of being opened or improper extreme force.
- Page 2 CFD-03F F-SERIES TAILGATE HANDLE W/ CAMERA INTERFACING SOLUTIONS INSTALLING THE TAILGATE HANDLE Follow these steps to properly install the Tailgate Handle. Step 1 Remove Tailgate Cover - Start by lowering the tailgate of the truck. Remove the tailgate cover by using a T-30 torx bit, remove (8-13 depending on the model) torx bolts that secure the tailgate cover.
