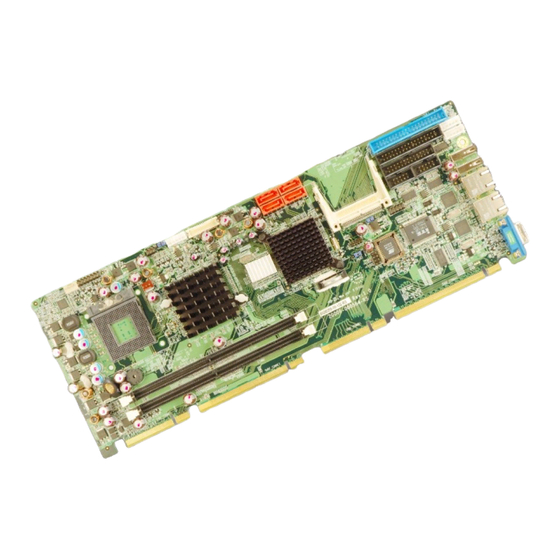

PICMG 1.3 Socket M Intel® Core™ 2 Duo CPU Card
with VGA, Dual PCIe GbE, SATA and USB2.0
PCIE-9452
Quick Installation Guide
Version 1.2
Dec. 31, 2007
Package List
PCIE-9452 package includes the following items:
1 x PCIE-9452 single board computer
1 x Mini Jumper Pack
1 x ATA 66/100 flat cable
4 x SATA cable
2 x SATA Power cable
1 x Dual RS-232 cable
1 x USB cable
1 x Utility CD
1 x QIG (Quick Installation Guide)
©2006 Copyright by IEI Technology corp.
All rights reserved.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for IEI Technology PCIE-9452
Summary of Contents for IEI Technology PCIE-9452
- Page 1 PCIE-9452 Quick Installation Guide Version 1.2 Dec. 31, 2007 Package List PCIE-9452 package includes the following items: 1 x PCIE-9452 single board computer 1 x Mini Jumper Pack 1 x ATA 66/100 flat cable 4 x SATA cable 2 x SATA Power cable...
-
Page 2: Specifications
Specifications CPU: Socket M Intel® Core™2 Duo, Core™ Duo, Core™ Solo, Celeron® M Mobile Processor with 533/667MHz FSB System Chipset: Intel® 945GME + ICH7R BIOS: AMI Flash BIOS System memory: Two 240-pin 667/533/400 MHz dual-channel DDR2 SDRAM DIMM supported (system max. 4GB). Ethernet: Dual PCIe GbE Broadcom BCM5787M chipsets I/O Interface... -
Page 3: Ordering Information
Humidity: Operation: 5%~95% non-condensing Dimension: 338 mm x 126 mm Weight: GW: 1100 g / NW: 380 g Ordering Information PCIE-9452-R12: PICMG 1.3 Socket M Intel® Core™ 2 Duo CPU Card With VGA, Dual PCIe GbE, SATA and USB 2.0 AC-KIT883HD-R10: 7.1 Channel HD Audio Kit with Realtek ALC883 support dual audio... - Page 4 KB1: MS1: 5-pin Wafer Keyboard 5-pin Wafer Mouse Connector Connector DESCRIPTION DESCRIPTION Mouse Clock Keyboard Clock Mouse Data Keyboard Data USB_01: Internal USB Connectors DESCRIPTION DESCRIPTION DATA - DATA + DATA + DATA - COM1, COM2: External Serial Port Connector DESCRIPTION DESCRIPTION DSR#...
- Page 5 J_AUDIO1: Audio Source Connector PIN DESCRIPTION DESCRIPTION AC97_BITCLK AC97_SYNC AC97_SDOUT AC97_PCBEEP AC97_SDIN AC97_RST# AC97_VCC AC97_GND AC97_12V AC97_GND TV1: S-Video Connector INVERTER1: DESCRIPTION Panel Power Supply DESCRIPTION AGREEN_Y BRIGHTNESS ARED_C RCA Connector (only video signal) BL_EN ABLUE_CVBS IR1:IrDA connector DIO1: Digital Input / Output Connector PIN DESCRIPTION DESCRIPTION DESCRIPTION...
- Page 6 LVDS1: LVDS Connector DESCRIPTION DESCRIPTION LVDSA_DATA0 LVDSA_DATA#0 LVDSA_DATA1 LVDSA_DATA#1 LVDSA_DATA2 LVDSA_DATA#2 LVDSA_CLK LVDSA_CLK# LVDSA_DATA0 LVDSA_DATA#3 LVDSB_DATA0 LVDSB_DATA#0 LVDSB_DATA1 LVDSB_DATA#1 LVDSB_DATA2 LVDSB_DATA#2 LVDSB_CLK LVDSB_CLK# LVDSB_DATA3 LVDSB_DATA#3 VCC/VCC3 VCC/VCC3 VCC/VCC3 VCC/VCC3 IDE1: IDE Interface Connector DESCRIPTION DESCRIPTION RESET# DATA 7 DATA 8 DATA 6 DATA 9 DATA 5...
-
Page 7: Board Layout: Jumper And Connector Locations
Board Layout: Jumper and Connector Locations...
