IEI Technology PCISA-MARK User Manual

Pcisa with via mark 533 / 800mhz cpu card, with vga/ttl/lvds, dual lan, sata, audio with onboard 128mb dram memory
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PCISA-MARK CPU Card
0-1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCISA-MARK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology PCISA-MARK

Summary of Contents for IEI Technology PCISA-MARK

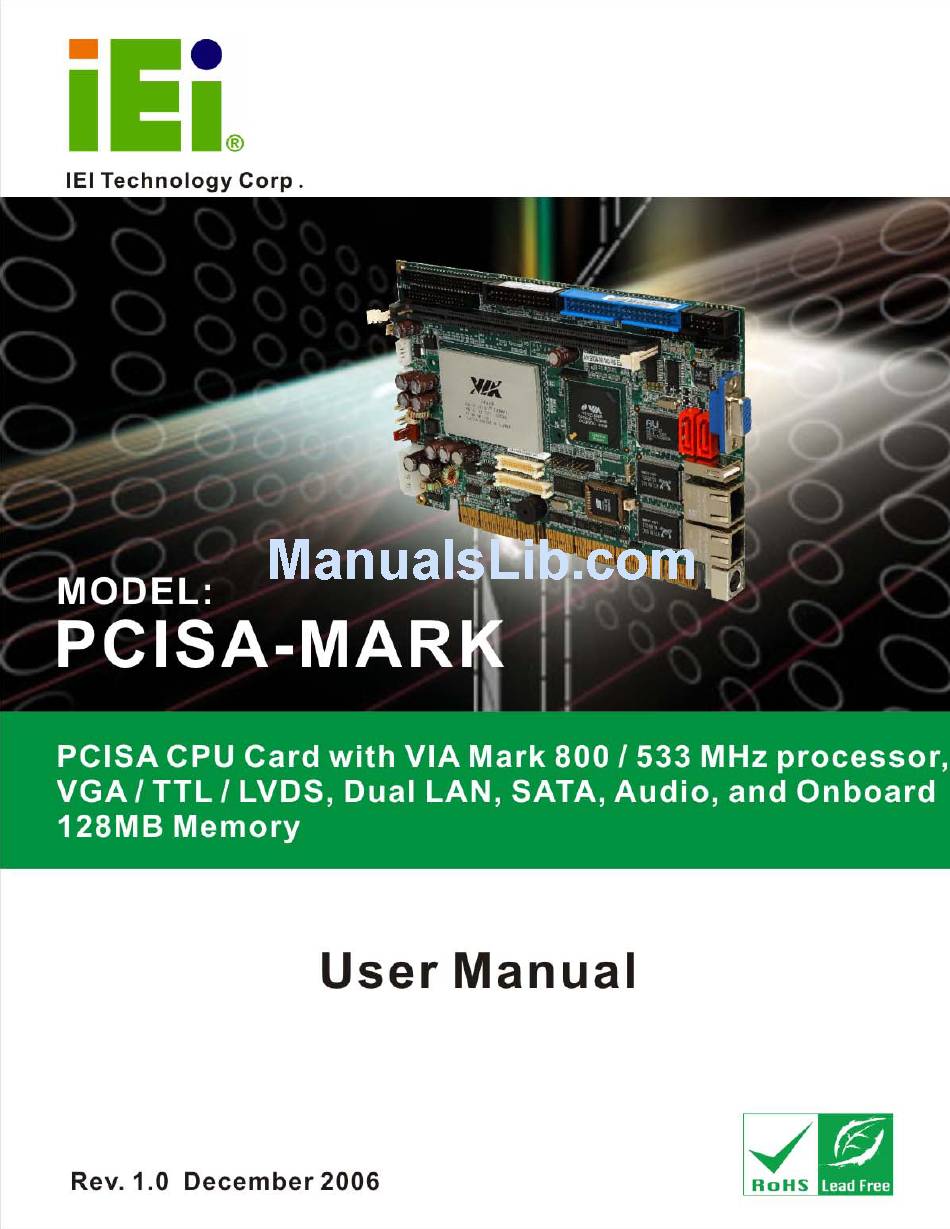

  • Page 1 PCISA-MARK CPU Card...
  • Page 2 PCISA-MARK CPU Card REVISION HISTORY Model Name PCISA-MARK CPU Card Revision Number Description Date of Issue Initial release December 2006 COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.

  • Page 3: Table Of Contents

    INTRODUCTION....................15 1.1 PCISA-MARK CPU C ..............16 VERVIEW 1.1.1 PCISA-MARK Models..................16 1.1.2 PCISA-MARK Benefits..................16 1.1.3 PCISA-MARK Features ................... 17 1.2 PCISA-MARK O ..................18 VERVIEW 1.2.1 PCISA-MARK Connectors ................20 1.2.2 Technical Specifications................... 21 DETAILED SPECIFICATIONS ................23 2.1 O...
  • Page 4 2.21.2 Optional Accessory Items................35 CONNECTORS AND JUMPERS ................. 37 3.1 P ..............38 ERIPHERAL NTERFACE ONNECTORS 3.1.1 PCISA-MARK Layout ..................38 3.1.2 Peripheral Interface Connectors ..............39 3.1.3 External Peripheral Interface Connectors............40 3.1.4 On-board Jumpers ................... 41 3.2 I ..............41 NTERNAL...
  • Page 5 4.2.1 Installation Notices ..................90 4.3 U ......................91 NPACKING 4.3.1 Unpacking Precautions..................91 4.3.2 Checklist......................92 4.4 PCISA-MARK CPU C ............. 93 NSTALLATION 4.4.1 Preinstalled Component................... 93 4.4.2 Components to Install ..................93 4.4.3 DIMM Module Installation ................94 4.5 P...
  • Page 6 PCISA-MARK CPU Card 4.8 I CPU C ..................104 NSERTING THE 4.9 R ..................105 ANEL ONNECTORS 4.9.1 Keyboard and Mouse Connection..............105 4.9.2 Ethernet Connection ..................105 4.9.3 USB Connection..................... 105 4.9.4 VGA Port Installation ..................105 BIOS SETTINGS ....................107 5.1 I...
  • Page 7 PCISA-MARK CPU Card List of Figures Figure 1-1: PCISA-MARK Overview................18 Figure 1-2: PCISA-MARK Overview (Solder Side) ...........19 Figure 2-1: Data Flow Block Diagram................26 Figure 3-1: Connector and Jumper Locations ............38 Figure 3-2: Audio CD In Connector Location ............42 Figure 3-3: Audio Connector Location..............43 Figure 3-4: Battery Connector Location ..............45...
  • Page 8 PCISA-MARK CPU Card Figure 3-27: RJ-45 Ethernet Connector ..............84 Figure 3-28: Mini-DIN 6 PS/2 Connector ..............85 Figure 3-29: VGA Connector ..................86 Figure 4-1: Installing the DIMM Module ..............94 Figure 4-2: Connection of 44-Pin IDE Connector.............97 Figure 4-3: Connection of 40-Pin IDE Connector.............97 Figure 4-4: Jumper Locations.................
  • Page 9 PCISA-MARK CPU Card Figure D-1: Sound Effect Manager con..............201 Figure D-2: Sound Effect Manager Icon [Task Bar] ........... 202 Figure D-3: Sound Effect Manager Icon [Control Panel]........202 Figure D-4: Sound Effects Manager (ALC655) ............203...
  • Page 10 PCISA-MARK CPU Card List of Tables Table 1-1: PCISA-MARK Model Specifications ............16 Table 1-2: Technical Specifications ................22 Table 2-1: CRT and Panel Screen Resolutions Supported ........28 Table 2-2: Power Consumption for VIA Mark 800 MHz..........34 Table 2-3: Power Consumption for VIA Mark 533 MHz..........34 Table 3-1: Peripheral Interface Connectors..............40...
  • Page 11 PCISA-MARK CPU Card Table 3-25: SATA Drive Connector Pinouts .............77 Table 3-26: TFT LCD TTL Connector Pinouts ............79 Table 3-27: CN23 USB Port Connector Pinouts ............81 Table 3-28: CN24 USB Port Connector Pinouts ............81 Table 3-29: LAN Pinouts.....................83 Table 3-30: RJ-45 Ethernet Connector LEDs............84 Table 3-31: Mini-DIN 6 PS/2 Connector ..............85...
  • Page 12 PCISA-MARK CPU Card List of BIOS Menus BIOS Menu 1: AwardBIOS CMOS Setup Utility ............. 110 BIOS Menu 2: Standard CMOS Features ............... 112 BIOS Menu 3: IDE Primary Master................115 BIOS Menu 4: Advanced BIOS Features..............118 BIOS Menu 5: Advanced Chipset Features ............127 BIOS Menu 6: Integrated Peripherals..............
  • Page 13 PCISA-MARK CPU Card Glossary AC ’97 Audio Codec 97 ICH4 I/O Controller Hub 4 ACPI Advanced Configuration and Cache Level 1 Cache Power Interface Cache Level 2 Cache Advanced Power Management Liquid Crystal Display ARMD ATAPI Removable Media Device Parallel Port Connector...
  • Page 14 PCISA-MARK CPU Card THIS PAGE IS INTENTIONALLY LEFT BLANK Page 14 IEI ® Technology, Corp.

  • Page 15: Introduction

    PCISA-MARK CPU Card Chapter Introduction Page 15...

  • Page 16: Pcisa-Mark Cpu Card Overview

    PCISA-MARK CPU Card 1.1 PCISA-MARK CPU Card Overview The PCISA form factor PCISA-MARK is fully equipped with advanced multi-mode I/Os. The PCISA-MARK is designed for system manufacturers, integrators, and VARs that want performance, reliability, and quality at a reasonable price.

  • Page 17: Pcisa-Mark Features

    PCISA-MARK CPU Card 1.1.3 PCISA-MARK Features Some of the PCISA-MARK features are listed below: Complies with PCISA form factor Complies with RoHS Contains an embedded VIA Mark CoreFusion™ processor Contains onboard 128MB PC133MHz memory Supports a 168-pin PC100/133MHz SDRAM DIMM with a maximum capacity...

  • Page 18: Pcisa-Mark Overview

    PCISA-MARK CPU Card 1.2 PCISA-MARK Overview Figure 1-1: PCISA-MARK Overview Page 18 IEI ® Technology, Corp.

  • Page 19: Figure 1-2: Pcisa-Mark Overview (Solder Side)

    PCISA-MARK CPU Card Figure 1-2: PCISA-MARK Overview (Solder Side) Page 19...

  • Page 20: Pcisa-Mark Connectors

    1 x Reset button switch 2 x RS-232 serial port connectors 2 x Serial ATA connectors 2 x USB 1.1 connectors The PCISA-MARK has the following external peripheral interface connectors: 2 x Ethernet connectors 1 x PS/2 keyboard/mouse connector 1 x USB 1.1 connector...

  • Page 21: Technical Specifications

    The location of these connectors on the CPU card can be seen in Figure 1-1. These connectors are fully described in Chapter 3. 1.2.2 Technical Specifications PCISA-MARK technical specifications are listed in Table 1-2. Detailed descriptions of each specification can be found in Chapter 2. SPECIFICATION...

  • Page 22: Table 1-2: Technical Specifications

    PCISA-MARK CPU Card SPECIFICATION DESCRIPTION Power Consumption +5V @ 2.52A (VIA Mark 533MHz / PC133MHz 512MB) +5V @ 2.94A (VIA Mark 800MHz / PC133MHz 512MB) 3D Mark Watchdog Timer Software programmable 1~255 sec. system reset IrDA One integrated IrDA connector supports either a Serial...

  • Page 23: Detailed Specifications

    PCISA-MARK CPU Card Chapter Detailed Specifications Page 23...

  • Page 24: Overview

    This chapter describes the specifications and onboard features of the PCISA-MARK CPU card in detail. 2.2 Compatible IEI Backplanes The PCISA-MARK CPU card is compatible with all IEI PCI backplanes. For more information on these backplanes, please visit the IEI website or contact your CPU card reseller or vendor.

  • Page 25: Via Vt82C686B System Chipset

    PCISA-MARK CPU Card VIA PadLock Security Engine:- Utilizing the advanced native security feature set of the VIA 'Nehemiah' processor core architecture named the VIA PadLock Security Engine, the VIA Mark CoreFusion™ processor platform offers developers a real-time military-grade security engine that integrates a AES cipher engine and quantum based random number generator to help protect data exchanged and stored.

  • Page 26: Data Flow

    PCISA-MARK CPU Card 2.6 Data Flow Figure 2-1 shows the data flow between the system chipset, the CPU and other I/O interfaces that can connect to the PCISA-MARK CPU card. Figure 2-1: Data Flow Block Diagram Page 26 IEI ® Technology, Corp.

  • Page 27: Lcd And Flat Panel Display Support

    PCISA-MARK CPU Card 2.7 LCD and Flat Panel Display Support Mark CoreFusion™ processor supports a wide variety of DSTN or TFT panels through a 36-bit CMOS interface. This includes support for VGA, SVGA, XGA, and SXGA+ TFT color panels with 9-bit, 12-bit, 18-bit (both 1 pixel/clock and 2 pixels/clock), and 24-bit CMOS interfaces.

  • Page 28: Memory Support

    1920x1440x16 Table 2-1: CRT and Panel Screen Resolutions Supported 2.8 Memory Support The PCISA-MARK features onboard 128MB PC133MHz memory and a 168-pin SDRAM DIMM socket that supports PC100 / 133MHz memory up to 512MB. 2.9 PCI Bus Interface Support The PCI bus on the PCISA-MARK has the following features: PCI 2.2 compliant, 32-bit 3.3V PCI interface with 5V tolerant inputs...

  • Page 29: Ethernet Controller Features

    PCISA-MARK CPU Card 2.10.2 Ethernet Controller Features The Realtek RTL8100C Ethernet controller features are listed below. 128-pin PQFP/LQFP (PQFP package pin-to-pin compatible with Realtek RTL8110S-32 Single-Chip Gigabit Ethernet Controller) Supports PCI/mini-PCI interfaces Integrates Fast Ethernet MAC, physical chip, and transceiver onto a single...

  • Page 30: Drive Interfaces

    1 x FDD 1 x Compact Flash (CF) card 2.11.1 SATA Drives The PCISA-MARK supports two first generation SATA drives with transfer rates of up to 150Mb/s. 2.11.2 IDE HDD Interfaces The PCISA-MARK system chipset IDE controller supports up to four HDDs with the...

  • Page 31: Serial Ports

    PCISA-MARK CPU Card 2.12 Serial Ports The PCISA-MARK has two high-speed UART serial ports, configured as CN13 and CN14. Both ports can be configured as RS-232. The serial ports have the following specifications. 16C550 UART with 16-byte FIFO buffer 115.2Kbps transmission rate 2.13 Audio Codec...

  • Page 32: Real Time Clock

    2.14 Real Time Clock 256-byte battery backed CMOS RAM 2.15 System Monitoring The PCISA-MARK CPU card is capable of self-monitoring various aspects of its operating status including: CPU, chipset, and battery voltage, +3.3V, +5V, and +12V CPU and board temperatures (by the corresponding embedded sensors) Page 32 IEI ®...

  • Page 33: Bios

    PCISA-MARK CPU Card 2.16 BIOS The PCISA-MARK uses a licensed copy of Phoenix Award BIOS. The features of the flash BIOS used are listed below: SMIBIOS (DMI) compliant Console redirection function support PXE (Pre-Boot Execution Environment) support USB booting support 2.17 Infrared Data Association (IrDA) Interface...

  • Page 34: Table 2-2: Power Consumption For Via Mark 800 Mhz

    Voltage Current 2.52A Table 2-2: Power Consumption for VIA Mark 800 MHz Table 2-2 shows the power consumption parameters for the PCISA-MARK for the VIA Mark 533MHz when 512MB of PC133MHz SDRAM is installed in the system. Voltage Current 2.94A...

  • Page 35: Packaged Contents And Optional Accessory Items

    PCISA-MARK CPU Card 2.21 Packaged Contents and Optional Accessory Items 2.21.1 Package Contents When you unpack the PCISA-MARK CPU card, you should find the following components. 1 x PCISA-MARK single board computer 1 x ATA66/100 HDD cable 2 x SATA cable...
  • Page 36 PCISA-MARK CPU Card THIS PAGE IS INTENTIONALLY LEFT BLANK Page 36 IEI ® Technology, Corp.

  • Page 37: Connectors And Jumpers

    PCISA-MARK CPU Card Chapter Connectors and Jumpers Page 37...

  • Page 38: Peripheral Interface Connectors

    PCISA-MARK CPU Card 3.1 Peripheral Interface Connectors Section 3.1.1 shows peripheral interface connector locations. Section 3.1.2 lists all the peripheral interface connectors seen in Section 3.1.1. 3.1.1 PCISA-MARK Layout Figure 3-1 shows the on-board peripheral connectors and on-board jumpers. Figure 3-1: Connector and Jumper Locations Page 38 IEI ®...

  • Page 39: Peripheral Interface Connectors

    PCISA-MARK CPU Card 3.1.2 Peripheral Interface Connectors Table 3-1 shows a list of the peripheral interface connectors on the PCISA-MARK. Detailed descriptions of these connectors can be found in Section 3.2. Connector Type Label Audio CD In connector 4-pin header...

  • Page 40: External Peripheral Interface Connectors

    USB 1.1 connector 4-pin header CN24 Table 3-1: Peripheral Interface Connectors 3.1.3 External Peripheral Interface Connectors Table 3-2 lists the external peripheral interface connectors on the PCISA-MARK. Detailed descriptions of these connectors can be found in Section 3.3. Connector Type Label...

  • Page 41: On-Board Jumpers

    Internal peripheral connectors are found on the CPU card and are only accessible when the CPU card is outside of the chassis. This section has complete descriptions of all the internal peripheral connectors on the PCISA-MARK. 3.2.1 Audio CD In Connector...

  • Page 42: Figure 3-2: Audio Cd In Connector Location

    PCISA-MARK CPU Card Figure 3-2: Audio CD In Connector Location PIN NO. DESCRIPTION CD SIGNAL (Left) GROUND GROUND CD SIGNAL (Right) Table 3-4: Audio CD In Connector Pinouts Page 42 IEI ® Technology, Corp.

  • Page 43: Audio Connector (Line Out, Line In & Mic In)

    PCISA-MARK CPU Card 3.2.2 Audio Connector (Line out, Line in & MIC in) CN Label: CN15 CN Type: 10-pin box header CN Location: See Figure 3-3 CN Pinouts: See Table 3-5 The 10-pin audio connector is connected to external audio devices including speakers and microphones for the input and output of audio signals to and from the system.

  • Page 44: Battery Connector

    PCISA-MARK CPU Card PIN NO. DESCRIPTION PIN NO. DESCRIPTION Line Out (Right) Line In (Right) GROUND GROUND Line Out (Left) Line In (Left) GROUND GROUND MIC In Table 3-5: Audio Connector Pinouts 3.2.3 Battery Connector CN Label: CN28 2-pin wafer connector...

  • Page 45: Compact Flash ® Connector

    PCISA-MARK CPU Card Figure 3-4: Battery Connector Location PIN NO. DESCRIPTION Battery+ Battery- Table 3-6: Battery Connector Pinouts ® 3.2.4 Compact Flash Connector CN Label: CN32 (solder side) CN Type: 50-pin header CN Location: See Figure 3-5 CN Pinouts: See Table 3-7...

  • Page 46: Figure 3-5: Compact Flash ® Connector Location

    PCISA-MARK CPU Card ® Figure 3-5: Compact Flash Connector Location Page 46 IEI ® Technology, Corp.

  • Page 47: Table 3-7: Compact Flash ® Connector Pinouts

    PCISA-MARK CPU Card PIN NO. DESCRIPTION PIN NO. DESCRIPTION GROUND CFD2 SDD3 SDD11 SDD4 SDD12 SDD5 SDD13 SDD6 SDD14 SDD7 SDD15 SDCS1# SDCS3# GROUND GROUND SDIOR# GROUND SDIOW# GROUND GROUND IRQ15 GROUND MASTER/SLAVE GROUND GROUND RESET# GROUND SIORDY SDA2 SDDREQ...

  • Page 48: Cpu Fan Connector

    PCISA-MARK CPU Card 3.2.5 CPU Fan Connector CN Label: CN Type: 3-pin wafer CN Location: See Figure 3-6 CN Pinouts: See Table 3-8 The cooling fan connector provides a 5V, 500mA current to a CPU cooling fan. The connector has a "rotation" pin to get rotation signals from fans and notify the system so the system BIOS can recognize the fan speed.

  • Page 49: Digital Input/Output (Dio) Connector

    3.2.6 Digital Input/Output (DIO) Connector CN11 CN Label: CN Type: 10-pin header CN Location: See Figure 3-7 CN Pinouts: See Table 3-9 The digital IO port of PCISA-MARK is 5V CMOS level. Internal pull-up exists on the output. Page 49...

  • Page 50: Figure 3-7: Digital I/O Connector Location

    PCISA-MARK CPU Card Figure 3-7: Digital I/O Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION GROUND OUTPUT 0 OUTPUT 1 OUTPUT 2 OUTPUT 3 INPUT 0 INPUT 1 INPUT 2 INPUT 3 Table 3-9: Digital I/O Connector Pinouts Page 50...

  • Page 51: Dimm Socket

    PCISA-MARK CPU Card 3.2.7 DIMM socket CN Label: CN16 CN Type: 168-pin DIMM socket CN Location: See Figure 3-8 PCISA-MARK has a 168-pin DIMM socket that supports 3.3V non-buffered PC100/133MHz SDRAM up to 512MB. Page 51...

  • Page 52: Figure 3-8: Dimm Socket Location

    PCISA-MARK CPU Card Figure 3-8: DIMM Socket Location Page 52 IEI ® Technology, Corp.

  • Page 53: External Led Connector

    PCISA-MARK CPU Card 3.2.8 External LED Connector CN Label: CN Type: 6-pin wafer connector CN Location: See Figure 3-9 CN Pinouts: See Table 3-10 Figure 3-9: External LED Connector Location Page 53...

  • Page 54: Floppy Disk Connector

    PCISA-MARK CPU Card PIN NO. DESCRIPTION HD_LED Table 3-10: External LED Connector Pinouts 3.2.9 Floppy Disk Connector CN Label: CN12 34-pin box header CN Type: CN Location: See Figure 3-10 CN Pinouts: See Table 3-11 The floppy disk connector connects to a floppy disk drive.

  • Page 55: Figure 3-10: 34-Pin Fdd Connector Location

    PCISA-MARK CPU Card Figure 3-10: 34-pin FDD Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION GROUND DEN0 GROUND GROUND DEN1 GROUND INDEX- GROUND MTR0- GROUND DISKSEL1- GROUND DISKSEL0- GROUND MTR1- GROUND DIR- GROUND STEP- GROUND WDATA- GROUND WGATE- GROUND TRAK0-...

  • Page 56: Ide Connector (Primary)

    CN Location: See Figure 3-11 CN Pinouts: See Table 3-12 One 40-pin primary IDE device connector on the PCISA-MARK CPU card supports connectivity to Ultra ATA/133 IDE devices with data transfer rates up to 133MB/s. Page 56 IEI ® Technology, Corp.

  • Page 57: Figure 3-11: Primary Ide Device Connector Location

    PCISA-MARK CPU Card Figure 3-11: Primary IDE Device Connector Location DESCRIPTION DESCRIPTION -IDERST GROUND PDD7 PDD8 PDD6 PDD9 PDD5 PDD10 PDD4 PDD11 PDD3 PDD12 PDD2 PDD13 PDD1 PDD14 PDD0 PDD15 GROUND PDDREQ GROUND -PDIOW GROUND -PDIOR GROUND PIORDY (PULL LOW TO GND)

  • Page 58: Ide Connector (Secondary)

    CN Location: See Figure 3-12 CN Pinouts: See Table 3-13 One 44-pin secondary IDE device connector on the PCISA-MARK CPU card supports connectivity to Ultra ATA/133 IDE devices with data transfer rates up to 133MB/s. Page 58 IEI ® Technology, Corp.

  • Page 59: Figure 3-12: Secondary Ide Device Connector Location

    PCISA-MARK CPU Card Figure 3-12: Secondary IDE Device Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION RESET# GROUND DATA 7 DATA 8 DATA 6 DATA 9 DATA 5 DATA 10 DATA 4 DATA 11 DATA 3 DATA 12 DATA 2...

  • Page 60: Inverter Connector

    PCISA-MARK CPU Card DACK# GROUND INTERRUPT HDC CS1# HDC CS3# HDD ACTIVE# GROUND GROUND Table 3-13: Secondary IDE Connector Pinouts 3.2.12 Inverter Connector CN Label: CN Type: 5-pin wafer connector CN Location: See Figure 3-13 CN Pinouts: See Table 3-14 The inverter connector is connected to the LCD backlight.

  • Page 61: Figure 3-13: Inverter Connector Location

    PCISA-MARK CPU Card Figure 3-13: Inverter Connector Location PIN NO. DESCRIPTION Ground Ground +12V Ground LCD Enable Table 3-14: Inverter Connector Pinouts Page 61...

  • Page 62: Irda Interface Connector

    PCISA-MARK CPU Card 3.2.13 IrDA Interface Connector CN Label: CN18 CN Type: 5-pin header CN Location: See Figure 3-14 CN Pinouts: See Table 3-15 The integrated infrared (IrDA) connector supports both Serial Infrared (SIR) and Amplitude Shift Key Infrared (ASKIR) interfaces.

  • Page 63: Keyboard/Mouse Connector

    PCISA-MARK CPU Card PIN NO. DESCRIPTION IR-RX Ground IR-TX Table 3-15: IrDA Connector Pinouts 3.2.14 Keyboard/Mouse Connector CN Label: CN31 6-pin wafer connector CN Type: CN Location: See Figure 3-15 CN Pinouts: See Table 3-17 The keyboard and mouse connector can be connected to a standard PS/2 cable or PS/2 Y-cable to add keyboard and mouse functionality to the system.

  • Page 64: Figure 3-15: Keyboard/Mouse Connector Location

    PCISA-MARK CPU Card Figure 3-15: Keyboard/Mouse Connector Location PIN NO. DESCRIPTION MOUSE DATA MOUSE CLOCK KEYBOARD DATA KEYBOARD CLOCK GROUND Table 3-16: Keyboard/Mouse Connector Pinouts Page 64 IEI ® Technology, Corp.

  • Page 65: Lvds Lcd Connector

    PCISA-MARK CPU Card 3.2.15 LVDS LCD Connector CN Label: CN26 CN Type: 30-pin crimp connector CN Location: See Figure 3-16 CN Pinouts: See Table 3-17 This connector is connected to a TFT LCD LVDS display device. Page 65...

  • Page 66: Figure 3-16: Lvds Lcd Connector Location

    PCISA-MARK CPU Card Figure 3-16: LVDS LCD Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION GROUND GROUND LVDSA_Y0+ LVDSA_Y0- LVDSA_Y1+ LVDSA_Y1- LVDSA_Y2+ LVDSA_Y2- LVDSA_CLK+ LVDSA_CLK- GROUND GROUND LVDSB_Y0+ LVDSB_Y0- LVDSB_Y1+ LVDSB_Y1- LVDSB_Y2+ LVDSB_Y2- LVDSB_CLK+ LVDSB_CLK- GROUND GROUND VCC_LVDS VCC_LVDS VCC_LVDS...

  • Page 67: Parallel Port Connector

    PCISA-MARK CPU Card 3.2.16 Parallel Port Connector CN Label: CN Type: 26-pin box header CN Location: See Figure 3-17 CN Pinouts: See Table 3-18 The 26-pin box header can be connected to a parallel port connector interface or some other parallel port device such as a printer.

  • Page 68: Power Button Connector

    PCISA-MARK CPU Card DATA 2 PRINTER SELECT LN# DATA 3 GROUND DATA 4 GROUND DATA 5 GROUND DATA 6 GROUND DATA 7 GROUND ACKNOWLEDGE GROUND BUSY GROUND PAPER EMPTY GROUND PRINTER SELECT Table 3-18: Parallel Port Connector Pinouts 3.2.17 Power Button Connector...

  • Page 69: Figure 3-18: Power Button Connector Location

    PCISA-MARK CPU Card Figure 3-18: Power Button Connector Location PIN NO. DESCRIPTION PWR-BTN Ground Table 3-19: Power Button Connector Pinouts Page 69...

  • Page 70: Power Connector

    PCISA-MARK CPU Card 3.2.18 Power Connector CN Label: CN Type: 4-pin wafer connector CN Location: See Figure 3-19 CN Pinouts: See Table 3-20 The power connector is connected to a power source that powers the system. Figure 3-19: Power Connector Location Page 70 IEI ®...

  • Page 71: Table 3-20: Power Connector Pinouts

    PCISA-MARK CPU Card PIN NO. DESCRIPTION Ground Ground +12v Table 3-20: Power Connector Pinouts DESCRIPTION DESCRIPTION -IDERST GROUND PDD7 PDD8 PDD6 PDD9 PDD5 PDD10 PDD4 PDD11 PDD3 PDD12 PDD2 PDD13 PDD1 PDD14 PDD0 PDD15 GROUND PDDREQ GROUND -PDIOW GROUND -PDIOR...

  • Page 72: Ps-On Connector

    PCISA-MARK CPU Card 3.2.19 PS-ON Connector CN Label: CN Type: 3-pin wafer connector CN Location: See Figure 3-20 CN Pinouts: See Table 3-22 The PS-ON connector connects to an ATX power supply. Figure 3-20: PS-ON Signal Connector Location Page 72...

  • Page 73: Reset Button Connector

    PCISA-MARK CPU Card PIN NO. DESCRIPTION Ground PS-ON +5V Standby Table 3-22: PS-ON Signal Connector Pinouts 3.2.20 Reset Button Connector CN Label: CN Type: 2-pin wafer connector CN Location: See Figure 3-21 CN Pinouts: See Table 3-23 The reset button connector is connected to the reset button on the external chassis.

  • Page 74: Figure 3-21: Reset Button Connector Location

    PCISA-MARK CPU Card Figure 3-21: Reset Button Connector Location PIN NO. DESCRIPTION RST_BTN Ground Table 3-23: Reset Button Connector Pinouts Page 74 IEI ® Technology, Corp.

  • Page 75: Serial Port (Com1 & Com2) Connectors

    PCISA-MARK CPU Card 3.2.21 RS-232 Serial Port (COM1 & COM2) Connectors CN Label: CN13 and CN14 CN Type: 10-pin header CN Location: See Figure 3-22 CN Pinouts: See Table 3-24 The serial port connectors connect to RS-232 serial port devices.

  • Page 76: Serial Ata Drive Connectors

    PCISA-MARK CPU Card Figure 3-22: RS-232 Serial Port Connectors Location DESCRIPTION DESCRIPTION DATA CARRIER DETECT (DCD) DATA SET READY (DSR) RECEIVE DATA (RXD) REQUEST TO SEND (RTS) TRANSMIT DATA (TXD) CLEAR TO SEND (CTS) DATA TERMINAL READY (DTR) RING INDICATOR (RI)

  • Page 77: Figure 3-23: Sata Drive Connector Locations

    PCISA-MARK CPU Card Figure 3-23: SATA Drive Connector Locations PIN NO. DESCRIPTION S_TXP S_TXN S_RXN S_RXP Table 3-25: SATA Drive Connector Pinouts Page 77...

  • Page 78: Tft Lcd Connector

    PCISA-MARK CPU Card 3.2.23 TFT LCD Connector CN Label: CN27 CN Type: 40-pin crimp connector CN Location: See Figure 3-24 CN Pinouts: See Table 3-26 This connector is connected to a TFT LCD TTL display device. Figure 3-24: TFT LCD TTL Connector Location Page 78 IEI ®...

  • Page 79: Table 3-26: Tft Lcd Ttl Connector Pinouts

    PCISA-MARK CPU Card PIN NO. DESCRIPTION PIN NO. DESCRIPTION VCC_FP VCC_FP GROUND GROUND VCC_FP VCC_FP I2CDATA GROUND FPD0 FPD1 FPD2 FPD3 FPD4 FPD5 FPD6 FPD7 FPD8 FPD9 FPD10 FPD11 FPD12 FPD13 FPD14 FPD15 FPD16 FPD17 FPD18 FPD19 FPD20 FPD21 FPD22...

  • Page 80: Usb Connectors (8-Pin And 4-Pin)

    PCISA-MARK CPU Card 3.2.24 USB Connectors (8-pin and 4-pin) CN Label: CN23 and CN24 CN Type: 8-pin and 4-pin header CN Location: See Figure 3-25 CN Pinouts: See Table 3-27 for CN23 pinouts See Table 3-28for CN24 pinouts The 8-pin and 4-pin USB connectors provide connectivity to USB 1.1 ports. The 8-pin USB connector can support two USB devices.

  • Page 81: Figure 3-25: 8-Pin Usb Connector Location

    PCISA-MARK CPU Card Figure 3-25: 8-pin USB Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION GROUND DATA3- DATA4+ DATA3+ DATA4- GROUND Table 3-27: CN23 USB Port Connector Pinouts PIN NO. DESCRIPTION PIN NO. DESCRIPTION GROUND DATA2+ DATA2- Table 3-28: CN24 USB Port Connector Pinouts...

  • Page 82: External Peripheral Interface Connector Panel

    PCISA-MARK CPU Card 3.3 External Peripheral Interface Connector Panel Figure 3-26 shows the PCISA-MARK external peripheral interface connector panel. The peripheral connectors are connected to external devices when the PCISA-MARK is installed in a chassis. The peripheral connectors on the panel are:...

  • Page 83: Lan Connectors

    CN Pinouts: See Table 3-29 The PCISA-MARK is equipped with two built-in GbE Ethernet controllers. The controllers can connect to the LAN through two RJ-45 LAN connectors. There are two LEDs on the connector indicating the status of LAN. The pin assignments are listed in the following table: PIN NO.

  • Page 84: Mini-Din 6 Ps/2 Connector

    CN Pinouts: See Table 3-31 The PCISA-MARK CPU card has a mini-DIN 6 PS/2 connector on the mounting bracket for easy connection to a PS/2 keyboard or PS/2 mouse. The card comes with a cable to convert the mini-DIN 6 PS/2 into two mini-DIN 6 PS/2 connectors for keyboard and mouse connection.

  • Page 85: Usb Connector

    3.3.3 USB Connector CN Label: CN22 USB port CN Type: CN Location: See Figure 3-26 (labeled number 3) CN Pinouts: See Table 3-32 The PCISA-MARK has a one rear panel USB port. This port connects to USB 1.1 devices. Page 85...

  • Page 86: Vga Connector

    PCISA-MARK CPU Card PIN NO. DESCRIPTION DATA1- DATA1+ GROUND Table 3-32: USB Port Pinouts 3.3.4 VGA connector CN Label: CN19 CN Type: HD-D-sub 15 female connector CN Location: See Figure 3-26 (labeled number 4) CN Pinouts: See Table 3-33 A 15-pin VGA connector connects to standard displays.

  • Page 87: Table 3-33: Vga Connector Pinouts

    PCISA-MARK CPU Card PIN NO. DESCRIPTION PIN NO. DESCRIPTION GREEN BLUE GROUND GROUND GROUND GROUND GROUND DDC DAT HSYNC VSYNC DDCCLK Table 3-33: VGA Connector Pinouts Page 87...
  • Page 88 PCISA-MARK CPU Card THIS PAGE IS INTENTIONALLY LEFT BLANK Page 88 IEI ® Technology, Corp.

  • Page 89: Installation

    PCISA-MARK CPU Card Chapter Installation Page 89...

  • Page 90: Anti-Static Precautions

    CPU card and injury to the person installing the CPU card. 4.2.1 Installation Notices Before and during the installation of the PCISA-MARK CPU card, do the following: Read the user manual The user manual provides a complete description of the PCISA-MARK CPU card, installation instructions, and configuration options.

  • Page 91: Unpacking

    Contact the reseller or vendor the CPU card was purchased from. 4.3.1 Unpacking Precautions Some components on PCISA-MARK are very sensitive to static electricity and can be damaged by a sudden rush of power. To protect it from being damaged during the unpacking process, follow these precautions:...

  • Page 92: Checklist

    1 x Mini jumper pack 1 x Utility CD 1 x QIG (quick installation guide) If one or more of these items are missing, contact the reseller or vendor PCISA-MARK was purchased from and do not proceed any further with the installation. Page 92...

  • Page 93: Pcisa-Mark Cpu Card Installation

    CPU and DIMM modules. 4.4.1 Preinstalled Component The component listed below is preinstalled on the PCISA-MARK. 4.4.2 Components to Install To install the PCISA-MARK, the following components must be installed or connected to the PCISA-MARK: DIMM module Peripheral devices...

  • Page 94: Dimm Module Installation

    512MB The DIMM can be either single-sided or dual-sided. 4.4.3.2 DIMM Module Installation The PCISA-MARK CPU card has one DDR SDRAM DIMM socket. To install a DIMM module, follow the instructions below and refer to Figure 4-1. Step 1: Make sure the two handles of the DIMM socket are in the "open"...
  • Page 95 PCISA-MARK CPU Card Step 2: Slowly slide the DIMM module along the plastic guides on both ends of the socket. Press the DIMM module down into the socket until it clicks into position and the two handles have automatically locked the memory module into place.

  • Page 96: Peripheral Device Connection

    PCISA-MARK CPU Card 4.5 Peripheral Device Connection Cables provided by IEI that connect peripheral devices to the board are listed in Table 4-1. Cables not included in the kit must be separately purchased. Quantity Type ATA 66/100 HDD cable Audio cable...

  • Page 97: Figure 4-2: Connection Of 44-Pin Ide Connector

    PCISA-MARK CPU Card Figure 4-2: Connection of 44-Pin IDE Connector Figure 4-3: Connection of 40-Pin IDE Connector NOTE: When two EIDE disk drives are connected together, back-end jumpers on the drives must be used to configure one drive as a master and the other as a slave.

  • Page 98: Com1-Com2 Rs-232 Serial Port Installation

    PCISA-MARK CPU Card 4.5.2 COM1-COM2 RS-232 Serial Port Installation The cable used to connect the CPU card to an RS-232 serial port is a 10-pin header to male D-sub 9 connector. To connect an RS-232 serial port to the CPU card, follow the instructions below.

  • Page 99: Tft Ttl Lcd Installation

    PCISA-MARK CPU Card 4.5.6 TFT TTL LCD Installation To connect a TFT TTL LCD to the CPU card, follow the instructions below. Step 1: Connect the 40-pin connector end of a TFT TTL LCD cable to the CN27 miniature crimping connector on the CPU card. A keyed pin on the connector prevents it from being connected incorrectly.

  • Page 100: Figure 4-4: Jumper Locations

    PCISA-MARK CPU Card Before the PCISA-MARK is installed in the system, the jumpers must be set in accordance with the desired configuration. The PCISA-MARK CPU card has four on-board jumpers. Description Label Type CF card function setup 2-pin header Clear CMOS...

  • Page 101: Cf Card Function Setup Jumper

    Jumper Location: See Figure 4-4 If the PCISA-MARK fails to boot due to improper BIOS settings, use this jumper to clear the CMOS data and reset the system BIOS information. To do this, use the jumper cap to close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1 and 2.

  • Page 102: Flat Panel Power Select

    PCISA-MARK CPU Card Description Short 1 – 2 (Default) Keep CMOS Setup (Normal Operation) Short 2 - 3 Clear CMOS Setup Table 4-3: Clear CMOS Jumper Settings 4.6.3 Flat Panel Power Select WARNING! Making the wrong setting on this jumper may cause irreparable damage to both the CPU card and the LCD screen connected to the on-board connector.

  • Page 103: Pci Vio Voltage Select Jumper

    Configuration options can be found through the BIOS configuration utility. To install a CFII card, follow the instructions below. Step 1: Turn the PCISA-MARK over so that the CFII card socket is facing up. Step 2: Carefully insert the CFII card into the socket.

  • Page 104: Inserting The Cpu Card

    After the DIMM module has been installed and after the internal peripheral connectors have been connected to the peripheral devices and the jumpers have been configured, the PCISA-MARK can be inserted onto a PCISA slot on the backplane. To insert the CPU card to a backplane, follow the instructions below.

  • Page 105: Rear Panel Connectors

    PCISA-MARK CPU Card 4.9 Rear Panel Connectors 4.9.1 Keyboard and Mouse Connection A PS/2 keyboard and a PS/2 mouse can be connected to the appropriate PS/2 connector on the rear panel. 4.9.2 Ethernet Connection The rear panel RJ-45 connectors can be connected to an external LAN and communicate with data transfer rates up to 10Mbps and 100Mbps.
  • Page 106 PCISA-MARK CPU Card THIS PAGE IS INTENTIONALLY LEFT BLANK Page 106 IEI ® Technology, Corp.

  • Page 107: Bios Settings

    PCISA-MARK CPU Card Chapter BIOS Settings Page 107...

  • Page 108: Introduction

    PCISA-MARK CPU Card 5.1 Introduction A licensed copy of Phoenix Award BIOS is preprogrammed into the ROM BIOS. The BIOS setup program allows users to modify the basic system configuration. This chapter describes how to access the BIOS setup program and the configuration options that may be changed.

  • Page 109: Getting Help

    PCISA-MARK CPU Card Function Main Menu – Quit and do not save changes into CMOS Status Page Setup Menu and Option Page Setup Menu -- Exit current page and return to Main Menu General help, only for Status Page Setup Menu and Option...

  • Page 110: Main Bios Menu

    PCISA-MARK CPU Card 5.1.5 Main BIOS Menu Once the BIOS opens, the main menu (BIOS Menu 1) appears. BIOS Menu 1: AwardBIOS CMOS Setup Utility NOTE: The following sections will completely describe the menus listed below and the configuration options available to users.
  • Page 111 PCISA-MARK CPU Card The following user configurable options are also available in BIOS Menu 1: Load Fail-Safe Defaults Select this option to load failsafe default values for each BIOS parameter in the setup menus. Press F6 for this operation on any page.

  • Page 112: Standard Cmos Features

    PCISA-MARK CPU Card 5.2 Standard CMOS Features Use the Standard CMOS Features BIOS menu (BIOS Menu 2) to set basic BIOS configuration options. BIOS Menu 2: Standard CMOS Features Date [Day mm:dd:yyyy] The Date option sets the system date. Time [hh/mm/ss] The Time option sets the system time.
  • Page 113 PCISA-MARK CPU Card IDE Master and IDE Slave When entering setup, BIOS auto detects the presence of IDE devices. The Standard CMOS Features menu shows the status of the auto detected IDE devices. The following IDE devices are detected and shown in the Standard CMOS Features menu:...
  • Page 114 PCISA-MARK CPU Card Video Use the Video option to select the CRT screen type the system connects to. The video configuration options are: EGA/VGA (D EFAULT CGA 40 CGA 80 MONO Halt On [All, But Keyboard] Use the Halt On option to specify what errors detected during the power up process stop the system.

  • Page 115: Ide Primary Master/Slave

    PCISA-MARK CPU Card Extended Memory The Extended Memory is NOT user configurable. The BIOS determines how much extended memory is present during the POST. This is the amount of memory above 1MB located in the memory address map of the CPU.
  • Page 116 PCISA-MARK CPU Card IDE Primary Master [Auto] Use the IDE Primary Master option to activate or deactivate the following drive channels: Channel 0 Master Channel 0 Slave Channel 1 Master Channel 0 Slave None If no drives are connected to the IDE channel select this option.
  • Page 117 PCISA-MARK CPU Card Large This mode is an extended ECHS mode and while it supports HDDs larger than 504MB, recommended. Auto If you are unsure of what access mode to set, select this EFAULT option. Capacity The Capacity specification indicates the storage capacity of the HDD installed in the system.

  • Page 118: Advanced Bios Features

    PCISA-MARK CPU Card 5.3 Advanced BIOS Features CPU and peripheral device configuration options are accessed in the Advanced BIOS Features menu (BIOS Menu 4). BIOS Menu 4: Advanced BIOS Features Page 118 IEI ® Technology, Corp.
  • Page 119 PCISA-MARK CPU Card Virus Warning [Disabled] NOTE: Many disk diagnostic programs can cause the above warning message to appear when the program attempts to access the boot sector table. If you are running such a program, it is recommended that the virus protection function be disabled beforehand.
  • Page 120 PCISA-MARK CPU Card Disabled The CPU cannot access external DRAM. Enabled The CPU can access external DRAM. EFAULT CPU L2 Cache ECC Checking [Enabled] Use the CPU L2 Cache ECC Checking option to enable memory checking when the external cache contains ECC SRAM (Static Random Access Memory).
  • Page 121 PCISA-MARK CPU Card SATA Boot ROM Control [Disabled] Use the SATA Boot ROM Control option to configure SATA IDE use in DOS mode. Disabled Disables SATA IDE use in DOS mode. EFAULT Enabled Enables SATA IDE use in DOS mode.
  • Page 122 PCISA-MARK CPU Card Boot Other Device [Enabled] Use the Boot Other Device option to determine whether the system uses a second or third boot device if the first boot device is not found. Disabled The system does not look for second and third boot devices if the first one is not found.
  • Page 123 PCISA-MARK CPU Card Boot Up Numlock Status [On] Use the Boot Up Numlock Status option to specify the default state of the numeric keypad. The keys on the keypad are not activated. Activates the keys on the keypad. EFAULT Gate A20 Option [Fast] Use the Gate A20 Option option to set if the keyboard controller or the chipset controls the Gate A20 switching.
  • Page 124 PCISA-MARK CPU Card 6 characters per second EFAULT 8 characters per second 10 characters per second 12 characters per second 15 characters per second 20 characters per second 24 characters per second 30 characters per second Typematic Delay (Msec) [250] The Typematic Rate option can only be configured if the Typematic Rate Setting is enabled.
  • Page 125 PCISA-MARK CPU Card NOTE: To disable security, select the password setting in the Main Menu. When asked to enter a password, don’t type anything, press E and the security is disabled. Once the security is NTER disabled, the system boots and Setup can be accessed.
  • Page 126 PCISA-MARK CPU Card Small Logo (EPA) Show [Disabled] Use the Small Logo (EPA) Show option to specify if the Environmental Protection Agency (EPA) logo appears during the system boot-up process. If enabled, the boot up process may be delayed. EPA logo does not appear during boot up.

  • Page 127: Advanced Chipset Features

    PCISA-MARK CPU Card 5.4 Advanced Chipset Features Use the Advanced Chipset Features menu (BIOS Menu 5) to change chipset configuration options. BIOS Menu 5: Advanced Chipset Features Page 127...
  • Page 128 PCISA-MARK CPU Card DRAM Timing by SPD [Enabled] Use the DRAM Timing by SPD option to enable the system to use the SPD (Serial Presence Detect) EEPROM to configure the DRAM timing. The SPD EEPROM contains all necessary DIMM specifications including speed of the individual components such as CAS (column array strobe) and bank cycle time as well as valid settings for the module and the manufacturer's code.
  • Page 129 PCISA-MARK CPU Card SDRAM Cycle Length [3] Use the SDRAM Cycle Length option to specify the time delay in clock cycles the system must wait before the SDRAM starts to carry out a read command after the read command is received.
  • Page 130 PCISA-MARK CPU Card Disabled Data between the PCI and CPU can only be transferred in one direction at a time. Data between the PCI and CPU can be transferred in Enabled EFAULT both directions at the same time. System BIOS Cacheable [Disabled] Use the System BIOS Cacheable option to enable caching of the system BIOS ROM at F0000h-FFFFFh, resulting in better system performance.
  • Page 131 PCISA-MARK CPU Card AGP Aperture Size [64M] Use the AGP Aperture Size option to select the size of the AGP aperture. The aperture is a portion of the PCI memory address range dedicated for graphics memory address space. Host cycles that hit the aperture range are forwarded to the AGP without any translation.
  • Page 132 PCISA-MARK CPU Card higher the hexadecimal number is, the stronger the AGP bus transmission signal is. The maximum and minimum hexadecimal numbers are shown below: MIN: 0000 MAX: 00FF Panel Type [1024 x 768 TFT] Use the Panel Type option to specify the type of panel connected to the system.
  • Page 133 PCISA-MARK CPU Card An AT power supply is used. An ATX power supply is used. EFAULT OnChip USB [Enabled] Use the OnChip USB option to enable or disable the chipset USB controller. Disabled Chipset USB controller disabled Chipset USB controller enabled...
  • Page 134 PCISA-MARK CPU Card When disabled, the writes are not buffered and the CPU must wait until the write is complete before starting another write cycle. Disabled No buffering when writes from the CPU to the PCI bus occurs Enabled Buffering when writes from the CPU to the PCI bus...
  • Page 135 PCISA-MARK CPU Card Disabled System not compliant with PCI specification version EFAULT System is compliant with PCI specification version 2.1 Enabled PCI #2 Access #1 Retry [Enabled] Use the PCI #2 Access #1 Retry option to enable the buffer to continue to attempt to write to the buffer until it is successful.

  • Page 136: Integrated Peripherals

    PCISA-MARK CPU Card 5.5 Integrated Peripherals Use the Integrated Peripherals menu (BIOS Menu 6) to change the configuration options for the attached peripheral devices. BIOS Menu 6: Integrated Peripherals Page 136 IEI ® Technology, Corp.
  • Page 137 PCISA-MARK CPU Card On-Chip IDE Channel 0/1 [Enabled] Use the On-Chip IDE Channel 0/1 option to specify if the system uses the integrated primary IDE channel or not. Disabled The primary IDE channel is not used. The primary IDE channel is used.
  • Page 138 PCISA-MARK CPU Card Mode 3 PIO mode 3 selected with a maximum transfer rate of 11.1MBps. PIO mode 4 selected with a maximum transfer rate of Mode 4 16.6MBps. IDE UDMA [Auto] Use the IDE UDMA option below to select the Ultra DMA (UDMA) mode for the following...
  • Page 139 PCISA-MARK CPU Card Disabled Block mode is not supported. Enabled Block mode is supported. EFAULT Onboard FDD Controller [Enabled] Use the Onboard FDC Controller option to enable or disable the onboard floppy controller. If the system is not connected to a floppy disk or uses an adapter for the FDD, this option can be disabled.
  • Page 140 PCISA-MARK CPU Card UART 2 Mode Select [Standard] Use the UART 2 Mode Select to select the UART mode for the system. Standard RS-232C serial port EFAULT HSPIR IrDA-compliant serial infrared port ASKIR Amplitude shift keyed infrared port IR Function Complex [Half] Use the IR Function Complex option to enable bi-directional communication between the system infrared port and the external device.
  • Page 141 PCISA-MARK CPU Card Onboard Parallel Port [378/IRQ7] Use the Onboard Parallel Port option to specify a logical LPT port address and corresponding interrupt for the physical parallel port. The Onboard Parallel Port options are: Disabled 3BC/IRQ7 378/IRQ7 (D EFAULT 278/IRQ5 Onboard Parallel Mode [Normal] Use the Onboard Parallel Mode option to select parallel port operation mode.
  • Page 142 PCISA-MARK CPU Card x ECP Mode Use DMA [3] The ECP Mode Use DMA option is only available if the Parallel Port Mode option is set to ECP mode. Use the ECP Mode Use DMA option to specify the DMA channel the parallel port must use in the ECP mode.
  • Page 143 PCISA-MARK CPU Card SB I/O Base Address [220H] Use the SB I/O Base Address option to select the base address for the sound blaster. Address options are listed below. 220H (D EFAULT 240H 260H 280H SB IRQ Select [IRQ5] Use the SB IRQ Select option to select the IRQ address for the sound blaster. Address options are listed below.

  • Page 144: Power Management Setup

    PCISA-MARK CPU Card MPU-401 I/O Address [330 – 333H] Use the MPU-401 I/O Address option to select the base address for the sound blaster. Address options are listed below. 300 – 303H 310 – 313H 320 – 323H 330 – 333H (D EFAULT 5.6 Power Management Setup...
  • Page 145 PCISA-MARK CPU Card ACPI Function [Enabled] Use the ACPI Function to enable the ACPI (Advanced Configuration and Power Interface) function. Disabled ACPI function disabled ACPI function enabled Enabled EFAULT Power Management [Press Enter] Use the Power Management option to open new power management menu. For more details see Section 5.6.1.
  • Page 146 PCISA-MARK CPU Card Always On Display never turned off by system BIOS Suspend Display is off during when the system is in the EFAULT suspend mode Display is off when the system is in the doze, All Modes standby or suspend mode...

  • Page 147: Power Management

    PCISA-MARK CPU Card Soft-Off by PWR-BTN [Instant-Off] Use the Soft-Off by PWR-BTN option to enabled the system to enter a very low-power-usage state when the power button is pressed. Instant-Off When the power button is pressed, the system is EFAULT immediately shutdown.

  • Page 148: Bios Menu 8: Power Management

    PCISA-MARK CPU Card BIOS Menu 8: Power Management Power Management Use the Power Management to specify the power management selection methods. User Defined User must define when the system goes into a EFAULT sleep state or a suspend state Min. Saving...
  • Page 149 PCISA-MARK CPU Card HDD Power Down [Disabled] Use the HDD Power Down option to specify how long the computer must wait for no activity before the HDD powers down. If this option is disabled, the HDD does not power down. The following settings can be made.

  • Page 150: Wake Up Events

    PCISA-MARK CPU Card 30 Min 40 Min 1 Hour Suspend Mode [Disabled] Use the Suspend Mode option to specify the amount of time the system can be inactive before the system enters suspend mode. The Suspend Mode options are: Disabled (D...

  • Page 151: Bios Menu 9: Wake Up Events

    PCISA-MARK CPU Card BIOS Menu 9: Wake Up Events VGA [OFF] Use the VGA option to enable the system to monitor activity on the VGA display and rouse the system from a suspend or doze state when activity on the VGA is detected.
  • Page 152 PCISA-MARK CPU Card The system is roused from a doze state or suspend state when activity is detected on the LPT port. The system is roused from a doze state or suspend state when activity is detected on the COM port.
  • Page 153 PCISA-MARK CPU Card The system is not roused from a doze state or EFAULT suspend state when activity is detected on the PCI master. The system is roused from a doze state or suspend state when activity is detected on the PCI master.
  • Page 154 PCISA-MARK CPU Card Disabled Wake event not generated by modem activity EFAULT Enabled Wake event generated by modem activity RTC Alarm Resume [Disabled] Use the RTC Alarm Resume option to specify when the computer is roused from a suspended state.

  • Page 155: Bios Menu 10: Irqs Activity Monitoring

    PCISA-MARK CPU Card BIOS Menu 10: IRQs Activity Monitoring The following IRQs are monitored: IRQ3 (COM 2) Enabled IRQ4 (COM 1) Enabled IRQ5 (LPT 2) Enabled IRQ6 (Floppy Disk) Enabled IRQ7 (LPT) Enabled IRQ8 (RTC Alarm) Disabled IRQ9 (IRQ2 Redir)

  • Page 156: Pnp/Pci Configurations

    PCISA-MARK CPU Card 5.7 PnP/PCI Configurations Use the PnP/PCI Configurations menu (BIOS Menu 11) to set the plug and play, and PCI options. BIOS Menu 11: PnP/PCI Configurations PNP OS Installed [No] The PNP OS Installed option determines whether the Plug and Play devices connected to the system are configured by the operating system or the BIOS.
  • Page 157 PCISA-MARK CPU Card Reset Configuration Data [Disabled] Use the Reset Configuration Data option to reset the Extended System Configuration Data (ESCD) when exiting setup if booting problems occur after a new add-on is installed. Disabled ESCD will not be reconfigured...

  • Page 158: Bios Menu 12: Irq Resources

    PCISA-MARK CPU Card BIOS Menu 12: IRQ Resources The IRQ Resources menu has the following options: IRQ-9 assigned to [PCI/ISA PnP] IRQ-10 assigned to [PCI/ISA PnP] IRQ-11 assigned to [PCI/ISA PnP] IRQ-12 assigned to [PCI/ISA PnP] IRQ-14 assigned to [PCI/ISA PnP] IRQ-15 assigned to [PCI/ISA PnP] The above options all have the following default options.

  • Page 159: Bios Menu 13: Dma Resources

    PCISA-MARK CPU Card x DMA Resources [Press Enter] The DMA Resources menu (BIOS Menu 13) can only be accessed if the Resources Controlled By option is set to Manual. BIOS Menu 13: DMA Resources The configurable options are: DMA-0 assigned to [PCI/ISA PnP]...
  • Page 160 PCISA-MARK CPU Card The above options all have the following default options. PCI/ISA PnP The DMA is assigned to legacy ISA for devices EFAULT compliant with the original PC AT bus specification, PCI/ISA PNP for devices compliant with the Plug and Play standard whether designed for PCI or ISA bus architecture.

  • Page 161: Pc Health Status

    PCISA-MARK CPU Card Assign IRQ for USB [Enabled] Use the Assign IRQ for USB option to enable the system to allocate an interrupt address to the system USB display. Disabled No IRQ is assigned to the USB An IRQ is assigned to the USB...
  • Page 162 PCISA-MARK CPU Card The following system parameters are monitored by the PC Health Status menu: Temperature The following fan temperature is monitored: Current CPU Temperature Current System Temperature Fan Speed The following fan speed is monitored: CPU Fan1 Speed CPU Fan2 Speed...

  • Page 163: Frequency /Voltage Control

    PCISA-MARK CPU Card 5.9 Frequency /Voltage Control Use the Frequency /Voltage Control menu (BIOS Menu 15) to set the frequency options for the DIMM, PCI and CPU host. BIOS Menu 15: Frequency/Voltage Control Auto Detect DIMM/PCI Clk [Enabled] Use the Auto Detect DIMM/PCI Clk option to actively reduce EMI (Electromagnetic Interference) and reduce power consumption by turning off unoccupied or inactive expansion slots.
  • Page 164 PCISA-MARK CPU Card EMI. This benefit may in some cases be outweighed by problems with timing-critical devices, such as a clock-sensitive SCSI device. Disabled EMI not reduced EFAULT Enabled EMI reduced CPU Host/PCI Clock [Disabled] Use the CPU Host/PCI Clock option to select a timing combination for the CPU and the PCI bus.

  • Page 165: Driver Installation

    PCISA-MARK CPU Card Chapter Driver Installation Page 165...

  • Page 166: Available Software Drivers

    6.2 VIA 4 in 1 Chipset Driver Installation (VIA Service Pack v4.3) To install the chipset driver, follow the steps below: Step 1: Insert the CD into the system that contains the PCISA-MARK board. Page 166 IEI ® Technology, Corp.

  • Page 167: Figure 6-1: Access The 1-4In1 Folder

    PCISA-MARK CPU Card Step 2: Open the “PCISA-MARK” folder. Open the “1-4in1” subfolder. (See Figure 6-1) Figure 6-1: Access the 1-4in1 Folder Step 3: Click the Setup utility icon shown in Figure 6-2. Figure 6-2: Setup Utility Icon Page 167...

  • Page 168: Figure 6-3: Via Chipset Driver Installation Welcome Screen

    PCISA-MARK CPU Card Step 4: The installation program begins to initialize. After the initialization process a welcome screen shown in Figure 6-3 appears. Click “N ” to continue. Figure 6-3: VIA Chipset Driver Installation Welcome Screen Page 168 IEI ® Technology, Corp.

  • Page 169: Figure 6-4: Readme Information

    PCISA-MARK CPU Card Step 5: The “Readme” in Figure 6-4 appears. Click “Y ” to continue. Figure 6-4: Readme Information Page 169...

  • Page 170: Figure 6-5: Via Chipset Driver Installation Type

    PCISA-MARK CPU Card Step 6: Select “Normal Installation” or “Quick Installation.” (See Figure 6-5) Click “N ” to continue. Figure 6-5: VIA Chipset Driver Installation Type Page 170 IEI ® Technology, Corp.

  • Page 171: Figure 6-6: Driver Selection

    PCISA-MARK CPU Card Step 7: Select the setup components (see Figure 6-6) that must be installed in the system. There are setup components: VIA PCI IDE Bus Driver AGP Driver (AGP3.0 Supported) VIA INF Driver 1.70A Click “N ” to continue the installation.

  • Page 172: Figure 6-7: Via Pci Ide Bus Driver Selection

    PCISA-MARK CPU Card Step 8: The setup then prompts the user (see Figure 6-7) if the VIA PCI IDE Bus Driver must be installed on the system. Select install or uninstall. Click “N ” to continue. Figure 6-7: VIA PCI IDE Bus Driver Selection Page 172 IEI ®...

  • Page 173: Figure 6-8: Agp Driver Selection

    PCISA-MARK CPU Card Step 9: The setup then prompts the user (see Figure 6-8) if the AGP driver must be installed on the system. Select install or uninstall. Click “N ” to continue. Figure 6-8: AGP Driver Selection Page 173...

  • Page 174: Realtek Audio Driver Installation

    6.3 Realtek Audio Driver Installation To install the Realtek AC’97 Audio driver, please follow the steps below: Step 1: Insert the CD into the system that contains the PCISA-MARK board. Step 2: Open the “PCISA-MARK” folder. Open the “Audio” subfolder. (See Figure 6-10) Page 174 IEI ®...

  • Page 175: Figure 6-10: Access The Audio Driver Folder

    PCISA-MARK CPU Card Figure 6-10: Access the Audio Driver Folder Step 3: Click the Setup utility icon shown in Figure 6-11. Figure 6-11: Setup Utility Icon Step 4: The install shield wizard for the audio driver starts. See Figure 6-12.

  • Page 176: Figure 6-13: Audio Driver Setup Preparation

    PCISA-MARK CPU Card Step 5: The RealTek Audio Setup prepares the install shield to guide you through the rest of the setup process. See Figure 6-13. Figure 6-13: Audio Driver Setup Preparation Page 176 IEI ® Technology, Corp.

  • Page 177: Figure 6-14: Audio Driver Welcome Screen

    PCISA-MARK CPU Card Step 6: The welcome screen shown in Figure 6-14 appears. Click the “N ” button to continue the installation. The install shield starts to configure the new software as shown in Figure 6-15. Figure 6-14: Audio Driver Welcome Screen...

  • Page 178: Figure 6-15: Audio Driver Software Configuration

    PCISA-MARK CPU Card Figure 6-15: Audio Driver Software Configuration Page 178 IEI ® Technology, Corp.

  • Page 179: Figure 6-16: Audio Driver Digital Signal

    PCISA-MARK CPU Card Step 7: The “Digital Signal Not Found” screen shown in Figure 6-16 appears. Click “Y ” to continue the installation. Figure 6-16: Audio Driver Digital Signal Page 179...

  • Page 180: Figure 6-17: Audio Driver Installation Begins

    PCISA-MARK CPU Card Step 8: The installation of the driver begins. See Figure 6-17. Figure 6-17: Audio Driver Installation Begins Page 180 IEI ® Technology, Corp.

  • Page 181: Figure 6-18: Audio Driver Installation Complete

    PCISA-MARK CPU Card Step 9: After the driver installation process is complete, a confirmation screen shown in Figure 6-18 appears. Figure 6-18: Audio Driver Installation Complete Step 10: Select when the system should be restarted, now or later. (see Figure 6-18) Step 11: Click “F...

  • Page 182: Lan Driver Installation

    6.3.1 LAN Driver Installation To install the LAN driver, follow the steps below: Step 1: Insert the CD into the system that contains the PCISA-MARK board. Step 2: Open the “PCISA-MARK” folder. Open the “LAN” subfolder. (See Figure 6-19) Figure 6-19: Access the LAN Driver Folder Step 3: Click the Setup utility icon shown in Figure 6-20.

  • Page 183: Figure 6-21: Lan Driver Welcome Screen

    PCISA-MARK CPU Card Step 4: Once the Setup icon is double clicked, a Welcome screen shown in Figure 6-21 appears. Figure 6-21: LAN Driver Welcome Screen Page 183...

  • Page 184: Figure 6-22: Lan Driver Installation Complete

    PCISA-MARK CPU Card Step 5: To continue installing click “Next.” The driver is installed and a confirmation screen at the end of the installation appears. (See Figure 6-22) Figure 6-22: LAN Driver Installation Complete Step 6: Click “Finish” to complete the installation.Step 0:...
  • Page 185 PCISA-MARK CPU Card Appendix BIOS Menu Options Page 185...
  • Page 186 PCISA-MARK CPU Card A.1 BIOS Configuration Options Below is a list of BIOS configuration options described in Chapter 5. Load Fail-Safe Defaults ..................111 Load Optimized Defaults..................111 Set Supervisor Password .................. 111 Set User Password ..................... 111 Save & Exit Setup ....................111 Exit Without Saving ....................
  • Page 187 PCISA-MARK CPU Card Quick Power On Self Test [Enabled] ..............120 Boot From LAN Control [Disabled] ..............120 SATA Boot ROM Control [Disabled] ..............121 Boot Device ......................121 Boot Other Device [Enabled] ................122 Swap Floppy Drive [Disabled] ................122 Boot Up Floppy Seek [Enabled] ................
  • Page 188 PCISA-MARK CPU Card Power Supply Type [ATX] .................. 132 OnChip USB [Enabled]..................133 USB Keyboard Support [Disabled] ..............133 OnChip Sound [Auto] ..................133 OnChip Modem [Auto]..................133 CPU to PCI Write Buffer [Enabled]..............PCI Dynamic Bursting [Enabled]............... 134 PCI Master 0 WS Write [Enabled] ..............
  • Page 189 PCISA-MARK CPU Card SB DMA Select [DMA 1] ..................143 MPU-401 [Disabled] .................... 143 MPU-401 I/O Address [330 – 333H] ..............144 ACPI Function [Enabled]..................Power Management [Press Enter]..............145 ACPI Suspend Type [S1(POS)]................PM Control by APM [Yes]................... 145 Video Off Option [Suspend Off]..............
  • Page 190 PCISA-MARK CPU Card x DMA Resources [Press Enter]................ 159 PCI/VGA Palette Snoop [Disabled]..............160 Assign IRQ for VGA [Enabled] ................160 Assign IRQ for USB [Enabled]................161 Temperature ......................162 Fan Speed......................162 Voltages ....................... 162 Auto Detect DIMM/PCI Clk [Enabled] ..............163 Spread Spectrum [Disabled]................

  • Page 191: Watchdog Timer

    PCISA-MARK CPU Card Appendix Watchdog Timer Page 191...

  • Page 192: Ah - 6Fh Sub-Function

    PCISA-MARK CPU Card NOTE: The following discussion applies to DOS environment. Contact IEI support or visit the IEI website for specific drivers for more sophisticated operating systems, e.g., Windows® and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.

  • Page 193: Example Program

    PCISA-MARK CPU Card NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. Example program: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BL, 30 ;time-out value is 48 seconds ;...
  • Page 194 PCISA-MARK CPU Card THIS PAGE IS INTENTIONALLY LEFT BLANK Page 194 IEI ® Technology, Corp.

  • Page 195: Address Mapping

    PCISA-MARK CPU Card Appendix Address Mapping Page 195...
  • Page 196 PCISA-MARK CPU Card C.1 IO Address Map I/O address Description Range 000-01F DMA Controller 020-021 Interrupt Controller 040-043 System time 060-06F Keyboard Controller 070-07F System CMOS/Real time Clock 080-09F DMA Controller 0A0-0A1 Interrupt Controller 0C0-0DF DMA Controller 0F0-0FF Numeric data processor...
  • Page 197 PCISA-MARK CPU Card C.3 IRQ Mapping Table IRQ0 System Timer IRQ8 RTC clock IRQ1 Keyboard IRQ9 ACPI IRQ2 Available IRQ10 IRQ3 COM2 IRQ11 LAN/USB2.0/SATA IRQ4 COM1 IRQ12 PS/2 mouse IRQ5 SMBus Controller IRQ13 IRQ6 IRQ14 Primary IDE IRQ7 Available IRQ15...
  • Page 198 PCISA-MARK CPU Card THIS PAGE IS INTENTIONALLY LEFT BLANK Page 198 IEI ® Technology, Corp.
  • Page 199 PCISA-MARK CPU Card Appendix External AC’97 Audio CODEC Page 199...
  • Page 200 PCISA-MARK CPU Card D.1 Introduction The motherboard comes with an onboard Realtek ALC655 CODEC. Realtek ALC655 is a 16-bit, full duplex AC’97 Rev. 2.3 compatible audio CODECwith a sampling rate of 48KHz. D.1.1 Accessing the AC’97 CODEC The CODEC is accessed through three phone jacks on the rear panel of the motherboard.

  • Page 201: Figure D-1: Sound Effect Manager Con

    PCISA-MARK CPU Card Figure D-1: Sound Effect Manager con D.2 Sound Effect Configuration D.2.1 Accessing the Sound Effects Manager To access the Sound Effects Manager, please do the following: Step 1: Install the audio CODEC driver. Step 2: Click either:...

  • Page 202: Figure D-2: Sound Effect Manager Icon [Task Bar]

    PCISA-MARK CPU Card Figure D-2: Sound Effect Manager Icon [Task Bar] Figure D-3: Sound Effect Manager Icon [Control Panel] Page 202 IEI ® Technology, Corp.

  • Page 203: Figure D-4: Sound Effects Manager (Alc655)

    PCISA-MARK CPU Card Step 3: The sound effect manager appears. (See Figure D-4) Step 0: Figure D-4: Sound Effects Manager (ALC655) NOTE: The Sound Effect Manager shown in Fig ure D-4 is for the Realtek ALC655 audio CODEC. Different CODECs may have different sound manager appearances.
  • Page 204 PCISA-MARK CPU Card NOTE: The Karaoke Mode is configured in the Sound Effect menu. To access Karaoke configuration settings, click on the Sound Effect menu tab. Sound Effect Karaoke Mode Equalizer Speaker Configuration Speaker Test S/PDIF-In S/PDIF-Out Connector Sensing HRTF Demo...
  • Page 205 PCISA-MARK CPU Card Karaoke Mode:- The Karaoke Mode is accessed in the Sound Effect window. The Voice Cancellation disables the vocal part of the music being played. The Key adjustment up or down arrow icons enables users to define a key that fits a certain vocal range.
  • Page 206 PCISA-MARK CPU Card THIS PAGE IS INTENTIONALLY LEFT BLANK Page 206 IEI ® Technology, Corp.

  • Page 207: Raid Setup

    PCISA-MARK CPU Card Appendix RAID Setup Page 207...
  • Page 208 PCISA-MARK CPU Card E.1 Introduction The ALi M5283 SATA RAID chipset can control parallel ATA (PATA) and serial ATA (SATA) disks. The ALi controller supports PATA UDMA transfer mode up to mode 6 and SATA 1 disk drives. The ALi M5283 also has a cost-effective RAID functionality that can increase the data read/write speed and provide protection to data by distributing mirrored duplicates of data onto two disk drives (RAID 1).
  • Page 209 PCISA-MARK CPU Card CAUTION: Do not accidentally disconnect the SATA drive cables. Carefully route the cables within the chassis to avoid system down time. E.2 Features and Benefits Supports RAID levels 0, 1, and JBOD Supports connectivity to two disk drives Supported Operating Systems include: Windows®...
  • Page 210 PCISA-MARK CPU Card Step 3: Save and Exit BIOS. After the SATA ROM Support BIOS option is enabled, save and exit the BIOS. Step 4: Reboot the system. Reboot the system after saving and exiting the BIOS. Step 5: Press Ctrl-A. When the screen in Figu...
  • Page 211 PCISA-MARK CPU Card Figure E-2: RAID BIOS Setup Utility Step 7: Configure the RAID settings. Use the RAID BIOS Setup Utility in Figure E-2 to configure the RAID array. Brief descriptions are given below. Step 8: Install the OS. After the RAID array has been configured (see below) install the OS.
  • Page 212 PCISA-MARK CPU Card highlight Create RAID0 Striping for Performance and press E . A flashing NTER ‘S’ appears on the Drive Menu where the member drives to be included in the RAID 0 array can be chosen. Step 2: Select RAID array drive members. Use the space bar to select members of the RAID array.
  • Page 213 PCISA-MARK CPU Card NOTE: 1. To reduce the chance of losing data, ALi imposes certain limitations on the RAID configuration options. PATA drives connected on the same IDE channel cannot be selected as the members of a RAID 0 array. Avoid mixing PATA and SATA disk drives in a RAID 0 array.
  • Page 214 PCISA-MARK CPU Card E.4.2 Create RAID 1 Mirroring for Reliability WARNING! All data previously stored on the member drives of a RAID configuration is destroyed during the RAID initialization process. If “used” drives are used to create a RAID array, make sure the data has been moved or backed up before creating a RAID array out of the disk drives.
  • Page 215 PCISA-MARK CPU Card NOTE: To reduce the chance of losing data, ALi imposes certain limitations on the RAID configuration options. PATA drives connected on the same IDE channel cannot be selected as the members of a RAID 1 array. Avoid mixing PATA and SATA disk drives in a RAID 1 array.
  • Page 216 PCISA-MARK CPU Card WARNING! All data previously stored on the member drives of a RAID configuration is destroyed during the RAID initialization process. If “used” drives are used to create a RAID array, make sure the data has been moved or backed up before creating a RAID array out of the disk drives.
  • Page 217 PCISA-MARK CPU Card E.4.4 Stripe Size Changing the stripe size effects RAID 0 arrays. Configurable options are: 64K (default) Select a small stripe size if the I/Os to the hard drives are small and occur randomly. Choose a larger stripe size if the I/Os are mostly large and come in sequential orders, e.g., A/V playback and editing applications.
  • Page 218 PCISA-MARK CPU Card E.4.6 Delete All RAID Setting & Partition WARNING! If a RAID configuration is deleted, all data previously stored on the member drives of the RAID configuration will also be deleted. Step 1: Delete RAID Settings. Use the arrow keys to highlight Delete All RAID Setting &...
  • Page 219 PCISA-MARK CPU Card NOTE: A status bar will indicate the rebuild progress. Rebuild consumes considerable system resources and the time required for rebuilding a RAID array may vary depending on the size of stored data, disk drive capacity, and drive performance.
  • Page 220 PCISA-MARK CPU Card THIS PAGE IS INTENTIONALLY LEFT BLANK Page 220 IEI ® Technology, Corp.
