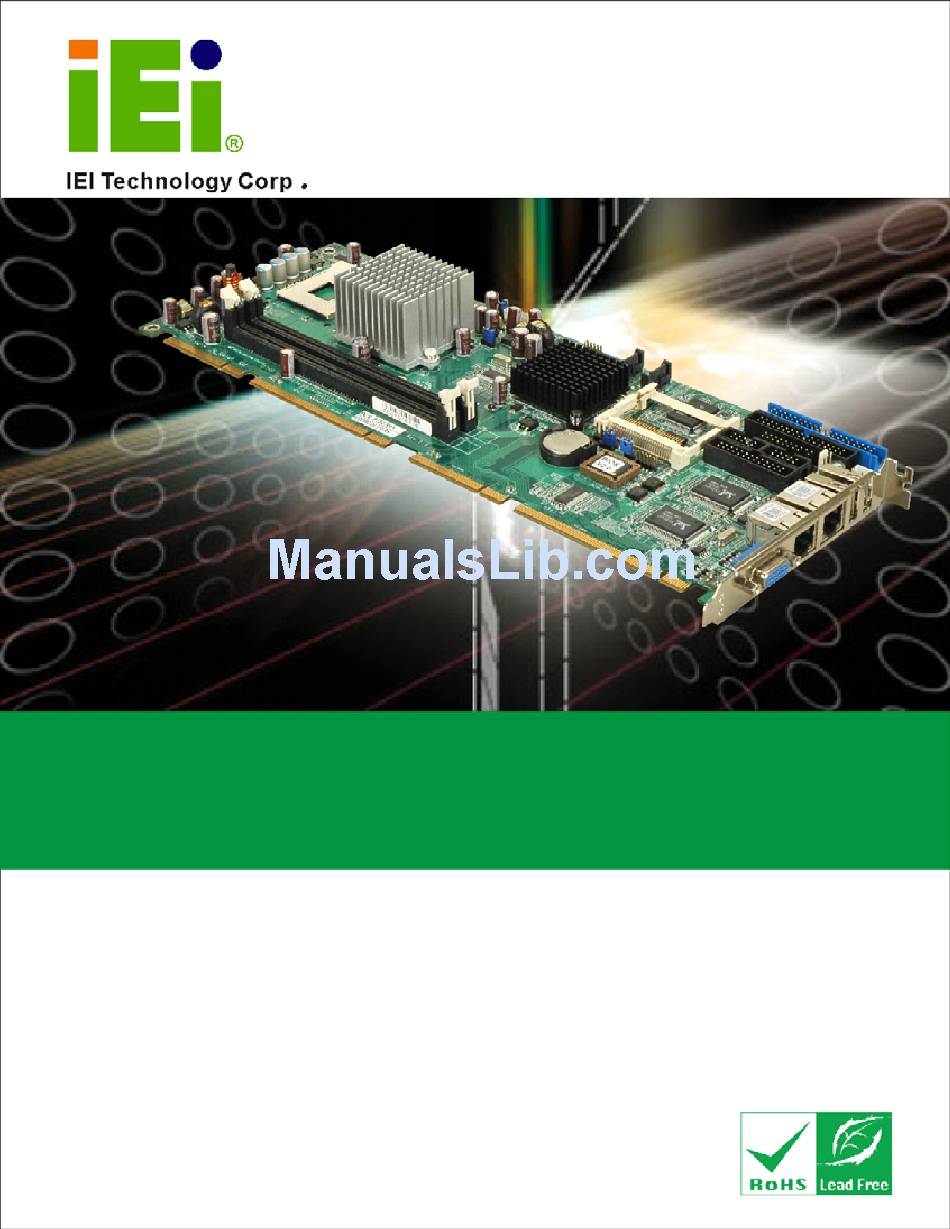

PCIE-9152 PCIMG 1.3 CPU Card
MODEL:
PCIE-9152
PICMG 1.3 CPU Card
Socket 479 for Intel® Pentium® M, Celeron® M CPU
VGA, Dual GbE, SATA and USB 2.0
User Manual
Page i
Rev. 1.10 – 17 February, 2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCIE-9152 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology PCIE-9152

Summary of Contents for IEI Technology PCIE-9152

  • Page 1 PCIE-9152 PCIMG 1.3 CPU Card MODEL: PCIE-9152 PICMG 1.3 CPU Card Socket 479 for Intel® Pentium® M, Celeron® M CPU VGA, Dual GbE, SATA and USB 2.0 User Manual Page i Rev. 1.10 – 17 February, 2009...
  • Page 2 PCIE-9152 PCIMG 1.3 CPU Card Revision Date Version Changes 17 February, 2009 1.10 Southbridge changed to Intel® 915GME Minor edits 23 March, 2007 1.00 Initial release Page ii...
  • Page 3 PCIE-9152 PCIMG 1.3 CPU Card Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.

  • Page 4: Packing List

    PCIE-9152 from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@iei.com.tw. The items listed below should all be included in the PCIE-9152 package. 1 x PCIE-9152 1 x IDE cable...

  • Page 5: Table Of Contents

    PCIE-9152 PCIMG 1.3 CPU Card Table of Contents 1 INTRODUCTION......................1 1.1 I ......................2 NTRODUCTION 1.2 B ........................2 ENEFITS 1.3 F ........................2 EATURES 1.4 O ...................... 3 VERVIEW HOTO 1.5 P ..............3 ERIPHERAL ONNECTORS AND UMPERS 1.6 T...
  • Page 6 PCIE-9152 PCIMG 1.3 CPU Card 2.6.8 PCIe Bus ......................15 2.7 LPC B ................... 15 OMPONENTS 2.7.1 BIOS Chipset....................15 2.7.2 Super I/O chipset....................15 2.7.2.1 LPC Interface .................... 16 2.7.2.2 16C550 UARTs ..................16 2.7.2.3 Enhanced Hardware Monitor..............16 2.7.2.4 Fan Speed Controller ................
  • Page 7 PCIE-9152 PCIMG 1.3 CPU Card 4.2.2 Backlight Inverter Connector ................31 4.2.3 Compact Flash Socket..................32 4.2.4 Fan Connector ....................33 4.2.5 Floppy Disk Connector ..................34 4.2.6 GPIO Connector ....................36 4.2.7 Front Panel Connector ..................36 4.2.8 IDE Connector ....................38 4.2.9 Infrared Interface Connector ................
  • Page 8 PCIE-9152 PCIMG 1.3 CPU Card 5.5 C .................... 67 HASSIS NSTALLATION 5.5.1 Airflow......................67 5.5.2 Backplane Installation ..................68 5.5.3 CPU Card Installation ..................68 5.6 I ............69 NTERNAL ERIPHERAL EVICE ONNECTIONS 5.6.1 Peripheral Device Cables ................69 5.6.2 IDE Cable Connection..................69 5.6.3 5.1 Channel Audio Kit Installation ..............
  • Page 9 PCIE-9152 PCIMG 1.3 CPU Card 6.3.7 Remote Access Configuration ................ 104 6.3.8 Trusted Computing ..................108 6.3.9 USB Configuration..................109 6.4 PCI/P P........................110 6.5 B ........................113 6.5.1 Boot Settings Configuration................114 6.5.2 Boot Device Priority ..................116 6.5.3 Hard Disk Drives ....................116 6.5.4 Removable Drives ...................117...
  • Page 10 PCIE-9152 PCIMG 1.3 CPU Card D WATCHDOG TIMER ....................161 E ADDRESS MAPPING ....................164 E.1 D (DMA)................. 165 IRECT EMORY CCESS E.2 I (IO)....................165 NPUT UTPUT E.3 I (IRQ)................... 167 NTERRUPT EQUEST E.4 M ........................ 168 EMORY F HAZARDOUS MATERIALS DISCLOSURE............169 F.1 H...
  • Page 11 Figure 4-15: SDVO Connector Pinout Locations...............45 Figure 4-16: COM1 and COM2 Connector Pinout Locations ...........46 Figure 4-17: TPM Connector Pinout Locations .................47 Figure 4-18: PCIE-9152 External Peripheral Interface Connector ...........48 Figure 4-19: RJ-45 Ethernet Connector..................49 Figure 4-20: VGA Connector .......................50 Figure 5-1: Make sure the CPU socket retention screw is unlocked ........56...
  • Page 12 PCIE-9152 PCIMG 1.3 CPU Card Figure 5-4: Cooling Kit Support Bracket ..................58 Figure 5-5: Connect the cooling fan cable.................59 Figure 5-6: Installing a DIMM.......................60 Figure 5-7: CF Card Installation ....................61 Figure 5-8: CF Card Setup Jumper Location ................63 Figure 5-9: Clear CMOS Jumper ....................65 Figure 5-10: FSB Setup Jumper Jumper ..................66...
  • Page 13 PCIE-9152 PCIMG 1.3 CPU Card Figure 7-15: GMA Driver Installing Notice ................140 Figure 7-16: GMA Driver Installation Complete..............141 Figure 7-17: LAN Driver Setup File ..................142 Figure 7-18: RTL8110SC InstallShield Wizard ................ 142 Figure 7-19: LAN Driver InstallShield Wizard Continues............143 Figure 7-20: LAN Driver InstallShield Wizard Welcome Screen ...........
  • Page 14 PCIE-9152 PCIMG 1.3 CPU Card List of Tables Table 1-1: Technical Specifications....................5 Table 2-1: Supported Processors ....................10 Table 2-2: Supported HDD Specifications..................13 Table 2-3: Power Consumption....................19 Table 2-4: Compatible IEI PICMG 1.3 Backplanes..............20 Table 2-5: Compatible IEI Chassis ....................21 Table 3-1: Package List Contents ....................25 Table 3-2: Optional Items......................26...
  • Page 15 PCIE-9152 PCIMG 1.3 CPU Card Table 5-1: Jumpers ........................62 Table 5-2: CF Card Setup Jumper Settings ................63 Table 5-3: Clear CMOS Jumper Settings..................64 Table 5-4: FSB Setup Jumper Settings ..................65 Table 5-5: LVDS Voltage Selection Jumper Settings..............67 Table 5-6: IEI Provided Cables ....................69 Table 6-1: BIOS Navigation Keys ....................86...
  • Page 16 PCIE-9152 PCIMG 1.3 CPU Card BIOS Menus BIOS Menu 1: Main ........................87 BIOS Menu 2: Advanced ......................89 BIOS Menu 3: CPU Configuration ....................90 BIOS Menu 4: IDE Configuration....................91 BIOS Menu 5: IDE Master and IDE Slave Configuration ............93 BIOS Menu 6: Floppy Configuration...................98 BIOS Menu 7: Super IO Configuration..................99...

  • Page 17: Introduction

    PCIE-9152 PCIMG 1.3 CPU Card Chapter Introduction Page 1...

  • Page 18: Introduction

    IDE HDD, a CompactFlash® Type II (CF Type II) disk, and a floppy disk drive (FDD). Optional v1.2 Trusted Platform Modules (TPM) are available as plug-in devices to further ensure system security. A PCIE-9152 CPU card with a preinstalled 600 MHz Intel® Celeron® M CPU with a 512K L2 cache is also available. 1.2 Benefits...

  • Page 19: Overview Photo

    RoHS compliant 1.4 Overview Photo The PCIE-9152 has a wide variety of internal and external peripheral connectors. A labeled photo of the peripheral connectors on the front of the PCIE-9152 is shown in Figure 1-1. Figure 1-1: PCIE-9152 Overview [Front View] 1.5 Peripheral Connectors and Jumpers...

  • Page 20: Technical Specifications

    The PCIE-9152 has the following on-board jumpers: Clear CMOS FSB select LCD voltage selector CF card setting 1.6 Technical Specifications PCIE-9152 technical specifications are listed in Table 1-1. See Chapter 2 for details. Specification PCIE-9152 PICMG 1.3 Form Factor Socket 479 Intel® Pentium® M System CPU Socket 479 Intel®...

  • Page 21: Table 1-1: Technical Specifications

    PCIE-9152 PCIMG 1.3 CPU Card Specification PCIE-9152 Two 240-pin DIMM sockets support two dual-channel Memory 400 MHz or 533 MHz DDR2 DIMMs with a maximum capacity of 1 GB each Display CRT: Integrated in the Intel 915GME to support CRT...

  • Page 22: Detailed Specifications

    PCIE-9152 PCIMG 1.3 CPU Card Chapter Detailed Specifications Page 6...

  • Page 23: Overview

    PCIE-9152 PCIMG 1.3 CPU Card 2.1 Overview This chapter describes the specifications and on-board features of the PCIE-9152 in detail. 2.2 Dimensions 2.2.1 Board Dimensions The dimensions of the board are listed below: Length: 338.58 mm Width: 126.39 mm Figure 2-1: PCIE-9152 Dimensions (mm)

  • Page 24: External Interface Panel Dimensions

    PCIE-9152 PCIMG 1.3 CPU Card 2.2.2 External Interface Panel Dimensions External peripheral interface connector panel dimensions are shown in Figure 2-2. Figure 2-2: External Interface Panel Dimensions (mm) Page 8...

  • Page 25: Data Flow

    Figure 2-3 shows the data flow between the two on-board chipsets and other components installed on the motherboard and described in the following sections of this chapter. Figure 2-3: Data Flow Block Diagram 2.4 CPU The PCIE-9152 supports the following socket 479 processors: Page 9...

  • Page 26: Intel 915Gme Northbridge Chipset

    PCIE-9152 PCIMG 1.3 CPU Card Intel® Pentium® M processors Intel® Celeron® M processors All the above processors communicate with the Intel 915GME Northbridge chipset through a 533 MHz or 400 MHz front side bus (FSB). Compatible processors are listed in Table 2-1.

  • Page 27: Memory Support

    Graphics Interface Direct Media Interface (DMI) 2.5.1 Memory Support The PCIE-9152 supports two 400/533 MHz DDR2 240-pin DIMMs of up to 1.0 GB each. The memory socket is shown in Figure 2-4. 2.5.2 PCIe x16 The PCIe x16 bus interfaces to the backplane through the edge connector. The PCIe x16 interface supports a single PCIe x16 graphics card, or multiple cards PCIe x8, PCIe x4 or PCIe x1 cards.

  • Page 28: Lvds

    PCIE-9152 PCIMG 1.3 CPU Card 2.5.4 LVDS A 30-pin LVDS crimp connector is interfaced to the Intel 915GME graphics engine. The LVDS port support dual-channel 24-bit graphics output. 2.5.5 SDVO The SDVO port connects to an SDVO graphics device. Several SDVO converters are available, including a SDVO-to-VGA, SDVO-to-DVI and SDVO-to-LVDS.

  • Page 29: Ide Interface

    PCIE-9152 PCIMG 1.3 CPU Card supports up to six PCM audio output channels. Complete surround sound requires six-channel audio consisting of: Front left Front right Back left Back right Center Subwoofer 2.6.2 IDE Interface The integrated IDE interface on the Intel ICH6M Southbridge supports two IDE hard disks and ATAPI devices.

  • Page 30: Pci Interface

    32.768 KHz crystal. The RTC keeps track of the time and stores system data even when the system is turned off. 2.6.6 SATA Controller The integrated SATA controller on the Intel ICH6M southbridge supports two SATA drives on the PCIE-9152 with independent DMA operations. SATA controller specifications are listed below. Page 14...

  • Page 31: Usb Controller

    Supports Serial ATA Specification, Revision 1.0a 2.6.7 USB Controller Up to six USB ports are supported on the PCIE-9152. Some USB ports are on the rear I/O interface, the rest are implemented through the edge connector to the backplane. 2.6.8 PCIe Bus The Southbridge supports four PCIe x1 channels.

  • Page 32: Lpc Interface

    PCIE-9152 PCIMG 1.3 CPU Card Figure 2-6: Super I/O Chipset 2.7.2.1 LPC Interface The LPC interface on the Super I/O complies with the Intel® Low Pin Count Specification Rev. 1.0. The LPC interface supports both LDRQ# and SERIRQ protocols as well as PCI PME# interfaces.

  • Page 33: Fan Speed Controller

    PCIE-9152 PCIMG 1.3 CPU Card 2.7.2.4 Fan Speed Controller The Super I/O fan speed controller enables the system to monitor the speed of the fan. One of the pins on the fan connector is reserved for fan speed detection and interfaced to the fan speed controller on the Super I/O.

  • Page 34: Environmental And Power Specifications

    Three thermal inputs on the PCIE-9152 Super I/O Enhanced Hardware Monitor monitor the following temperatures: System temperature Power temperature CPU temperature Eight voltage inputs on the PCIE-9152 Super I/O Enhanced Hardware Monitor monitor the following voltages: Vcore +2.5 V +3.3 V +5.0 V...

  • Page 35: Operating Temperature And Temperature Control

    These backplanes and chassis are listed below. 2.9.2 IEI Expansion PICMG 1.3 Backplanes The backplanes listed in Table 2-4 are compatible with the PCIE-9152 and can be used to develop highly integrated industrial applications. All of the backplanes listed below have 24-pin ATX connector and a 4-pin ATX connector.

  • Page 36: Iei Chassis

    Table 2-4: Compatible IEI PICMG 1.3 Backplanes 2.9.3 IEI Chassis IEI chassis available for PCIE-9152 system development are listed in Table 2-5. For more information about these chassis please consult the IEI catalog or contact your vendor, reseller or the IEI sales team at sales@iei.com.tw.

  • Page 37: Table 2-5: Compatible Iei Chassis

    PCIE-9152 PCIMG 1.3 CPU Card Model Slot SBC Mounting Max Slots Backplanes PACO-504F Full-size Wall PE-4S, PE-4S2, PE-4S3 PAC-106G-R20 Full-size Wall PE-5S, PE-5S2, PE-6S2, PE-6S3 PAC-107G-R20 Full-size Wall PE-5S, PE-5S2, PE-6S2, PE-6S3 RACK-500G-R20 Full-size (4U) Rack PE-5S, PE-5S2 RACK-305G-R20 Full-size (4U)

  • Page 38: Unpacking

    PCIE-9152 PCIMG 1.3 CPU Card Chapter Unpacking Page 22...

  • Page 39: Anti-Static Precautions

    When the PCIE-9152 is unpacked, please do the following: Follow the anti-static precautions outlined in Section 3.1. Make sure the packing box is facing upwards so the PCIE-9152 does not fall out of the box. Make sure all the components shown in Section 3.3 are present.

  • Page 40: Unpacking Checklist

    If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the PCIE-9152 from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@iei.com.tw.

  • Page 41: Optional Items

    The items listed in this section are optional items that must be ordered separately. Please contact your PCIE-9152 vendor, distributor or reseller for more information or, contact iEi directly by sending an email to sales@iei.com.tw. The following optional items are available for the PCIE-9152. Quantity Item and Part Number Image Audio kit_ 5.1 Channel...

  • Page 42: Table 3-2: Optional Items

    PCIE-9152 PCIMG 1.3 CPU Card Quantity Item and Part Number Image Cooling Kit (P/N: CF-479B-RS) VGA output SDVO card (P/N: SDVO-100 VGA-R10) DVI output SDVO card (P/N: SDVO-100DVI-R10) LPT cable (P/N:19800-000049-RS) FDD cable (P/N:32200-000017-RS) PS2 cable for KB and MS...

  • Page 43: Connector Pinouts

    PCIE-9152 PCIMG 1.3 CPU Card Chapter Connector Pinouts Page 27...

  • Page 44: Peripheral Interface Connectors

    Figure 4-1 shows the on-board peripheral connectors, rear panel peripheral connectors and on-board jumpers. Figure 4-1: Connector and Jumper Locations 4.1.2 Peripheral Interface Connectors Table 4-1 shows a list of the peripheral interface connectors on the PCIE-9152. Detailed descriptions of these connectors can be found below. Connector Type...

  • Page 45: External Interface Panel Connectors

    20-pin header TPM1 Table 4-1: Peripheral Interface Connectors 4.1.3 External Interface Panel Connectors Table 4-2 lists the rear panel connectors on the PCIE-9152. Detailed descriptions of these connectors can be found in Section 4.3 on page 48 Connector Type Label...

  • Page 46: Internal Peripheral Connectors

    4.2 Internal Peripheral Connectors Internal peripheral connectors are found on the motherboard and are only accessible when the motherboard is outside of the chassis. This section has complete descriptions of all the internal, peripheral connectors on the PCIE-9152. 4.2.1 Audio Connector CN Label:...

  • Page 47: Backlight Inverter Connector

    See Figure 4-3 CN Pinouts: See Table 4-4 The backlight inverter connector provides the backlight on the LCD display connected to the PCIE-9152 with +12 V of power. Figure 4-3: Panel Backlight Connector Pinout Locations PIN NO. DESCRIPTION +12 V...

  • Page 48: Compact Flash Socket

    PCIE-9152 PCIMG 1.3 CPU Card PIN NO. DESCRIPTION +12 V BACKLIGHT ENABLE BACKLIGHT ADJUST GROUND GROUND Table 4-4: Panel Backlight Connector Pinouts 4.2.3 Compact Flash Socket CN Label: CF1 (solder side) 50-pin header (2x25) CN Type: CN Location: See Figure 4-4...

  • Page 49: Fan Connector

    PCIE-9152 PCIMG 1.3 CPU Card PIN NO. DESCRIPTION PIN NO. DESCRIPTION DATA 3 DATA 11 DATA 4 DATA 12 DATA 5 DATA 13 DATA 6 DATA 14 DATA 7 DATA 15 HDC_CS0# HDC_CS1 GROUND IOR# IOW# VCC_COM IRQ15 VCC_COM VCC_COM...

  • Page 50: Floppy Disk Connector

    PCIE-9152 PCIMG 1.3 CPU Card CN Pinouts: See Table 4-6 Two cooling fan connectors provide a 12 V, 500mA current to a system cooling fan and a CPU cooling fan. The connector has a "rotation" pin to get rotation signals from fans and notify the system so the system BIOS can recognize the fan speed.

  • Page 51: Figure 4-6: 34-Pin Fdd Connector Location

    PCIE-9152 PCIMG 1.3 CPU Card Figure 4-6: 34-pin FDD Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION REDUCE WRITE INDEX# MOTOR ENABLE A# DRIVE SELECT B# DRIVE SELECT A# MOTOR ENABLE B# DIRECTION# STEP# WRITE DATA# WRITE GATE# TRACK 0#...

  • Page 52: Gpio Connector

    PCIE-9152 PCIMG 1.3 CPU Card 4.2.6 GPIO Connector CN Label: DIO1 10-pin header (2x5) CN Type: CN Location: See Figure 4-7 CN Pinouts: See Table 4-8 The GPIO connector can be connected to external I/O control devices including sensors, lights, alarms and switches.

  • Page 53: Figure 4-8: Front Panel Connector Pinout Locations

    PCIE-9152 PCIMG 1.3 CPU Card CN Location: See Figure 4-8 CN Pinouts: See Table 4-9 The front panel connector connects to external switches and indicators to monitor and controls the motherboard. These indicators and switches include: Power button Reset button...

  • Page 54: Ide Connector

    40-pin box header (2x20) CN Type: CN Location: See Figure 4-9 CN Pinouts: See Table 4-10 One 40-pin IDE device connector on the PCIE-9152 supports connectivity to two hard disk drives. Figure 4-9: Secondary IDE Device Connector Locations PIN NO. DESCRIPTION PIN NO.

  • Page 55: Infrared Interface Connector

    PCIE-9152 PCIMG 1.3 CPU Card PIN NO. DESCRIPTION PIN NO. DESCRIPTION GROUND IDE DRQ GROUND IOW# GROUND IOR# GROUND IDE CHRDY GROUND IDE DACK GROUND–DEFAULT INTERRUPT HDC CS0# HDC CS1# HDD ACTIVE# GROUND Table 4-10: Secondary IDE Connector Pinouts 4.2.9 Infrared Interface Connector...

  • Page 56: Keyboard And Mouse Connector

    PCIE-9152 PCIMG 1.3 CPU Card Figure 4-10: Infrared Connector Pinout Locations PIN NO. DESCRIPTION IR-RX IR-TX Table 4-11: Infrared Connector Pinouts 4.2.10 Keyboard and Mouse Connector CN Label: KB_MS1 6-pin header (1x5) CN Type: CN Location: See Figure 4-11 CN Pinouts: See Table 4-12 The keyboard and mouse connector is for a PS/2 keyboard and mouse.

  • Page 57: Lvds Lcd Connector

    PCIE-9152 PCIMG 1.3 CPU Card Figure 4-11: Keyboard and Mouse Connector Location PIN NO. DESCRIPTION Mouse data Mouse clock Keyboard data Keyboard clock Ground Table 4-12: Keyboard and Mouse Connector Pinouts 4.2.11 LVDS LCD Connector CN Label: LVDS1 30-pin crimp (2x10)

  • Page 58: Figure 4-12: Lvds Lcd Connector Pinout Locations

    PCIE-9152 PCIMG 1.3 CPU Card Figure 4-12: LVDS LCD Connector Pinout Locations PIN NO. DESCRIPTION PIN NO. DESCRIPTION GROUND GROUND LVDSA_Y0+ LVDSA_Y0- LVDSA_Y1+ LVDSA_Y1- LVDSA_Y2+ LVDSA_Y2- LVDSA_CLK+ LVDSA_CLK- GROUND GROUND LVDSB_Y0+ LVDSB_Y0- LVDSB_Y1+ LVDSB_Y1- LVDSB_Y2+ LVDSB_Y2- LVDSB_CLK+ LVDSB_CLK- GROUND GROUND...

  • Page 59: Parallel Port Connector

    PCIE-9152 PCIMG 1.3 CPU Card 4.2.12 Parallel Port Connector CN Label: LPT1 26-pin box header CN Type: CN Location: See Figure 4-13 CN Pinouts: See Table 4-14 The 26-pin parallel port connector connects to a parallel port connector interface or some other parallel port device such as a printer.

  • Page 60: Sata Drive Connectors

    PCIE-9152 PCIMG 1.3 CPU Card PIN NO. DESCRIPTION PIN NO. DESCRIPTION GROUND GROUND GROUND GROUND GROUND GROUND GROUND Table 4-14: Parallel Port Connector Pinouts 4.2.13 SATA Drive Connectors CN Label: SATA1 and SATA3 CN Type: 7-pin SATA drive connectors CN Location:...

  • Page 61: Sdvo Connector

    PCIE-9152 PCIMG 1.3 CPU Card PIN NO. DESCRIPTION Table 4-15: SATA Drive Connector Pinouts 4.2.14 SDVO Connector CN Label: SDVO1 3-pin header (1x3) CN Type: CN Location: See Figure 4-15 CN Pinouts: See Table 4-16 The SDVO connector is connected to and SDVO graphics card installed on the backplane.

  • Page 62: Serial Port Connector (Com1 & Com2)

    PCIE-9152 PCIMG 1.3 CPU Card PIN NO. DESCRIPTION SDVO CLK SDVO DATA Table 4-16: SDVO Pinouts 4.2.15 Serial Port Connector (COM1 & COM2) CN Label: COM1 & COM2 CN Type: 10-pin header (2x5) CN Location: See Figure 4-16 CN Pinouts:...

  • Page 63: Tpm Connector

    PCIE-9152 PCIMG 1.3 CPU Card PIN NO. DESCRIPTION PIN NO. DESCRIPTION Ground (GND) Table 4-17: COM1 and COM2 4.2.16 TPM Connector CN Label: TPM1 20-pin header (2x10) CN Type: CN Location: See Error! Reference source not found. CN Pinouts: See Error! Reference source not found.

  • Page 64: External Peripheral Interface Connector Panel

    Table 4-18: TPM Connector Pinouts 4.3 External Peripheral Interface Connector Panel Figure 4-18 shows the PCIE-9152 rear panel. The PCIE-9152 rear panel consists of two RJ-45 Ethernet connectors, a PS/2 keyboard connector a USB port and a VGA connector. These connectors are accessible when the PCIE-9152 is installed in a chassis.

  • Page 65: Usb Connector

    CN Type: USB port CN Location: See Figure 4-18 CN Pinouts: See Table 4-21 The PCIE-9152 has a one external USB 2.0 port. The port connects to both USB 2.0 and USB 1.1 devices. PIN NO. DESCRIPTION DATA- DATA+ Page 49...

  • Page 66: Vga Connector

    VGA1 15-pin Female CN Type: CN Location: See Figure 4-18 CN Pinouts: See Figure 4-20 and Table 4-22 The PCIE-9152 has a single 15-pin female connector for connectivity to standard display devices. Figure 4-20: VGA Connector DESCRIPTION DESCRIPTION GREEN BLUE...

  • Page 67: Installation

    PCIE-9152 PCIMG 1.3 CPU Card Chapter Installation Page 51...

  • Page 68: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the PCIE-9152. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the PCIE-9152, or any other electrical component is handled, the following anti-static precautions are strictly adhered to.

  • Page 69: Installation Notices

    This helps to prevent potential ESD damage. Turn all power to the PCIE-9152 off: When working with the PCIE-9152, make sure that it is disconnected from all power supplies and that no electricity is being fed into the system.

  • Page 70: Cpu, Cpu Cooling Kit And Dimm Installation

    The CF Type I or CF Type II card is properly installed into the CF socket The jumpers have been properly configured The PCIE-9152 is inserted into a chassis with adequate ventilation The correct power supply is being used The following devices are properly connected...

  • Page 71: Socket 479 Cpu Installation

    PCIE-9152 PCIMG 1.3 CPU Card The CPU, CPU cooling kit and DIMM are the most critical components of the PCIE-9152. If one of these component is not installed the PCIE-9152 cannot run. 5.3.1 Socket 479 CPU Installation The CPU installation only applies to models that have a Socket 479 CPU socket. Skip the CPU installation for models that have the CPU preinstalled.

  • Page 72: Figure 5-1: Make Sure The Cpu Socket Retention Screw Is Unlocked

    PCIE-9152 PCIMG 1.3 CPU Card Figure 5-1: Make sure the CPU socket retention screw is unlocked Step 2: Inspect the CPU socket. Make sure there are no bent pins and make sure the socket contacts are free of foreign material. If any debris is found, remove it with compressed air.

  • Page 73: Cooling Kit Installation

    PCIE-9152 PCIMG 1.3 CPU Card Figure 5-2: Lock the CPU Socket Retention Screw 5.3.2 Cooling Kit Installation Figure 5-3: Cooling Kit An IEI Socket 479 CPU cooling kit can be purchased separately. The cooling kit comprises a CPU heat sink and a cooling fan.

  • Page 74: Figure 5-4: Cooling Kit Support Bracket

    PCIE-9152 PCIMG 1.3 CPU Card Step 8: Place the cooling kit onto the CPU. Make sure the CPU cooling fan cable can be properly routed when the cooling kit is installed. Step 9: Properly align the cooling kit. Make sure its four spring screw fasteners can pass through the pre-drilled holes on the PCB.

  • Page 75: Dimm Installation

    5.3.3 DIMM Installation WARNING: Using incorrectly specified DIMM may cause permanently damage the PCIE-9152. Please make sure the purchased DIMM complies with the memory specifications of the PCIE-9152. DIMM specifications compliant with the PCIE-9152 are listed in Chapter 2. To install a DIMM into a DIMM socket, please follow the steps below and refer to Figure 5-6.

  • Page 76: Figure 5-6: Installing A Dimm

    PCIE-9152 PCIMG 1.3 CPU Card Figure 5-6: Installing a DIMM Step 13: Open the DIMM socket handles. The DIMM socket has two handles that secure the DIMM into the socket. Before the DIMM can be inserted into the socket, the handles must be opened. See Figure 5-6.

  • Page 77: Cf Card Installation

    The PCIE-9152 can support both CF Type I cards and CF Type II cards. For the complete specifications of the supported CF cards please refer to Chapter 2. To install the a CF card (Type 1 or Type 2) onto the PCIE-9152, please follow the steps below: Step 1: Locate the CF card socket.

  • Page 78: Jumper Settings

    OPEN a jumper means removing the plastic clip from a jumper. Before the PCIE-9152 is installed in the system, the jumpers must be set in accordance with the desired configuration. The jumpers on the PCIE-9152 are listed in Table 5-1.

  • Page 79: Clear Cmos Jumper

    PCIE-9152 PCIMG 1.3 CPU Card The CF Card Setup jumper sets the CF Type I card or CF Type II cards as either the slave device or the master device. CF Card Setup jumper settings are shown in Table 5-2.

  • Page 80: Table 5-3: Clear Cmos Jumper Settings

    PCIE-9152 PCIMG 1.3 CPU Card If the PCIE-9152 fails to boot due to improper BIOS settings, the clear CMOS jumper clears the CMOS data and resets the system BIOS information. To do this, use the jumper cap to close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1 and 2.

  • Page 81: Fsb Setup Jumper

    Jumper Settings: See Table 5-4 Jumper Location: See Figure 5-10 The clear FSB setup jumper enables a user to select the FSB speed on the PCIE-9152. The FSB Setup jumper settings are shown in Table 5-3. FSB Setup Description Short 1 – 2...

  • Page 82: Lvds Voltage Selection

    Figure 5-10: FSB Setup Jumper Jumper 5.4.4 LVDS Voltage Selection WARNING: Permanent damage to the screen and PCIE-9152 may occur if the wrong voltage is selected with this jumper. Please refer to the user guide that cam with the monitor to select the correct voltage.

  • Page 83: Chassis Installation

    WARNING: Airflow is critical to the cooling of the CPU and other onboard components. The chassis in which the PCIE-9152 must have air vents to allow cool air to move into the system and hot air to move out. Page 67...

  • Page 84: Backplane Installation

    PCIE-9152 PCIMG 1.3 CPU Card The PCIE-9152 must be installed in a chassis with ventilation holes on the sides allowing airflow to travel through the heat sink surface. In a system with an individual power supply unit, the cooling fan of a power supply can also help generate airflow through the board surface.

  • Page 85: Internal Peripheral Device Connections

    7.1 channel audio kit 5.1 channel audio kit 5.6.2 IDE Cable Connection The IDE flat cable connects to the PCIE-9152 to one or two IDE devices. To connect an IDE HDD to the PCIE-9152 please follow the instructions below. Step 4: Locate the IDE connector.

  • Page 86: Channel Audio Kit Installation

    The optional 5.1 channel audio kit connects to the 10-pin audio connector on the PCIE-9152. The audio kit consists of three audio jacks. One audio jack, Mic In, connects to a microphone. The remaining two audio jacks, Line-In and Line-Out, connect to two speakers.

  • Page 87: Figure 5-13: 5.1 Channel Audio Kit

    Step 4: Mount the audio kit onto the chassis. Once the audio kit is connected to the PCIE-9152, secure the audio kit bracket to the system chassis. Step 5: Connect the audio devices. Connect one speaker to the line-in audio jack, one speaker to the line-out audio jack and a microphone to the mic-in audio jack.

  • Page 88: Channel Audio Kit Installation

    The optional 7.1 channel audio kit connects to the 10-pin audio connector on the PCIE-9152. The audio kit consists of five audio jacks. One audio jack, Mic In, connects to a microphone. The remaining four audio jacks, Line-In, Front-Out, Rear-Out, and Center Subwoofer, connect to speakers.

  • Page 89: Fdd Cable Connection

    Refer to Chapter 7 for driver installation instructions.Step 0: Step 0: 5.6.5 FDD Cable Connection The FDD flat cable connects to the PCIE-9152 to one FDD device. To connect an FDD to the PCIE-9152 please follow the instructions below. Step 1: Locate the FDD connector.

  • Page 90: Parallel Port Cable

    Step 1: Locate the connector. The LPT connector location is shown in Chapter 4. Step 2: Align the connectors. Correctly align pin 1 on the cable connector with pin 1 on the PCIE-9152 LPT box-header connector. See Figure 5-16. Page 74...

  • Page 91: Figure 5-16: Lpt Cable Connection

    Step 3: Insert the cable connectors. Once the cable connector is properly aligned with the 26-pin box-header connector on the PCIE-9152, connect the cable connector to the onboard connector. See Figure 5-16. Figure 5-16: LPT Cable Connection Step 4: Attach the LPT connector bracket to the chassis. The LPT cable connector is connected to a standard external LPT interface connector.

  • Page 92: Dual Rs-232 Cable Connection

    PCIE-9152 PCIMG 1.3 CPU Card Figure 5-17: Connect the LPT Device 5.6.7 Dual RS-232 Cable Connection The dual RS-232 cable consists of two connectors attached to two independent cables. Each cable is then attached to a D-sub 9 male connector that is mounted onto a bracket.

  • Page 93: Sata Drive Connection

    0: 5.6.8 SATA Drive Connection The PCIE-9152 is shipped with two SATA drive cables and one SATA drive power cable. To connect the SATA drives to the connectors, please follow the steps below. Step 1: Locate the connectors.

  • Page 94: Figure 5-19: Sata Drive Cable Connection

    PCIE-9152 PCIMG 1.3 CPU Card Figure 5-19: SATA Drive Cable Connection Step 3: Connect the cable to the SATA disk. Connect the connector on the other end of the cable to the connector at the back of the SATA drive. See Figure 5-20.

  • Page 95: Dual Ps/2 Cable

    PCIE-9152 PCIMG 1.3 CPU Card Figure 5-20: SATA Power Drive Connection 5.6.9 Dual PS/2 Cable The dual PS/2 cable connects the keyboard and mouse connector to two PS/2 ports. Step 5: Locate the connector. The location of the keyboard/mouse connector is shown in Chapter 4.

  • Page 96: External Peripheral Interface Connection

    PCIE-9152 PCIMG 1.3 CPU Card Figure 5-21: Keyboard/Mouse Cable Connection Step 8: Attach PS/2 connector to the chassis. Secure the PS/2 connector at the end of the cable to the chassis of the computer. The plugs should face outward for easy installation of a keyboard and mouse.

  • Page 97: Lan Connection (Single Connector)

    PCIE-9152 PCIMG 1.3 CPU Card To install these devices, connect the corresponding cable connector from the actual device to the corresponding PCIE-9152 external peripheral interface connector making sure the pins are properly aligned. 5.7.1 LAN Connection (Single Connector) There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connection to an external network.

  • Page 98: Usb Device Connection (Single Connector)

    PCIE-9152 PCIMG 1.3 CPU Card 5.7.2 USB Device Connection (Single Connector) There are two external USB 2.0 connectors. Both connectors are perpendicular to the PCIE-9152. To connect a USB 2.0 or USB 1.1 device, please follow the instructions below. Step 1: Located the USB connectors.

  • Page 99: Vga Monitor Connection

    PCIE-9152 PCIMG 1.3 CPU Card 5.7.3 VGA Monitor Connection The PCIE-9152 has a single female DB-15 connector on the external peripheral interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor to the PCIE-9152, please follow the instructions below.

  • Page 100: Bios

    PCIE-9152 PCIMG 1.3 CPU Card Chapter BIOS Page 84...

  • Page 101: Introduction

    PCIE-9152 PCIMG 1.3 CPU Card 6.1 Introduction A licensed copy of AMI BIOS is preprogrammed into the ROM BIOS. The BIOS setup program allows users to modify the basic system configuration. This chapter describes how to access the BIOS setup program and the configuration options that may be changed.

  • Page 102: Getting Help

    PCIE-9152 PCIMG 1.3 CPU Card Function F1 key General help, only for Status Page Setup Menu and Option Page Setup Menu F2 /F3 key Change color from total 16 colors. F2 to select color forward. F10 key Save all the CMOS changes, only for Main Menu Table 6-1: BIOS Navigation Keys 6.1.3 Getting Help...

  • Page 103: Main

    PCIE-9152 PCIMG 1.3 CPU Card 6.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. BIOS Menu 1: Main System Overview The System Overview lists a brief summary of different system components. The fields in System Overview cannot be changed.

  • Page 104: Advanced

    PCIE-9152 PCIMG 1.3 CPU Card System Memory: Displays the auto-detected system memory. Size: Lists memory size The System Overview field also has two user configurable fields: System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.

  • Page 105: Bios Menu 2: Advanced

    PCIE-9152 PCIMG 1.3 CPU Card BIOS Menu 2: Advanced Page 89...

  • Page 106: Cpu Configuration

    PCIE-9152 PCIMG 1.3 CPU Card 6.3.1 CPU Configuration Use the CPU Configuration menu (BIOS Menu 3) to view detailed CPU specifications and configure the CPU. BIOS Menu 3: CPU Configuration The CPU Configuration menu (BIOS Menu 3) lists the following CPU details:...

  • Page 107: Ide Configuration

    PCIE-9152 PCIMG 1.3 CPU Card 6.3.2 IDE Configuration Use the IDE Configuration menu (BIOS Menu 4) to change and/or set the configuration of the IDE devices installed in the system. BIOS Menu 4: IDE Configuration ATA/IDE Configurations [Enhanced] Disabled Compatible...
  • Page 108 PCIE-9152 PCIMG 1.3 CPU Card IDE Master and IDE Slave When entering setup, BIOS auto detects the presence of IDE devices. BIOS displays the status of the auto detected IDE devices. The following IDE devices are detected and are shown in the IDE Configuration menu:...

  • Page 109: Ide Master, Ide Slave

    PCIE-9152 PCIMG 1.3 CPU Card 6.3.2.1 IDE Master, IDE Slave Use the IDE Master and IDE Slave configuration menu to view both primary and secondary IDE device details and configure the IDE devices connected to the system. BIOS Menu 5: IDE Master and IDE Slave Configuration Auto-Detected Drive Parameters The “grayed-out”...
  • Page 110 PCIE-9152 PCIMG 1.3 CPU Card Block Mode: Block mode boosts IDE drive performance by increasing the amount of data transferred. Only 512 bytes of data can be transferred per interrupt if block mode is not used. Block mode allows transfers of up to 64 KB per interrupt.
  • Page 111 PCIE-9152 PCIMG 1.3 CPU Card LBA/Large Mode [Auto] Use the LBA/Large Mode option to disable or enable BIOS to auto detects LBA (Logical Block Addressing). LBA is a method of addressing data on a disk drive. In LBA mode, the maximum drive capacity is 137 GB.
  • Page 112 PCIE-9152 PCIMG 1.3 CPU Card PIO mode 3 selected with a maximum transfer rate of 11.1 MB/s PIO mode 4 selected with a maximum transfer rate of 16.6 MB/s (This setting generally works with all hard disk drives manufactured after 1999. For other disk drives, such as IDE CD-ROM drives, check the specifications of the drive.)
  • Page 113 PCIE-9152 PCIMG 1.3 CPU Card S.M.A.R.T [Auto] Use the S.M.A.R.T option to auto-detect, disable or enable Self-Monitoring Analysis and Reporting Technology (SMART) on the drive on the specified channel. S.M.A.R.T predicts impending drive failures. The S.M.A.R.T BIOS option enables or disables this function.

  • Page 114: Floppy Configuration

    PCIE-9152 PCIMG 1.3 CPU Card 6.3.3 Floppy Configuration Use the Floppy Configuration menu to configure the floppy disk drive connected to the system. BIOS Menu 6: Floppy Configuration Floppy A/B [1.44 MB 31/2”]/[Disabled Use the Floppy A/B option to configure the floppy disk drive. Options are listed below: Disabled 360 KB 51/4”...

  • Page 115: Super Io Configuration

    PCIE-9152 PCIMG 1.3 CPU Card 6.3.4 Super IO Configuration Use the Super IO Configuration menu (BIOS Menu 7) to set or change the configurations for the FDD controllers, parallel ports and serial ports. BIOS Menu 7: Super IO Configuration Serial Port1 Address [3F8/IRQ4] Use the Serial Port1 Address option to select the Serial Port 1 base address.
  • Page 116 PCIE-9152 PCIMG 1.3 CPU Card Serial Port1 Mode [Normal] Use the Serial Port1 Mode option to select the transmitting and receiving mode for the first serial port. Normal Serial Port 1 mode is normal EFAULT Serial Port 1 mode is ASK IR...
  • Page 117 PCIE-9152 PCIMG 1.3 CPU Card Parallel Port Mode [Normal] Use the Parallel Port Mode option to select the mode the parallel port operates in. The normal parallel port mode is the standard mode Normal EFAULT for parallel port operation. The parallel port operates in the enhanced parallel port mode (EPP).

  • Page 118: Hardware Health Configuration

    PCIE-9152 PCIMG 1.3 CPU Card 6.3.5 Hardware Health Configuration The Hardware Health Configuration menu (BIOS Menu 8) shows the operating temperature, fan speeds and system voltages. BIOS Menu 8: Hardware Health Configuration H/W Health Function [Enabled] Use the H/W Health Function option (BIOS Menu 8) to monitor system environmental parameters.

  • Page 119: Acpi Configuration

    PCIE-9152 PCIMG 1.3 CPU Card CPU Core +3.3 V +5.00 V +12.0 V 5 VSB VBAT 6.3.6 ACPI Configuration The ACPI Configuration menu (BIOS Menu 9) configures the Advanced Configuration and Power Interface (ACPI) and Power Management (APM) options. BIOS Menu 9: ACPI Configuration...

  • Page 120: Remote Access Configuration

    PCIE-9152 PCIMG 1.3 CPU Card S1 (POS) The system enters S1(POS) sleep state. The system EFAULT appears off. The CPU is stopped; RAM is refreshed; the system is running in a low power mode. The system enters a S3(STR) sleep state. The CPU has S3 (STR) no power;...
  • Page 121 PCIE-9152 PCIMG 1.3 CPU Card Remote Access [Disabled] Use the Remote Access option to enable or disable access to the remote functionalities of the system. Disabled Remote access is disabled. EFAULT Remote access configuration options shown below Enabled appear: Serial Port Number...
  • Page 122 PCIE-9152 PCIMG 1.3 CPU Card 115200 8,n,1 EFAULT 57600 8,n,1 38400 8,n,1 19200 8,n,1 09600 8,n,1 NOTE: Identical baud rate setting musts be set on the host (a management computer running a terminal software) and the slave Flow Control [None] Use the Flow Control option to report the flow control method for the console redirection application.
  • Page 123 PCIE-9152 PCIMG 1.3 CPU Card ANSI The target terminal type is ANSI EFAULT The target terminal type is VT100 VT100 VT-UTF8 The target terminal type is VT-UTF8 VT-UTF8 Combo Key Support [Disabled] Use the VT-UFT8 Combo Key Support option to enable additional keys that are not provided by VT100 for the PC 101 keyboard.

  • Page 124: Trusted Computing

    PCIE-9152 PCIMG 1.3 CPU Card 6.3.8 Trusted Computing Use the Trusted Computing menu (BIOS Menu 11) to configure settings related to the Trusted Computing Group (TCG) Trusted Platform Module (TPM). BIOS Menu 11: Trusted Computing TCG/TPM Support [No] Use the TCG/TPM Support option to configure support for the TPM.

  • Page 125: Usb Configuration

    PCIE-9152 PCIMG 1.3 CPU Card 6.3.9 USB Configuration Use the USB Configuration menu (BIOS Menu 12) to read USB configuration information and configure the USB settings. BIOS Menu 12: USB Configuration USB Function [Enabled] Use the USB Function BIOS option to enable or disable USB function support.

  • Page 126: Pci/Pnp

    PCIE-9152 PCIMG 1.3 CPU Card Enabled USB 2.0 controller enabled EFAULT Legacy USB Support [Enabled] Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support. Normally if this option is not enabled, any attached USB mouse or USB keyboard does not become available until a USB compatible operating system is fully booted with all USB drivers loaded.

  • Page 127: Bios Menu 13: Pci/Pnp Configuration

    PCIE-9152 PCIMG 1.3 CPU Card BIOS Menu 13: PCI/PnP Configuration IRQ# [Available] Use the IRQ# address to specify what IRQs can be assigned to a particular peripheral device. Available The specified IRQ is available to be used by EFAULT PCI/PnP devices...
  • Page 128 PCIE-9152 PCIMG 1.3 CPU Card IRQ10 IRQ 11 IRQ 14 IRQ 15 DMA Channel# [Available] Use the DMA Channel# option to assign a specific DMA channel to a particular PCI/PnP device. Available The specified DMA is available to be used by...

  • Page 129: Boot

    PCIE-9152 PCIMG 1.3 CPU Card 6.5 Boot Use the Boot menu (BIOS Menu 14) to configure system boot options. BIOS Menu 14: Boot Page 113...

  • Page 130: Boot Settings Configuration

    PCIE-9152 PCIMG 1.3 CPU Card 6.5.1 Boot Settings Configuration Use the Boot Settings Configuration menu (BIOS Menu 14) to configure advanced system boot options. BIOS Menu 15: Boot Settings Configuration Quick Boot [Enabled] Use the Quick Boot BIOS option to make the computer speed up the boot process.
  • Page 131 PCIE-9152 PCIMG 1.3 CPU Card Enabled OEM Logo displayed instead of POST messages AddOn ROM Display Mode [Force BIOS] Use the AddOn ROM Display Mode option to allow add-on ROM (read-only memory) messages to be displayed. The system forces third party BIOS to display...

  • Page 132: Boot Device Priority

    PCIE-9152 PCIMG 1.3 CPU Card 6.5.2 Boot Device Priority Use the Boot Device Priority menu (BIOS Menu 16) to specify the boot sequence from the available devices. Possible boot devices may include: Floppy drive Hard drive CD/DVD drive BIOS Menu 16: Boot Device Priority Settings 6.5.3 Hard Disk Drives...

  • Page 133: Removable Drives

    PCIE-9152 PCIMG 1.3 CPU Card NOTE: Only drives that are currently connected will be shown. The boot sequence from the available devices is selected. If the “1st Drive” option is selected a list of available HDDs is shown. Select the first HDD the system boots from. If the “1st Drive”...

  • Page 134: Cd/Dvd Drives

    PCIE-9152 PCIMG 1.3 CPU Card NOTE: Only drives that are currently connected are shown The boot sequence from the available devices is selected. If the “1st Drive” option is selected a list of available FDDs is shown. Select the first FDD the system boots from. If the “1st Drive”...

  • Page 135: Bios Menu 19: Cd/Dvd Drives

    PCIE-9152 PCIMG 1.3 CPU Card 3rd Drive [HDD: SM-(part ID)] 4th Drive [HDD: SM-(part ID)] NOTE: Only the drives connected to the system are shown. For example, if only two CDs or DVDs are connected only “1st Drive” and “2nd Drive”...

  • Page 136: Security

    PCIE-9152 PCIMG 1.3 CPU Card 6.6 Security Use the Security menu (BIOS Menu 20) to set system and user passwords. BIOS Menu 20: Security Change Supervisor Password Use the Change Supervisor Password to set or change a supervisor password. The default for this option is Not Installed.

  • Page 137: Chipset

    PCIE-9152 PCIMG 1.3 CPU Card 6.7 Chipset Use the Chipset menu (BIOS Menu 21) to access the Northbridge and Southbridge configuration menus. WARNING: Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.

  • Page 138: Northbridge Configuration

    PCIE-9152 PCIMG 1.3 CPU Card 6.7.1 Northbridge Configuration Use the Northbridge Configuration menu (BIOS Menu 21) to configure the Northbridge chipset. BIOS Menu 22:Northbridge Chipset Configuration Memory Hole [Disabled] Use the Memory Hole option to reserve memory space between 15 MB and 16 MB for ISA expansion cards that require a specified area of memory to work properly.
  • Page 139 PCIE-9152 PCIMG 1.3 CPU Card Boots Graphics Adapter [PEG/IGD] Use the Boots Graphics Adapter option to select the graphics controller used as the primary boot device. Select either an integrated graphics controller (IGD) or a combination of a PCI express (PEG) controller or an IGD. Configuration options are listed below:...

  • Page 140: Southbridge Chipset Configuration

    PCIE-9152 PCIMG 1.3 CPU Card Flat Panel Type [1024*768 LVDS] Use the Flat Panel Type option to select the type of flat panel connected to the system. Configuration options are listed below. 640*480 LVDS 800*600 LVDS 1024*768 LVDS 1280*1024 LVDS...
  • Page 141 PCIE-9152 PCIMG 1.3 CPU Card Spectrum [Disabled] Use the Spectrum option to reduce the EMI. Excess EMI is generated when the system clock generator pulses have extreme values. Spreading the pulse spectrum modulates changes in the extreme values from spikes to flat curves, thus reducing the EMI. This benefit may in some cases be outweighed by problems with timing-critical devices, such as a clock-sensitive SCSI device.

  • Page 142: Power

    PCIE-9152 PCIMG 1.3 CPU Card 6.8 Power The Power menu (BIOS Menu 24) allows the advanced power management options to be configured. BIOS Menu 24:Power Power Button Mode [On/Off] Use the Power Button Mode BIOS to specify how the power button functions.
  • Page 143 PCIE-9152 PCIMG 1.3 CPU Card Power Off The system remains turned off The system turns on Power On Last State The system returns to its previous state. If it was on, it EFAULT turns itself on. If it was off, it remains off.

  • Page 144: Exit

    PCIE-9152 PCIMG 1.3 CPU Card 6.9 Exit Use the Exit menu (BIOS Menu 25) to load default BIOS values, optimal failsafe values and to save configuration changes. BIOS Menu 25:Exit Save Changes and Exit Use the Save Changes and Exit option to save the changes made to the BIOS options and to exit the BIOS configuration setup program.
  • Page 145 PCIE-9152 PCIMG 1.3 CPU Card Load Optimal Defaults Use the Load Optimal Defaults option to load the optimal default values for each of the parameters on the Setup menus. F9 key can be used for this operation. Load Failsafe Defaults Use the Load Failsafe Defaults option to load failsafe default values for each of the parameters on the Setup menus.

  • Page 146: Software Installation

    PCIE-9152 PCIMG 1.3 CPU Card Chapter Software Installation Page 130...

  • Page 147: Available Software Drivers

    LAN driver Installation instructions are given below. 7.2 Driver CD Auto-run All the drivers for the PCIE-9152 are on the CD that came with the system. To install the drivers, please follow the steps below. Step 1: Insert the CD into a CD drive connected to the system.

  • Page 148: Chipset Driver Installation

    PCIE-9152 PCIMG 1.3 CPU Card Figure 7-1: Introduction Screen Step 4: A new screen with a list of available drivers appears (Figure 7-2). Figure 7-2: Available Drivers Step 5: Select the driver to install from the list in Figure 7-2.

  • Page 149: Figure 7-3: Chipset Driver Installation Program

    PCIE-9152 PCIMG 1.3 CPU Card Step 6: Select the INF driver from the list in Figure 7-2. Step 7: A new window opens (Figure 7-3). Figure 7-3: Chipset Driver Installation Program Step 8: Double click the infinst_Autol icon in Figure 7-3.

  • Page 150: Figure 7-5: Chipset Driver Installation License Agreement

    PCIE-9152 PCIMG 1.3 CPU Card Figure 7-5: Chipset Driver Installation License Agreement Step 12: Click Y to continue the setup. Step 13: The Readme file appears. Figure 7-6: Chipset Driver Readme File Information Step 14: Click N to begin the driver installation.

  • Page 151: Figure 7-7: Chipset Driver Readme File Information

    PCIE-9152 PCIMG 1.3 CPU Card Figure 7-7: Chipset Driver Readme File Information Step 15: Click N to continue. Step 16: After the driver installation process is complete, a confirmation screen (Figure 7-8) appears. Click N to exit the installation wizard.

  • Page 152: Graphics Driver Installation

    PCIE-9152 PCIMG 1.3 CPU Card 7.4 Graphics Driver Installation To install the chipset driver, please follow the steps below: Step 17: Select the VGA driver from the list in Figure 7-2. A new window opens (Figure 7-9). Step 18: Figure 7-9: Select the Operating System Step 19: Select the operating system from those shown in Figure 7-9.

  • Page 153: Figure 7-10: Vga Driver

    PCIE-9152 PCIMG 1.3 CPU Card Figure 7-10: VGA Driver Step 21: Click the installation program icon in Figure 7-10. Step 22: The Readme information file shown in Figure 7-11 appears. Page 137...

  • Page 154: Figure 7-11: Gma Driver Readme File

    PCIE-9152 PCIMG 1.3 CPU Card Figure 7-11: GMA Driver Readme File Step 23: Click N to extract the GMA driver files. See Figure 7-12. Figure 7-12: GMA Driver File Extraction Step 24: The welcome screen shown in Figure 7-13 appears.

  • Page 155: Figure 7-13: Gma Driver Installation Welcome Screen

    PCIE-9152 PCIMG 1.3 CPU Card Figure 7-13: GMA Driver Installation Welcome Screen Step 25: To continue the installation process, click N Step 26: The license agreement in Figure 7-14 appears. Page 139...

  • Page 156: Figure 7-14: Gma Driver License Agreement

    PCIE-9152 PCIMG 1.3 CPU Card Figure 7-14: GMA Driver License Agreement Step 27: Click the Y in Figure 7-14 to continue. Step 28: The installation notice shown in Figure 7-15 appears. Figure 7-15: GMA Driver Installing Notice Step 29: A confirmation screen shown in Figure 7-16 appears.

  • Page 157: Lan Driver Installation

    PCIE-9152 PCIMG 1.3 CPU Card Figure 7-16: GMA Driver Installation Complete Step 30: After selecting when to restart the computer in Figure 7-16, click F INISH Step 30: 7.5 LAN Driver Installation To install the LAN driver, please follow the steps below.

  • Page 158: Figure 7-17: Lan Driver Setup File

    PCIE-9152 PCIMG 1.3 CPU Card Figure 7-17: LAN Driver Setup File Step 33: Double-click the setup.exe program icon. Step 34: The InstallShield Wizard is prepared to guide the user through the rest of the process (Figure 7-18). Figure 7-18: RTL8110SC InstallShield Wizard Step 35: The InstallShield Wizard continues (Figure 7-19).

  • Page 159: Figure 7-19: Lan Driver Installshield Wizard Continues

    PCIE-9152 PCIMG 1.3 CPU Card Figure 7-19: LAN Driver InstallShield Wizard Continues Step 36: Once initialized, the InstallShield Wizard welcome screen appears (Figure 7-20). Figure 7-20: LAN Driver InstallShield Wizard Welcome Screen Step 37: Click N to continue the installation.

  • Page 160: Figure 7-21: Lan Driver Ready Screen

    PCIE-9152 PCIMG 1.3 CPU Card Figure 7-21: LAN Driver Ready Screen Step 39: Click I to continue the installation process. NSTALL Step 40: InstallShield starts to install the new software (Figure 7-22). Figure 7-22: LAN Drivers Installing Step 41: The InstallShield Wizard continues (Figure 7-23).

  • Page 161: Audio Driver Installation

    PCIE-9152 PCIMG 1.3 CPU Card Figure 7-23: LAN Driver InstallShield Wizard Step 42: After the driver installation process is complete, a confirmation screen appears (Figure 7-24). Figure 7-24: LAN Driver Installation Complete Step 43: Click F to exit the program.

  • Page 162: Driver Installation

    PCIE-9152 PCIMG 1.3 CPU Card 7.6.2 Driver Installation Step 1: Insert the CD that came with the package. Step 2: From the main driver menu, navigate to X:\4-AUDIO\Windows (or other appropriate OS). X:\ represents the system CD drive. A new window appears showing the folder contents (Figure 6-26).

  • Page 163: Figure 7-26: Hd Audio Driver Setup Extracting Files

    PCIE-9152 PCIMG 1.3 CPU Card Figure 7-26: HD Audio Driver Setup Extracting Files Step 5: The Welcome screen appears. Click N . See Figure 7-27. Page 147...

  • Page 164: Figure 7-27: Hd Audio Driver Setup Welcome Screen

    PCIE-9152 PCIMG 1.3 CPU Card Figure 7-27: HD Audio Driver Setup Welcome Screen Step 6: The driver is automatically installed. Step 7: After the driver installation process is complete, a confirmation screen shown in Figure 7-28 appears. Page 148...

  • Page 165: Figure 7-28: Hd Audio Driver Installation Complete

    PCIE-9152 PCIMG 1.3 CPU Card Figure 7-28: HD Audio Driver Installation Complete Step 8: The confirmation screen shown in Figure 7-28 allows you to restart the computer immediately after the installation is complete or to restart the computer later. For the settings to take effect the computer must be restarted. Once you have decided when to restart the computer, click the “F...

  • Page 166: Abios Options

    PCIE-9152 PCIMG 1.3 CPU Card Appendix BIOS Options Page 150...
  • Page 167 PCIE-9152 PCIMG 1.3 CPU Card Below is a list of BIOS configuration options in the BIOS chapter. System Overview .........................87 System Time [xx:xx:xx] .......................88 System Date [xx/xx/xx] ......................88 ATA/IDE Configurations [Enhanced] .................91 Legacy IDE Channels [PATA Pri, SATA Sec] ..............91 IDE Master and IDE Slave....................92...
  • Page 168 PCIE-9152 PCIMG 1.3 CPU Card TCG/TPM Support [No]..................... 108 Clearing the TPM [Press Enter] ..................108 USB Function [Enabled]....................109 USB 2.0 Controller [Enabled]................... 109 Legacy USB Support [Enabled]..................110 USB2.0 Controller Mode [HiSpeed]................. 110 IRQ# [Available]......................111 DMA Channel# [Available] ....................112 Reserved Memory Size [Disabled] ..................
  • Page 169 PCIE-9152 PCIMG 1.3 CPU Card Page 153...

  • Page 170: B Terminology

    PCIE-9152 PCIMG 1.3 CPU Card Appendix Terminology Page 154...
  • Page 171 PCIE-9152 PCIMG 1.3 CPU Card AC ’97 Audio Codec 97 (AC’97) refers to a codec standard developed by Intel® in 1997. ACPI Advanced Configuration and Power Interface (ACPI) is an OS-directed configuration, power management, and thermal management interface. AHCI Advanced Host Controller Interface (AHCI) is a SATA Host controller register-level interface.
  • Page 172 PCIE-9152 PCIMG 1.3 CPU Card Direct Memory Access (DMA) enables some peripheral devices to bypass the system processor and communicate directly with the system memory. DIMM Dual Inline Memory Modules are a type of RAM that offer a 64-bit data bus and have separate electrical contacts on each side of the module.
  • Page 173 PCIE-9152 PCIMG 1.3 CPU Card Liquid crystal display (LCD) is a flat, low-power display device that consists of two polarizing plates with a liquid crystal panel in between. LVDS Low-voltage differential signaling (LVDS) is a dual-wire, high-speed differential electrical signaling system commonly used to connect LCD displays to a computer.

  • Page 174: C Digital I/O Interface

    PCIE-9152 PCIMG 1.3 CPU Card Appendix Digital I/O Interface Page 158...

  • Page 175: Introduction

    PCIE-9152 PCIMG 1.3 CPU Card C.1 Introduction The DIO connector on the PCIE-9152 is interfaced to GPIO ports on the Super I/O chipset. The DIO has both 4-bit digital inputs and 4-bit digital outputs. The digital inputs and digital outputs are generally control signals that control the on/off circuit of external devices or TTL devices.

  • Page 176: Assembly Language Samples

    PCIE-9152 PCIMG 1.3 CPU Card C.3 Assembly Language Samples C.3.1 Enable the DIO Input Function The BIOS interrupt call INT 15H controls the digital I/O. An assembly program to enable digital I/O input functions is listed below. Sets the digital port as input...

  • Page 177: D Watchdog Timer

    PCIE-9152 PCIMG 1.3 CPU Card Appendix Watchdog Timer Page 161...
  • Page 178 PCIE-9152 PCIMG 1.3 CPU Card NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.
  • Page 179 PCIE-9152 PCIMG 1.3 CPU Card NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. EXAMPLE PROGRAM: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BL, 30 ;time-out value is 48 seconds ;...

  • Page 180: E Address Mapping

    PCIE-9152 PCIMG 1.3 CPU Card Appendix Address Mapping Page 164...

  • Page 181: Direct Memory Access (Dma)

    PCIE-9152 PCIMG 1.3 CPU Card E.1 Direct Memory Access (DMA) Figure E-1: Direct Memory Access (DMA) E.2 Input/Output (IO) Figure E-2: Input/Output (IO) (1 of 2) Page 165...
  • Page 182 PCIE-9152 PCIMG 1.3 CPU Card Figure E-3: Input/Output (IO) (2 of 2) Page 166...

  • Page 183: Interrupt Request (Irq)

    PCIE-9152 PCIMG 1.3 CPU Card E.3 Interrupt Request (IRQ) Figure E-4: Interrupt Request (IRQ) Page 167...

  • Page 184: Memory

    PCIE-9152 PCIMG 1.3 CPU Card E.4 Memory Figure E-5: Memory Page 168...

  • Page 185: F Hazardous Materials Disclosure

    PCIE-9152 PCIMG 1.3 CPU Card Appendix Hazardous Materials Disclosure Page 169...

  • Page 186: Hazardous Materials Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    PCIE-9152 PCIMG 1.3 CPU Card F.1 Hazardous Materials Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 187 PCIE-9152 PCIMG 1.3 CPU Card Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated Biphenyls Diphenyl (Pb) (Hg) (Cd) Chromium (CR(VI)) (PBB) Ethers (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly...
  • Page 188 PCIE-9152 PCIMG 1.3 CPU Card 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。...
  • Page 189 PCIE-9152 PCIMG 1.3 CPU Card Index Page 173...
  • Page 190 PCIE-9152 PCIMG 1.3 CPU Card CF card ............61 installation..........61 setup jumper..........62 ACPI ............103 socket ............32 AGP ............123 CF card setting..........4 airflow ............67 CF card setup jumper ........62 anti-static precautions......23, 52 location ..........63 anti-static pad ........23, 52 settings ..........63 anti-static wristband......23, 52 chassis ..........
  • Page 191 PCIE-9152 PCIMG 1.3 CPU Card parallel port..........43 RJ-45 cable connector ......80 serial port (COM 2)........46 RJ-45 connector ........4 trusted platform module (TPM)....47 Ethernet connectors........48 connectors, SDVO ........45 Ethernet controllers........48 cooling ............67 external indicators........37 airflow ............67 external peripheral interface ......80 cooling fan ...........34, 57 connection ..........80...
  • Page 192 PCIE-9152 PCIMG 1.3 CPU Card GPIO connector .........36 jumper ............62 location and pinouts ......36 CF card setup ........62 GPIO connector ...........3 clear CMOS ...........63 FSB Setup ..........65 jumper configuration ......62 LVDS voltage selection......66 hard disk drives SATA............44 HDD LED ...........37 heat sink ............57...
  • Page 193 PCIE-9152 PCIMG 1.3 CPU Card power button ..........37 location and pinouts ......41 LVDS panel ..........41 Power Button Mode ........ 126 18-bit............41 power LED ..........37 36-bit............41 processors ..........10 dual channel ..........41 single channel ........41 LVDS voltage selection jumper....66 real time clock ..........14 location ..........67...
  • Page 194 PCIE-9152 PCIMG 1.3 CPU Card serial digital video out connector ....4 serial port connector ......4, 46 unpacking...........23 location and pinouts ......46 unpacking checklist .......24 serial ports ..........16 unpacking precautions......23 SIR interface ..........39 USB..........109, 110 SiS964 .............124 external USB device connection ...82 socket 479 CPU USB 2.0...........

Table of Contents
