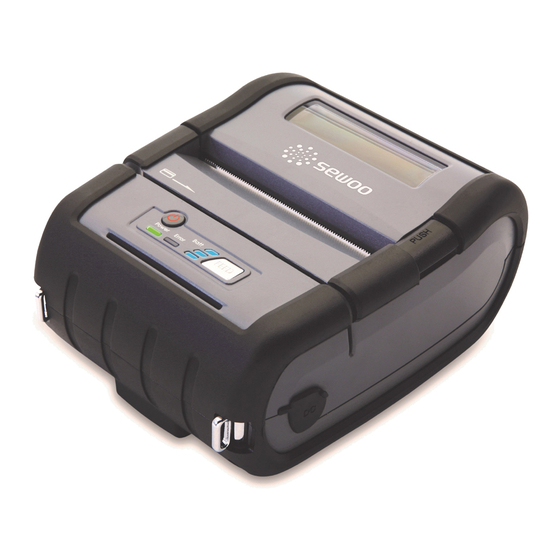

- Page 1 MODEL : LK-P30W MOBILE PRINTER All specifications are subject to change without notice...
-
Page 3: Table Of Contents
1. Unpacking Table of Contents Standard 1. Product overview 2. Unpacking 3. Usage and Installation 3-1. Control panel usage 3-2. Battery Installation Printer Battery Belt Buckle 3-3. Battery removal 3-4. Battery charging 3-5. Battery charger usage 3-6. Belt clip usage 3-7. -
Page 4: Product Overview
2. Product overview 3. Usage and Installation 3-1 Control panel usage Power switch Open Button Control Panel Paper feed Button Name function button DC Power This button is used to turn the printer on and off. Power When the printer is off, press this button for approximately 3 seconds button and it will turn on the power. -
Page 5: Battery Installation
3-2 Battery Installation 3-3 Battery removal 180˚ Hook Put up the Belt clip hole turning 180 degree. 1. Align battery hook as shown in the picture 2. Push the battery into the printer until it locks in place. NOTE As the battery is not charged at the time of your purchase, charge the battery prior to using the printer (Battery charger or Cradle can be used to charge) ☞... -
Page 6: Battery Charging
3-4 Battery charging 3-5 Battery charger usage Optional lamp DC Jack 1. Be sure that the printer is turned off 2. After open the DC JACK cover, insert DC JACK into the printer. 3. Plug the power code to electrical outlet. 1. -
Page 7: Belt Clip Usage
3-7 Roll Paper installation 3-6 Belt Clip usage Insert the belt clip screw into the hole of Belt clip Press the PUSH button to open Insert the paper in the right the paper cover direction Pull a short length of paper out of Tear off the additional paper using As shown in the picture, tighten the screw with a screw driver. -
Page 8: Leather Case Usage
3-8 Leather case usage 3-9 Self Test Optional Turn off the power pressing the While you are pressing the FEED Open the leather case Place the printer into the leather power button for approximately button, press the power button case 3 seconds. -
Page 9: Msr Usage
3-10 MSR usage <The sample of self test printout> Optional Insert and swipe the card in the direction of the arrow as shown in the picture. When the printer is installed initially or when you face a problem, you can run the self test and check the information about -Control Circuit, Mechanism, Print Quality, ROM Version After checking with self-test and no issues are found, you can examine other... -
Page 10: Ic Card Usage
4. Peripherals connection 3-11 IC CARD usage This product can communicate with other devices via Wifi(802.11b/g) communication and cable. Optional 4-1 Wifi(802.11b/g) Connection Insert the card in the direction of the arrow as shown in the picture. 1. The Printer can be connected to devices equipped with wifi(802.11b/g) communication capacity (PDAs, PCs, etc.) 2. -
Page 11: Interface Cable Connection
5. Pritner Specification 4-2 Interface Cable Connection 5-1 Specification Printing Method Direct Thermal Printing Speed 100mm/sec Resolution 203 DPI X 203 DPI Character Font A (12X24), Font B (9X17) Character per line Font A : 48pt , Font B : 64pt Character set ALPHA NUMERIC Character, Extension Character... -
Page 12: Cpcl Command Compatibility
6. CPCL Command Compatibility NOTE IC CARD (Optional) EMV level one certified smart card reader Compatible with only Partially Battery Charger input AC100~240V, 50/60MHz commanders provided Compatible Compatible Compatible by the manufacturer. output 8.4V , 800~1200mA ○ △ ● Battery Charger Battery type Li-ion output... - Page 13 Graphics Compatibility ○ Line Print Mode Compatibility LINE ○ SETLP ○ INVERSE-LINE ○ SETLF ○ PATTERN ○ Moving With X and Y Coordinates ○ GRAPHICS ○ LMARGIN ○ ○ SETBOLD ○ Advanced Commands SETSP Compatibility ○ CONTRAST ○ Special ASCII Characters ○...
-
Page 14: Setting Up The Software
7. Setting up the software Please refer to the programming manual included in CD. CAUTION ♣Certification Antenna shall be mounted in such a manner to minimize the potential for human contact during normal operation. The antenna should not be contacted FCC Information during operation to avoid the possibility of exceeding the FCC radio frequency This device complies with part 15 of the FCC Results. - Page 15 SEWOO TECH CO.,LTD. ADDRESS Doosung Bd, 689-20, Kumjung-dong, Kunpo-si, Kyunggi-do, Korea TEL 82-31-459-8200 FAX 82-31-459-8880 URL http://www.miniprinter.com Rev. 1.0...
