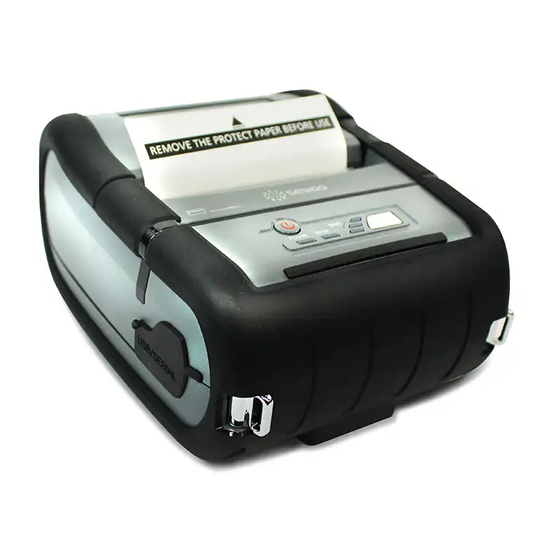

SEWOO LK-P30 II User Manual
  1. Manuals
  2. Brands
  3. SEWOO Manuals
  4. Printer
  5. LK-P30 II
  6. User manual

SEWOO LK-P30 II User Manual

Hide thumbs Also See for LK-P30 II:
Table of Contents

Advertisement

Quick Links

Aroot Co., Ltd.
28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do ,18103, Republic of Korea
TEL +82-31-8077-5000 / FAX +82-31-624-5310 / http://www.miniprinter.com
P30Ⅱ ENG Rev. H 01 / 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LK-P30 II and is the answer not in the manual?

Questions and answers

Related Manuals for SEWOO LK-P30 II

Summary of Contents for SEWOO LK-P30 II

  • Page 1 Aroot Co., Ltd. 28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do ,18103, Republic of Korea TEL +82-31-8077-5000 / FAX +82-31-624-5310 / http://www.miniprinter.com P30Ⅱ ENG Rev. H 01 / 2021...
  • Page 2 MOBILE PRINTER MODEL � LK�P30Ⅱ USER�S MANUAL All specifi  cations are subject to change without notice...
  • Page 3 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions. 1) This device may not cause harmful interference, and including  2)  T his device must accept any interference received, interference that may cause undesired operation. Vic Barczyk 19700 S Vermont Ave Ste 200 Torrance, CA 90502 | USA sales@miniprinter.com...
  • Page 4 Risk of explosion if battery is replaced by an incorrectly type. Dispose of used battery according to the local disposal instructions. Disposal of Old Electrical&Electronic Equipment(Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.

  • Page 5: Table Of Contents

    Table of Contents 1. Safety Precautions 2. Unpacking 3. Product Overview 4. Usage and Installation 4-1. Control Panel Usage 4-2. Battery Installation 4-3. Charging Battery 4-4. Charging Cradle (Optional) 4-5. Car Charger Usage (Optional) 4-6. Battery Removal 4-7. Belt clip Usage 4-8.
  • Page 6 5. Peripheral Connection 5-1. Bluetooth Connection (Optional) 5-2. Wi-Fi Connection (Optional) 5-3. Interface Cable Connection 6. Roll Media Specification 7. Label Specification 8. Black Mark 9. Cleaning the Printer 10. Printer Specification 11. Utilities 12. S/W...

  • Page 7: Safety Precautions

    1. Safety Precautions For better safety and reliability, adhere to the following precautionary measures. Read and follow the instructions carefully before operation of the product. Indication Prohibition Must follow Unplug the power from the Do not disassemble outlet Grounding to prevent Do not handle the product with electric shock wet hands...
  • Page 8 WARNING Failure to follow these instructions could result in fire, electric shock, other injuries, or property damage. Do not disassemble, repair or modify the Do not unplug the product. power cable to turn Potential risk of off the product. malfunction, electric Turn off the power shock, or fire.

  • Page 9: Unpacking

    2. Unpacking Standard Printer Battery Belt Clip Quick Manual Charger USB Cable CD (Manual) Roll paper Optional Set Cradle Leather Case Shoulder Strap (Charging Cradle) Serial Cable Car Adapter...

  • Page 10: Product Overview

    3. Product overview Front Open Button Control Panel Power Button Paper Feed Button DC Power Bottom SERIAL Battery Belt Clip Hole...

  • Page 11: Usage And Installation

    4. Usage and Installation 4-1. Control Panel Usage Button Name function - This button is used to turn the printer on and off. - When the printer is off, press this button for Power approximately 3 seconds and the printer will power on. Button When you press this button while the printer is powered on, the printer will turn off.

  • Page 12: Battery Installation

    4-2. Battery Installation Hook 1 Align battery hook as shown in the picture. 2 Push the battery into the printer until it locks in place. NOTE As the battery is not charged at the time of your purchase, charge the  battery prior to using the printer.

  • Page 13: Charging Battery

    4-3. Charging Battery Lamp 1 Make sure the printer is turned off. 2 After opening the DC JACK cover, connect the DC JACK to the printer. 3 Plug the power cord into the electrical outlet. The charging status LED Status charging charging complete Charging Lamp...

  • Page 14: Charging Cradle (Optional)

    4-4. Charging Cradle Optional Lamp DC Jack 1 Place the printer into the charging cradle as shown above. 2 Connect the DC JACK to the charging cradle. 3 Plug the power cord into an electrical outlet. 4 Once the charging is completed, remove the printer from the charging cradle. The charging status LED Status charging...

  • Page 15: Car Charger Usage (Optional)

    4-5. Car Charger Usage Optional Printer Battery Cradle Connect the car charger to the printer or cradle. Input 12 ~ 24V Output 8.4V 0.8 ~ 1.2A NOTE Only car charger included with the printer.

  • Page 16: Battery Removal

    4-6. Battery Removal 180˚ Rotate the belt clip as shown. Remove the battery as shown.

  • Page 17: Belt Clip Usage

    4-7. Belt clip Usage Insert the belt clip screw into the hole of Belt clip. Tighten the screw with a screwdriver as shown.

  • Page 18: Paper Roll Installation

    4-8. Paper Roll Installation Press the PUSH button to open the Insert the paper in the correct direction. paper cover. See the image above. Pull a short length of paper out of the Tear off the additional paper using tear printer and close the cover.

  • Page 19: Leather Case Usage (Optional)

    4-9. Leather Case Usage Optional Open the leather case. Place the printer into the leather case. Close the cover and press down on the Fasten to the belt by using the clip at Velcro. the rear of the leather case.

  • Page 20: Self Test

    4-10. Self Test Turn off the power by pressing the While you are holding the FEED button, power button for approximately 3 press the power button. seconds. NOTE 01 To print ASCII pattern additionally, press the Feed button once more. 02 After printing ASCII pattern, the self test will be finished automatically.
  • Page 21 Self-Test Printout Sample Upon initial installation or for troubleshooting, you can run the diagnostic test to get information about: - Firmware version, emulation, codepage, sensor settings, interface settings, etc. If no issues are found with the diagnostic test, examine other devices and software.

  • Page 22: Msr Usage (Optional)

    4-11. MSR Usage Optional Insert and swipe the card in the direction of the arrow as shown in the picture.

  • Page 23: Ic Card Usage (Optional)

    4-12. IC CARD Usage Optional Insert the card in the direction of the arrow as shown in the picture.

  • Page 24: Peripheral Connection

    5. Peripheral Connection This product can communicate with other devices via Bluetooth, Wi-Fi, or a communication cable. 5-1. Bluetooth Connection Optional 1 The Printer can be connected to devices equipped with Bluetooth communication capabilities(PDAs, PCs, etc.). 2 Use the Bluetooth connection function supported by your device to connect to the printer.

  • Page 25: Interface Cable Connection

    5-3. Interface Cable Connection Serial 1 Connect USB or Serial cable to the connector on the printer. NOTE - Only use cables included with the printer. 2 Connect the interface cable to the USB or Serial port of the device(PDA, PC, etc.).

  • Page 26: Roll Media Specification

    6. Roll Media Specification Core Diameter (A) 12.5 mm ± 0.5 mm Roll Max. Diameter (B) 56 mm Max. Media Width (C) 25 mm ~ 80 mm Thickness 0.06 mm ~ 0.16 mm Protect the printhead from sand, grit, and other hard particles during printing and storage.

  • Page 27: Label Specification

    7. Label Specification 14 ~ 72 (PRINT WIDTH ) 20 ~ 76 25 ~ 80 (MAX PAPER WIDTH)

  • Page 28: Black Mark

    8. Black Mark 10 ~ 80 10.5 14 ~ 72 (PRINT WIDTH ) 25 ~ 80 (MAX PAPER WIDTH)

  • Page 29: Cleaning The Printer

    9. Cleaning the Printer If the interior of the printer is dusty, printing quality can be reduced. In this case, follow the instructions below to clean the printer. NOTE 01 Make sure to turn the printer power off prior to cleaning. 02 Regarding printhead cleaning, as the printhead gets very hot during printing, turn off the printer power and wait approximately 10 minutes before cleaning.

  • Page 30: Printer Specification

    10. Printer Specification Printing Method Direct Thermal Printing Speed 100 mm/s Width 48 mm, 384 Dots/line Resolution 203 DPI FontA(12x24), FontB(9x17), Asian Font(KOR, ESC/POS JPN, CHN_GB2312, CHN_BIG5) Font0/1/2/4/5/6/7, 24x24 Asian Font(KOR, CPCL JPN, CHN_GB2312, CHN_BIG5), Resident TTF, Character Downloadable TTF FontA~H, FontGS, Resident TTF(Font0), Downloadable TTF Font1 ~ 8...
  • Page 31 Sensor Paper end, Black mark, Cover open, Gap Paper type Thermal paper / Label Width 25 mm ~ 80 mm Paper Thickness 0.06 mm ~ 0.16 mm Roll Max Diameter 56 mm Roll Core 12.5 mm ± 0.5 mm 50 km Continuous Printing 36min Reliability Battery...
  • Page 32 WxDxH(mm) 120 x 152 x 70 Size WxDxH” 4.7 x 5.9 x 2.7 Weight 530g (With Battery : 640g) Environmental sealing IP42, IP54 (With Protection case) Operation -10 ~ 50℃ Temperature Storage -20 ~ 60℃ Operation 10 ~ 80% Humidity storage 10 ~ 90%...

  • Page 33: Utilities

    This program is for label form design and designed LabelMaker(CPCL) label printing. Android Utility It is a utility app that prints text, barcodes, images, (Sewoo M_Utility) etc. through Bluetooth and Wi-Fi communication,  (ESC/POS) and able to printer settings.

  • Page 34: S/W

    Mac Driver in the Mac OS environment. Android Plugin This is a print service plug-in that allows you to print (Sewoo Print Service documents, images, and web pages without installing Plugin) (ESC/POS) additional apps. This is library for communication and data output Windows SDK with Mobile printer in Windows OS.
  • Page 35 PATENT...
