J. STEPHEN Co., Ltd.
28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do, 18103, Republic of Korea
TEL : +82-31-8077-5000 FAX : +82-31-459-8880
www.miniprinter.com

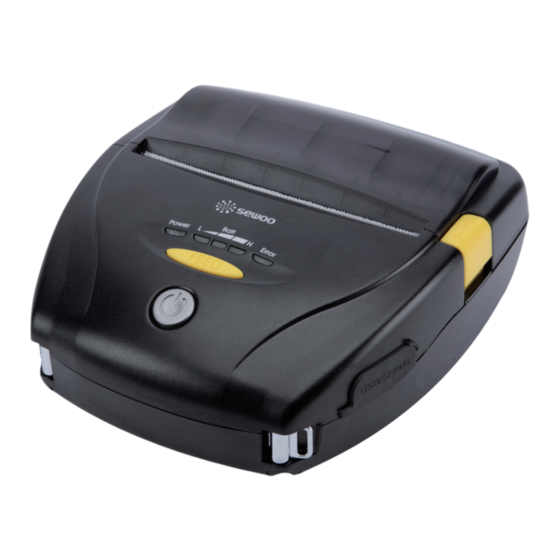

MODEL : LK-P41
MOBILE PRINTER
P41 Rev. H 09/18
All specifications are subject to change without notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LK-P41 and is the answer not in the manual?

Questions and answers

Related Manuals for SEWOO LK-P41

Summary of Contents for SEWOO LK-P41

  • Page 1 J. STEPHEN Co., Ltd. 28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do, 18103, Republic of Korea TEL : +82-31-8077-5000 FAX : +82-31-459-8880 www.miniprinter.com MODEL : LK-P41 MOBILE PRINTER P41 Rev. H 09/18 All specifications are subject to change without notice...

  • Page 2: Table Of Contents

    Table of Contents 1. Safety Precautions This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions. 2. Unpacking 1) This device may not cause harmful interference, and 3. Product Overview 2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 3: Safety Precautions

    1. Safety Precautions For better safety and reliability, adhere to the following precautionary measures. WARNING Read and follow the instructions carefully before operation of the product. Failure to follow these instructions could result in fire, electric shock, other injuries, or property damage. Indication Prohibition Must follow...

  • Page 4: Unpacking

    2. Unpacking 3. Product Overview Standard Front Open Button Printer Battery Roll Paper Paper Feed Button Power Switch SERIAL Charger USB Cable Serial Cable Rear Quick Manual Optional Battery DC Power Battery Cradle Car Adapter Shoulder Strip Leather Case (Charging Cradle)

  • Page 5: Usage And Installation

    4. Usage and Installation 4-1 Control Panel Usage 4-2 Battery Installation Hook Button Name function This button is used to turn the printer on and off. Power When the printer is off, press this button for approximately 3 seconds button and the printer will power on.

  • Page 6: Charging Cradle (Optional)

    4-3 Battery Charging 4-4 Charging Cradle Optional Lamp Lamp DC Jack 1. Place the printer into the charging cradle as shown above. 1. Make sure the printer is turned off. 2. Connect the DC JACK to the charging cradle. 2. After opening the DC JACK cover, connect the DC JACK to the printer. 3.

  • Page 7: Car Charger Usage (Optional)

    4-6 Paper Installation 4-5 Car Charger Usage Optional Printer Press the PUSH button to open Insert the paper in the correct the paper cover direction. See the image above. Battery holder Connect the car charger to the printer or battery cradle. Input 12 ~ 24V Output...

  • Page 8: Leather Case Usage (Optional)

    4-7 Leather Case Usage 4-8 Self Test Optional Turn off the power by pressing the While you are holding the FEED button, Open the leather case Place the printer into the leather case power button for approximately press the power button. 3 seconds.

  • Page 9: Cleaning The Printer

    4-9 Cleaning the Printer Self-Test Printout Sample If the interior of the printer is dusty, printing quality can lowered. In such a case, follow the instructions below to clean up the printer. NOTE 1. Make sure to turn the printer power off prior to cleaning. 2.

  • Page 10: Peripheral Connection

    5. Peripheral Connection 5-3 Interface Cable Connection This product can communicate with other devices via Bluetooth, Wi-Fi, or a communication cable. Serial 5-1 Bluetooth Connection Optional 1. The Printer can be connected to devices equipped with Bluetooth communication capabilities (PDAs, PCs, etc.). 1.

  • Page 11: Printer Specification

    6. Printer Specification 6-1 Specification Paper Paper type Thermal Paper / Label Printing Method Direct Thermal Width 50mm ~112mm Thickness 0.06mm ~ 0.16mm Printing Speed 80mm/sec Resolution 203 DPI Roll Max Diameter 56mm Character Set ESC/POS FontA(12x24), FontB(9x17), Asian Font(KOR, Roll Core 12.5mm +/-0.5mm JPN,CHN_GB2312,CHN_BIG5)

  • Page 12: Cpcl Command Compatibility

    7. CPCL Command Compatibility Graphics Compatibility NOTE ○ Compatible with only Partially LINE ○ commanders provided by Compatible Compatible Compatible the manufacturer. INVERSE-LINE ○ PATTERN ○ ○ △ ● GRAPHICS ○ ○ Printer Commands Compatibility Advanced Commands Compatibility PRINT ○ CONTRAST ○...

  • Page 13: Setting Up The Software

    8. Setting up the Software Please refer to the programming manual included in CD. Line Print Mode Compatibility SETLP ○ SETLF ○ Moving With X and Y Coordinates ○ LMARGIN ○ SETBOLD ○ SETSP ○ Special ASCII Characters ○ SETFF ○...
