SEWOO LK-P34 Manual

Mobile printer(wi-fi & bluetooth)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Aroot Co., Ltd.
28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do ,18103, Republic of Korea
TEL +82-31-8077-5000 / FAX +82-31-624-5310 / http://www.miniprinter.com
P34 ENG Rev. D 01/2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LK-P34 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SEWOO LK-P34

Summary of Contents for SEWOO LK-P34

  • Page 1 Aroot Co., Ltd. 28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do ,18103, Republic of Korea TEL +82-31-8077-5000 / FAX +82-31-624-5310 / http://www.miniprinter.com P34 ENG Rev. D 01/2021...
  • Page 2 MODEL � LK-P34 MOBILE PRINTER(Wi-Fi & Bluetooth) All specifi  cations are subject to change without notice...
  • Page 3 Following information shall be included in the manual Information to User; Caution: the user that changes or modifications not expressly approved by the J. STEPHEN Lab., Ltd.responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B  digital device, pursuant to part 15 of the FCC Rules.
  • Page 4 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions. 1) This device may not cause harmful interference, and including  2)  T his device must accept any interference received, interference that may cause undesired operation. Vic Barczyk 19700 S Vermont Ave Ste 200 Torrance, CA 90502 | USA sales@miniprinter.com...
  • Page 5 Safety Precautions For better safety and reliability, adhere to the following precautionary measures. Read and follow the instructions carefully before operation of the product. Indication Prohibition Must follow Unplug the power from the Do not disassemble outlet Grounding to prevent Do not handle the product with electric shock wet hands...
  • Page 6 WARNING Failure to follow these instructions could result in fire, electric shock, other injuries, or property damage. Do not disassemble, repair or modify the Do not unplug the product. power cable to turn off the product. Potential risk of malfunction, electric Turn off the power shock, or fire.

  • Page 7: Table Of Contents

    Table of Contents Product Overview 1. Unpacking 2. Product Overview 3. AMC(Advanced manual cutter) Button 4. Control Panel Usage Set Up 5. Paper Installation 6. Battery 6-1. Battery Installation 6-2. Battery Removal 6-3. Battery Charging 6-4. Charging Cradle (OPTIONAL) 7. Belt Strap 8.
  • Page 8 Maintenance 10. Cleaning the Printer 11. JAM Error Spectification 12. Roll Media Specification 13. Black Mark 14. Printer Specification 15. Utilities 16. S/W...

  • Page 9: Unpacking

    1. Unpacking Standard Printer Battery Charger USB Cable Quick Manual CD (manual) Roll Paper Belt Strap Optional AC Cord Adaptor Shoulder Strap 4BC-XX(Charging Cradle) Battery Cradle(Charging Cradle)

  • Page 10: Product Overview

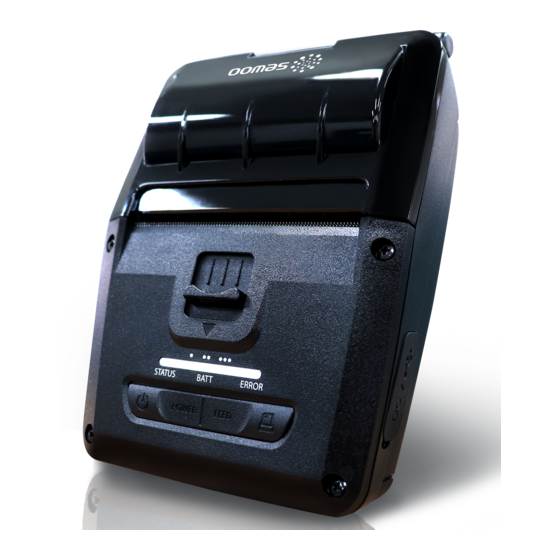

    2. Product overview Front AMC Button - Button Up: Cutting the paper - Button down: Opening the cover POWER Button Paper FEED Button DC POWER Rear Strap Bracket Battery...

  • Page 11: Amc(Advanced Manual Cutter) Button

    3. AMC BUTTON (Advanced Manual Cutter) AMC Button AMC function gives the convenient way for users to cut papers. Button Up Press the button up to cut the paper. Button Down Press the button down to open the cover. Please press the button down and open the cover in situations such as cleaning the head, replacing a paper, and having a paper jam error.

  • Page 12: Control Panel Usage

    4. Control panel usage Button Name function - This button is used to turn the printer on and off. - When the printer is off, press this button for Power approximately 3 seconds and the printer will power on. Button When you press this button while the printer is powered on, the printer will turn off.

  • Page 13: Paper Installation

    5. Paper Installation CAUTION Make sure to be careful of the HOT head AMC BUTTON Press the AMC button down to open Place the paper roll as shown. Make sure the paper cover. the paper is placed in the right direction. CAUTION CAUTION Please make sure you hear the...

  • Page 14: Battery

    6. Battery 6-1. Battery Installation Please make sure you hear the closing sound of the upper cover. HOOK 1 Align battery hook as shown in the picture. 2 Push the battery into the printer until it locks in place. NOTE As the battery is not charged at the time of your purchase, charge the  battery prior to using the printer.

  • Page 15: Battery Removal

    6-2. Battery Removal REMOVE Remove the battery as shown.

  • Page 16: Battery Charging

    6-3. Battery Charging Lamp 1 Make sure the printer is turned off. 2 After opening the DC JACK cover, connect the DC JACK to the printer. 3 Plug the power cord into the electrical outlet. Status charging charging complete Charging Lamp Green NOTE 01 If the charger provided by the manufacturer is not used, the printer can be...

  • Page 17: Charging Cradle (Optional)

    6-4. Charging Cradle Optional Lamp 1 Insert the battery into the battery charger as shown above. 2 Connect the DC JACK to the electrical outlet. 3 Plug the power cord into the electrical outlet. 4 Once the charging is completed, remove the battery from the charger. The charging status LED Status charging...

  • Page 18: Belt Strap

    7. Belt Strap Prepare the belt strap. Put the strap into the strap bracket hole as shown. Turn the strap and printer over and Adjust the strap length for the user’s put the strap into the hook as shown. convenience.

  • Page 19: Self Test

    8. Self Test Turn off the power by pressing the While you are holding the FEED button, power button for approximately  press the power button. 3 seconds. NOTE 01 To enter hex dump mode, press the FEED button once more. 02 If the FEED button is not pressed, the self-test will automatically finish after 3 seconds.
  • Page 20 Self-Test Printout Sample Upon initial installation or for troubleshooting, you can run the diagnostic test to get information about: - Firmware version, emulation, codepage, sensor settings,  interface settings, etc. If no issues are found with the diagnostic test, examine other  devices and software.

  • Page 21: Peripheral Connection

    9. Peripheral Connection This product can communicate with other devices via Bluetooth, Wi-Fi, or a communication cable. 9-1. Bluetooth Connection Optional 1 The Printer can be connected to devices equipped with Bluetooth communication capabilities (PDAs, PCs, etc.). 2 Use the Bluetooth connection function supported by your device to connect to the printer.

  • Page 22: Nfc Connection (Optional)

    9-3. NFC Connection Optional The printer can be connected to devices equipped with NFC communication capabilities. Use the NFC connection function supported by the device to connect to the printer. NOTE - Please refer to the configuration manual for details. - NFC is only compatible with Bluetooth.

  • Page 23: Interface Cable Connection

    9-4. Interface Cable Connection COVER 1 Flip over the connector cover and connect USB cable to the printer connector. NOTE Only use cables included with the printer. (USB) 2 Connect the interface cable to the USB port of the device (PDA, PC, etc.).

  • Page 24: Cleaning The Printer

    10. Cleaning the Printer If the interior of the printer is dusty, printing quality can be reduced. In this case, follow the instructions below to clean the printer. NOTE 01 Make sure to turn the printer power off prior to cleaning. 02 Regarding printhead cleaning, as the printhead gets very hot during printing, turn off the printer power and wait approximately 10 minutes before cleaning.

  • Page 25: Jam Error

    11. JAM Error CAUTION Make sure to be careful of the HOT head. When you face with a paper jam error, Please remove the paper. please press the button down to open the printer cover. NOTE NOTE Please make sure you hear If the cover is not shut down the closing sound of the completely, the printer may...

  • Page 26: Roll Media Specification

    12. Roll Media Specification Core Diameter (A) 12.5 mm Roll Max.Diameter (B) 50 mm Max.Media Width (C) 80 mm Min.Media Thickness 0.06 mm Protect the printhead from sand, grit, and other hard particles during printing and storage. Keep the cover closed. Even very small foreign particles may cause severe harm to the printhead.

  • Page 27: Black Mark

    13. Black Mark 10 ~ 80 72 (PRINT WIDTH ) 80 (MAX PAPER WIDTH)

  • Page 28: Printer Specification

    14. Printer Specification Printing Method Direct Thermal Printing Speed Max. 100mm/s Resolution 203 DPI Font A(12×24), Font B(9×17), Asian Font(KOR,JPN,CHN-GB2312,CHN- Character Big5), Font0/1/2/4/5/6/7, Resident TTF, Downloadable TTF, FontA~H, FontGS, Residnt TTF(Font0), Font 1~8 EAN-8,EAN8(+2+5), EAN-13, EAN13(+2+5), Codabar, Code11, Code39, Code93, Code128, ITF, LUPC-A(+2+5), UPC-E, UPC-E(+2+5), Barcode Planet, UPC-A etc...
  • Page 29 Standard Interface Wi-Fi(802.11a/b/g/n) or Bluetooth Smart Option ready(Bluetooth 4.2+BLE) Input AC100~240V, 50/60Hz Battery Charger Output 8.4V , 800~1400mA Type Li-ion Battery Output 7.4V, 2000mAh Charging time 3Hrs (77Hrs stand-by) Cutter AMC(Advanced Manual Cutter) Size 107.5 x 145 x 56 [W x D x H (mm)] IP54 Weight 415.3g (with Battery)

  • Page 30: Utilities

    This program is for label form design and designed LabelMaker(CPCL) label printing. Android Utility It is a utility app that prints text, barcodes, images, (Sewoo M_Utility) etc. through Bluetooth and Wi-Fi communication,  (ESC/POS) and able to printer settings.

  • Page 31: S/W

    Mac Driver in the Mac OS environment. Android Plugin This is a print service plug-in that allows you to print (Sewoo Print Service documents, images, and web pages without installing Plugin) (ESC/POS) additional apps. This is library for communication and data output Windows SDK with Mobile printer in Windows OS.
  • Page 32 PATENT...
