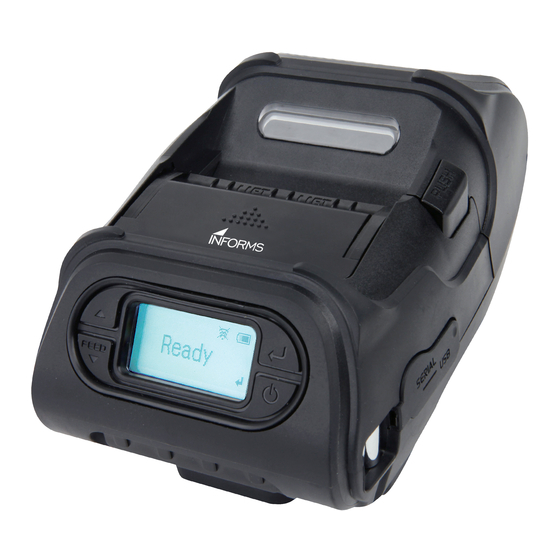

- Page 1 SEWOO TECH CO.,LTD. 374-2, Gajang-dong, Osan-si, Gyeonggi-do, 447-210, Korea TEL : +82-31-459-8200 FAX : +82-31-459-8880 www.miniprinter.com MODEL : LK-P12B USER’S MANUAL All specifications are subject to change without notice P12B Rev. B 12/13...
- Page 2 RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTION...
-
Page 3: Table Of Contents
Table of Contents 1. Safety Caution 8. CPCL Command Compatibility 2. Unpacking 9. ESC/POS Command Compatibility 3. Product overview 10. ZPL Command Compatibility 4. Installation & Usage 4-1. Display 4-2. Installing the Battery 4-3. Removing the Battery 4-4. Charging the Battery 4-5. -
Page 4: Safety Caution
1. Safety Caution For higher reliability and safety, consider the following precautionary measures. WARNING Read and follow the instructions carefully before running of the product. Failure to follow these instructions could result in fire, electric shock, or other injuries, or property damage Indication Prohibition Must follow... -
Page 5: Unpacking
2. Unpacking 3. Product overview Standard Front PEELER WING PEELER BODY Battery Printer Belt Clip COVER OPEN DISPLAY BUTTON SERIAL Recharger Serial cable USB Cable Bottom BATTERY Paper Quick Reference BELT CLIP CONNECTOR Optional SHOULDER STRAP RING CHARGER Cigar jack CONNECTOR Shoulder Strap... -
Page 6: Display
4. Setting Up the Product 4-2. Installing the Battery 4-1. Display Button Name function Advances the supply. Clears error message. Moves down through menu options. Paper Feed/ 1. Refer to “3-10” for Diagnostic Test information. Down button 2. Refer to the service manual regarding Hexadecimal Remove the battery. -
Page 7: Removing The Battery
4-3. Removing the Battery 4-4. Charging the Battery ② ① 1. Be sure that the printer is turned off 2. After open the DC JACK cover, insert DC JACK into the printer. Remove the battery. Lift out the battery. 3. Plug the power code to electrical outlet. 4-4-1 The status of lamp in charging Status charging... - Page 8 4-6. Belt clip Usage 4-5 Usage of Cigar Jack Charger Optional Printer Insert screw into belt clip. Connect the vehicle charger to the printer. Input 12 ~ 24V Output 8.4V 0.8 ~ 1.2A NOTE Connect the vehicle charger to the printer. Tighten the screw with driver as shown.
-
Page 9: Roll Paper Installation
4-8. Peel Mode 4-7. Roll Paper installation Peel Mode With a roll of stock installed, slide the Push the peeler body until you see two Put the stock in so it unrolls from the Open the Paper cover by pressing the peeler body towards the back of the complete triangles. -
Page 10: Shoulder Strap Installation
4-9. Shoulder Strap Installation When users operates the peeler like the image below that has Optional slits on the label(1) and the perforated label(2) , there might be an error in the peeler function Paper (1) Label Paper Engraved Line Insert the strap into the hook of the printer. -
Page 11: Diagnostic Test
4-10. Diagnostic Test The sample of self test printout Turn off the printer. Press and hold the feed button and power button. NOTE 1. For Hex Dump mode, do steps 1-2 then press the feed button. 2. After printing ASCII pattern, Upon initial installation or for troubleshooting, you can run the diagnostic test to get the diagnostic test is complete. -
Page 12: Peripherals Connection
5. Peripherals Connection 5-2. Interface Cable Connection This printer can communicate with Peripherals device via Bluetooth and cables. 5-1 Bluetooth Connection Serial 1. Printer can be connected to the PDA and PC which can do wireless communication. 1. Connect the USB or Serial cable to the cable connector on the printer. 2. -
Page 13: Printer Cleaning
6. Printer cleaning If the interior of the printer is dusty, printing quality can be lowered. 6-2. Platen Roller Cleaning In this case, follow the instructions below to clean the printer. 1.Clean the platen roller with a clean soft cloth moistened with isopropyl 6-1. -
Page 14: Specification
7. Printer Specification 7-1. Specification Battery Charger input AC100~240V, 50/60Hz Printing Method Direct Thermal output 8.4V , 800~1200mA Printing Speed 80mm/sec Battery Battery type Li-ion Resolution 203 DPI X 203 DPI output 7.4V, 18.9wh Character ALPHA NUMERIC Character, Extension Character Charging time 3.7 Hrs Charging Barcode... -
Page 15: Cpcl Command Compatibility
8. CPCL Command Compatibility DATAMATRIX ● NOTE GS1(RSS-14) ○ Compatible with only Partially AZTEC ○ commanders provided by Compatible Compatible Compatible GRAPHICS Compatibility the manufacturer. ○ △ ○ ● LINE ○ INVERSE-LINE ○ Printer Commands Compatibility PATTERN ○ PRINT ○ GRAPHICS FORM ○... -
Page 16: Esc/Pos Command Compatibility
9. ESC/POS Command Compatibility SETBOLD ○ Command Function Compatibility SETSP ○ Horizontal tab ○ Special ASCII Characters ○ Print and line feed ○ SETFF ○ Print and carriage return ○ SET-TOF ○ Print end position label to start printing ○ SETLP-TIMEOUT ○... -
Page 17: Zpl Command Compatibility
10. ZPL Command Compatibility Command Compatibility Command Function Compatibility ○ ESC＼ Set relative position ○ ○ ESC a Align position ○ ○ ESC d Print and feed paper n lines ○ ○ ESC t Select character code table ○ ○ ESC { Set/cancel upside-down character printing ○... - Page 18 Command Compatibility Command Compatibility ○ ○ ○ ○ ○ ○ ^CC ~CC ○ ○ ○ ○ ○ ○ ○ ○ ^CT ~CT ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○...
- Page 19 Command Compatibility ○ ○ ○ ○ ○ ○...
