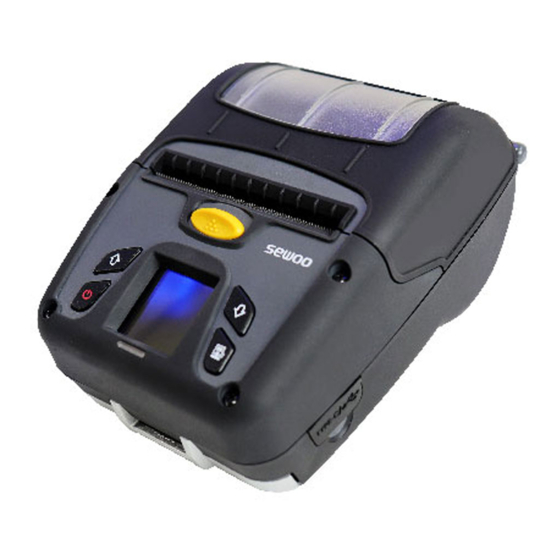

MODEL : LK-P300
MOBILE PRINTER(Wi-Fi & Bluetooth)
Aroot Co., Ltd.
28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do ,18103, Republic of Korea
TEL +82-31-8077-5000 / FAX +82-31-624-5310 / http://www.miniprinter.com
All specifications are subject to change without notice
P300 ENG Rev. 12/2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LK-P300 and is the answer not in the manual?

Questions and answers

Related Manuals for SEWOO LK-P300

Summary of Contents for SEWOO LK-P300

  • Page 1 MODEL : LK-P300 MOBILE PRINTER(Wi-Fi & Bluetooth) Aroot Co., Ltd. 28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do ,18103, Republic of Korea TEL +82-31-8077-5000 / FAX +82-31-624-5310 / http://www.miniprinter.com All specifications are subject to change without notice P300 ENG Rev. 12/2023...
  • Page 2 Following information shall be included in the manual This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions. 1) This device may not cause harmful interference, and Information to User; 2)  T his device must accept any interference received, including interference that may  cause undesired operation.
  • Page 3 Safety Precautions For better safety and reliability, adhere to the following precautionary measures. WARNING Read and follow the instructions carefully before operation of the product. Failure to follow these instructions could result in fire, electric shock, other injuries, or property damage. Indication Do not disassemble, Prohibition...

  • Page 4: Table Of Contents

    Table of Contents Product Overview Maintenance 1. Unpacking 10. Cleaning the Printer 2. Product overview 10-1. Print-Head Cleaning 3. Control Panel Usage 10-2. Platen Roller Cleaning 11. JAM Error Set Up Spectification 4. Paper Installation 12. Black Mark 5. Power Save Function 13.

  • Page 5: Unpacking

    1. Unpacking 2. Product overview Standard Front COVER OPEN Button POWER Button Printer Battery Charger USB Cable Paper FEED Button USB Type C Quick Manual Roll Paper Belt Strap Cleaning Pen Rear Optional Strap Bracket Battery Charging Cradle Shoulder Strap Large Battery...

  • Page 6: Control Panel Usage

    3. Control Panel Usage 4. Paper Installation CAUTION Make sure to be careful of the HOT head COVER OPEN button Paper guide Button Name Function - This button is used to turn the printer on and off. Press the COVER OPEN button up to open the Place the paper roll as shown.

  • Page 7: Power Save Function

    5. Power Save Function 5-1. Power Save Function Setting up as a printer : - For setting through the LCD screen, refer to the screen below. When the printer is idle for a period of time, the Power Save Function disables parts of printer’s functionality in order to minimize the power consumption and extend 1.

  • Page 8: Recommended Settings For Power Save Function

    5-2. Recommended settings for Power Save Function Example 1: Enabling Only Sleep and Deep Sleep Modes IF using only Bluetooth : - It is convenient to set the deep sleep waiting time to '0' to avoid entering deep sleep After being idle for 1 minute, the printer because automatic wakeup through data transmission to printer is not supported in goes into Sleep (low power).

  • Page 9: Battery

    6. Battery 6-1. Battery Installation 6-2. Battery Removal Please make sure you REMOVE hear the click sound of the battery. HOOK Remove the battery as shown. 1 Press up on the battery handle and lift it up. 2 Remove the battery. 1 Align battery hook as shown in the picture.

  • Page 10: Battery Charging

    6-3. Battery Charging 6-4. Charging Cradle Optional Lamp Lamp 1 Insert the battery into the battery charger as shown above. 2 Connect the DC JACK to the electrical outlet. 1 Make sure the printer is turned off. 3 Plug the power cord into the electrical outlet. 2 After opening the cover, connect the to the printer.

  • Page 11: Set Cradle(Optioanl)

    7. Belt Strap 6-5. Set Cradle Cradle Lever Lamp Prepare the belt strap. Put the strap into the strap bracket hole as shown. 1 Place and slide the product from top to bottom of the Set Cradle as shown in the picture.

  • Page 12: Self Test

    8. Self Test Self-Test Printout Sample Upon initial installation or for troubleshooting, you can run the diagnostic test to get information about: - Firmware version, emulation, codepage, sensor settings,  interface settings, etc. If no issues are found with the diagnostic test, examine other  devices and software.

  • Page 13: Peripheral Connection

    9. Peripheral Connection 9-2. Wi-Fi Connection This product can communicat with oher devices via Bluetooth or a communication cable. 9-1. Bluetooth Connection 1 The Printer can be connected to devices equipped with Wi-Fi communication capabilities (PDAs, PCs, etc.). 2 Use the Wi-Fi connection function supported by the device to connect to the printer.

  • Page 14: Cleaning The Printer

    10. Cleaning the Printer 10-2. Platen Roller Cleaning If the interior of the printer is dusty, printing quality can be reduced. In this case, follow the instructions below to clean the printer. 1 Use a cleaning pen to clean the rollers. 2 Wipe the entire Roller by rotating it with your fingers.

  • Page 15: Jam Error

    11. JAM Error 12. Black Mark CAUTION Make sure to be careful of the HOT head. When you face with a paper jam error, Please remove the paper. please press the button up to open the PRINTER COVER. NOTE NOTE Please make sure you hear the If the cover is not shut down completely, closing sound of the upper cover.

  • Page 16: Gap

    14. Printer Specification 13. Gap Printing Method Direct Thermal Printing Speed Max. 127mm/s Resolution 203 DPI Font A(12×24), Font B(9×17), Asian Font(KOR,JPN,CHN-GB2312,CHN- Character Big5), Font0/1/2/4/5/6/7, Resident TTF, Downloadable TTF, FontA~H, FontGS, Residnt TTF(Font0), Font 1~8 - 1D : EAN-8, EAN-13, Code39, ITF, UPC-A, ESC/POS UPC-E, Codabar, Code93, Code128 - 2D : QR, PDF417...

  • Page 17: Utilities

    Operation 10 ~ 90% Humidity (Non Condensing) Android Utility It is a utility app that prints text, barcodes, images, Storage 10 ~ 90% (Sewoo M_Utility) etc. through Bluetooth and Wi-Fi communication,  (ESC/POS) and able to printer settings.

  • Page 18: S/W

    Mac Driver in the Mac OS environment. Android Plugin This is a print service plug-in that allows you to print (Sewoo Print Service documents, images, and web pages without installing Plugin) (ESC/POS) additional apps. This is library for communication and data output Windows SDK with Mobile printer in Windows OS.
