Adjusting the output

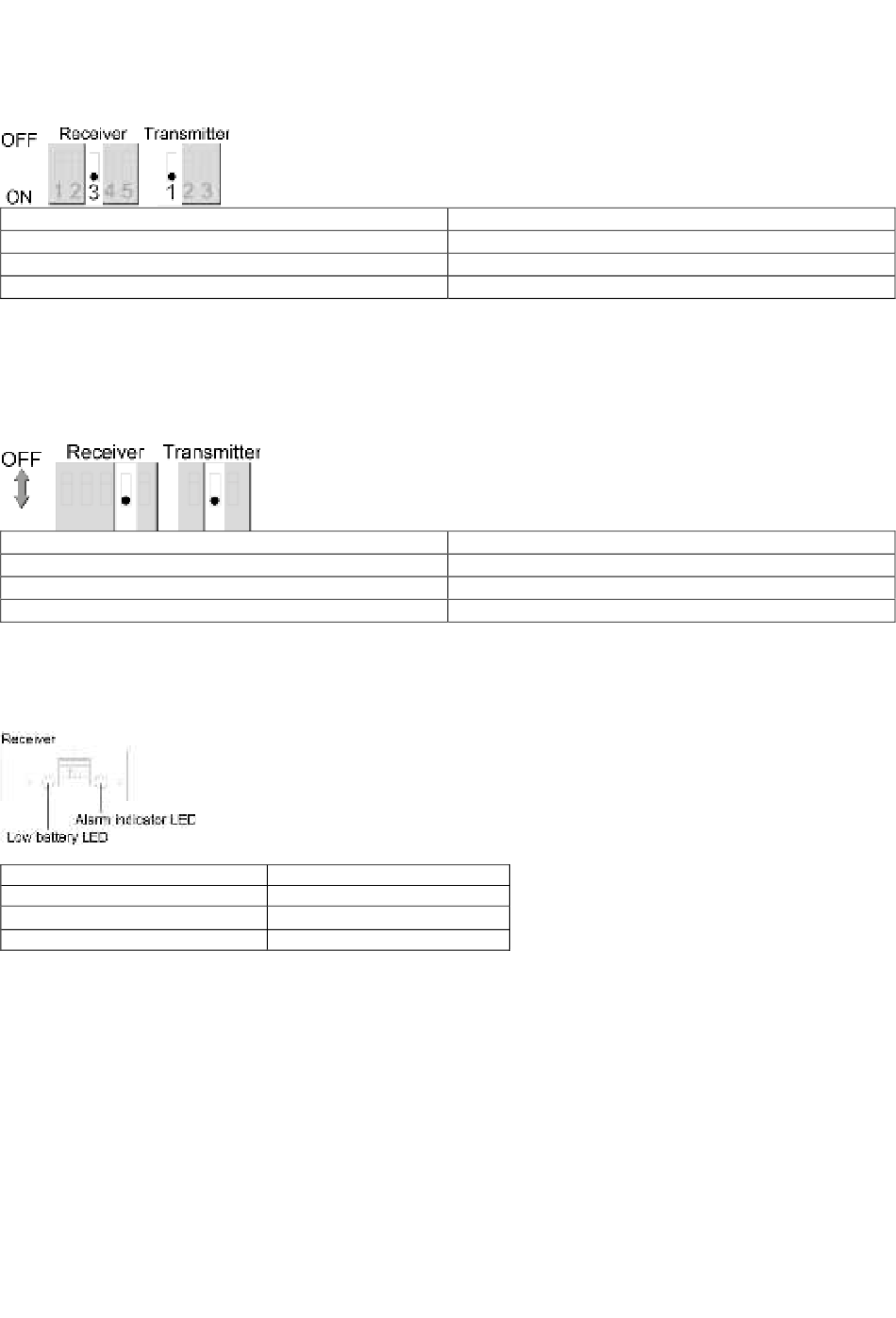

Setting the battery saving timer
Even if the following events are occurred frequently, each output is generated with the intervals as below to save
the battery drain.
Function
Alarm output
DQ output
Low battery output
Caution:
Remove all batteries prior to replacing with new ones. If this is not followed, the low
battery indicator LED will not reset and continue to flicker.
Setting the intermittent output function
Set the intermittent output function to the on position to turn on the intermittent alarm output. This configures the
wireless transmitter to send alarms at a specific time interval.
Function
Alarm output
DQ output
Low battery output
Operation Check
LED Indication
DETECTOR STATUS
Power ON
Detection (beam interruption)
Low battery power
Operation Check
After installation is complete, check the operation.
1. See Setting the battery saving timer to turn OFF the battery saving mode.
2. Make sure that the alarm indicator is off. If it is illuminated when the beams are not blocked, set optical
alignment again.
3. Check that the low battery indicators on both transmitter and receiver are off. If the LED is blinking, the
battery power is low. Replace with the new batteries.
4. Conduct a walk test to check that the alarm indicator LED on the receiver turns on as the walker
interrupts the beams.
Be sure to conduct a walk test at the following three points:
A.
In front of the transmitter
B.
In front of the receiver
C.
At the midpoint between the transmitter and receiver
The detector is installed correctly when the alarm indicator LED turns ON in
the tests at all the three points.
For battery power savings, perform the operation check before checking the following items.
Caution:
1.
When installing on a wall or pole, make sure the cover is properly attached to main unit.
LED Indications
The power LED turns ON.
The alarm LED turns ON.
The low battery LED blinks.
Setting
1 output 2 minutes
1 output 2 minutes
1 output 15 minutes
Setting
1 output 1 minutes
1 output 1 minutes
1 output 5 minutes
