ENFORCER E-931-S50RRGQ Manual

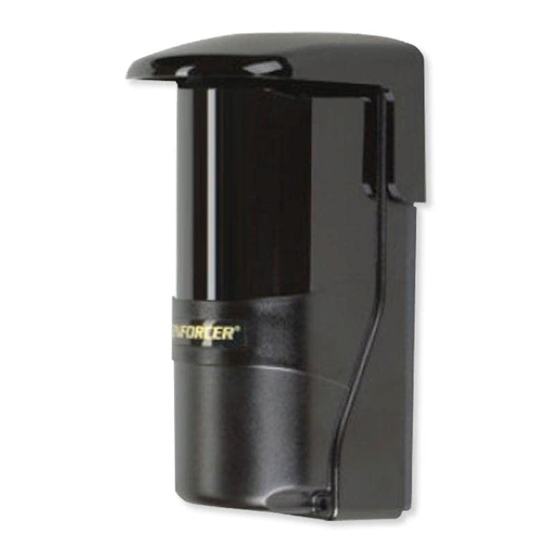

50ft reflective photoelectric beam sensor
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
50ft Reflective Photoelectric Beam Sensor
 Up to 50ft (15m) sensing range
 Weatherproof (IP55)
 Anti-condensation housing
 12-30V DC/AC 60Hz, 100mA
Caution:
 This sensor is not designed to prevent bodily injury or loss of life.
 This sensor is not designed for use in environments where explosive gasses may be present.
 Use of this sensor in certain security applications may be regulated by local laws or codes. SECO-LARM is not
responsible for compliance with such laws or codes.
E-931-S50RRGQ
Manual
 Form C relay: 0.5A@30VAC/VDC
 Beam status LED
 N.C. Tamper switch:
500mA@30VAC/VDC

Advertisement

loading
Need help?

Need help?

Do you have a question about the E-931-S50RRGQ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ENFORCER E-931-S50RRGQ

Summary of Contents for ENFORCER E-931-S50RRGQ

  • Page 1 E-931-S50RRGQ 50ft Reflective Photoelectric Beam Sensor Manual  Up to 50ft (15m) sensing range  Form C relay: 0.5A@30VAC/VDC  Weatherproof (IP55)  Beam status LED  Anti-condensation housing  N.C. Tamper switch:  12-30V DC/AC 60Hz, 100mA 500mA@30VAC/VDC Caution: ...
  • Page 2 ENFORCER 50ft Reflective Photoelectric Beam Sensor Specifications: Parts List: Model E-931-S50RRGQ 1x Sensor Reflective photoelectric Type beam sensor 1x Reflector Sensing range 50ft (15m) 1x Mounting bracket Operating voltage 12-30V DC/AC 60Hz, 100mA 1x Sensor hood Standby 55mA@12VDC Current 4x Cover screws...
  • Page 3 ENFORCER 50ft Reflective Photoelectric Beam Sensor Mounting: 1. Unscrew the four cover screws and remove the cover. 2. Loosen the captive screw and remove the sensor from the mounting plate. 3. Using the included mounting screws, mount the mounting plate to the wall.
  • Page 4 ENFORCER 50ft Reflective Photoelectric Beam Sensor Sample Applications: Garage Vehicle Assembly Gate Door Detection Line Optional Accessory: Other Sensors Available: Reflector Hood E-931ACC-HR1Q Provides extra protection for the Reflective Dual and Curtain and reflector. Photobeam Quad Beam Barrier Compatible with Reflective Photoelectric Beam Sensor models E-931-S50RRGQ, E-931-S35RRQ, and E-931-S33PRGQ.
