ENFORCER

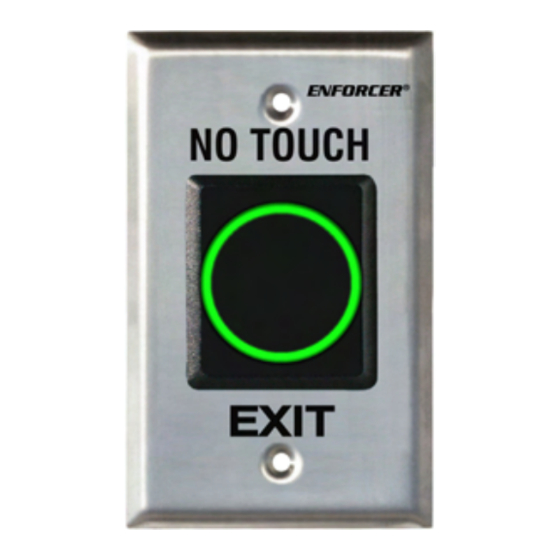

The ENFORCER No Touch Request-To-Exit Sensor uses IR technology to request egress from a protected
area or activate a device with the simple wave of a hand. Since it is No Touch, this sensor is ideal for use
in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.
Features:
• Range up to 4" (10cm). Range for
SD-927PWCQ is up to 2" (5cm).
• Stainless steel or white plastic
single-gang plate.
• 3A relay, triggers minimum 0.5 sec or as
long as hand is near the sensor.
Note: Products with model number that ends with "Q" or which have a round green "Q" sticker represent RoHS compliant products.
No Touch
Request-To-Exit Sensor
SD-927PKC-NEQ (English)
SD-927PKC-NSQ (Español)
SD-927PKC-NFQ (Francais)
Manual
(English / Español / Francais)
,
• LED illuminated sensor area for
easy identification.
• Quick connect screwless terminal block.
• Selectable LED colors (turns from red
to green or green to red) to show
sensor activated.
SD-927PWCQ
,
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ENFORCER No Touch SD-927PKC-NEQ
Summary of Contents for ENFORCER No Touch SD-927PKC-NEQ
- Page 1 SD-927PKC-NFQ (Francais) The ENFORCER No Touch Request-To-Exit Sensor uses IR technology to request egress from a protected area or activate a device with the simple wave of a hand. Since it is No Touch, this sensor is ideal for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.
- Page 2 NO TOUCH REQUEST-TO-EXIT SENSOR Installation Manual Installation: Fig. 1 – Connections (under 1. Run four wires through the wall to a single-gang back cover) back-box. 2. Connect the four wires from the back-box to the quick Power Input Relay Output (3A max) connect screwless terminal according to Fig.
- Page 3 NO TOUCH REQUEST-TO-EXIT SENSOR Installation Manual Example Installations: 1. Installation with Electromagnetic Lock (Fail-Safe) EAP-5D1Q Access Control Power Supply ENFORCER Series Electromagnetic Lock 12VDC Relay output Power input ( ) ( NC COM NO 2. Installation with Electric Doorstrike (Fail-Secure)
- Page 4 NO TOUCH REQUEST-TO-EXIT SENSOR Installation Manual Care and Cleaning for the SD-927P Series No-Touch: The SD-927P Series is designed for inside use to match most interiors. The sensor and included decals (SD-927PWCQ only) require special care to ensure reliability and a long operating life. 1.
