ENFORCER E-931-S35RRQ Installation Manual

ENFORCER E-931-S35RRQ Installation Manual

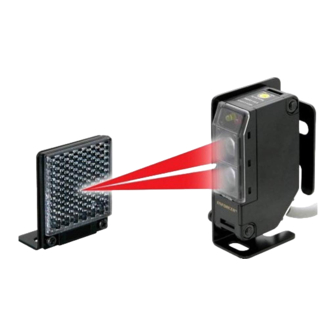

Retro-reflective photoelectric beam sensor
Hide thumbs Also See for E-931-S35RRQ:

Advertisement

Quick Links

Specifications:

Model Number:
Type:
Sensing Range:
Voltage Supply:
Response Time:
Light Source:
LEDs:
Trigger Output:
Switching Capacity:
Enclosure:
Ambient Temperature:
Mounting Brackets for Sensor and Reflector:

Troubleshooting:

Trouble
Possible Origin(s)
Sensor does not detect the object.
1) Sensor sensitivity is not properly set.
2) Object may have a reflective surface
which confuses sensor.
Yellow LED does not turn on.
1) Dirty sensor and/or reflector.
2) Reflector and/or sensor is misaligned.
Red LED lights when object is
No continuity between sensor and alarm
detected, but no output.
device.
Dimensions:
/
" (10mm)
13
2
3
/
" (53mm)
32
32
NOTICE:
The information and specifications printed in this manual are current at the time of publication. However,
the SECO-LARM policy is one of continual development and improvement. For this reason, SECO-LARM reserves the right
to change specifications without notice. SECO-LARM is also not responsible for misprints or typographical errors.
Copyright © 2014 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in whole
or in part, without the written permission of SECO-LARM.
WARRANTY:
ENFORCER Photobeam Sensors are warranted against defects in material and workmanship while
used in normal service for a period of one (1) year from the date of sale to the original customer. Our obligation is
limited to the repair or replacement of any defective part if the unit is returned, transportation pre-paid, to SECO-LARM.
SECO-LARM
U.S.A., Inc.,
®
16842 Millikan Avenue, Irvine, CA 92606 Tel: 800-662-0800 / 949-261-2999
Fax: 949-261-7326 Website: www.seco-larm.com E-mail: sales@seco-larm.com
E-931-S35RRQ
Retro-Reflective
0.5' to 35' (0.1 - 11 m)
12-240 VDC or 24-240 VAC
10ms (max.)
IR LED
Yellow LED (Alignment), Red LED (trigger)
SPDT Relay output
250VAC/1A, 30VDC/2A
IP 66 Waterproof
-4
- 131
F (-20
- 55
C)
0
0
0
0
Included
Remedy(s)
Change the angle of the sensor or
readjust the sensitivity setting.
1) Clean the sensor and reflector with a
damp (not wet) cloth.
2) Adjust the reflector and/or sensor for
proper alignment.
Check cable from sensor to alarm
device. Test sensor.
0.79"
1.57"
(20mm)
(40mm)
1.18"
(30mm)
2-Ø4.5 thru hole
0.20"
Ø6 cable 2M
(5mm)
MiE931S35RRQ_1409.pmd
ENFORCER
Retro-Reflective
Photoelectric
Beam Sensor
E-931-S35RRQ
Range: 35ft. (11m)
Features:
• • • • • Universal AC/DC power supply.
• • • • • Waterproof (IP 66) construction for indoor/
outdoor usage.
• • • • • Dark ON operation (Light ON operation also
available).
• • • • • Pre-wired 6-foot cord.
• • • • • Bracket and mounting hardware included for
both sensor and reflector.
• • • • • Adjustable sensing distance.
• • • • • Compact size.
Included:
E-931ACC-R1Q
Reflector
Transmitter/Receiver
Caution:
• This sensor was not designed to prevent bodily
injury or loss of life.
• This sensor was not designed for use in
environments where there may be explosive
gasses present.
PITJW3
®
®

INSTALLATION MANUAL

Typical Applications:
• Safety sensor for garage doors or outdoor gates.
• Overhead doors security sensor.
• Industrial automation - Detect small objects on
manufacturing line.
• Entry detection for store fronts.
• Assist in measuring parking distance.
• Alarm sensor.
E-931-S35RRQ
E-931ACC-BLS1Q
Sensor Mounting Bracket
Reflector Mounting Bracket
• Use of this sensor in certain security
applications may be regulated by local laws or
codes. SECO-LARM is not responsible for
compliance with such laws or codes.
Mounting
hardware also
included.
E-931ACC-BLR1Q
