ENFORCER EFR-E-931-S35RRQ Installation Manual

ENFORCER EFR-E-931-S35RRQ Installation Manual

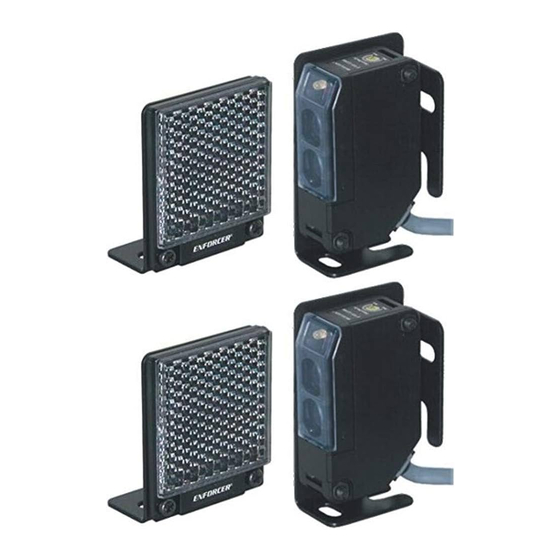

Reflective photoelectric sensor

Advertisement

Quick Links

ENFORCER
Sensor
Reflective
Photoelectric
Sensor
E-931-S35RRQ
Range: 35ft. (11m)
INSTALLATION MANUAL
Features:
• • • • •
Weatherproof (IP 66) design
for indoor/outdoor use.
• • • • •
Dark ON operation.
• • • • •
Pre-wired 6-foot cord.
• • • • •
Adjustable sensing distance.
• • • • •
NO/NC/COM relay output.
• • • • •
Compact size.

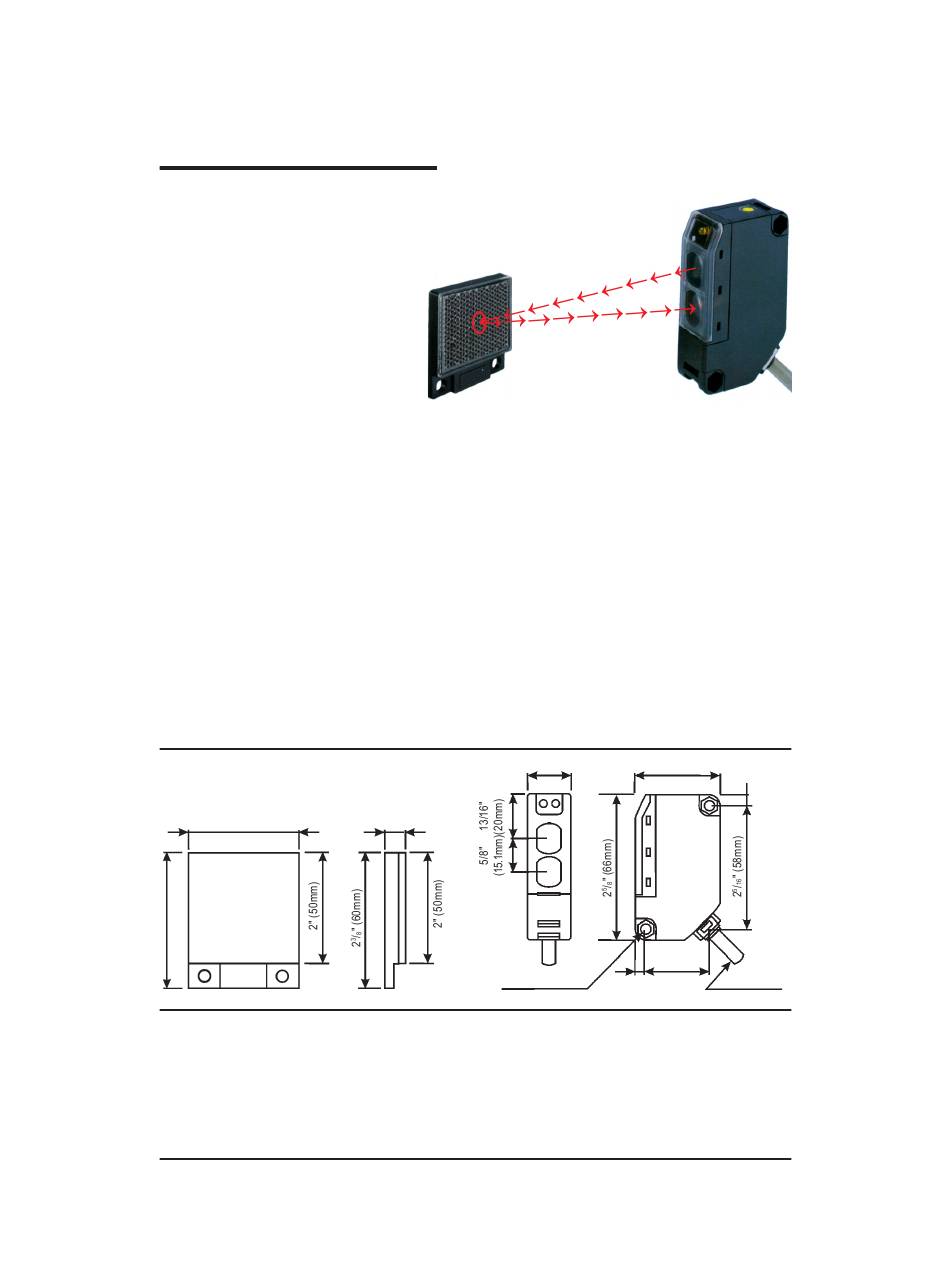

Dimensions:
2" (50mm)
Reflector
Caution:
This sensor was not designed to prevent bodily injury
or loss of life.
This sensor was not designed for use in
environments where there is the possibility of
explosive gasses present.
®
E R
O R C
E N F
Typical Applications:
Safety sensor for garage doors
or outdoor gates.
Overhead door security sensor.
Industrial automation --
Detect small objects on a
manufacturing line.
Entry detection for storefronts.
Assist in measuring parking distance.
Alarm sensor.
13/16" (20mm)
5/16" (8mm)
2-Ø4.5 thru hole
Use of this sensor in certain security applications
may be regulated by local laws or codes.
SECO-LARM is not responsible for compliance with
such laws or codes.
Includes:
• • • • •
Reflector (E-931ACC-R)
• • • • •
Transmitter/Receiver
(E-931-S35RRQ)
• • • • •
Sensor mounting
bracket
(E-931ACC-BLS1)
• • • • •
Reflector mounting
bracket
(E-931ACC-BLR1)
• • • • •
Mounting hardware also
included.
1
/
"
5
8
(40mm)
Sensor
1
3
/
"
16
(30mm)
3/16"
Ø6 cable 2M
(5mm)
