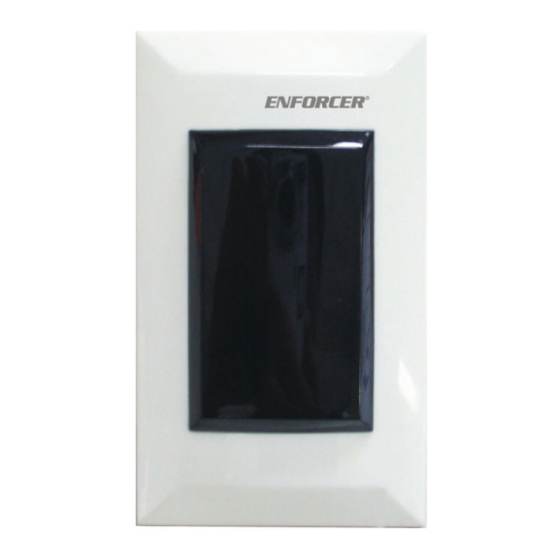

ENFORCER
Flush-Mount
Photobeam
Sensors
E-932-D33TBQ
Dual Beam
Range: 33ft. (10m)
E-932-S16RRQ
Retro-Reflective
Range: 16ft. (5m)
Features:
• • • • • Range: Up to 33 feet (10m) E-932-D33TBQ
Up to 16 feet (5m) E-932-S16RRQ
• • • • • For indoor use.
• • • • • 12~18VDC.
• • • • • Horizontal and vertical adjustment for easy
alignment.
• • • • • N.C./N.O./COM relay outputs.
Caution:
• This sensor was not designed to prevent
bodily injury or loss of life.
• This sensor was not designed for use in
environments where there is the possibility of
explosive gasses being present.
Sensor
INSTALLATION MANUAL
Typical Applications:
• Entry detection for store fronts.
• Alarm sensor.
• Use of this sensor in certain security
applications may be regulated by local laws
or codes. SECO-LARM is not responsible
for compliance with such laws or codes.
E-932-D33TBQ
E-932-S16RRQ
Advertisement
Related Manuals for ENFORCER E-932-D33TBQ
Summary of Contents for ENFORCER E-932-D33TBQ
-

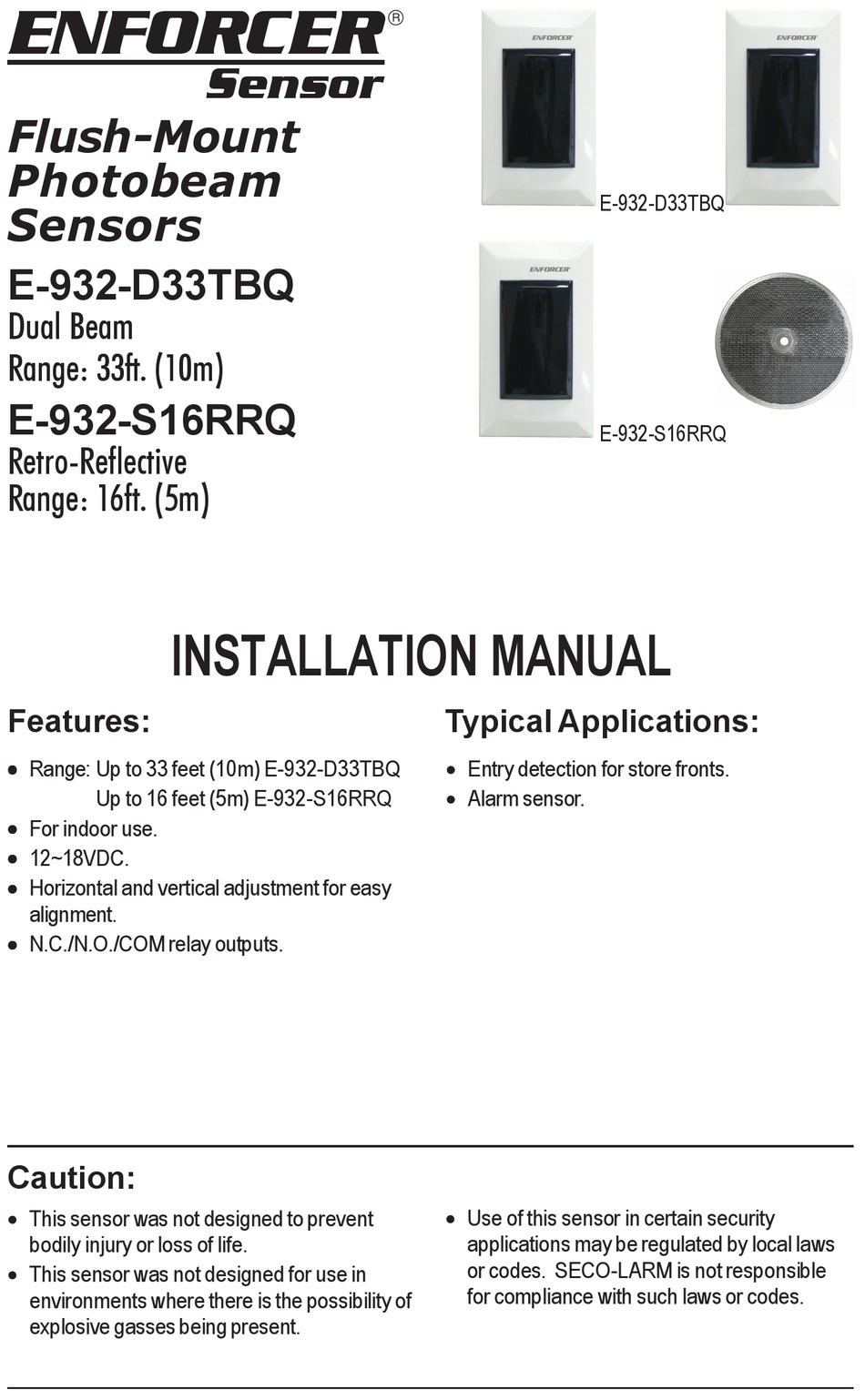

Page 1: Installation Manual
Range: 16ft. (5m) INSTALLATION MANUAL Features: Typical Applications: • • • • • Range: Up to 33 feet (10m) E-932-D33TBQ • Entry detection for store fronts. Up to 16 feet (5m) E-932-S16RRQ • Alarm sensor. • • • • • For indoor use. - Page 2 Screws. Be sure to use flat- head, flush mounting screws. Fig. 4 - Wiring Red (DC+) Red (DC+) Red (DC+) Black (DC-) Black (DC-) Black (DC-) Blue (N.C.) Blue (N.C.) White (COM) White (COM) Green (N.O.) Green (N.O.) (E-932-D33TBQ) (E-932-S16RRQ)
- Page 3 E-932-D33TBQ E-932-S16RRQ Installation and Alignment Installation and Alignment LED functions: LED functions: TX RED (on): Power Red (on): Power RX RED (off): Aligned Yellow (off): Aligned RX RED (on): Out of Alignment Yellow (on): Out of Alignment RX RED (on) after being aligned: Unit Triggered...
-
Page 4: Specifications
Specifications: E-932-S16RRQ E-932-D33TBQ Type Reflective beam Dual through beam Sensing Range 16 ft (5m) 33 ft (10m) Supply Voltage 12~18VDC 12~18VDC Current Drain 5 0 m A max. 5 0 m A max. Response Time 10msec. 10msec. Light Source IR LED...
