ENFORCER E-9622-4B25 Installation Manual

Curtain/Barrier Sensors Installation Manual

Dimensions:

22.5" (57cm) -- E-9622-4B25
44.5" (113cm) -- E-9644-6B25
60.1" (153cm) -- E-9660-8B25
79" (201cm) -- E-9680-10B25
Side View

Specifications:

E-9622-4B25
Standby -- 12~24VDC 89mA
Active -- 12~24VDC 73mA
Dimensions
22 / " x 1 / " x / " 44
1 5 7
2 16 8
Response time 0.5~32.5mS
Maximum Range Indoor: 50' (16m), outdoor: 25' (8m)
Detection method Simultaneous break of 2 adjacent beams or any single beam (programmable)
Output
NO./NC. relay output, 1A @ 12 ~ 24VDC
Operating temperature -49°~131° F (-45°~55° C)
Attenuation LED (On): powered, aligned properly*
(Flashing): beam is broken or unaligned*
(Off): no power*
*Depending upon how programmed
Enclosure / Case IP65 / A1 alloy
Included
Mounting bracket

WARRANTY:

This SECO-LARM product is warranted against defects in material and workmanship while used in
normal service for a period of one (1) year from the date of sale to the original consumer customer. SECO-LARM's obligation is
limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM.
This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair,
or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such
equipment is not operating properly as a result of causes other than defects in material and workmanship.
The sole obligation of SECO-LARM, and the purchaser's exclusive remedy, shall be limited to replacement or repair only, at
SECO-LARM's option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential personal
or property damages of any kind to the purchaser or anyone else.
NOTICE
The information and specifications printed in this manual are current at the time of publication. However, the SECO-LARM policy is one
of continual development and improvement. For this reason, SECO-LARM reserves the right to change specifications without notice.
SECO-LARM is also not responsible for misprints or typographical errors.
Copyright © 2007 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in whole or in part,
without the written permission of SECO-LARM.
SECO-LARM SECO-LARM SECO-LARM SECO-LARM SECO-LARM U.S.A., Inc. U.S.A., Inc. U.S.A., Inc. U.S.A., Inc. U.S.A., Inc.
®
16842 Millikan Avenue, Irvine, CA 92606
Tel: 800-662-0800 / 949-261-2999 Fax: 949-261-7326
Page 8
E-9644-6B25 E-9660-8B25 E-9680-10B25
94mA 102mA
79mA 92mA
/ " x 1 / " x / " 60 / " x 1 / " x / " 79" x 1
1 5 7 1 5 7
2 8
16 8 16 8
0.5~48.5mS 0.5~60mS 0.5~70mS
Website: www.seco-larm.com
E-mail: sales@seco-larm.com
CurtainSensor1206.pmd
INSTALLATION MANUAL
ENFORCER
Curtain/Barrier Sensors
E-9622-4B25
E-9644-6B25
E-9660-8B25
E-9680-10B25
110mA
100mA
/ " x / "
5 7
16 8
Typical
Door/Window Frame
PICTN1
®
SECO-LARM
-- 4-Beams
-- 6-Beams
-- 8-Beams
-- 10-Beams
Range: 50 ft. indoor, 25 ft. outdoor

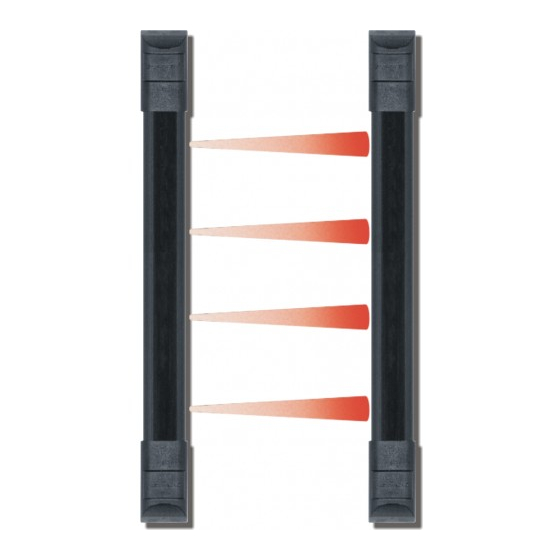

(E-9622-4B25 shown)
Windows
Garages / Gates / Walls
U.S.A., INC.
®
®
Fence Tops
(Indoor) Skylights
